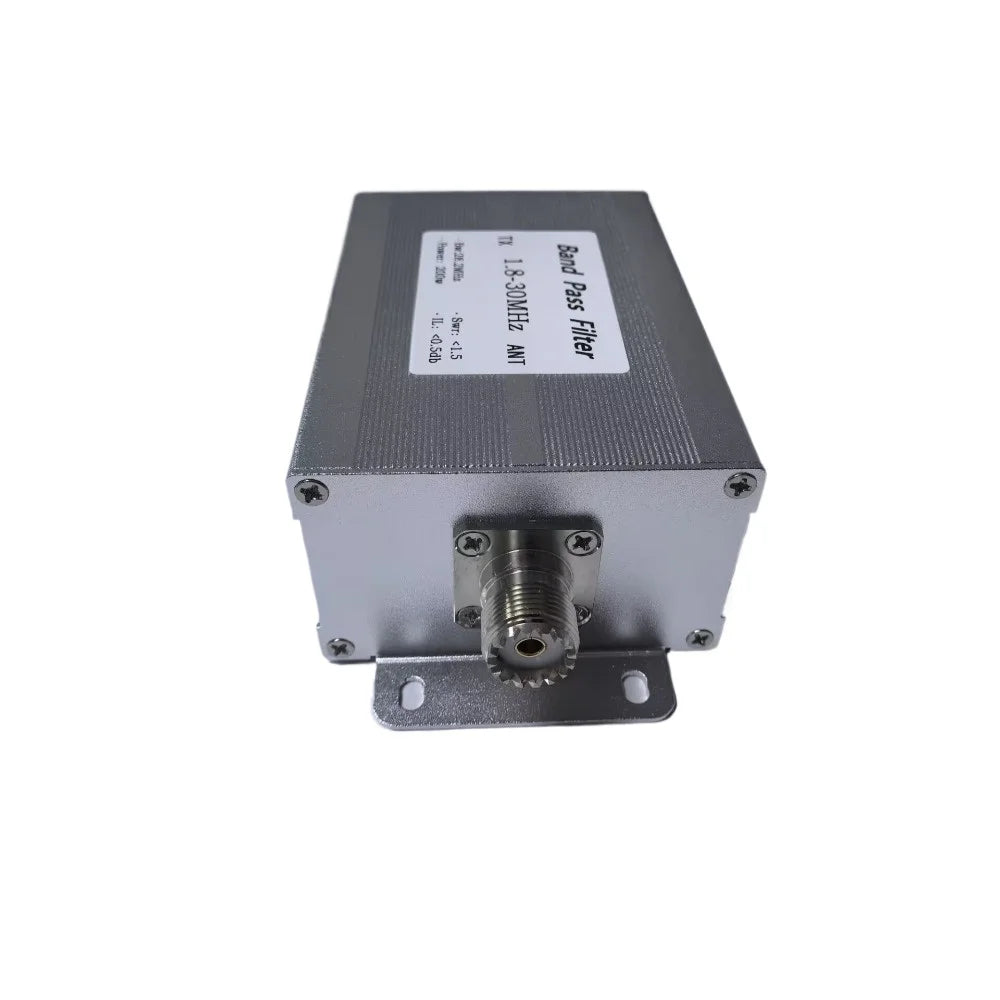

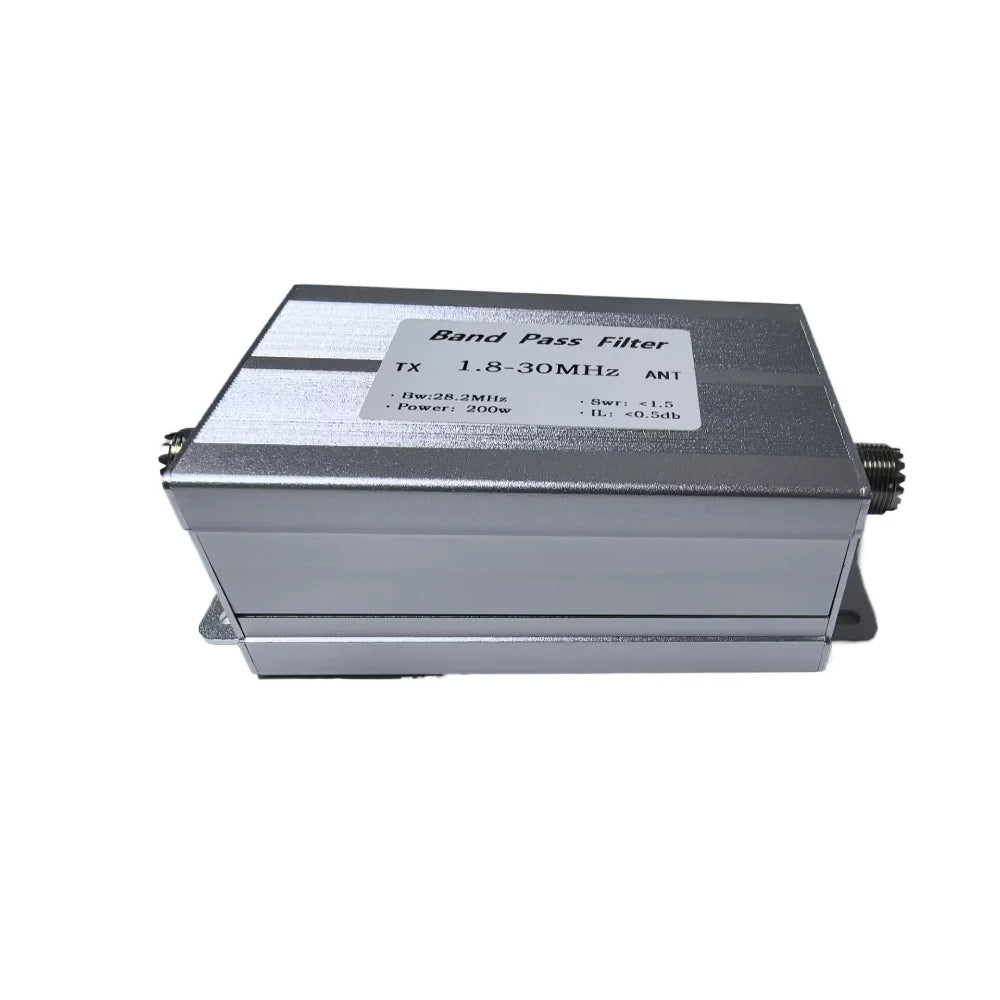

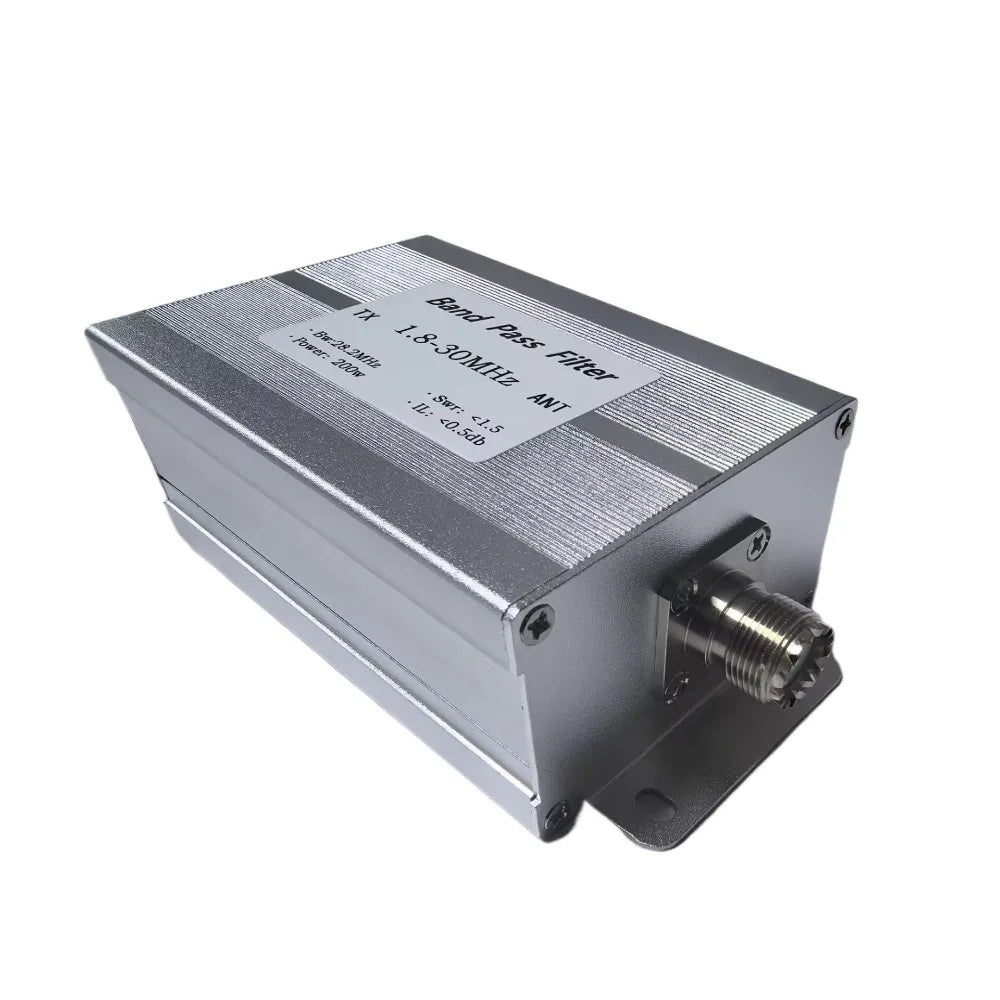

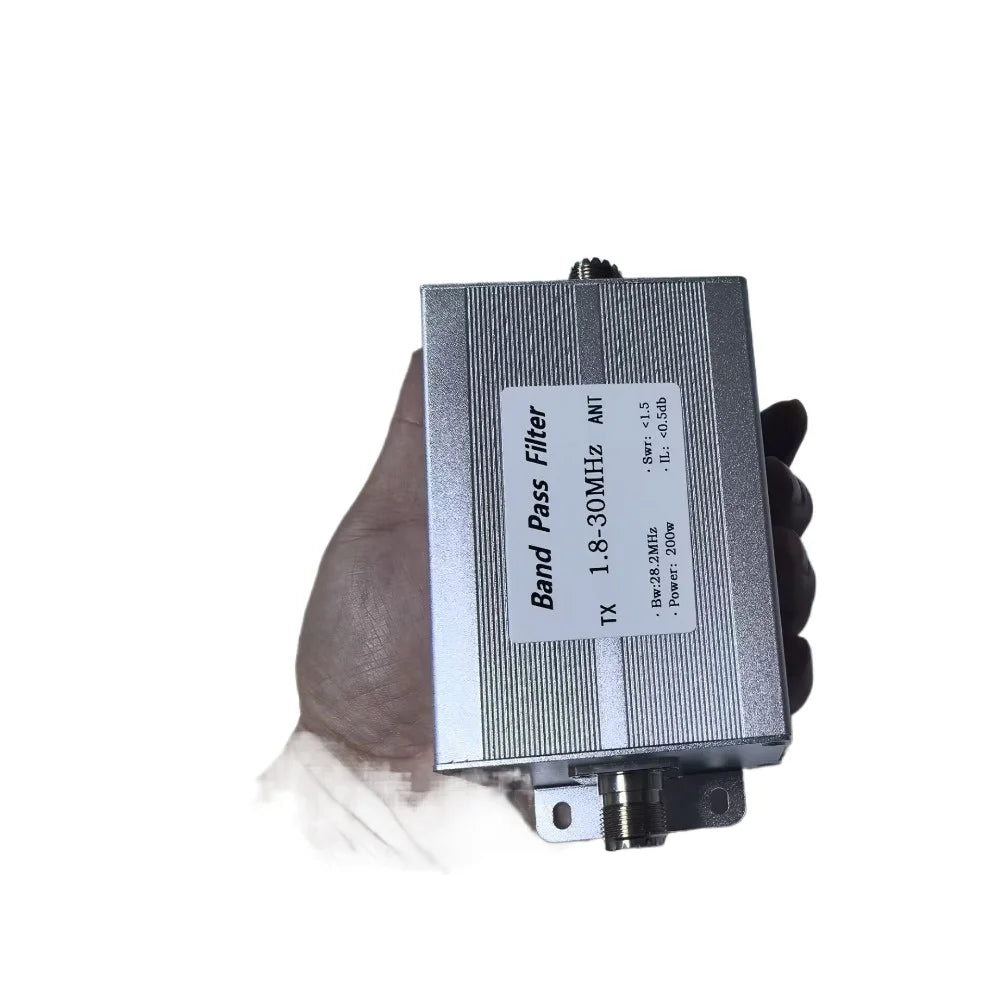

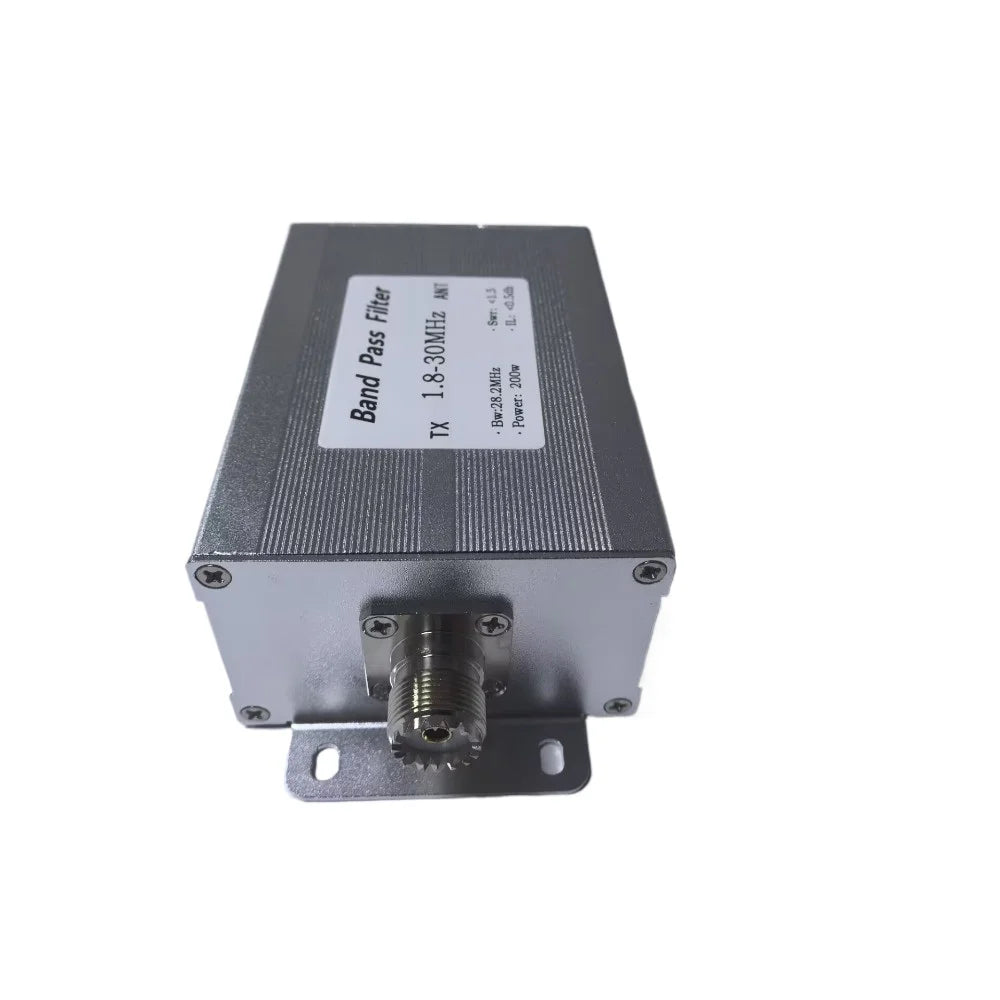

BPF-1.8-30M-200WM Band Pass Filter 50ohm Anti-interference with SL16-F Connector
BPF-1.8-30M-200WM Band Pass Filter 50ohm Anti-interference with SL16-F Connector
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Special occasions:
-
This bandpass filter is suitable for use in short wave communication where the radio station is very close to the medium wave radio station or is subject to strong medium wave interference. It can also be used in situations where the short wave radio station interferes with cable TV users during transmission.
General occasions:
-
When a shortwave radio station is working, in order to minimize electromagnetic interference from the surrounding area, this bandpass filter can be connected, which will greatly improve the signal-to-noise ratio.
Specification:
-
Model: BPF-1.8-30M-200WM
-
Input impedance: 50ohm
-
Output impedance: 50ohm
-
Bandwidth: 1.8-30MHz
-
Insertion loss: < 0.5dB
-
Power: 200W (SSB CW AM FM)
-
SWR: < 1.5
-
Interface: SL16-F (M socket)
-
Net weight: 360g
-
Product size: 150 x 76 x 46mm
-
Installation hole size: 130 x 42mm
Package Included:
1 x Band Pass Filter
