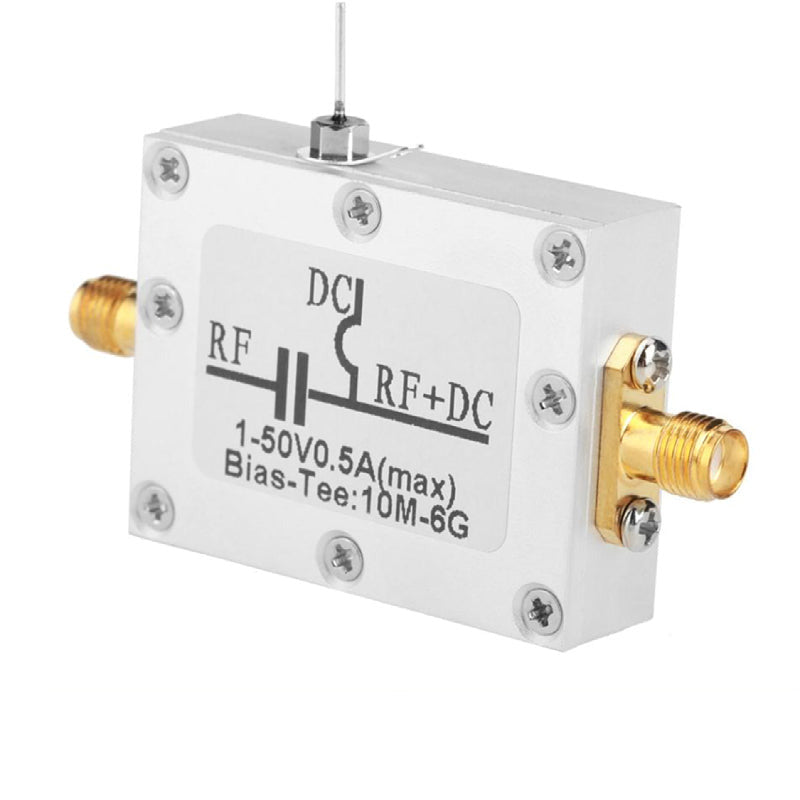

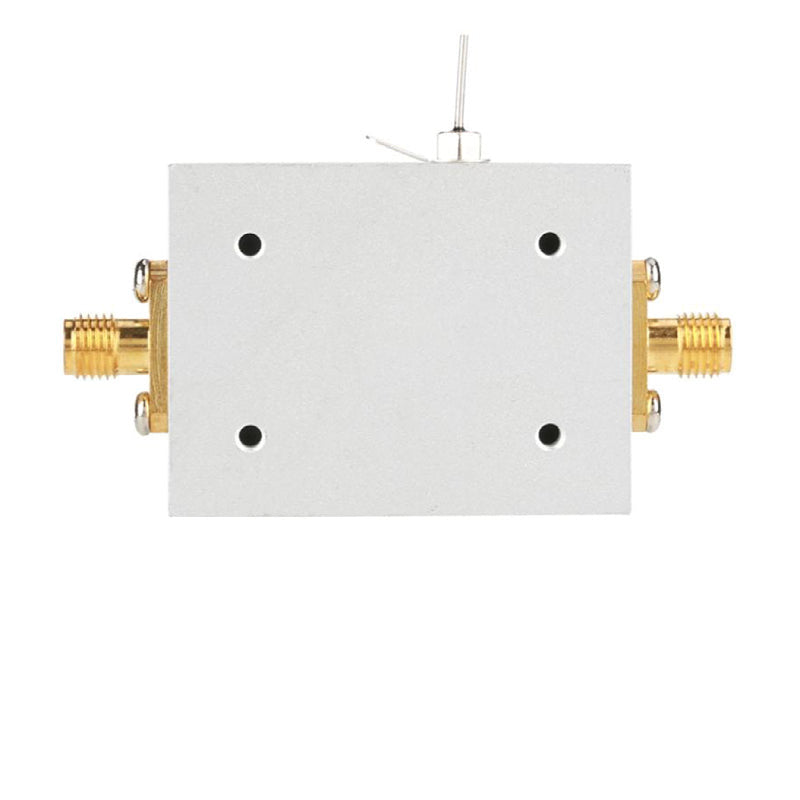

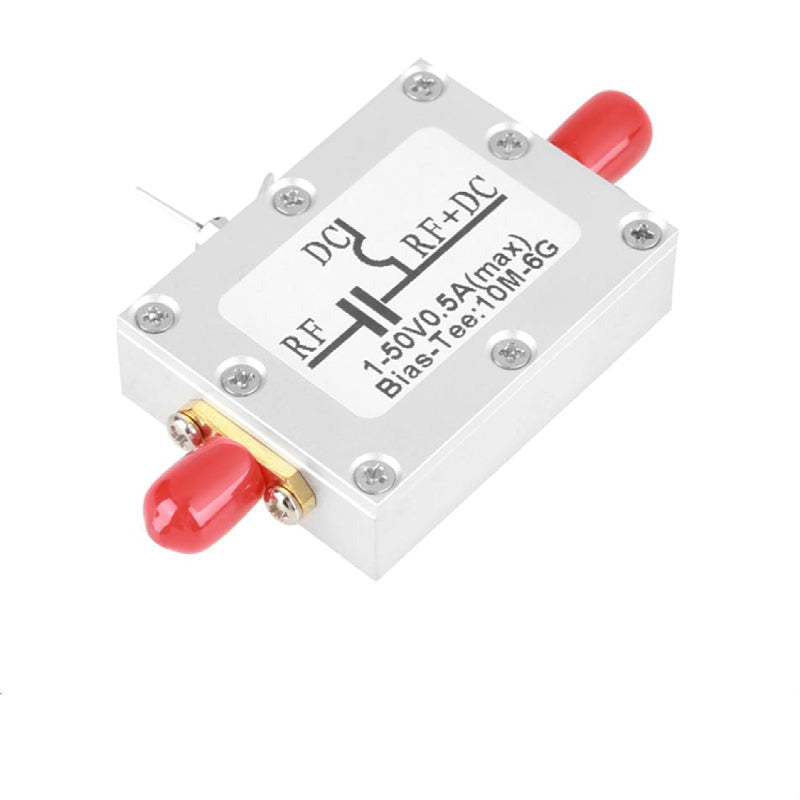

DC 1-50V High Quality 10MHz-6GHz Bias Tee 10MHz-6GHz Broadband Radio Frequency Microwave Coaxial Bias Software radio FM radio
Specifications:
-
Working frequency: 10MHZ-6GHz
-
Insertion loss < 1.2 dB
-
Operating Voltage: DC1-50V
-
Normal working current: < 0.5A
-

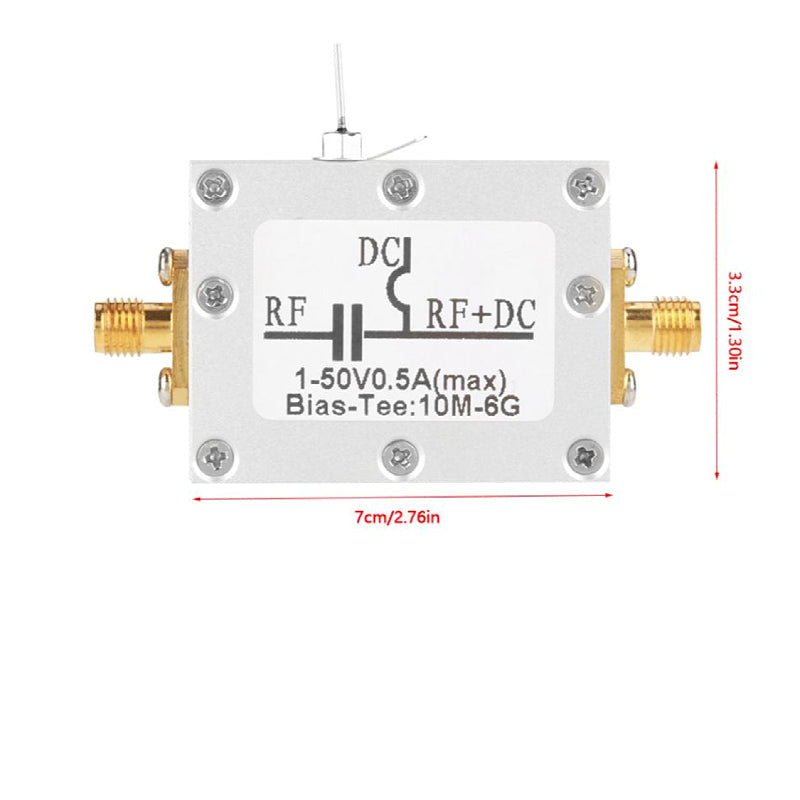

Size: 7 x 3.3cm / 2.76 x 1.30in
-
Weight: 36g
Features:
-
It consists of high frequency inductors and capacitors with ultra-broadband, near idealization and no resonant point.
-
Isolating capacitance: isolating DC to prevent DC voltage from leaking to subsequent circuits or test instruments.
-
High frequency inductance: isolate AC information to prevent high frequency signals from leaking into the power supply system.
-
Application: Broadband amplifier, optical fiber communication, optical modulation drive, other test and measurement applications.
