BG7TBL TS-3 Time Source Clock Source 1PPS 0-3.3V 3-Channel SMA Port LEA-M8T GNSS GPS Beidou Second Pulse Timing
BG7TBL TS-3 Time Source Clock Source 1PPS 0-3.3V 3-Channel SMA Port LEA-M8T GNSS GPS Beidou Second Pulse Timing
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Specification:
- Model: TS-3
- Power supply: 5.5/2.1 socket, DC 5-12V, <=0.2A
- Antenna: SMA port, DC3.3V/0.1A
- 1PPS output: 3-channel SMA port, square wave, 0 - 3.3V; 30ns rms, rise edge alignment with UTC; directly output from GNSS output without timing
- Serial port output: RS232 level, 9600BPS, GPS NMEA0183 protocol signal
- Built-in module: LEA-M8T
- LED:
PWR: light up when power on
1PPS: flash when 1PPS output

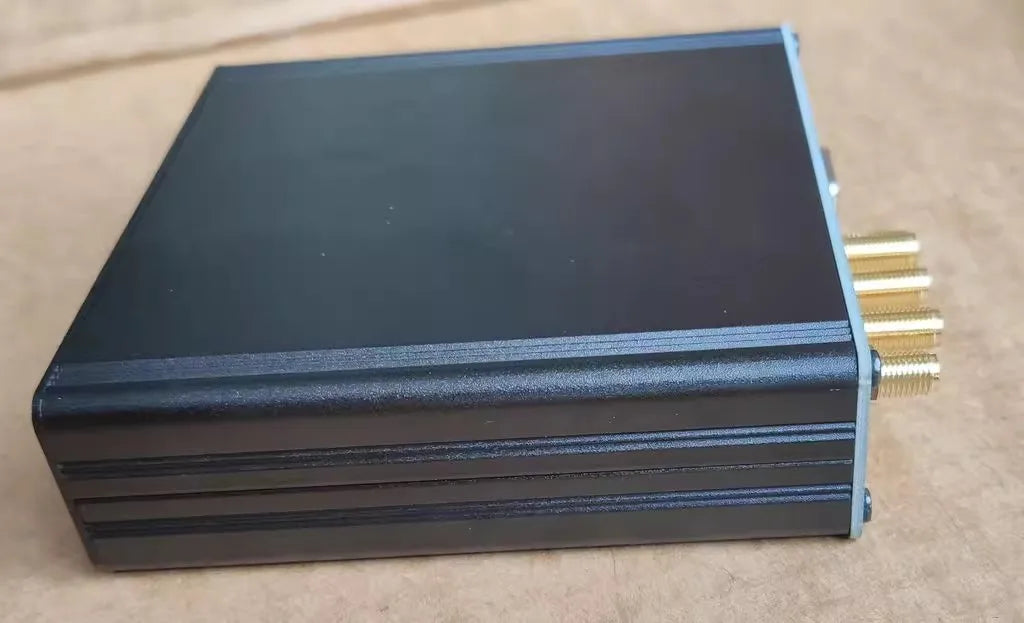

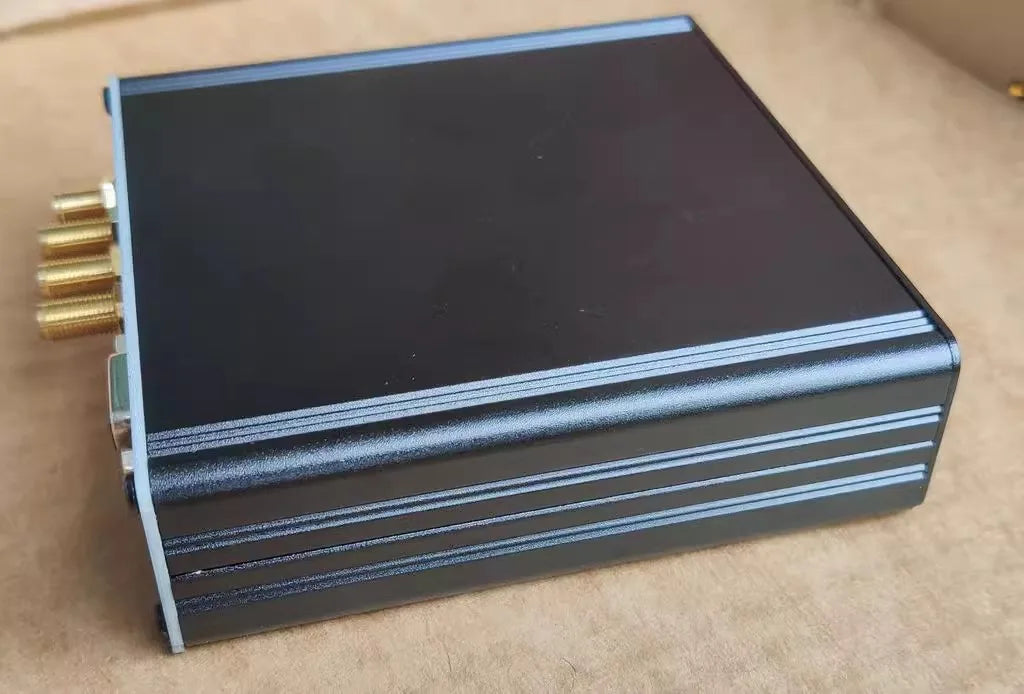

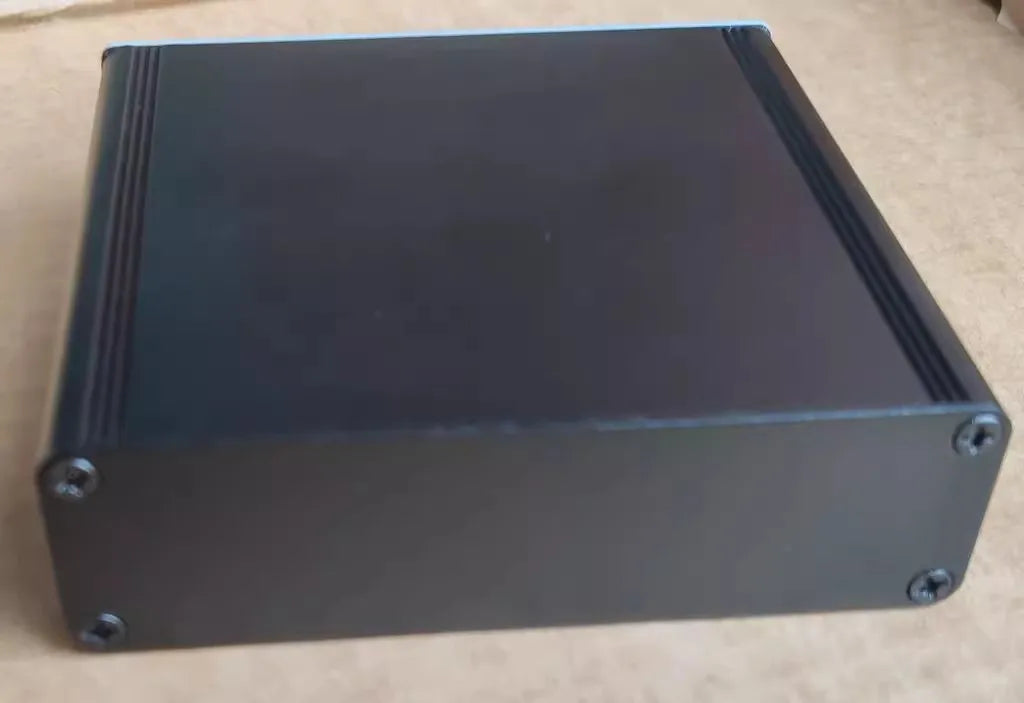

- Size: W x H x D = 106 x 30 x 120mm
FAQ:
Q: What is clock source? And what does it used for?
A: To output a accurate absolute time. It is used for radio timing.
Q: Can it be used without antenna?
A: No, the signal inside will output directly from the module.
Q: When is the output signal valid?
A: When 1PPS LED is flashing.
Q: What should I do if I want to output multiple signals?
A: It can be connected with a distributor.
Package Included:
- 1 x Clock Source
- 1 x AC110 - 220 - DC12V Adapter
- 1 x 5m GPS Antenna
