BG7TBL Frequency distribution amplifier 10M 1PPS Clock Distributor 8+8 Channel
BG7TBL Frequency distribution amplifier 10M 1PPS Clock Distributor 8+8 Channel
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Product Name: 8+8-channel Clock Distributor
Product model: FDIS-8-8
Product principle; Built in 10M and 1PPS1 split into 8 circuits, with a built-in 1PPS frequency divider circuit that generates 1PPS from 10M. It can input only 10M externally and output 8 channels of 10M and 8 channels of 1PPS. 1PPS is split from 10M, or external input 10M and 1PPS can be split into 8 channels each for output,
You can also purchase the built-in OCXO option, which does not require an external input of 10M and has 10M and 1PPS outputs. You can also choose the taming clock option, where 10M and 1PPS output stable 10M+1PPS signals of the taming clock, respectively
Input: 10M Input: 0.5-5VPP square wave, sine wave, triangular wave, etc., 50 ohms
1PPS input: 0.5Hz-200M, 0-3.3/5V square wave, TTL level output: 10M output:+13dBm sine wave, impedance 50 ohms, frequency consistent with input

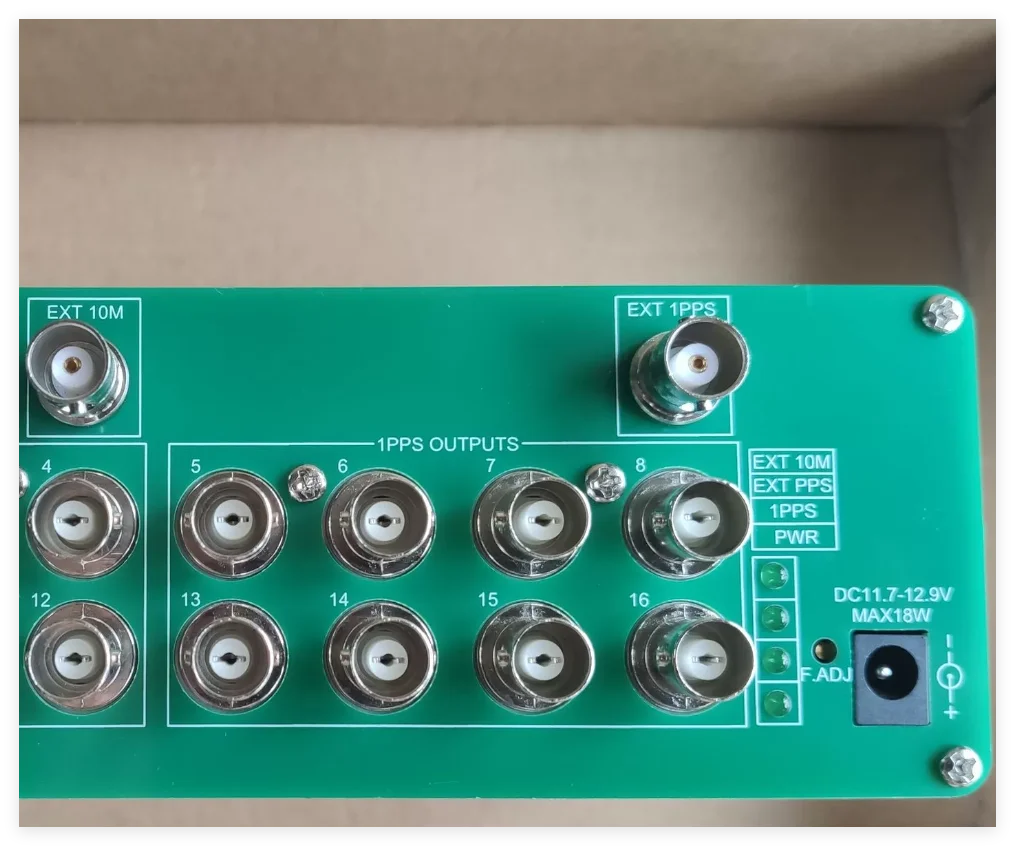

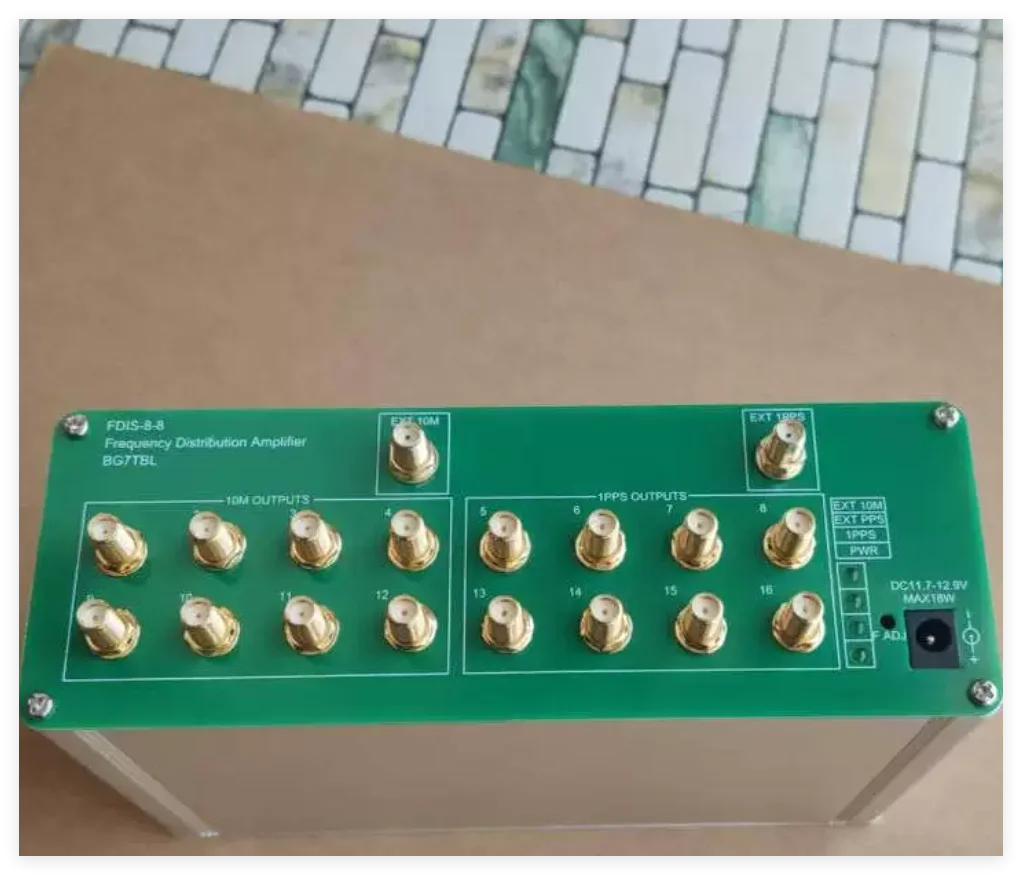

1PPS output: 0-3.3V/5V square wave optional, impedance 50 ohms, frequency and input consistent, duty cycle and input consistent, interface: DC interface 5521, signal interface SMA/BNC power indicator light: EXT10M external 10M input
EXT1PPS, External 1PPS input
1PPS: PPS output port indicator light,
PWR: Power indicator light,
Operating temperature: -10 to+50 degrees Celsius
Storage temperature: -20 to+75 degrees Celsius
Power supply: DC12V/0.5A
Size: 178 * 62 * 120mm
Weight: 0.8KG,
Operation steps: It can be used immediately after power on,
Attachment: 1 power adapter
