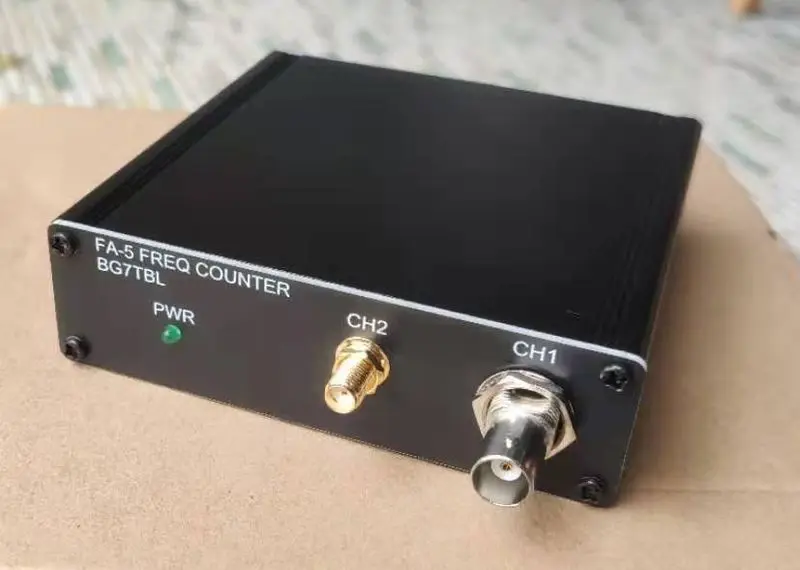

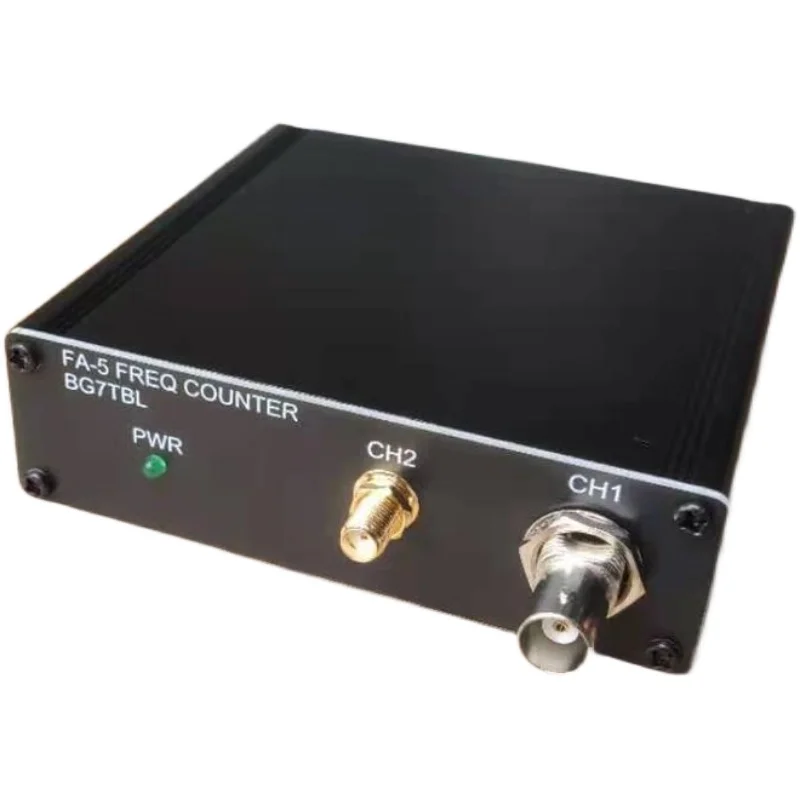

Bg7tbl FA-5 FREQ COUNTER USB Frequency Counter Acquisition Module 1Hz to 6GHz 12.4G 26.5G Frequency Meter High Precision

FA-5 FREQ COUNTER USB Frequency Counter Acquisition Module 1Hz-6GHz Frequency Meter High Precision

Specifications:

- Type: FA-5-6G
- CH1 frequency range: 1Hz-300MHz
- CH1 input impedance: 50 OHM/1M OHM
- CH1 input reference sensitivity: 50 OHM, 25mVRMS-2VRMS; 1M OHM, 25mVRMS-10VRMS
-
CH1 frequency accuracy: 0.1 second gate: 0.001Hz at 10M; 1 second gate:
0.0001Hz at 10M; 10-second gate: 0.00001Hz at 10M
- CH1 measurement speed: 11 bits/sec at 10M
- CH1 interface type: BNC
- CH2 frequency range: 30MHz-6GHz
- CH2 input impedance: 50 OHM
-
CH2 frequency accuracy: 0.1 second gate: 1Hz at 1GHz; 1 second gate:
0.01Hz at 1GHz; 10-second gate: 0.001Hz at 1GHz
- CH2 input power: -20dBM to +13dBm at 0.5-5G
- CH2 interface type: SMA
- Gate time: 0.1 second/1 second/10 second
- Internal reference frequency: 10MHz
- Internal reference type: OCXO
- Internal reference year aging: 0.5Hz

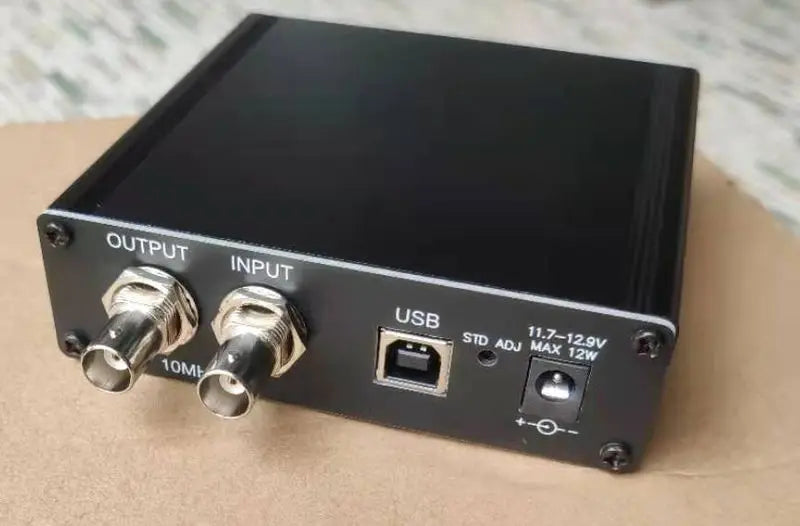

- Internal reference output port power: 4dBm
- External reference input power range: 0dBm to +20DBM
- Default communication baud rate: 9600BPS
- Operation mode: CH1 frequency measurement mode, CH2 frequency measurement mode, Self-check mode
- Power supply: 11.7-12.5V; start: <0.4A; stability: <0.2A
- Dimensions: 106 x 30 x 142mm/4.2 x 1.2 x 5.6" (LxHxD)
- Weight: 350g
- Accessories: 1pcs DC12V adapter, 1pcs USB cable
