BG7TBL FA-3-6G 1Hz-6GHz High Sensitivity Frequency Meter -30dBm to +20dBm Precision Frequency Counter+ Power Adapter
BG7TBL FA-3-6G 1Hz-6GHz High Sensitivity Frequency Meter -30dBm to +20dBm Precision Frequency Counter+ Power Adapter
Sale
Sold out
Pre-order
Regular price
$276.80 USD
Regular price
$425.84 USD
Sale price
$276.80 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
Type: FA-3-6G
- CH1 frequency range: 1Hz-300MHz
-CH1 input impedance: 50Ω/1MΩ
-CH1 input reference sensitivity: 50Ω: 25mVRMS-2VRMS; 1MΩ: 25mVRMS-10VRMS
-CH1 frequency accuracy: 0.1-second gate: 0.001Hz at 10M; 1-second gate: 0.0001Hz at 10M; 10-second gate: 0.00001Hz at 10M
- CH1 measurement speed: 11 bits/sec at 10M
- CH1 power test range: -50DBM to +20DBM, 1M-550M at 50 OHM
-CH1 power measurement accuracy: 0.5DB at 10MHz
- CH1 interface type: BNC
- CH2 frequency range: 30MHz-6GHz
- CH2 input impedance: 50 OHM
-CH2 frequency accuracy: 0.1-second gate: 1Hz at 1GHz; 1-second gate: 0.01Hz at 1GHz; 10-second gate: 0.001Hz at 1GHz
- CH2 input power range: -30dBm to +20dBm
- CH2 interface type: SMA
-Gate time: 0.1 second/1 second/10 second
- Internal reference frequency: 10MHz
- Internal reference type: OCXO
-Internal base year aging: 0.5Hz
- Internal reference output port power: 4dBm
- External reference input power range: 0dBm to +20DBM
-Panel screen: 3.2 inches, 128 x 64 pixels
- Operation modes: CH1 frequency measurement mode, CH1 statistical mode, CH2 frequency measurement mode, CH2 statistical mode
- Statistics mode data types: average, maximum, minimum, peak-to-peak value
-Power supply: 11.7-12.5V, Start: <0.6A, Stable: <0.4A
- Size: 127 x 75 x 143mm (L x H x D)
- Net weight: 750g

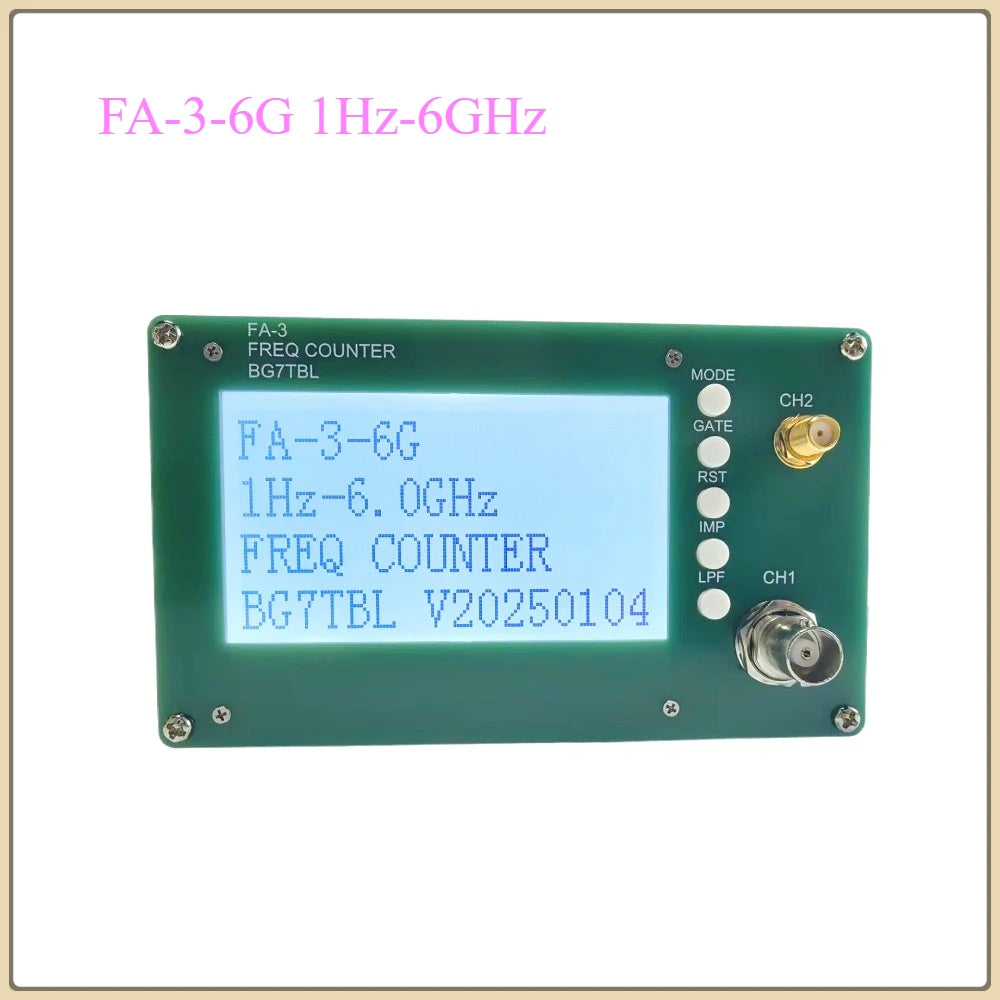

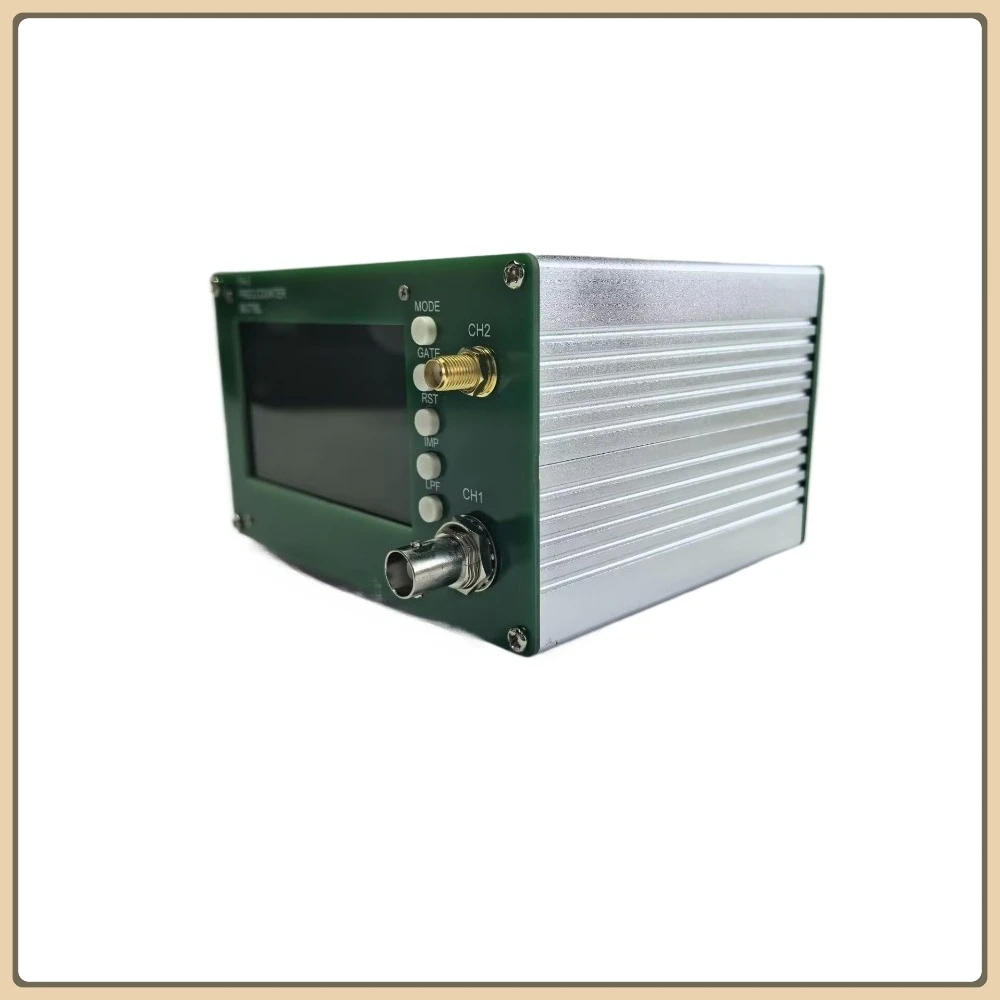

Front Panel Functions:
- MODE: operating mode conversion
- GATE: Gate time selection
- RST: restart measurement
- IMP: CH1 input impedance selection
- LPF: Whether CH1 opens 100K LPF
- CH1: Channel 1 input
- CH2: Channel 2 input

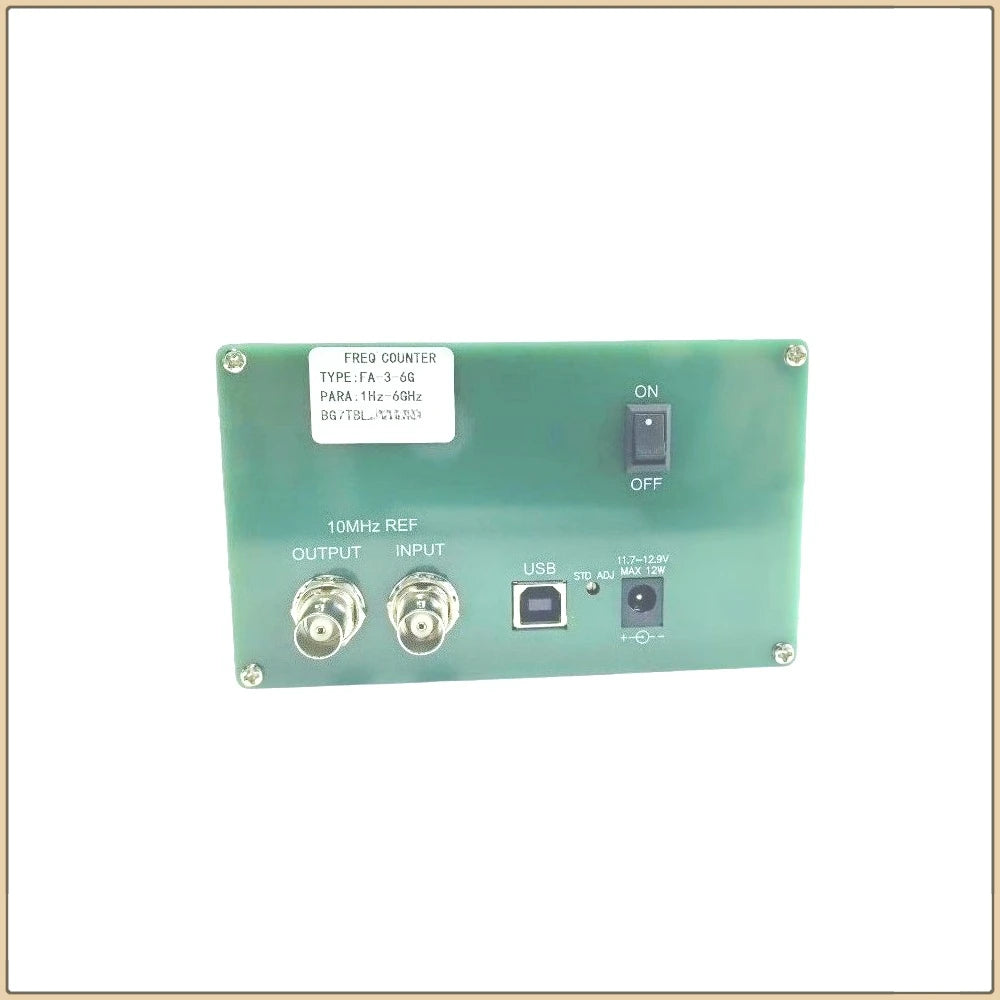

Rear Panel Functions:
- 10M REF INPUT: external 10M reference input
- 10M REF OUTPUT: 10M reference output
- USB: USB port
- STD ADJ: internal OCXO frequency fine-tuning
- ON/OFF: Switch
- With a DC socket

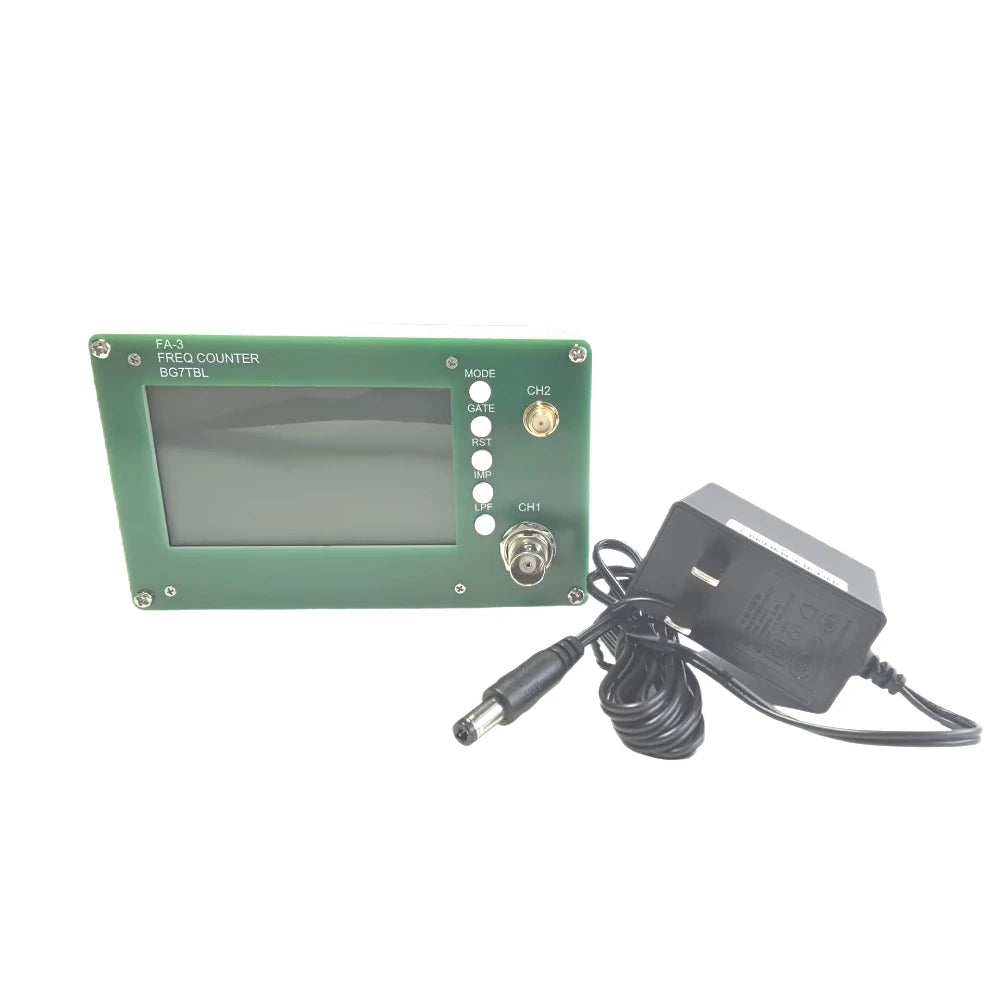

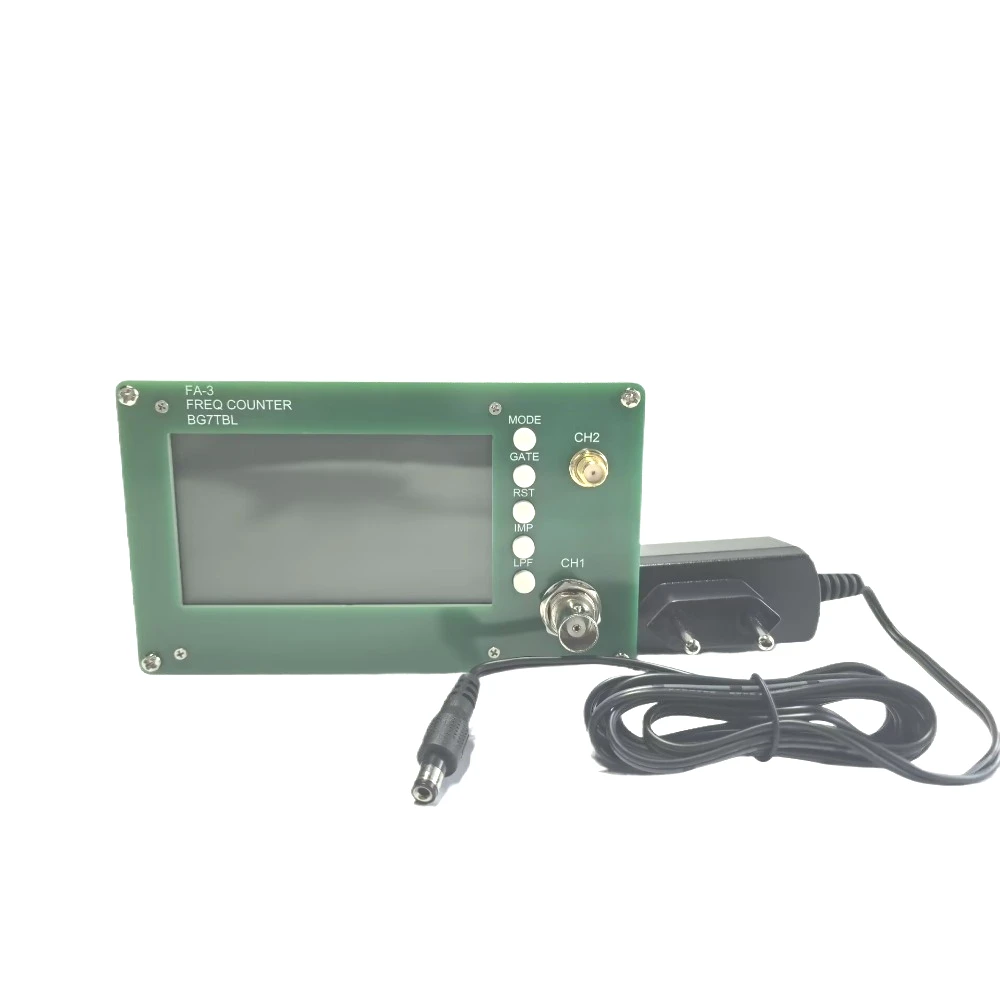

Package Included:
1 x Frequency Meter
1 x DC12V Power Adapter
