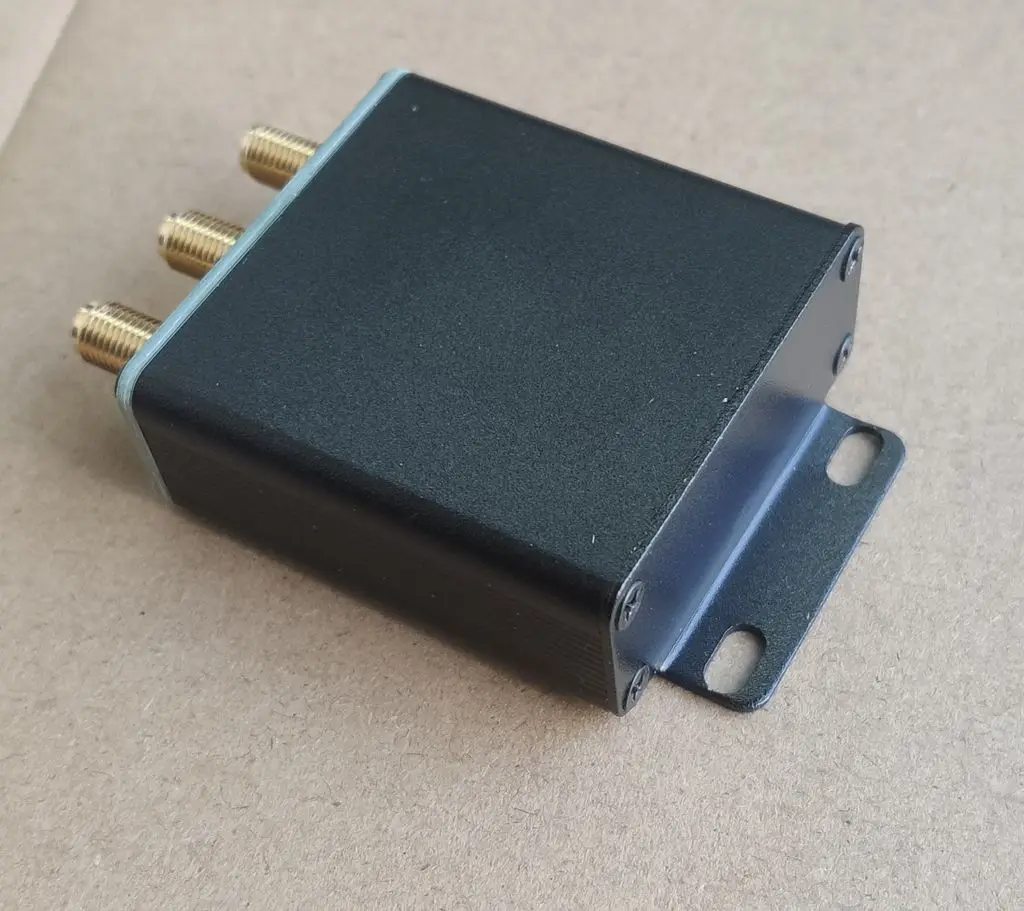

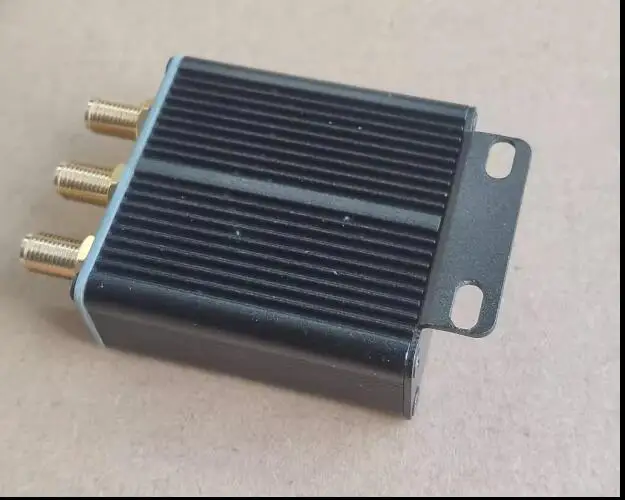

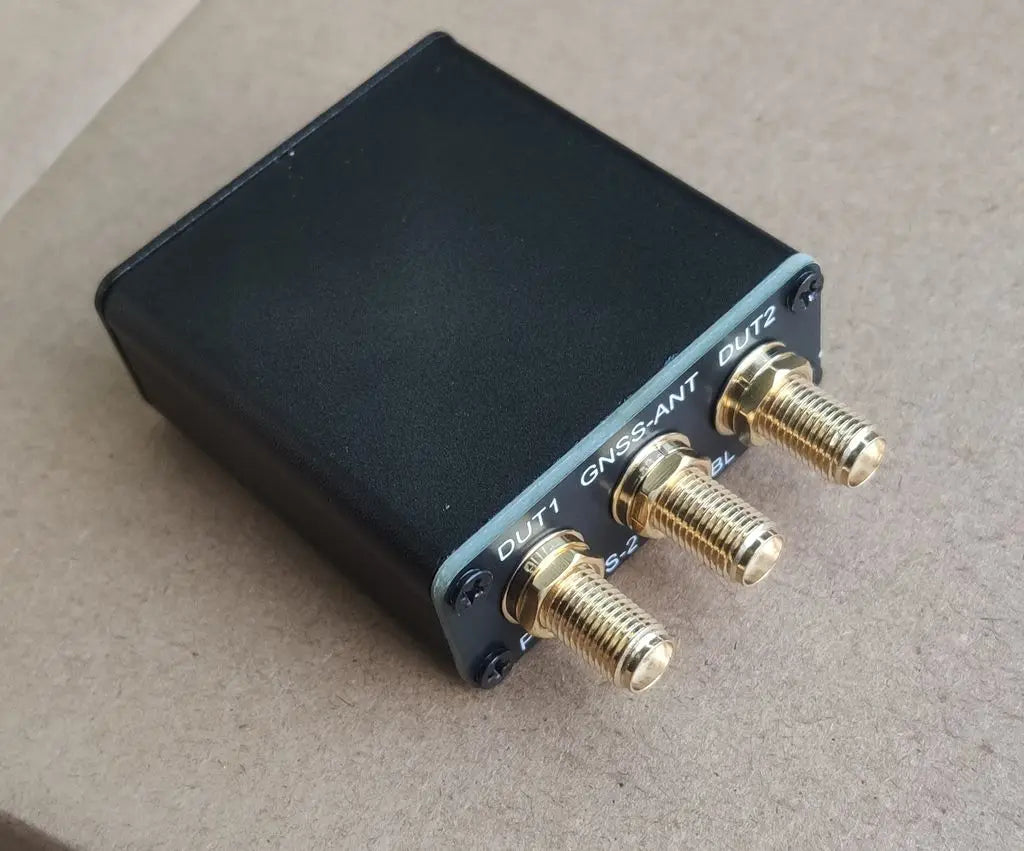

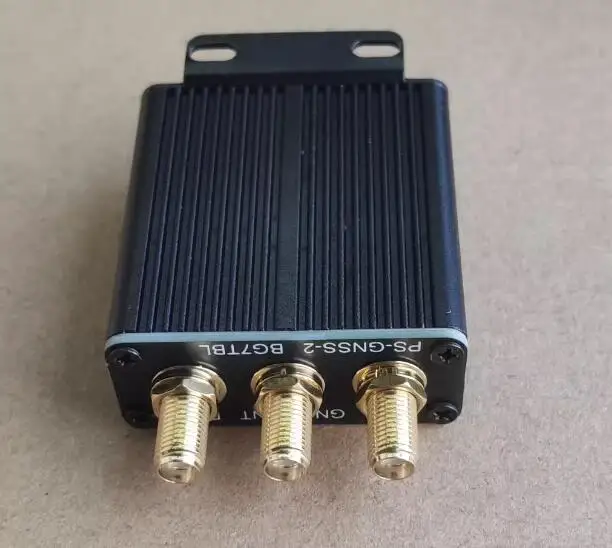

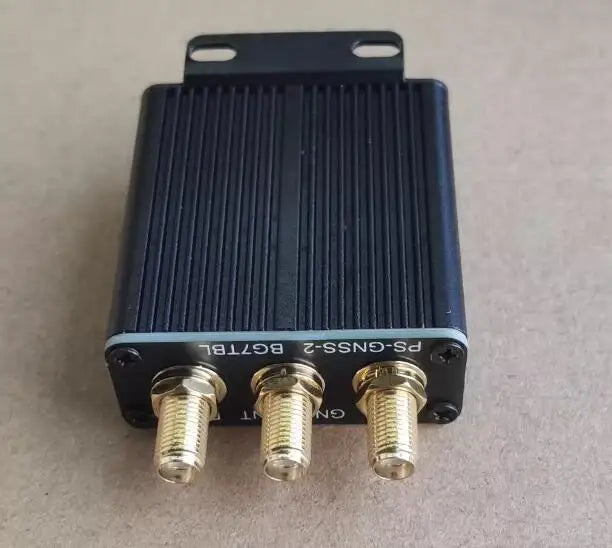

BG7TBL 1.1 - 1.7G PS-GNSS-2 GNSS Signal Power Splitter One to Two Power Divider with DC Feed for BDS GPS Beidou
BG7TBL 1.1 - 1.7G PS-GNSS-2 GNSS Signal Power Splitter One to Two Power Divider with DC Feed for BDS GPS Beidou
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Specification:
- Model: PS-GNSS-2
- Frequency range: 1.1 - 1.7G
- Insertion loss (3dB is not included in theory): less than 1dB
- Terminal return loss: better than 15dB
- Isolation degree: better than 15dB

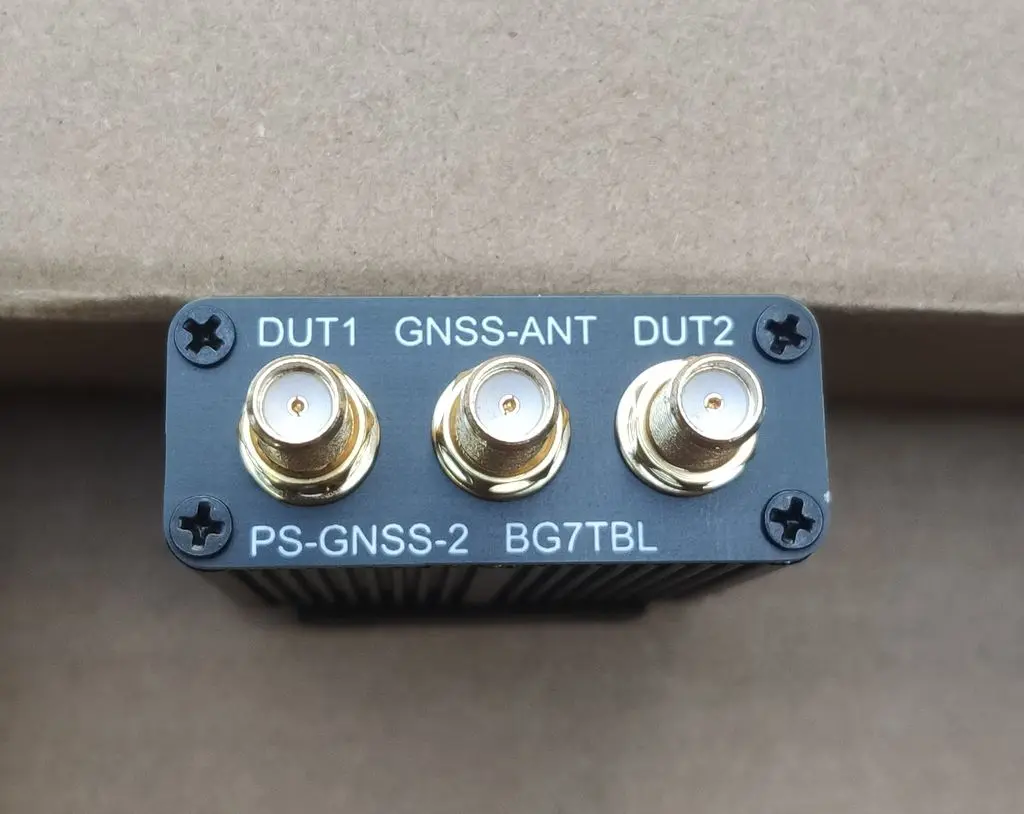

- DC input: DUT1, DUT2, maximum +10V/0.1A
- DC output: GNSS-ANT, 0.25V lower than input
- RF input: GNSS-ANT
- RF output: DUT1, DUT2
- Connector: SMA
- Size: L x W x H = 70 x 46 x 19mm
- Weight: 55g
Package Included:
- 1 x Power Splitter
Description
Description
Specification:
- Model: PS-GNSS-2
- Frequency range: 1.1 - 1.7G
- Insertion loss (3dB is not included in theory): less than 1dB
- Terminal return loss: better than 15dB
- Isolation degree: better than 15dB
- DC input: DUT1, DUT2, maximum +10V/0.1A
- DC output: GNSS-ANT, 0.25V lower than input
- RF input: GNSS-ANT
- RF output: DUT1, DUT2
- Connector: SMA
- Size: L x W x H = 70 x 46 x 19mm
- Weight: 55g
Package Included:
- 1 x Power Splitter
