Description:

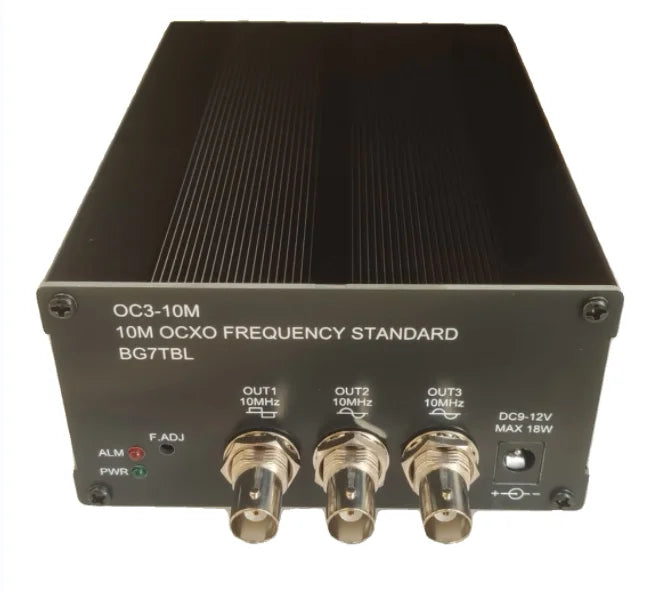

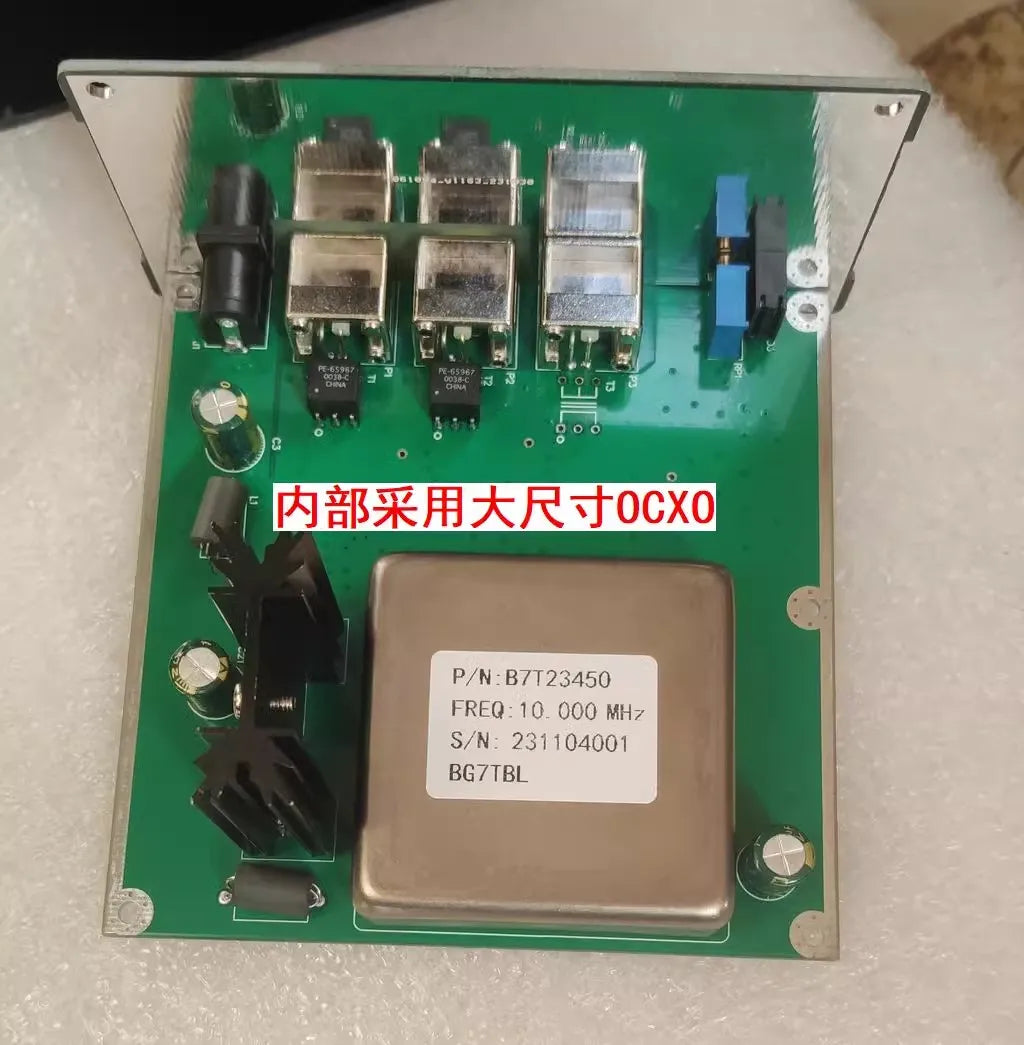

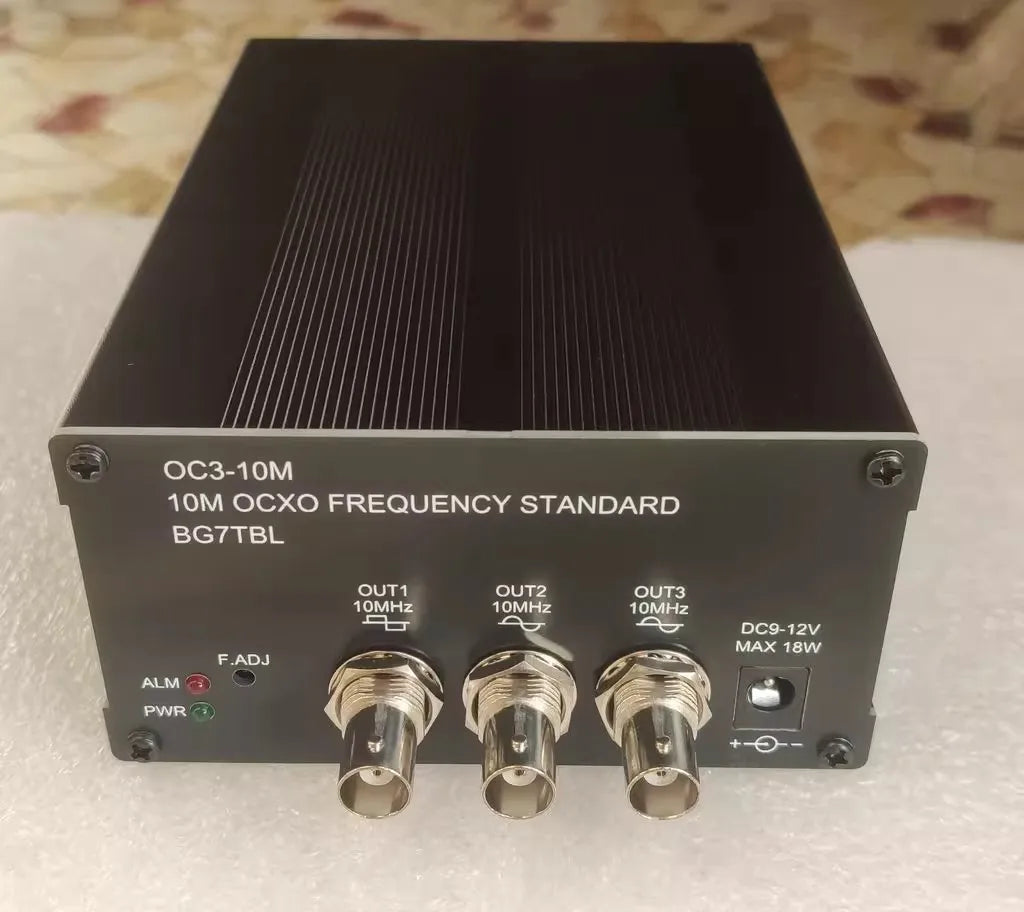

- It is a 10M frequency standard with 2-channel isolated sine wave and 1-channel square wave, adopts large volume OCXO with stable frequency.
Specification:
- Product name: 10M OCXO frequency standard
- Model: OC3-10M
- Power supply: DC9-12V, <=18W
- Frequency adjustment range: about 5Hz
- Output socket: 5.5/2.1 socket for power supply; BNC interface for signal output
- LED Indicator:
ALM: warning, LED on when there is no signal output
PWR: LED on when power on

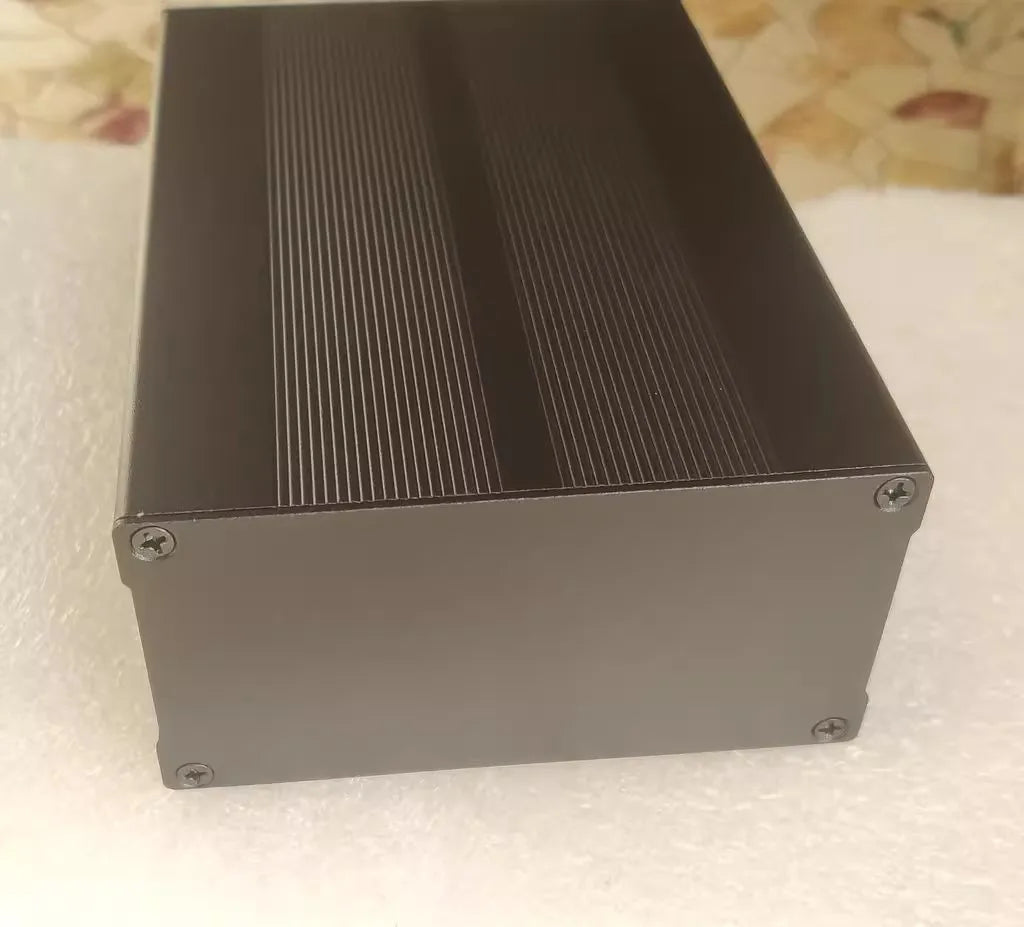

- Product size: W x H x D = 107 x 55 x 175mm (includes the BNC connector)
- Product weight: 800g (includes the power adapter)
10M signal:
- Amplitude: 2-channel sine wave, 50ohm impedance, amplitude 13dBm +/- 2dB, built-in isolated transformer; 1-channel square wave, 50ohm impedance, 5Vpp
- Reference phase noise: 1Hz - 105dBc/Hz, 10Hz - 131dBc/Hz, 100Hz - 142dBc/Hz, 1K - 150dBc/Hz
- Harmonic wave: better than 58dB
- Spurious emission: better than 50dB
Package Included:
- 1 x Frequency Standard
- 1 x Power Adapter
