AVRT9 APRS TNC Portable DIGI/TRACKER/IGATE GPS+WIFI+BT VHF Support UI/KISS/WPL output
AVRT9 APRS TNC Portable DIGI/TRACKER/IGATE GPS+WIFI+BT VHF Support UI/KISS/WPL output
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout

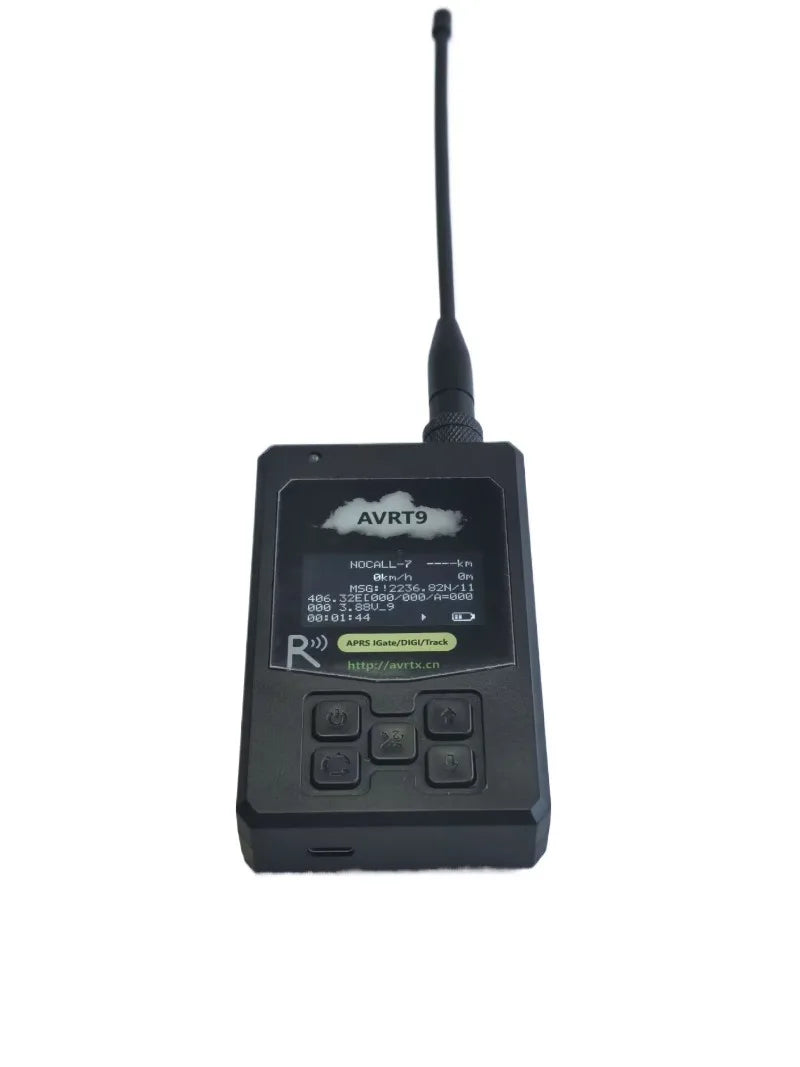

AVRT9 is the latest APRS TNC launched by BI7NOR (supports APRS tracking, DIGI, IGATE, Messages), which is operated and configured by 5 buttons and supports firmware upgrades.
Main introduction:
-
Main interface: You can switch to display the current beacon, GPS satellite list, GPS speed, and after the test UI interface is turned on, you can display the WIFI connection status.
-
Beacon list: AVRT9 will record the reception time of each beacon, display 5 per screen, and scroll to record up to 149 beacons. The beacon displays distance, direction, GPS coordinates, altitude, speed, heading, path and other information.
-
Beacons support time intervals, distance intervals and smart beacons
-
Serial port supports output UI/KISS/WPL
Parameters:
-
1.54-inch OLED display, which can be clearly displayed even in direct sunlight outdoors.
-
Built-in VHF module (0.5/2W output adjustable), receiving and transmitting frequency range 136-174MHz.
-
Built-in independent APRS decoding chip, hard decoding protocol AX.25, rate 1200BPS.
-
Built-in GPS, receive satellite signals to obtain coordinates.
-
Built-in Bluetooth module, support aprsdroid.
-
Built-in WIFI module, can receive APRS data packets, decode and upload to the server, and also support uploading local GPS tracks directly to the server.
-
Built-in temperature sensor, can detect the temperature of the VHF module, can also be moved outdoors to detect the ambient temperature.
-
Built-in buzzer, can be set to output buzzer sound prompts when receiving decoding/transmitting.
-
Built-in lithium battery 3.7V/2500MAH (tested to turn on GPS/BT and use smart beacons for 10 hours). Use USB-C to charge. 5V1A.
Specification:
- Product size: 60 x 20 x 160mm
- Net weight: 150g
Package Included:
- 1 x AVRT9
