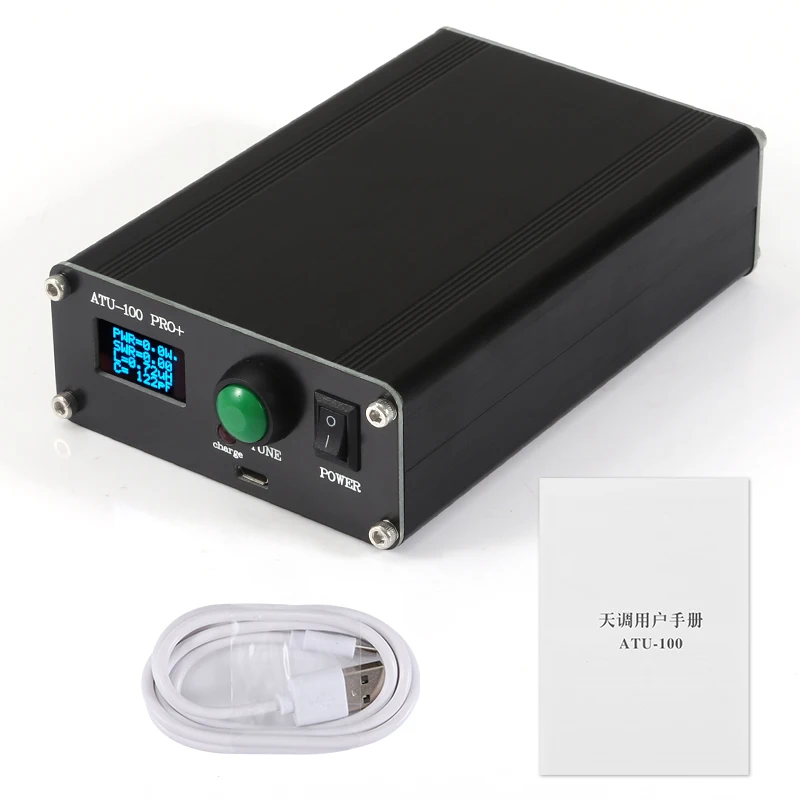

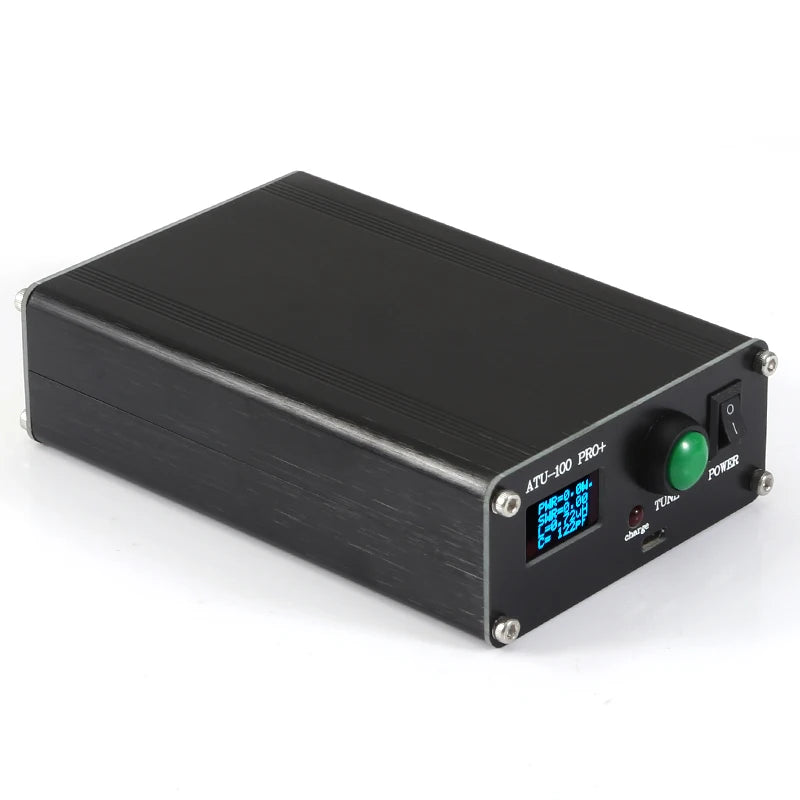

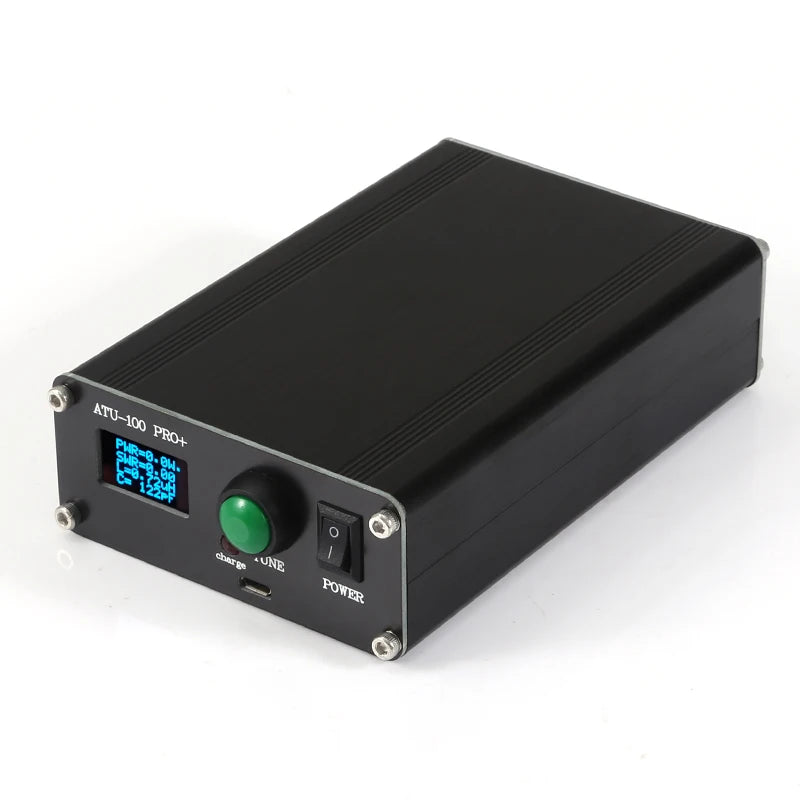

Atu-100 Pro+ Automatic Antenna Tuner
NOTE :
-
it is assembled , ready to use !
-
with Metal case,
-
with 0.96 OLED,
-
USB power Charing
-
rechargable battery !
-
USB charging current: 1A
-
The device consists of a set of seven capacitors and seven inductors, which enables it (with the largest configuration) to work effectively in the broadband, 1.8-30 MHz amateur radio HF band.
-
Power supply voltage: USB charging or you can install battery in it
-
Maximum current consumption: 400mA
-
Maximum working power: 100W
-
Maximum possible measured power: 150W
-
Minimum power required to start tuning: 5W
-
Minimum possible measured power: 0.1W
-
Measurement steps with power up to 10W: 0.1W
-
Measurement steps with power higher than 10W: 1W
-
Power measurement accuracy: 10%
-
Maximum installed inductance: 8.53uh
-
Minimum installation inductance step: 0.05uh
-
Maximum installed capacitance: 1869pf
-
Minimum installation capacitance step: 10PF
-

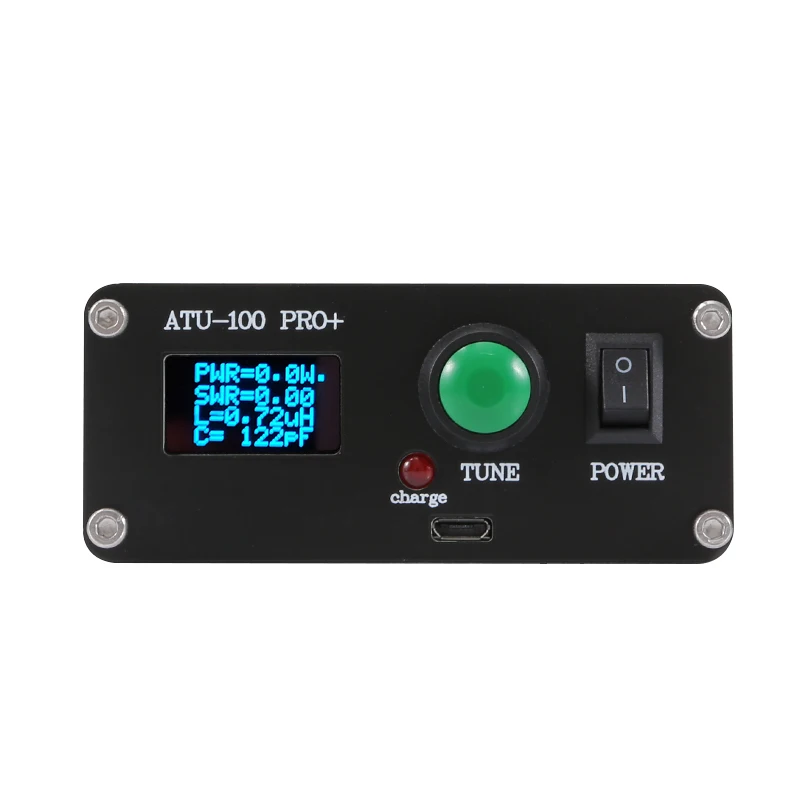

Number of panel buttons: power pow, direct, automatic, function
-
Display: 0.96 oled
