ATS120 PRO SI4732 ESP32 Bluetooth SSB 4.1x CW FM RDS AM LSB USB All Band Receiver Radio with Rotary Encoder Knob Radio ATS120

ATS120pro digital decoder, compatible with firmware 4.1X machines, CW decoding, TF8, TF4, RTTY and other functions (the firmware is under continuous development, the key code can be viewed in the machine, if you need to update, please remember your key code for follow-up For updates, please log in to the official page:http://harduino.ru/index.php/ru/programmnye-produkty)

ATS120PRO optimizes the key switch, adds a physical switch at the bottom, one-key power off, and adds a key LED display, uses a 1200MM extended antenna, and uses WIFI Bluetooth crystal oscillator gain

Built-in decoding module. The radio adopts SI4732+ESP32+Bluetooth+2.4-inch touch display solution, customized high-grade aluminum alloy metal casing, built-in 40MM large-size speaker, FM, AM, LSB, USB multi-mode reception, FM with RDS function mode, Bluetooth stereo

(FM) audio transmission function can be received and played through stereo Bluetooth headsets to achieve true HIFI-level enjoyment. Add LNA preamplifier and switch freely to meet different signal situations. The slim and ultra-thin body is equipped with a 1200MM ultra-long telescopic antenna, making it easy to carry during travel. It is currently the most cost-effective SSB full-band touch color screen handheld pocket radio in the world.

Function introduction:

1. TFT 2.4-inch color touch screen

2. RF spectrum scanning function

3. Backlight brightness adjustment

4. Backlight off

5. Battery voltage display

6. Battery percentage display

7. High-precision rotation and long-life encoder knob

8. FMRDS information display

9. The LNA power amplifier can be switched freely to meet different occasions.

10. AM/FM automatic frequency band switching, AM/FM do not interfere with each other

11. Built-in Bluetooth 4.1 high-fidelity stereo audio transmission, exclusive Bluetooth headset, share Bluetooth audio together

12. 3.5MM stereo headphone output on the top, FM mode headphone cable can be used as an antenna

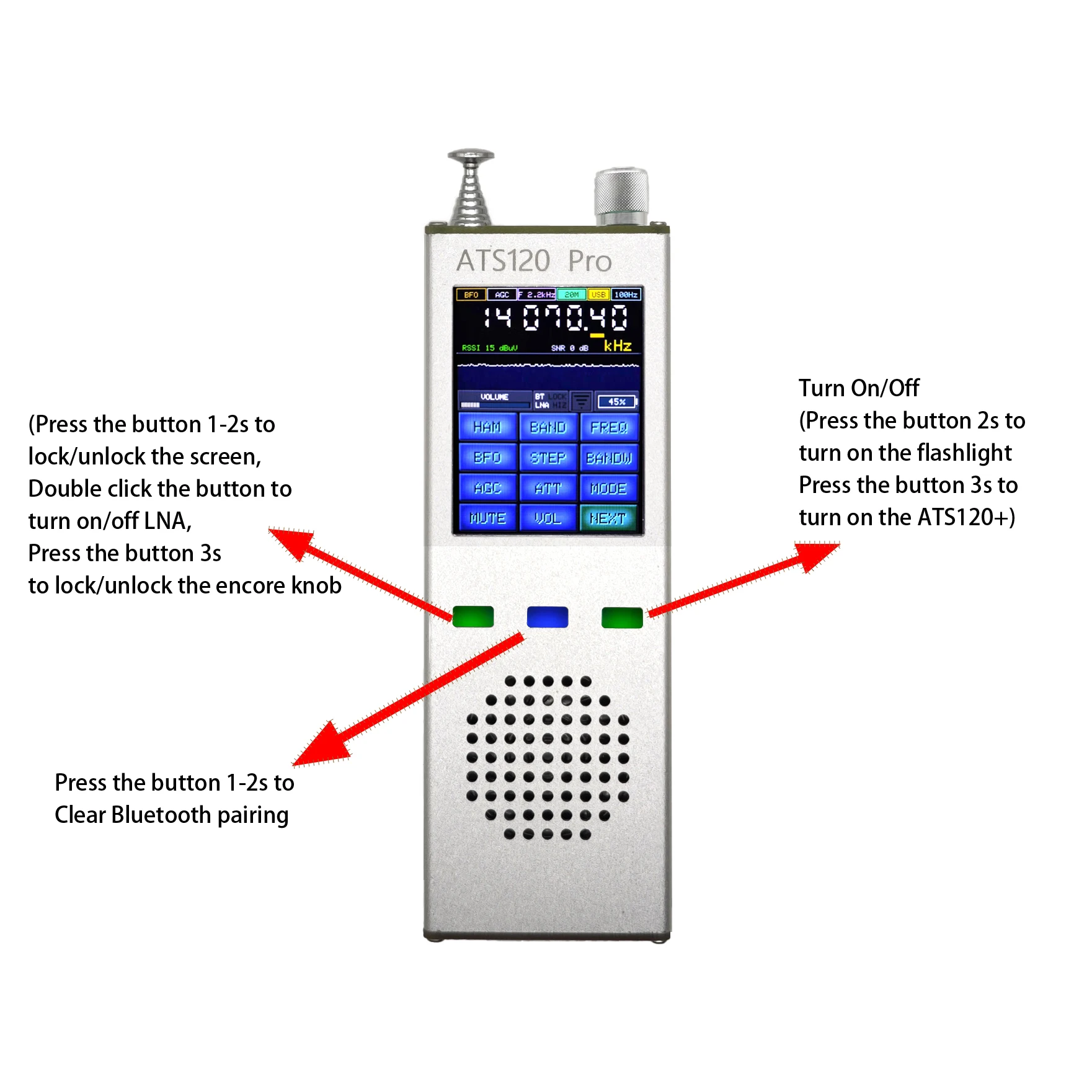

13. Touch screen and encoder lock function, no accidental triggering when placed in pocket

14. The 3.5MM external antenna interface at the bottom can be connected to different outdoor antennas.

15. Top independent LED mini flashlight, can be used without opening the phone

16. Built-in 1200mm ultra-long telescopic antenna

17. Built-in 3.7V/2000MA large-capacity lithium battery

18. Built-in 40MM large size speaker

19. Universal TYPE-C interface charging and program upgrade

20. High-precision CNC aluminum alloy solid shell

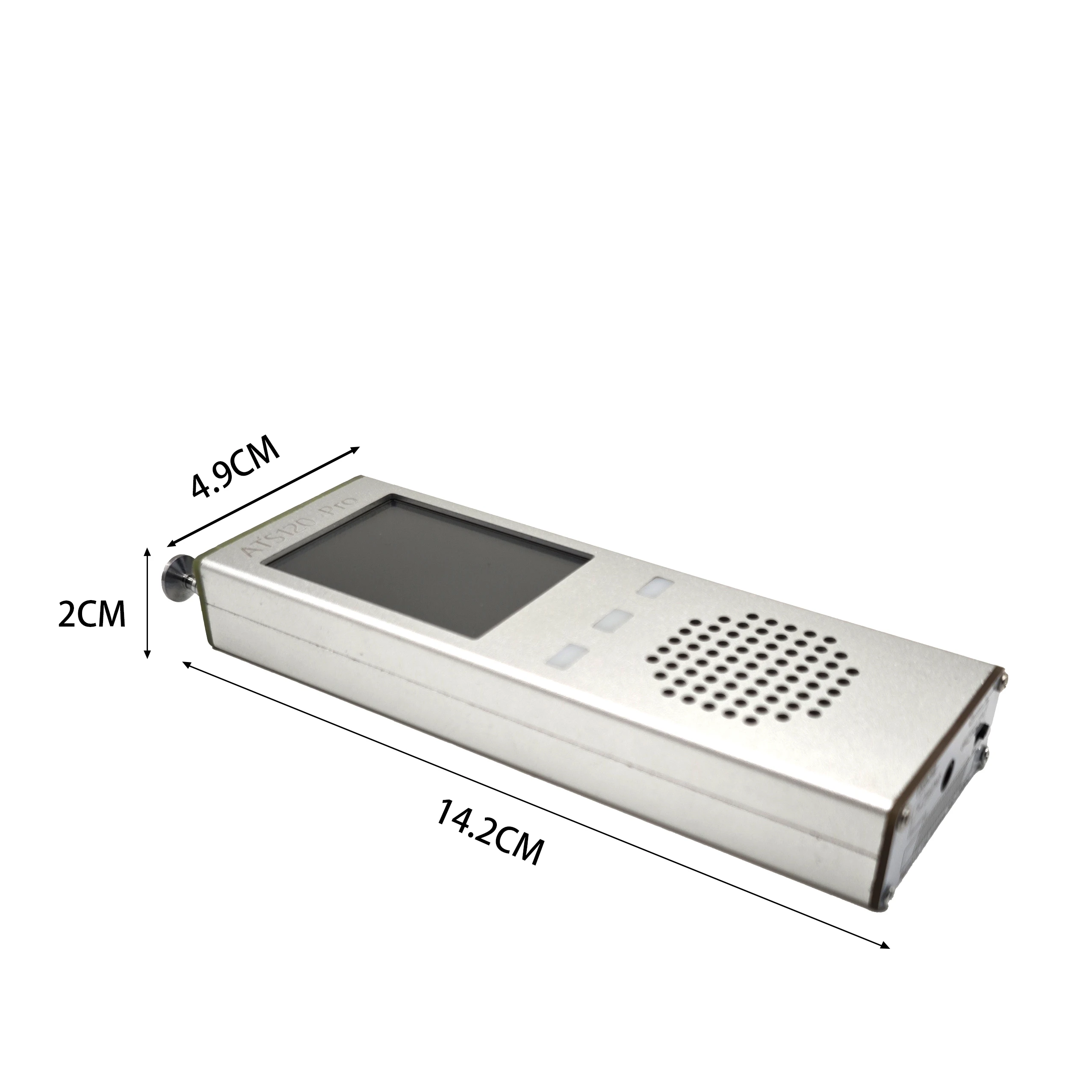

21. Mini body 140*20*50mm

22. Built-in integrated digital decoding board and built-in WIFI antenna

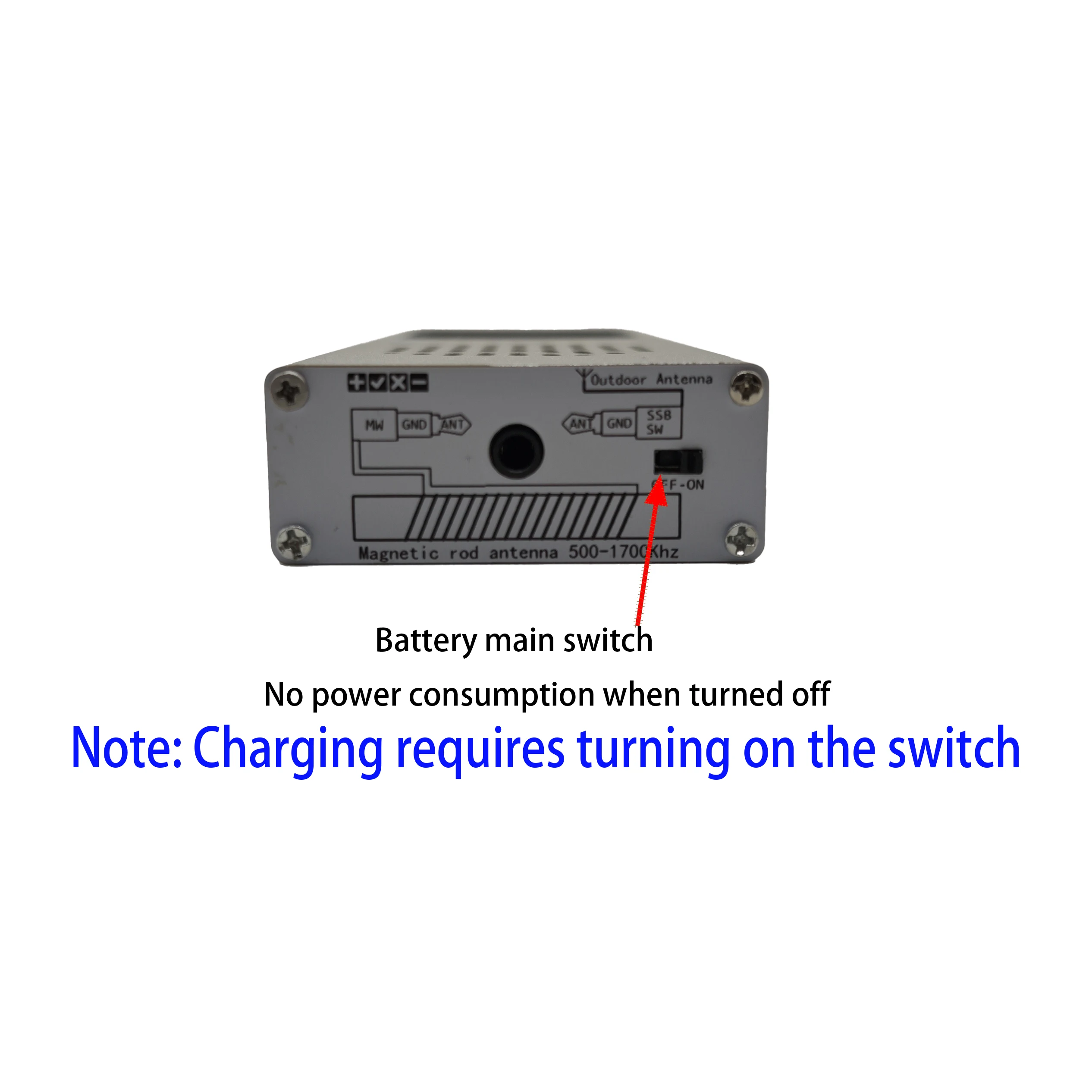

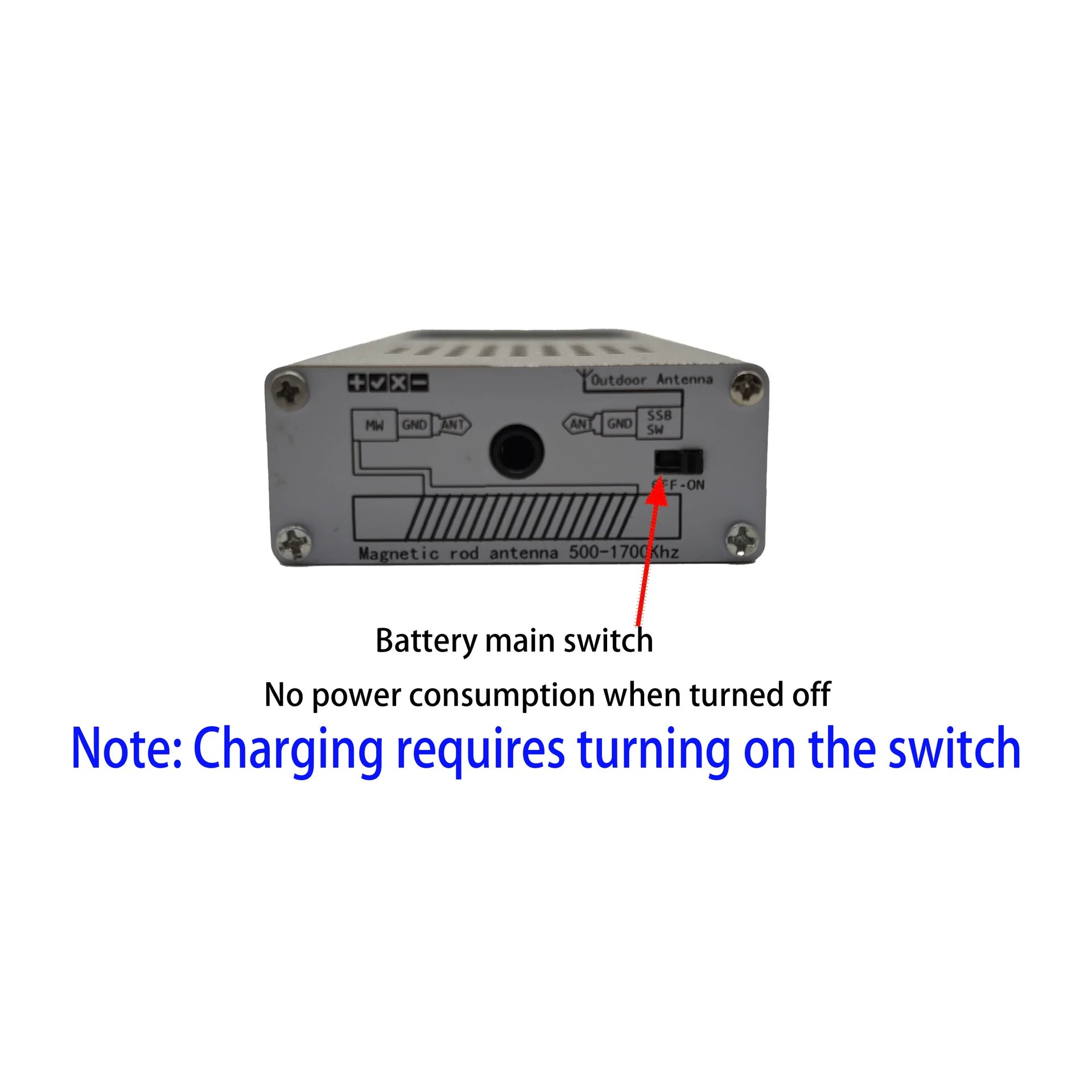

23. Battery logistics switch at the bottom to solve the problem of standby power consumption

24.Key switch LED display

scope:

frequency:

FM: 64-108MHz/RDS function

LW: 153khz500khz

MW: 520khz1710khz

SW: 1730khz30000khz

SSB: 1730khz30000
