ATS-Decoder Full Band Radio Receiver FM RDS AM LW MW SW SSB DSP Si4732 All Band Radio Receiver 4inch Touch Screen WiFi Function 4000mAh Battery for Professional Radio Developers Test Engineers
Feature:
1. Enhanced Features:The Full Band Radio Receiver now includes four new modes in CW: DIGI, CWR, SYNC L, SYNC U. With added WiFi, RTTY decoding, and four audio spectrums, this receiver meets the advanced needs of radio enthusiasts.
2. Built-in WiFi Connectivity:The All Band Radio Receiver features its own WiFi login option, allowing direct internet connection without an app. A WiFi icon will appear on the screen, ensuring seamless online access.

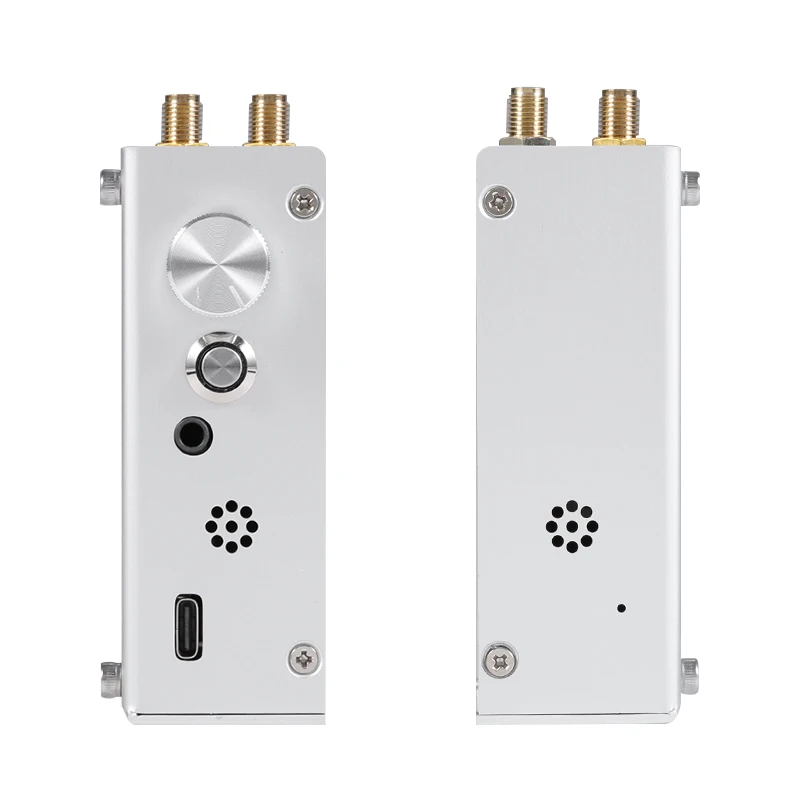

3. Type-C Interface Support:The SDR Receiver uses a Type-C charging port with a maximum current of 1.5A. It includes a 3.5mm stereo audio output and supports a 3.5mm audio FM antenna interface for versatile connectivity.
4. Radio Search Functionality:The Radio Receiver supports broadcast search and direct frequency input via the numeric keypad, with quick access to HAM bands. AM bandwidth ranges from 1-6K, and SB bandwidth from 0.5-4.0K.

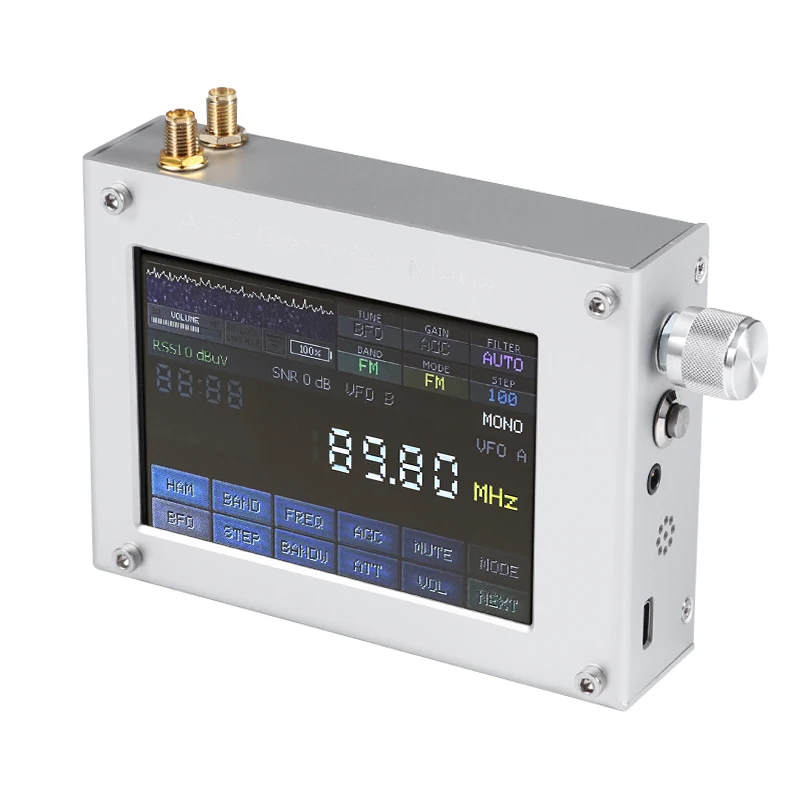

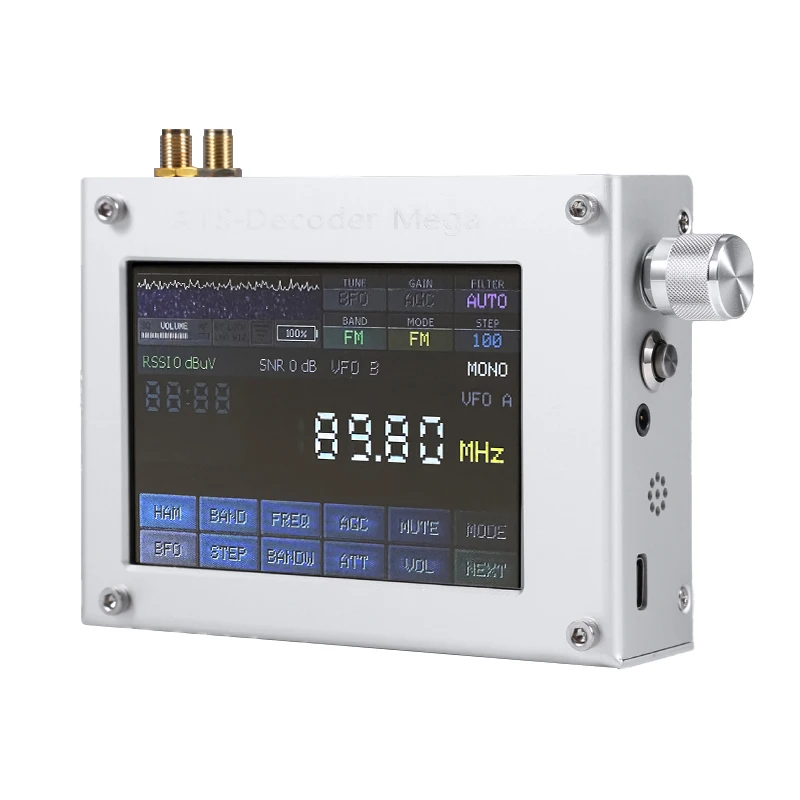

5. 4-Inch Color Touchscreen:The Portable Shortwave Radio Receiver is equipped with a 4-inch color touchscreen for clear data reading. Its aluminum alloy casing is durable and wear-resistant, enhancing the user experience. Additional features include scan function, and adjustable backlight.
Specification:
Origin: Mainland China
DIY Supplies: ELECTRICAL
Note:

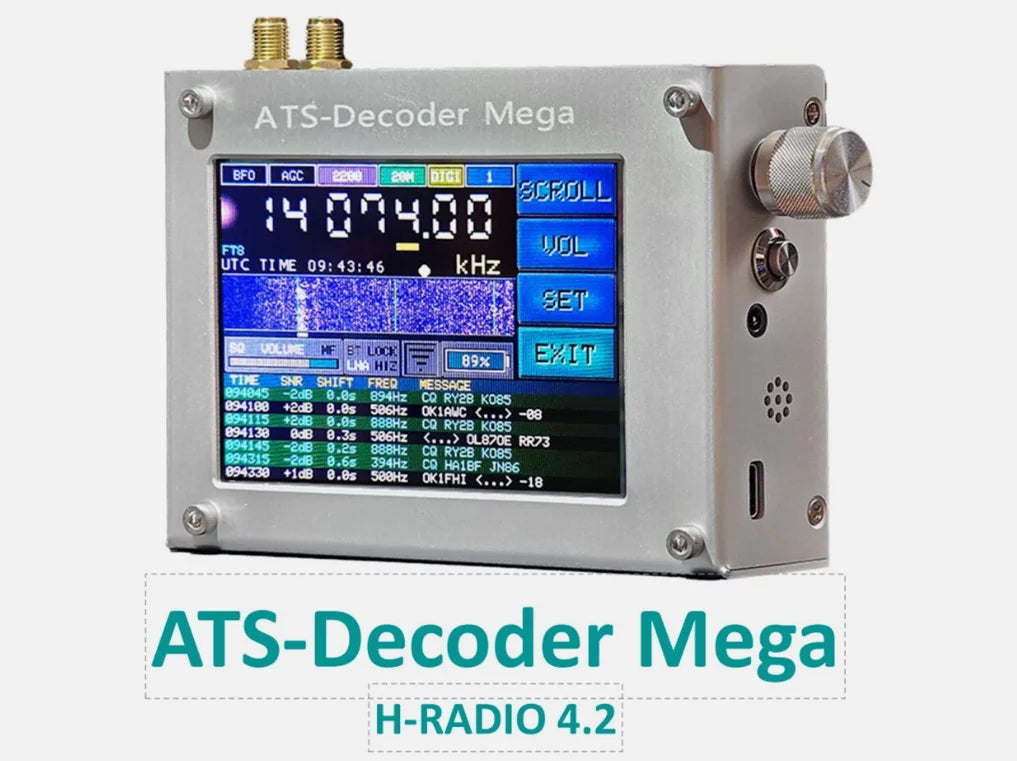

The current system version is 4.2 (We worked with the original author to design and build this radio. This machine achieves a perfect combination of software and hardware. In the future, the original author will work with us to update more firmware for it)
License code has been activated. (How to view the key: open the panel, click "Information" next to it, and then rotate it to see the picture above. You can see an 8digit key, the standard is 12 digits. If necessary, please contact us to ask. The key will be stored in the machine for a long time without worrying about firmware updates.)
Suggestion: WiFi consumes a lot of power. Only use it when the key is activated. It usually only displays the date and time. Please turn it off when you go out to save battery power.
Product parameters:
Frequency range: 132 kHz30000 kHz AM, SYNC, SSB, CW, DIGI64 MHz108 MHz FM, with RDS function
Digital mode decoder: FT8, FT4, PSK, RTTY
Touch screen: 4 inches, 480x320 pixels
Battery: 4000 mAh
Charging V/A: 5V/≤1.25A
WiFi: yes
SMA connector: for connecting external antenna

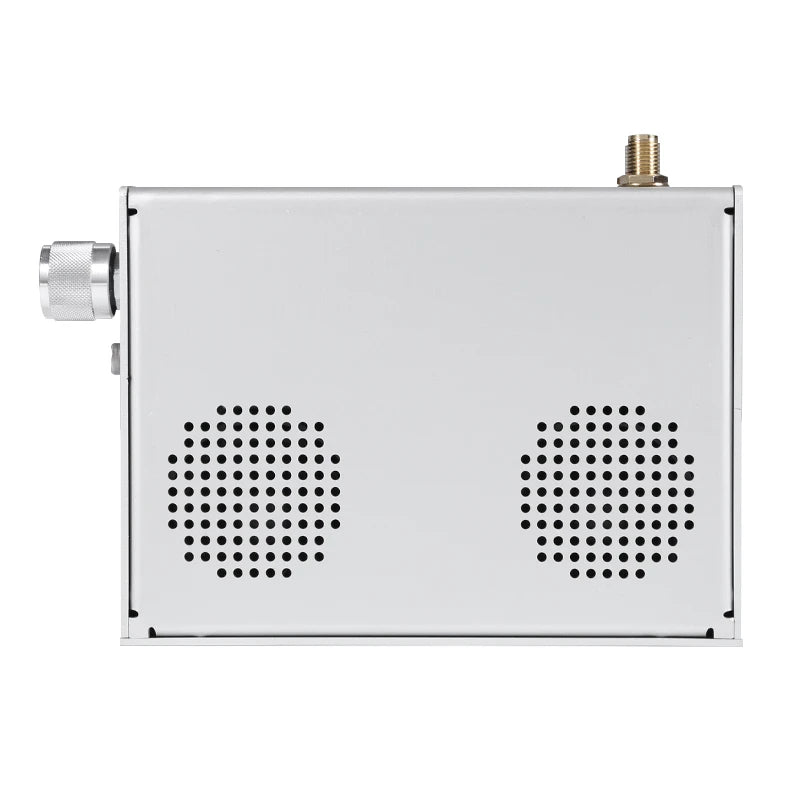

Stereo speaker: yes
Casing material: aluminum alloy
Support 3.5mm stereo audio output
Forian interface BNC
Product size: about 115.00x85.00x30.00mm
Product size: 4.53x3.35x1.18inch
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.

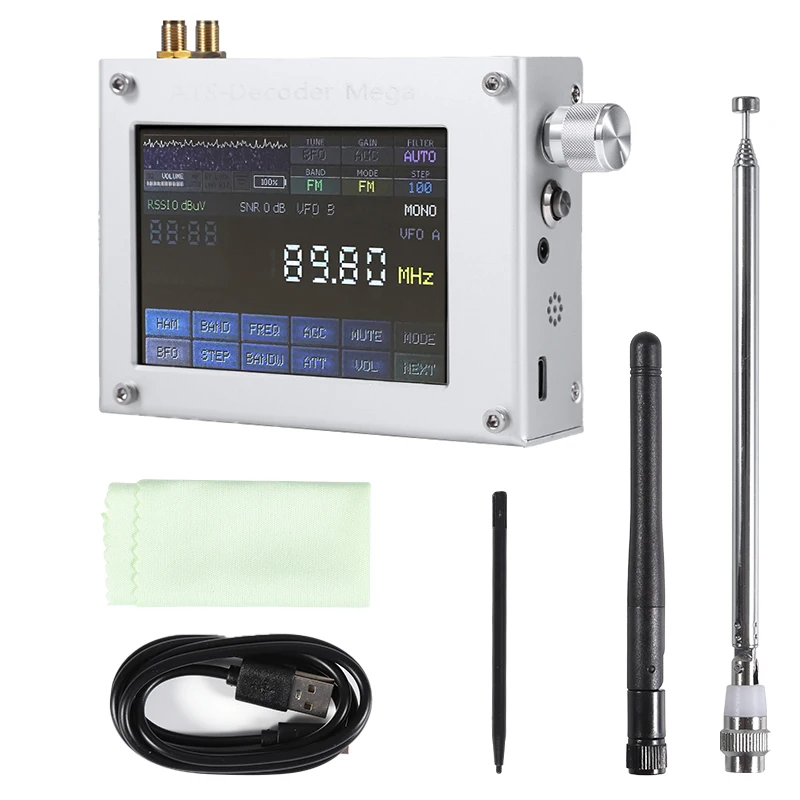

Package list:
1 X Full Band Radio Receiver

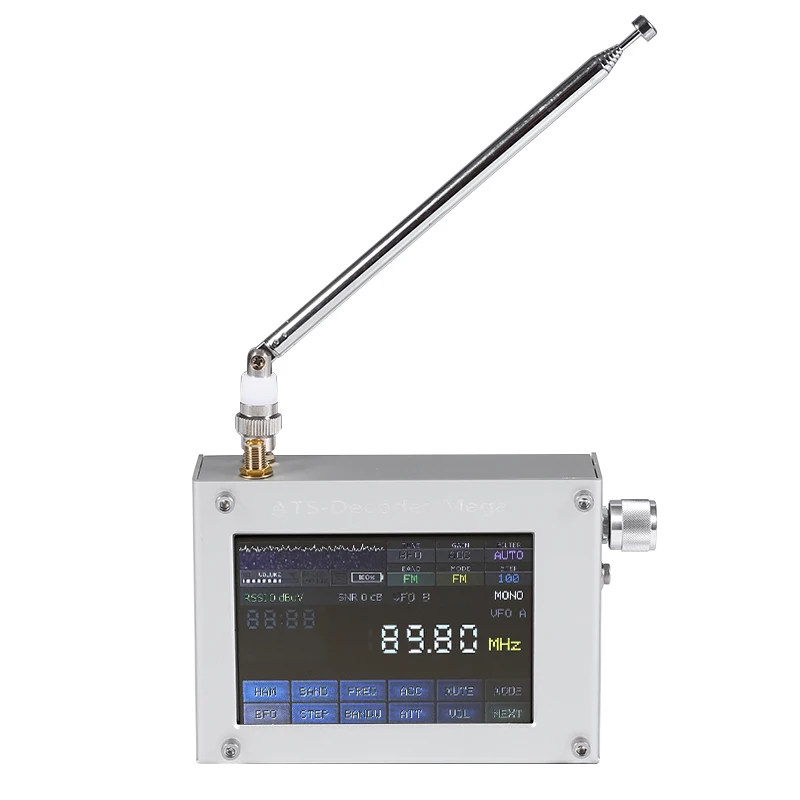

1 X Telescopic Antenna
1 X Wifi Antenna
1 X Usb Charging Cable
1 X Stylus
