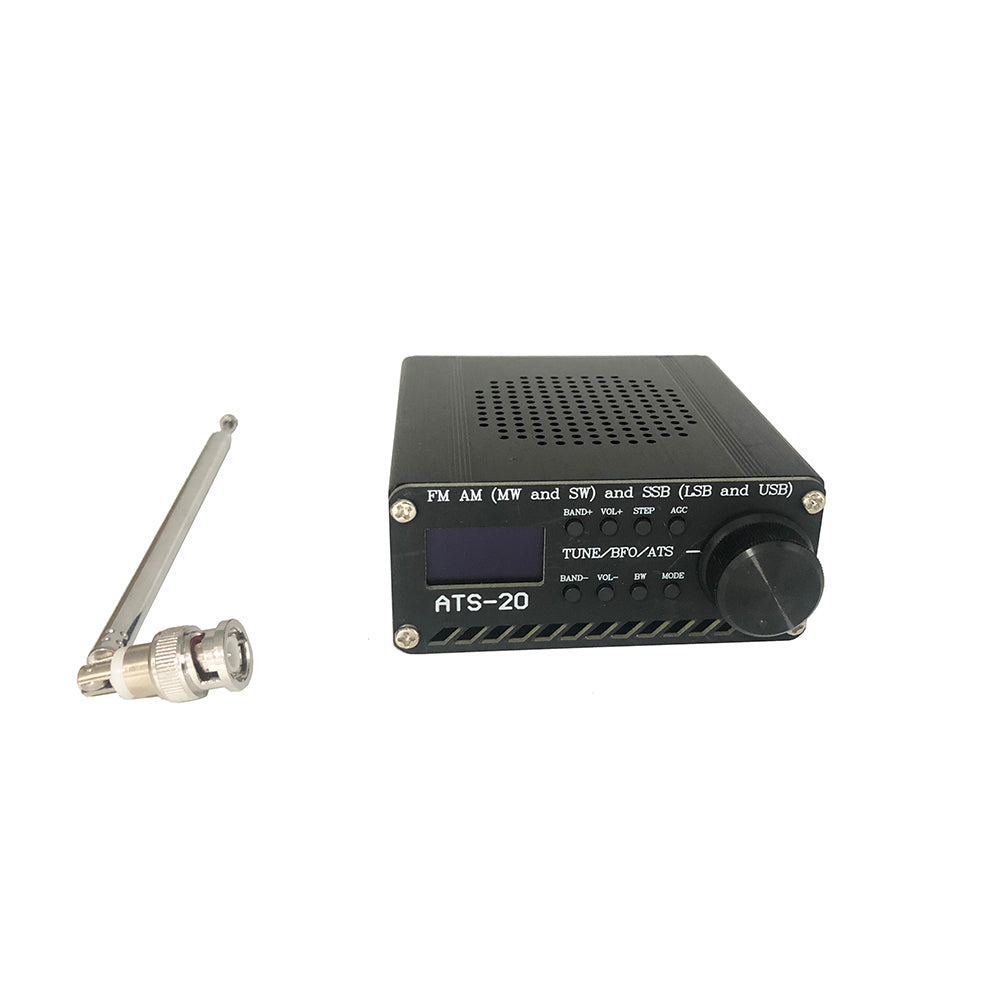

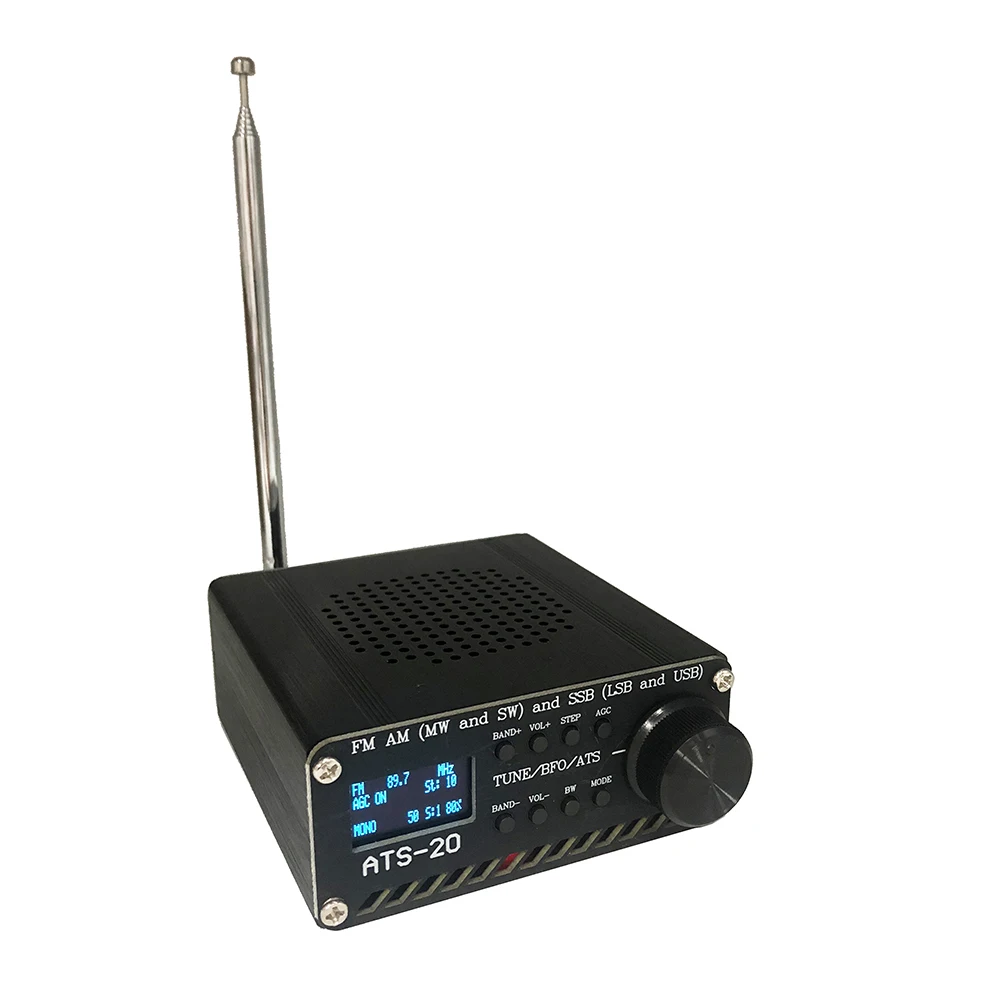

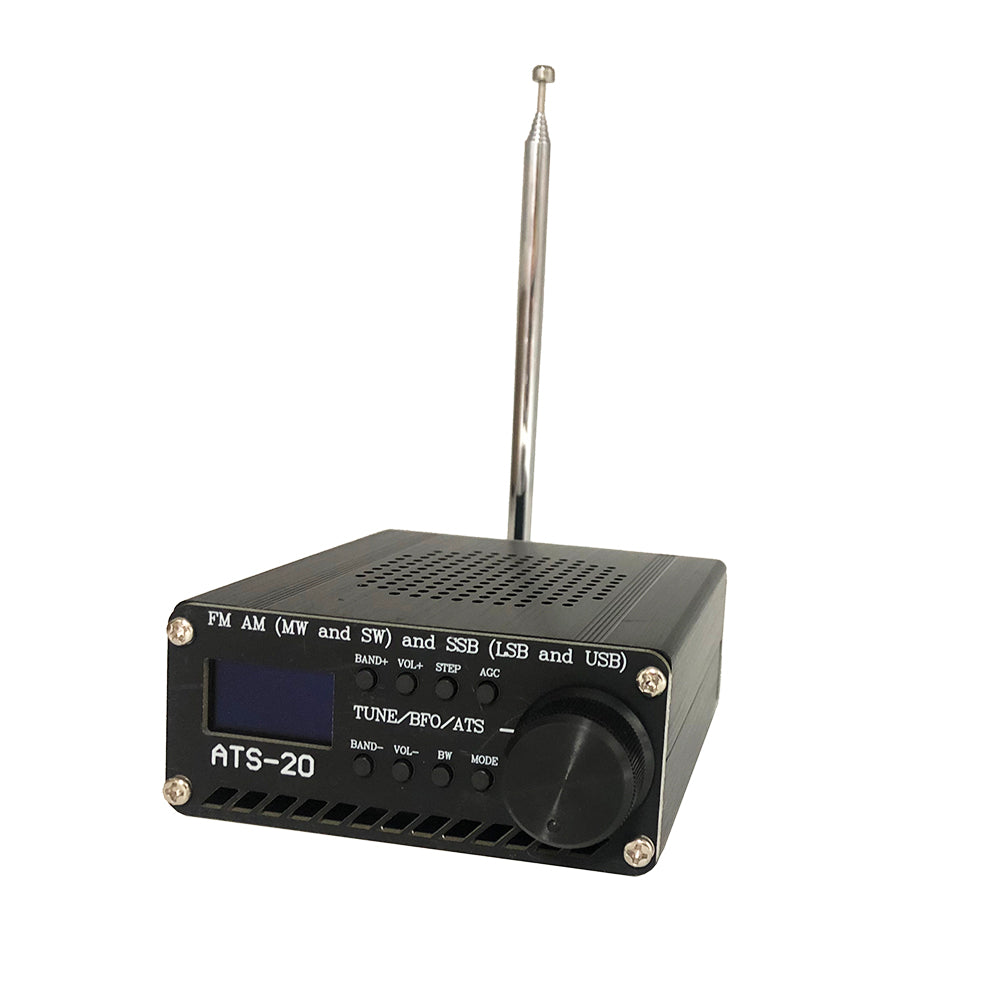

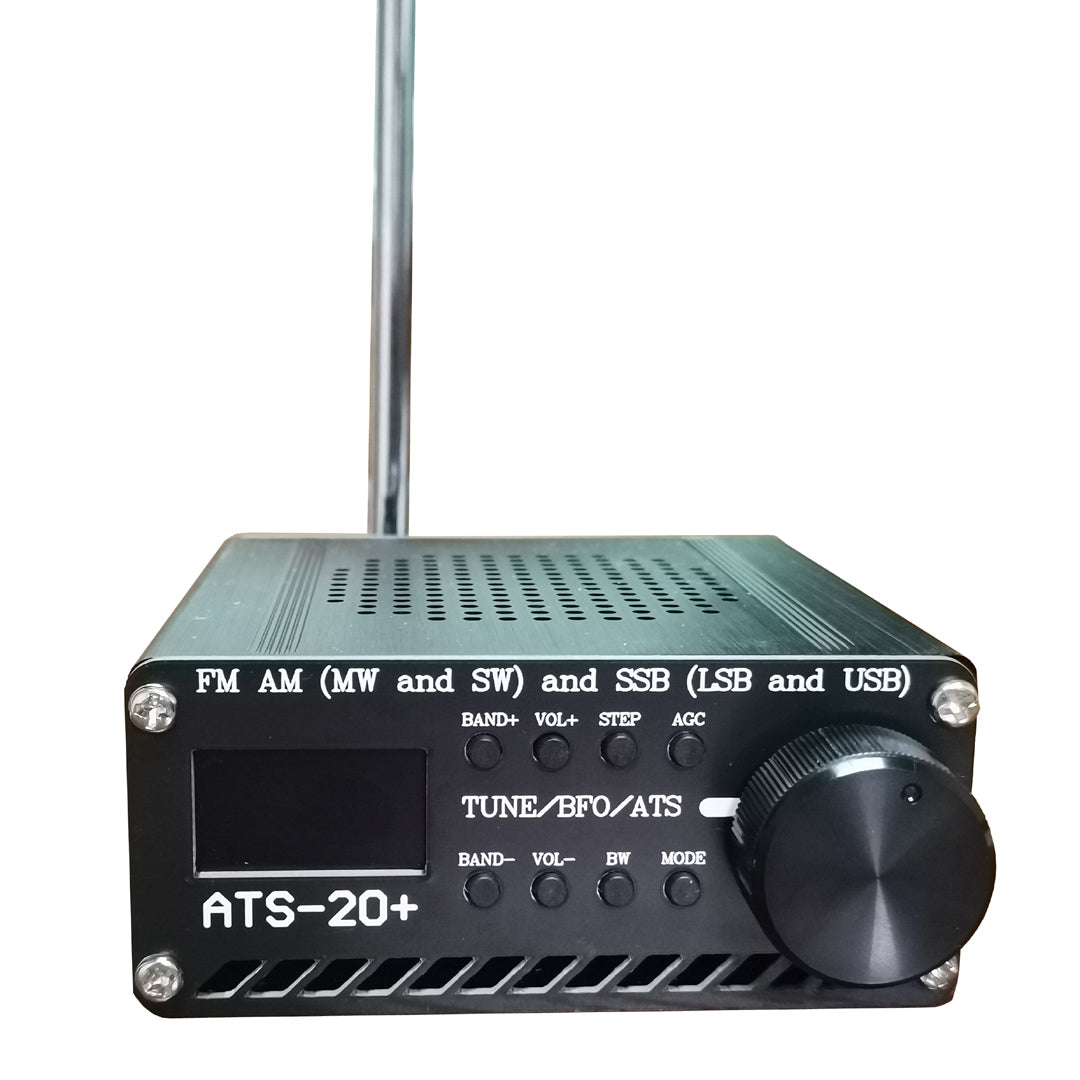

Original ATS-20 PLUS SI4732 All Band Radio FM AM (MW and SW) and SSB (LSB and USB) + Antenna + 800MAh Lithium Battery
Original ATS-20 PLUS SI4732 All Band Radio FM AM (MW and SW) and SSB (LSB and USB) + Antenna + 800MAh Lithium Battery
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Original ATS-20 PLUS SI4732 All Band Radio FM AM (MW and SW) and SSB (LSB and USB) + Antenna + 800MAh Lithium Battery
Notice: the radio shipping list only the radio and antenna . not include the usb cable
Electrical parameters:
Use a 3.6v lithium battery 850MA

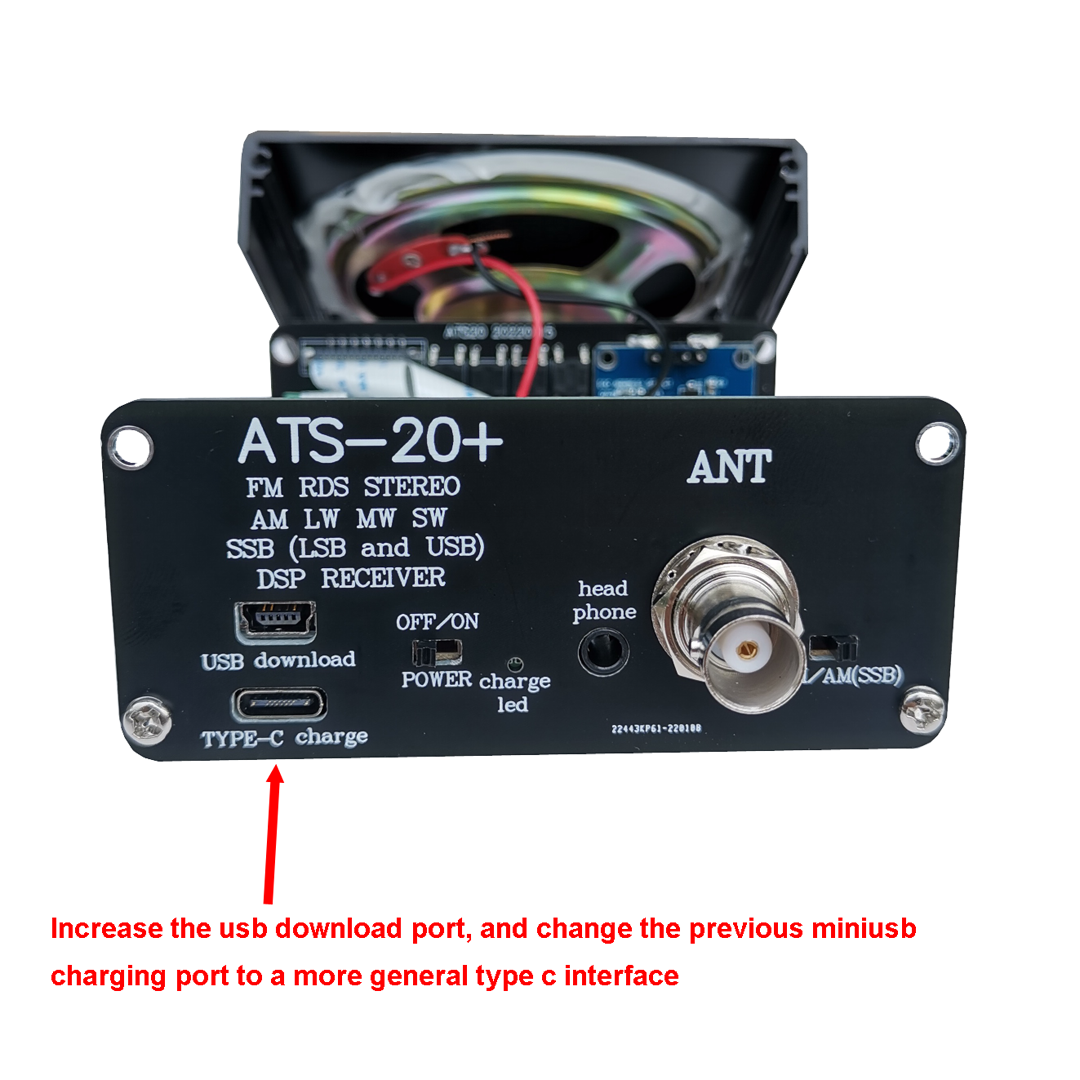

Support USB charging
Audio output supports headset 3.5MM
Support 8 ohm speaker 1.5W output
FM supports earphone antenna

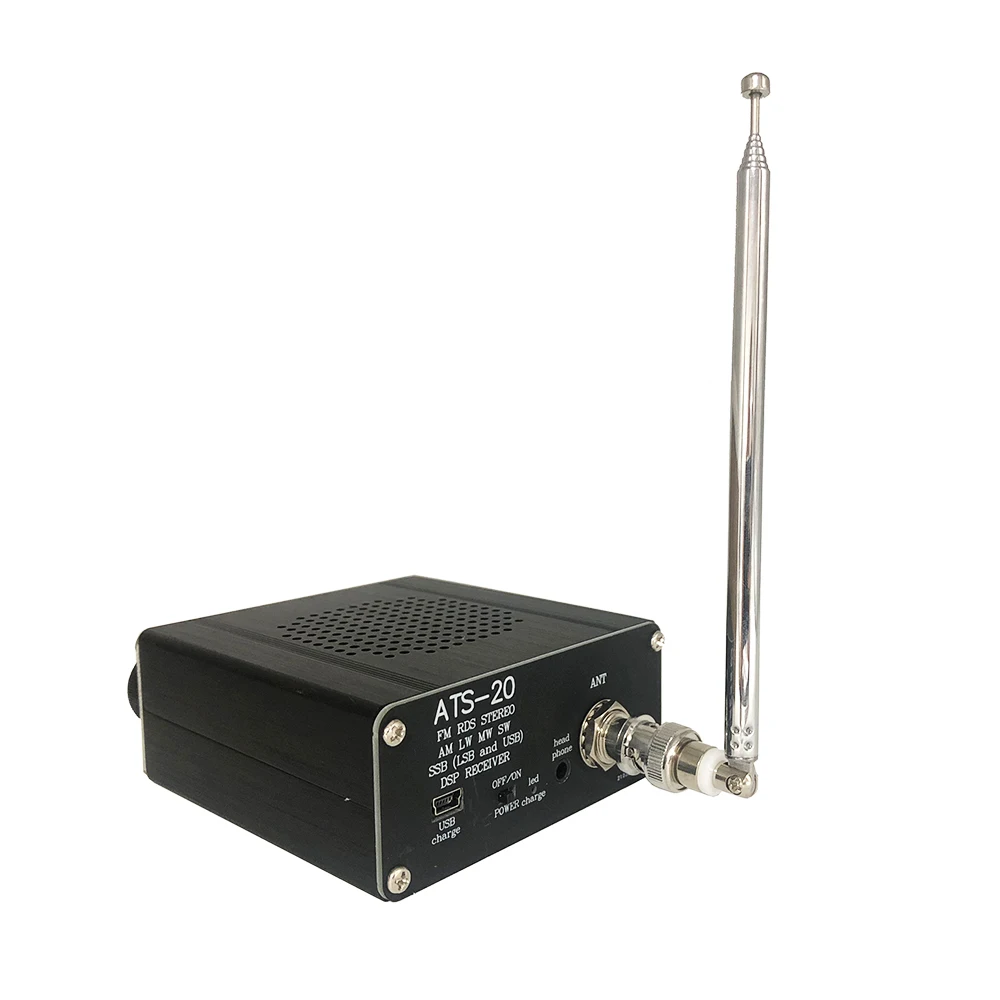

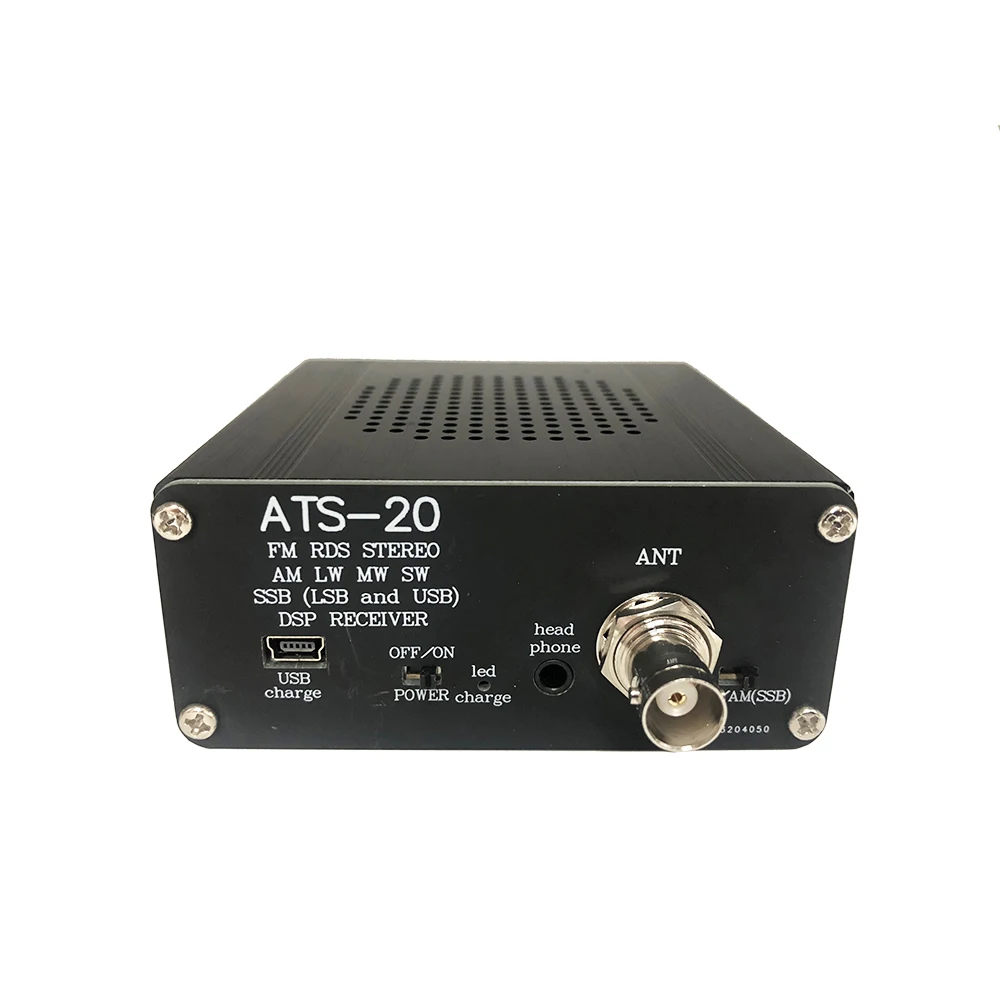

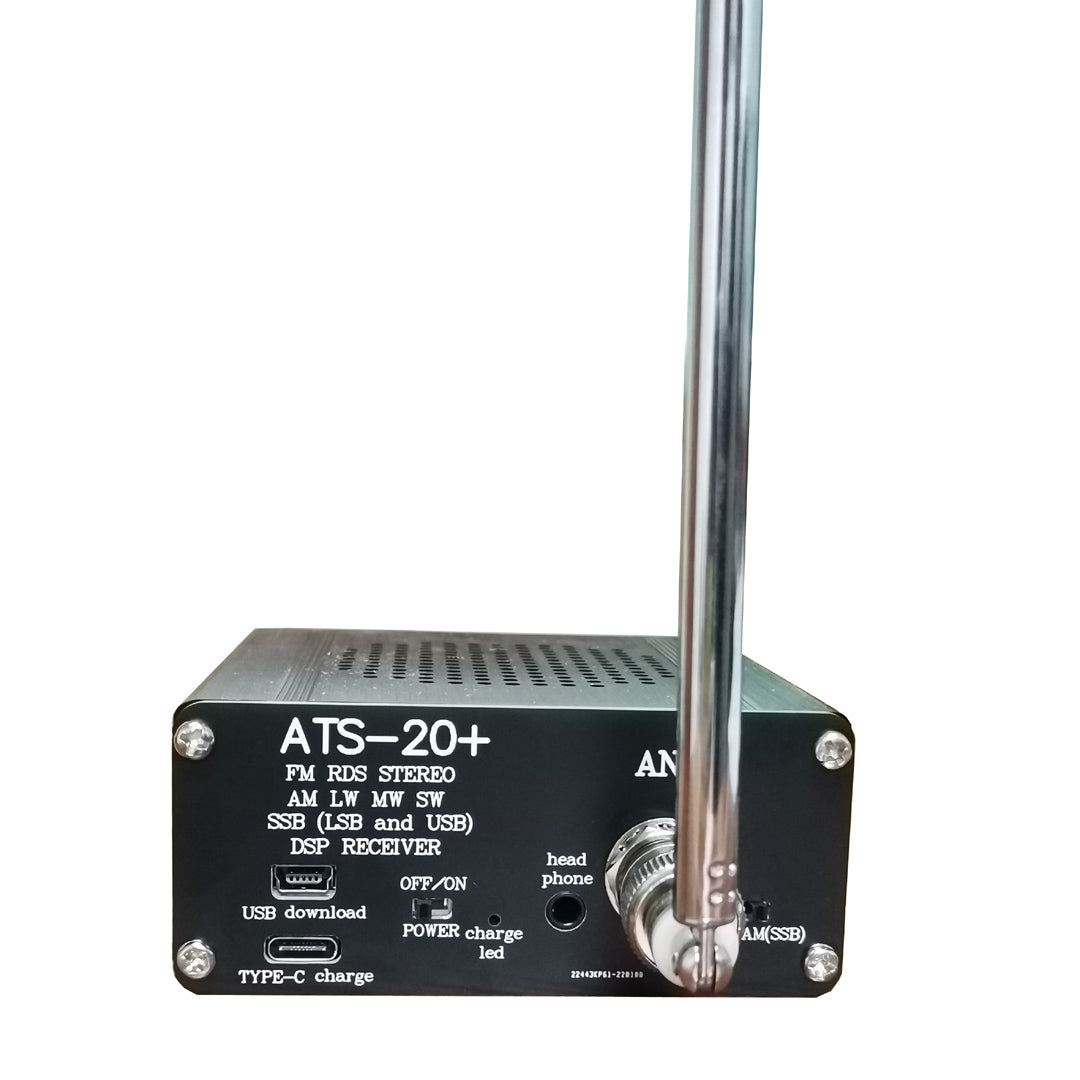

Antenna interface uses BNC

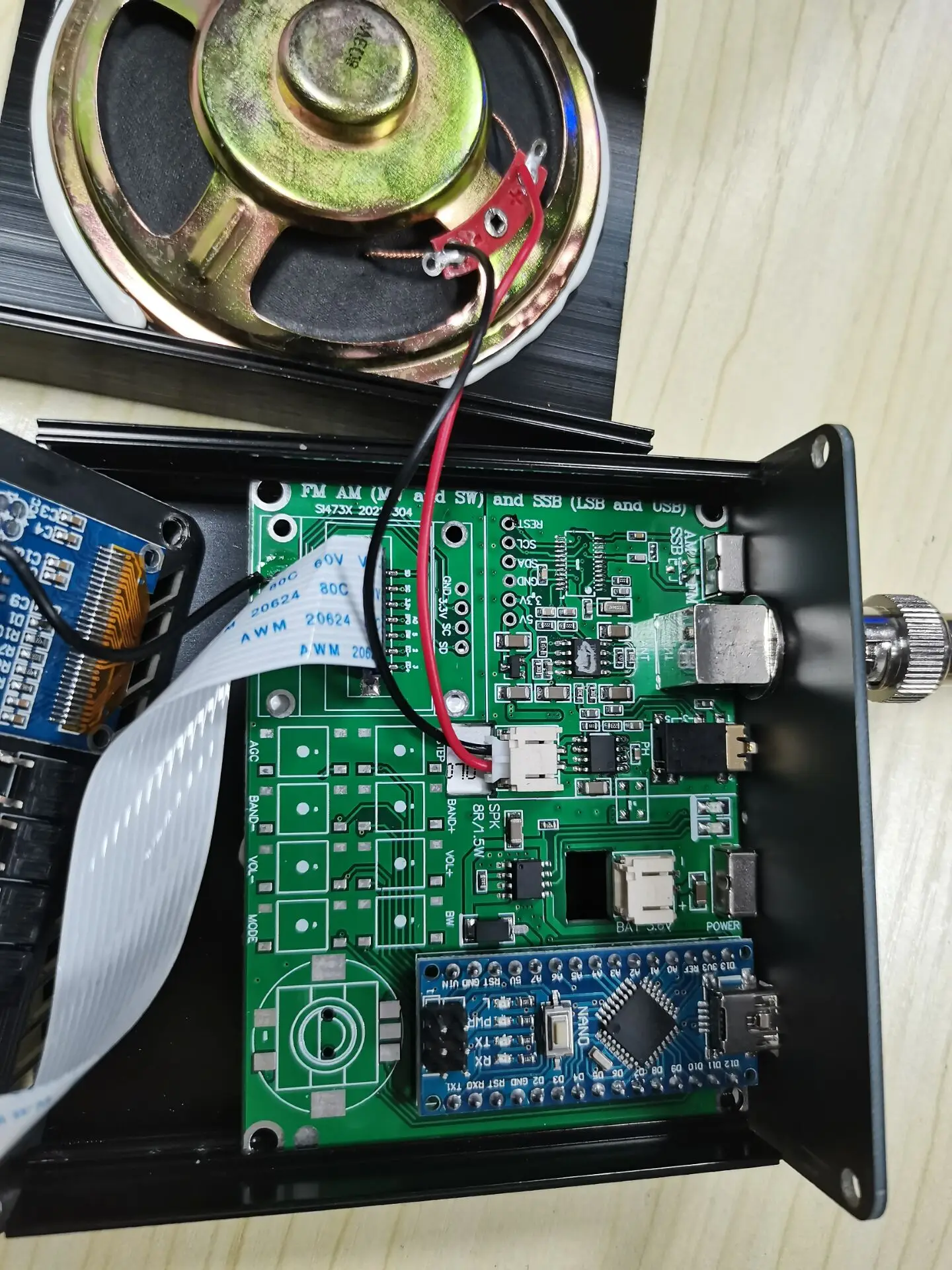

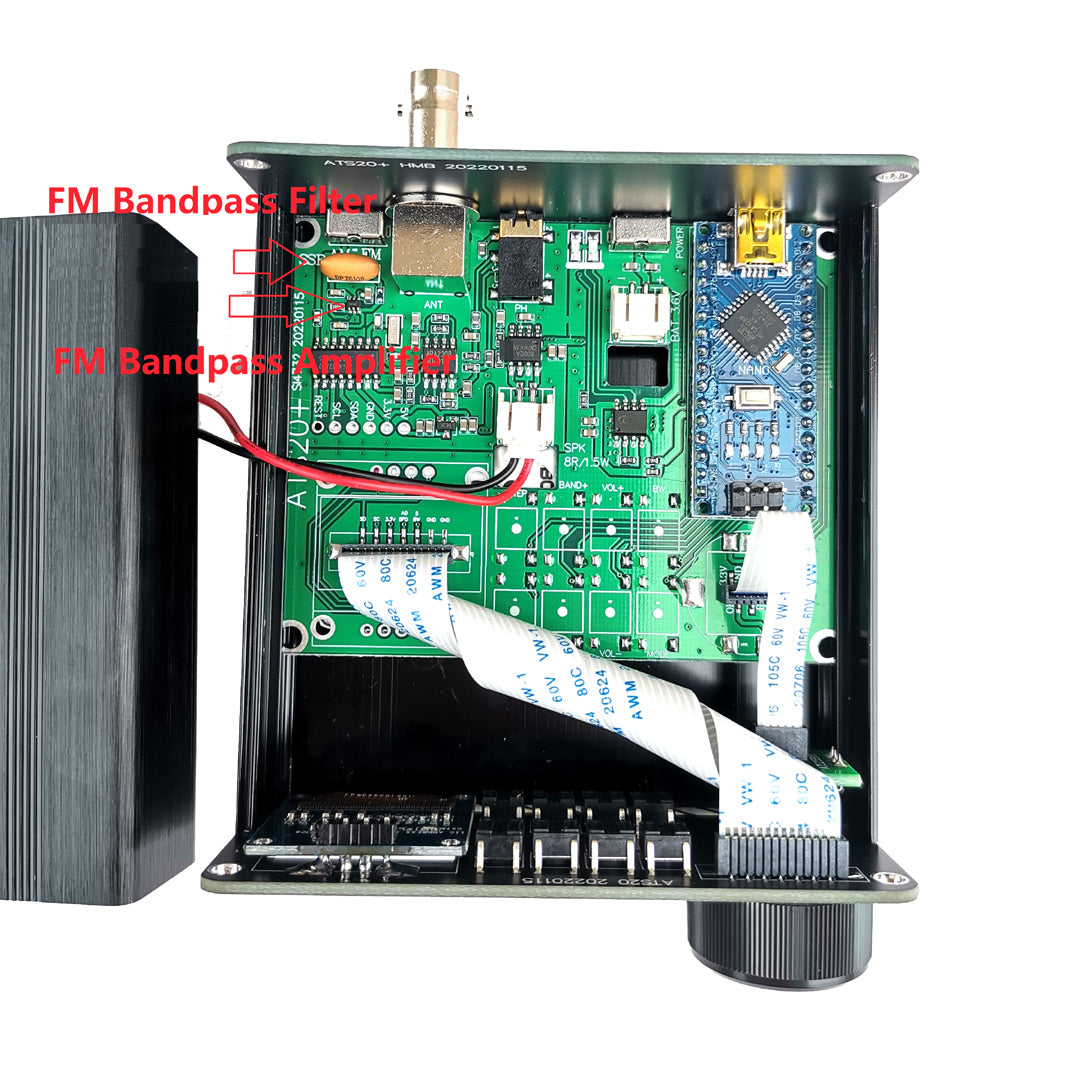

The PCB retains the SI4735 package, users can replace the chip by themselves, and the software is compatible
Features of this sketch:
1) FM, AM (MW and SW) and SSB (LSB and USB);
2) Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz;
3) 22 commercial and ham radio bands pre configured;
4) BFO Control; and
5) Frequency step switch (1, 5 and 10KHz);
Band band[] = {
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
{SW_BAND_TYPE, 4500, 5500, 4850, 5},
{SW_BAND_TYPE, 5500, 6300, 6000, 5},
{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters
{SW_BAND_TYPE, 7800, 10000, 9600, 5},
{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters
{SW_BAND_TYPE, 11000, 12500, 11940, 5},
{SW_BAND_TYPE, 12500, 13900, 13600, 5},
{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters
{SW_BAND_TYPE, 14500, 15900, 15300, 5},
{SW_BAND_TYPE, 15900, 17900, 17600, 5},
{SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters
{SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 mters
{SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters
{SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB band (11 meters)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters
If you modify the parameters, please refer to the actual product

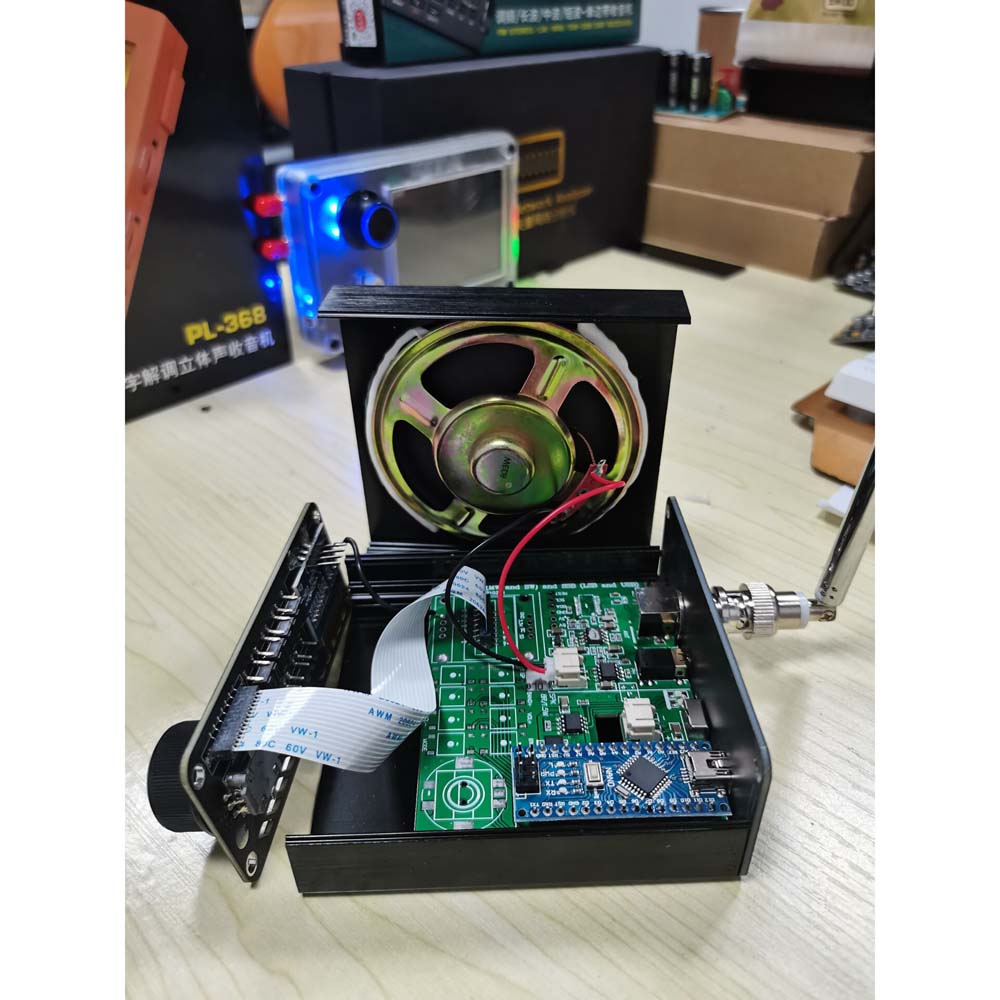

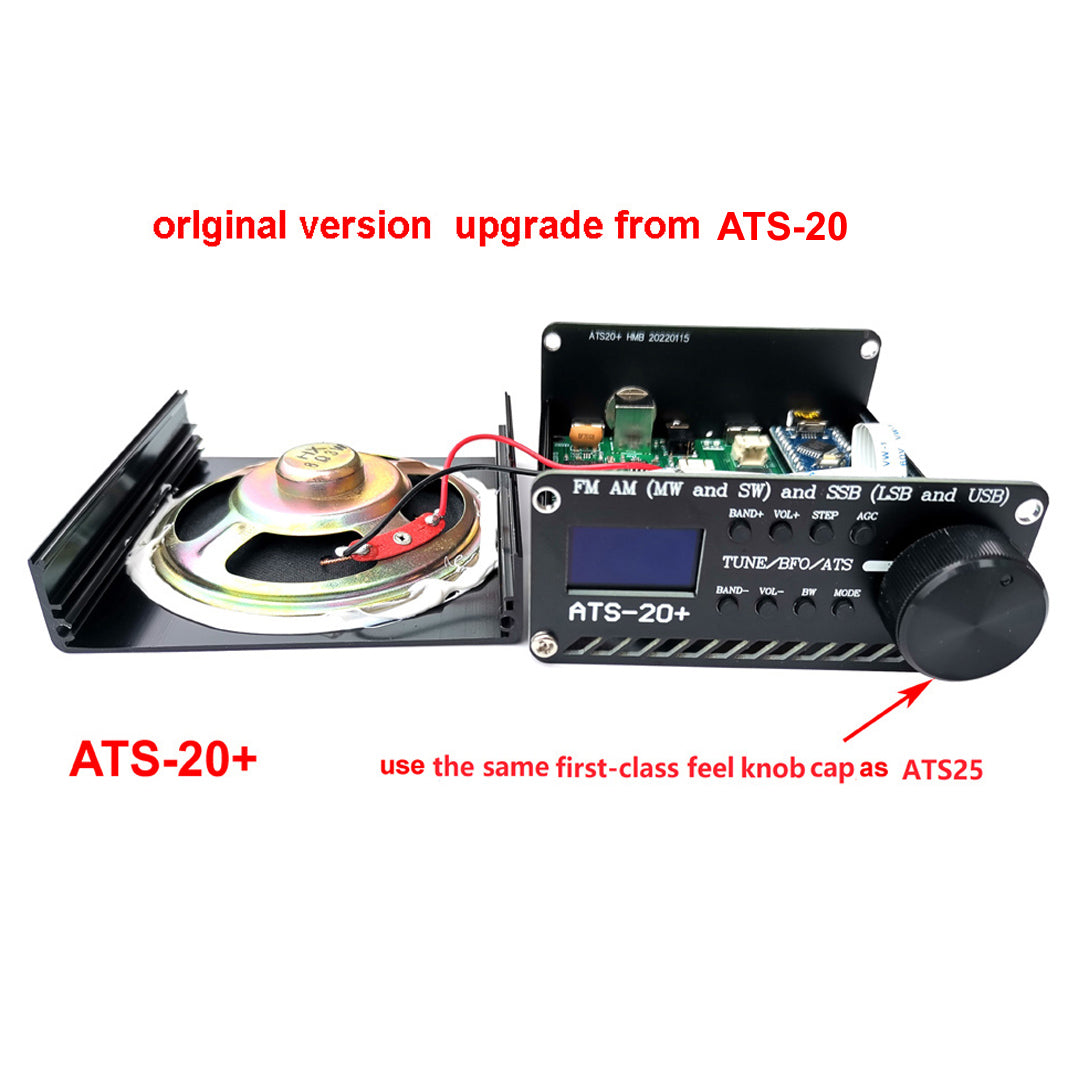

The picture below is the old version of ATU-20, just for comparison reference
