ATS-20+ / ATS-25+ ATS25X1 Si4732 All-Band Radio Receiver FM LW(MW SW) SSB +Whip Antenna +Battery + USB Cable + Speaker
ATS-20+ / ATS-25+ ATS25X1 Si4732 All-Band Radio Receiver FM LW(MW SW) SSB +Whip Antenna +Battery + USB Cable + Speaker
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Note；
Type 1： ATS-20+ 0.96inch OLED
Type 2； ATS-25/ATS25X1+ 2.4inch LCD
Description for ATS-25+/ATS25X1:
This all-band radio receiver with powerful functions, with 2.4inch touching screen for you to read more clearly, also support 3.5mm stereo audio output and with built-in battery, come on and have a try, it will not let you down.
Features:
With 2.4inch touching screen, so you can read the data more clearly, and give you a better using experience.
Built-in large capacity lithium battery, you do not need to worry about sudden power outages affecting your use.
Support TYPE-C interface to upgrade program, and 3.5mm stereo audio output, also support 3.5mm audio jack FM antenna.
With the radio search function and input frequency directly on numeric keypad, also with the HAM band quick channel.
Comes with pull rod antenna, cover and data cable for you to use together.
Portable size and easy to carry, you can take it with you or share it with your families and friends.
Specifications:
Material: aluminium Alloy
Color: black
Frequency:
FM:64~108MHZ/RDS function
LW:153~500KHZ
MW:520~1710KHZ
SW:1730~30000KHZ
SSB:1730~30000KHZ
Antenna interface: BNC
Support AM bandwidth ranges: 1~6K
Support SSB bandwidth ranges: 0.5~4K
Output audio power: 1.5W
Battery: 1 * lithium battery, 2000mAh (included)
Package size: 140 * 115 * 55mm / 5.5 * 4.5 * 2.2in
Package weight: 500g / 1.1lb
Packing list:
1 * Radio Receiver
1 * Antenna
1 * Type-c Cable
New upgrade version ATS-20 + Plus ！
This is a kind of quality full-wave band radio receiver, 0.96 inch OLED display, support auto-hold setting function after power failure. Equipped with audio output function, support 3.5mm earphone. Also support the 4ohm speaker 2W output. With 22 commercial and ham radio bands pre configured, you can use it freely. With 22 commercial and ham radio bands pre configured, you can use it freely. You can have a try.
Features:
0.96 inch OLED display, you can see the FM band, AGC on/off, MONO according to your demands.
Support auto-hold setting function after power failure.
With the built in 3.6V, 800mAH polymer lithium battery for stable and sustainable power supplys.
Support USB recharging, delivering with type-c recharging cable.
Equipped with audio output function, support 3.5mm earphone.
Also support the 8ohm speaker 1.5W output.

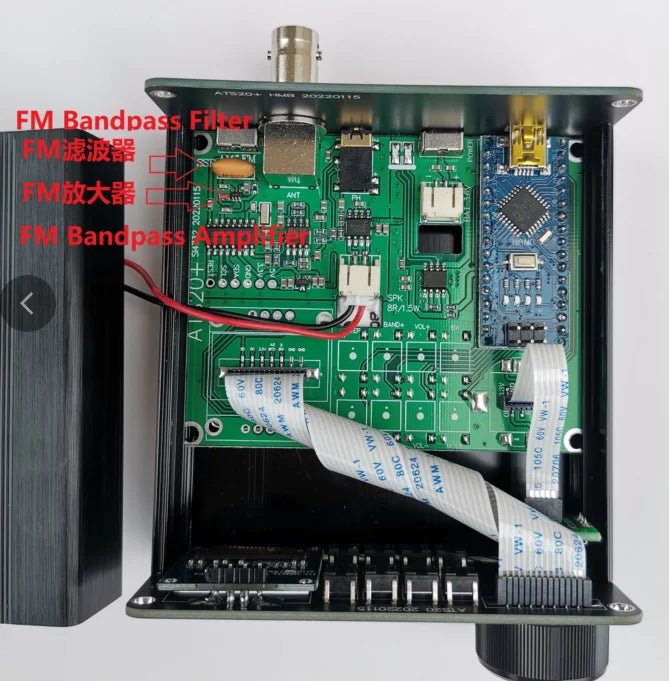

Antenna interface uses SMA interface and the printed circuit board retains the SI4732 package, you can replace the chip by yourselves, and the software is compatible.
With 22 commercial and ham radio bands pre configured, you can use it freely.
Support band: FM, AM (MW and SW) and SSB (LSB and USB).
Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz.
BFO Control.
Frequency step switch (1, 5 and 10KHz).
Specifications:
Name: Radio Receiver
Material: printed circuit board
Band:
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
{SW_BAND_TYPE, 4500, 5500, 4850, 5},
{SW_BAND_TYPE, 5500, 6300, 6000, 5},
{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters
{SW_BAND_TYPE, 7800, 10000, 9600, 5},
{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters
{SW_BAND_TYPE, 11000, 12500, 11940, 5},
{SW_BAND_TYPE, 12500, 13900, 13600, 5},
{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters
{SW_BAND_TYPE, 14500, 15900, 15300, 5},
{SW_BAND_TYPE, 15900, 17900, 17600, 5},
{SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters
{SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 meters
{SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters
{SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB band (11 meters)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters
Item size: 89 * 107 * 41mm / 3.50 * 4.21 * 1.61in
Item weight: 205g / 7.23ounce
Package size: 173 * 122 * 52mm / 6.81 * 4.80 * 2.05in
Package weight: 250g / 8.82ounce
Packing List:
1 * Radio Receiver
1 * Antenna
1 * Type-C Cable
Description
Description
Note；
Type 1： ATS-20+ 0.96inch OLED
Type 2； ATS-25/ATS25X1+ 2.4inch LCD
Description for ATS-25+/ATS25X1:
This all-band radio receiver with powerful functions, with 2.4inch touching screen for you to read more clearly, also support 3.5mm stereo audio output and with built-in battery, come on and have a try, it will not let you down.
Features:
With 2.4inch touching screen, so you can read the data more clearly, and give you a better using experience.
Built-in large capacity lithium battery, you do not need to worry about sudden power outages affecting your use.
Support TYPE-C interface to upgrade program, and 3.5mm stereo audio output, also support 3.5mm audio jack FM antenna.
With the radio search function and input frequency directly on numeric keypad, also with the HAM band quick channel.
Comes with pull rod antenna, cover and data cable for you to use together.
Portable size and easy to carry, you can take it with you or share it with your families and friends.
Specifications:
Material: aluminium Alloy
Color: black
Frequency:
FM:64~108MHZ/RDS function
LW:153~500KHZ
MW:520~1710KHZ
SW:1730~30000KHZ
SSB:1730~30000KHZ
Antenna interface: BNC
Support AM bandwidth ranges: 1~6K
Support SSB bandwidth ranges: 0.5~4K
Output audio power: 1.5W
Battery: 1 * lithium battery, 2000mAh (included)
Package size: 140 * 115 * 55mm / 5.5 * 4.5 * 2.2in
Package weight: 500g / 1.1lb
Packing list:
1 * Radio Receiver
1 * Antenna
1 * Type-c Cable
New upgrade version ATS-20 + Plus ！
This is a kind of quality full-wave band radio receiver, 0.96 inch OLED display, support auto-hold setting function after power failure. Equipped with audio output function, support 3.5mm earphone. Also support the 4ohm speaker 2W output. With 22 commercial and ham radio bands pre configured, you can use it freely. With 22 commercial and ham radio bands pre configured, you can use it freely. You can have a try.
Features:
0.96 inch OLED display, you can see the FM band, AGC on/off, MONO according to your demands.
Support auto-hold setting function after power failure.
With the built in 3.6V, 800mAH polymer lithium battery for stable and sustainable power supplys.
Support USB recharging, delivering with type-c recharging cable.
Equipped with audio output function, support 3.5mm earphone.
Also support the 8ohm speaker 1.5W output.
Antenna interface uses SMA interface and the printed circuit board retains the SI4732 package, you can replace the chip by yourselves, and the software is compatible.
With 22 commercial and ham radio bands pre configured, you can use it freely.
Support band: FM, AM (MW and SW) and SSB (LSB and USB).
Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz.
BFO Control.
Frequency step switch (1, 5 and 10KHz).
Specifications:
Name: Radio Receiver
Material: printed circuit board
Band:
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
{SW_BAND_TYPE, 4500, 5500, 4850, 5},
{SW_BAND_TYPE, 5500, 6300, 6000, 5},
{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters
{SW_BAND_TYPE, 7800, 10000, 9600, 5},
{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters
{SW_BAND_TYPE, 11000, 12500, 11940, 5},
{SW_BAND_TYPE, 12500, 13900, 13600, 5},
{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters
{SW_BAND_TYPE, 14500, 15900, 15300, 5},
{SW_BAND_TYPE, 15900, 17900, 17600, 5},
{SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters
{SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 meters
{SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters
{SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB band (11 meters)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters
Item size: 89 * 107 * 41mm / 3.50 * 4.21 * 1.61in
Item weight: 205g / 7.23ounce
Package size: 173 * 122 * 52mm / 6.81 * 4.80 * 2.05in
Package weight: 250g / 8.82ounce
Packing List:
1 * Radio Receiver
1 * Antenna
1 * Type-C Cable
