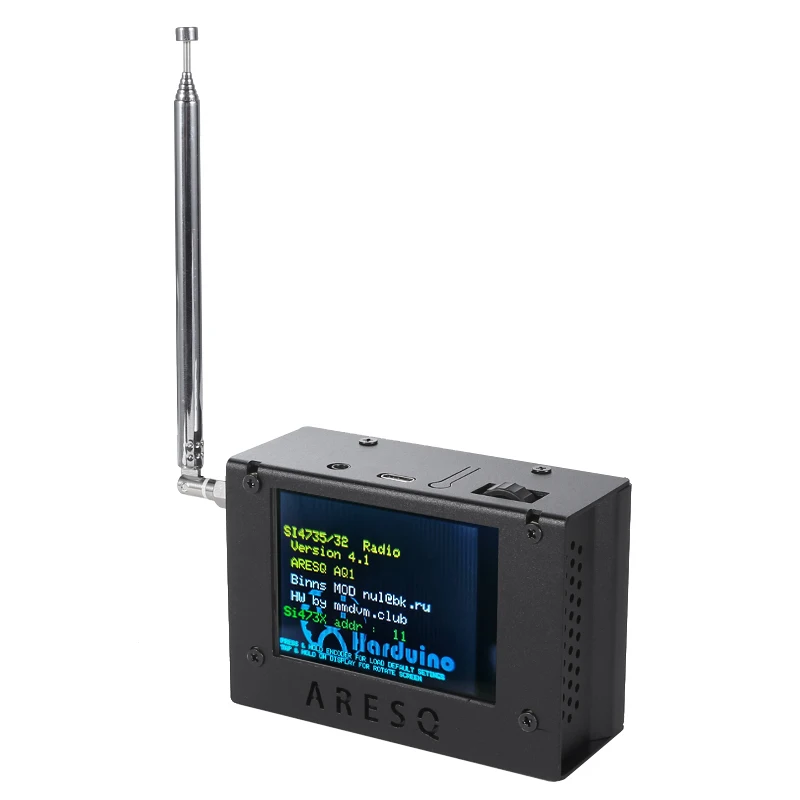

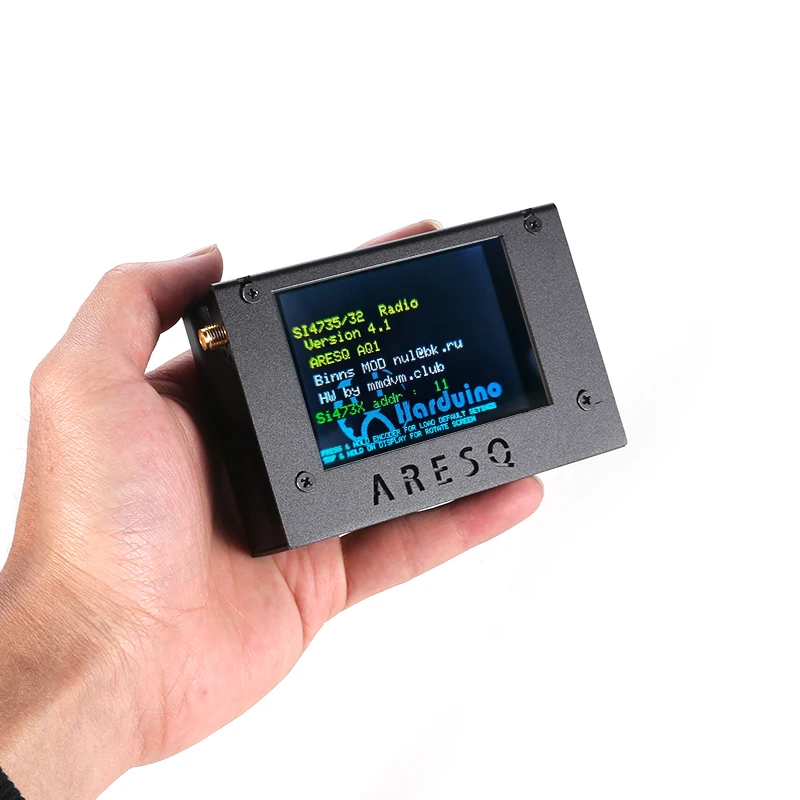

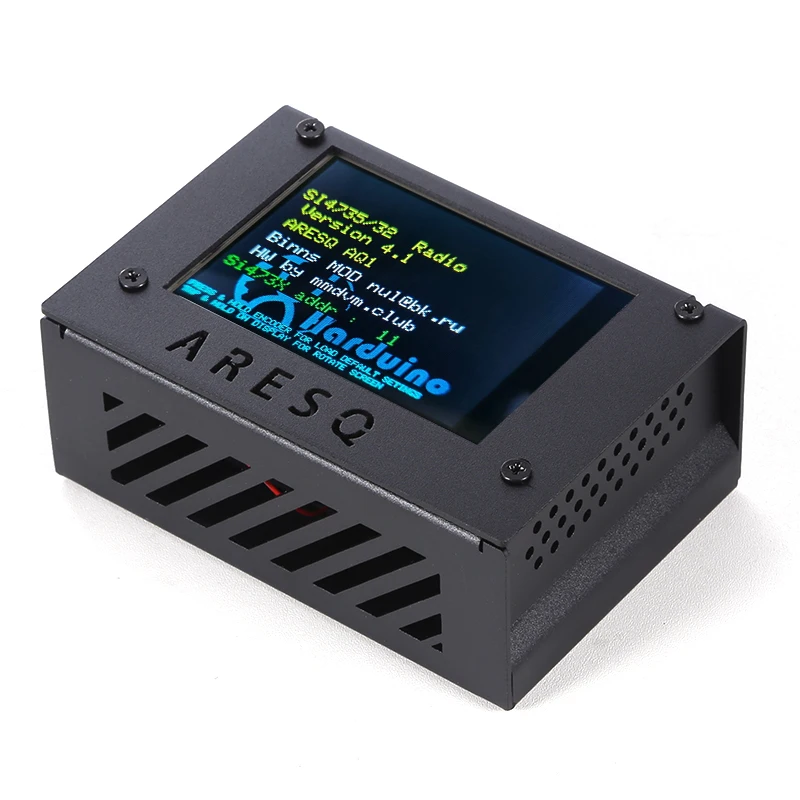

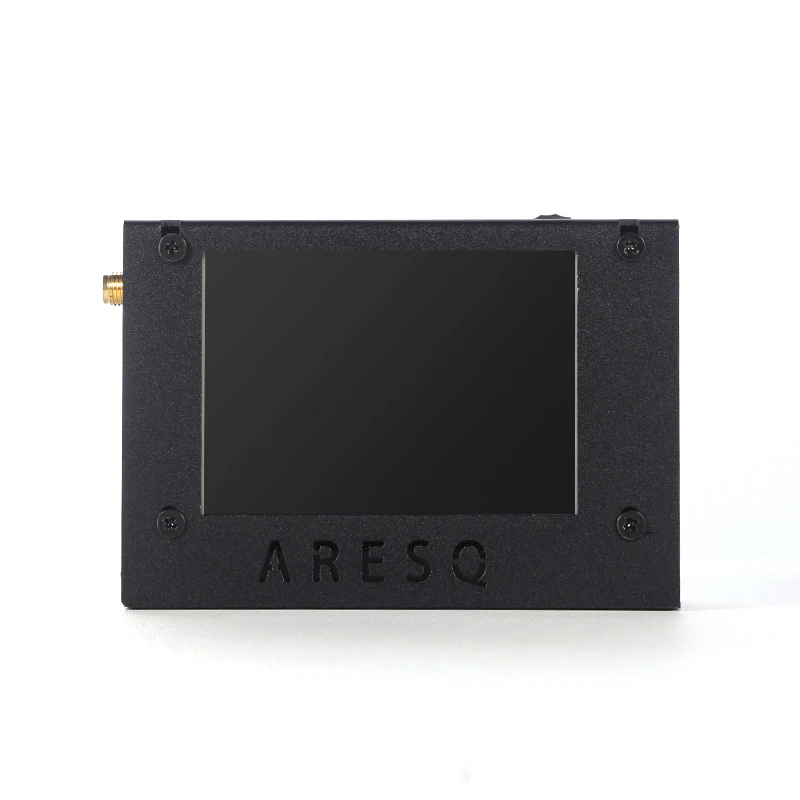

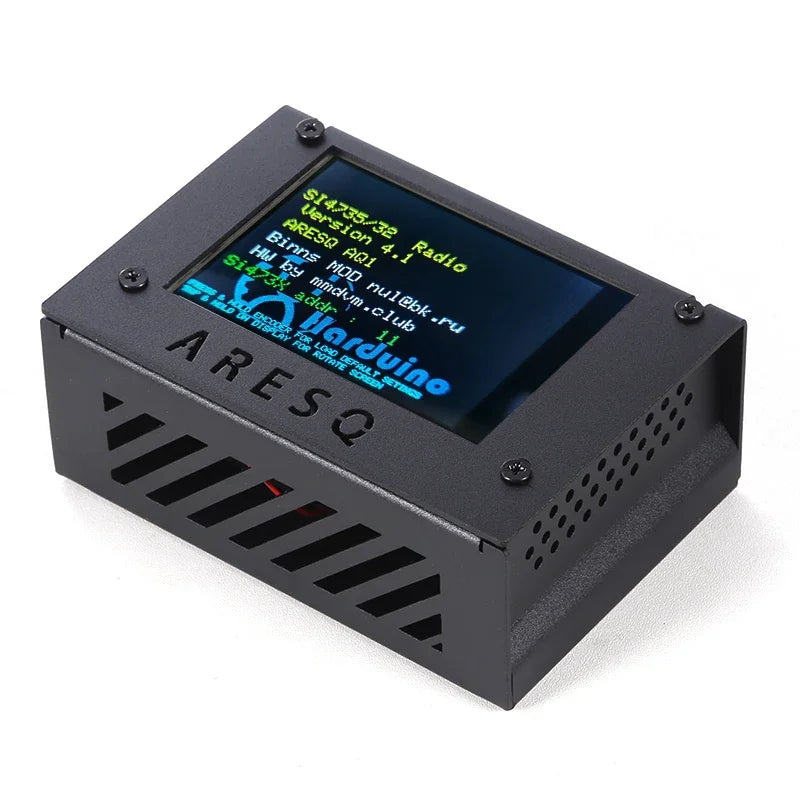

ARESQ AQ1 Mini Full Band Radio All Band Radio Receiver FM LW MW SW-SSB Si4732 Chip with 2.8" Touch Screen

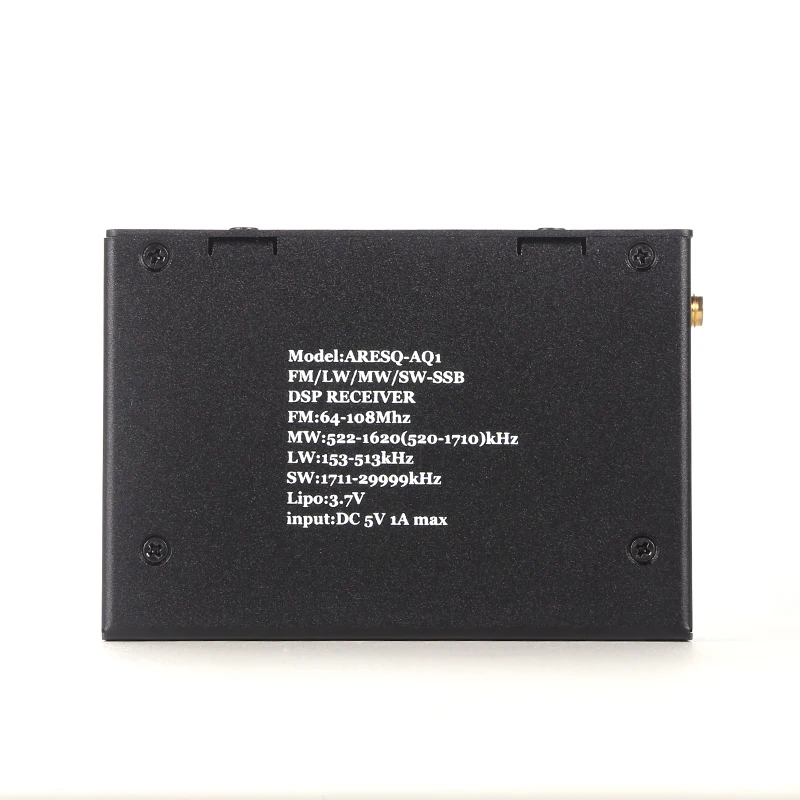

Specifications:
- Model: ARESQ AQ1
- FM: 64-108 MHz
- MW: 522-1620 (520-1710)kHz
- LW: 153-513kHz
- SW: 1711-29999kHz
- Battery: 3.7v 18650 2500mAh
- DC in: type c at 5V 1A Max
- HW: 2.8-inch 9341 SPI touch xtp2046
- MCU is ESP32 si4732 pam8406
- Size: 96 x 67 x 38 mm/3.8 x 2.6 x 1.5"

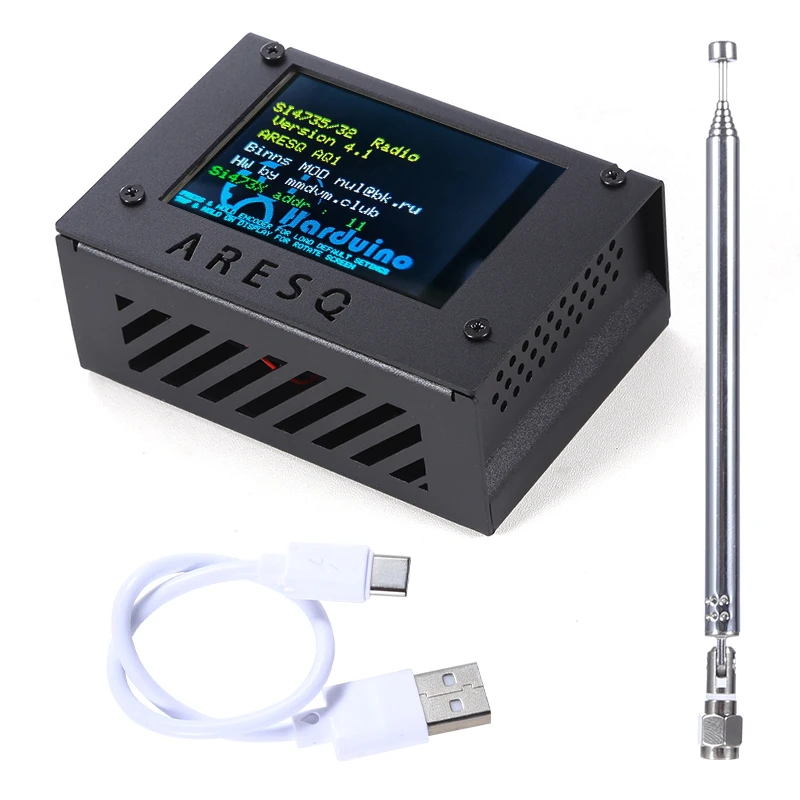

Package Included:
- 1 x Radio Receiver
- 1 x Antenna
- 1 x USB Cable

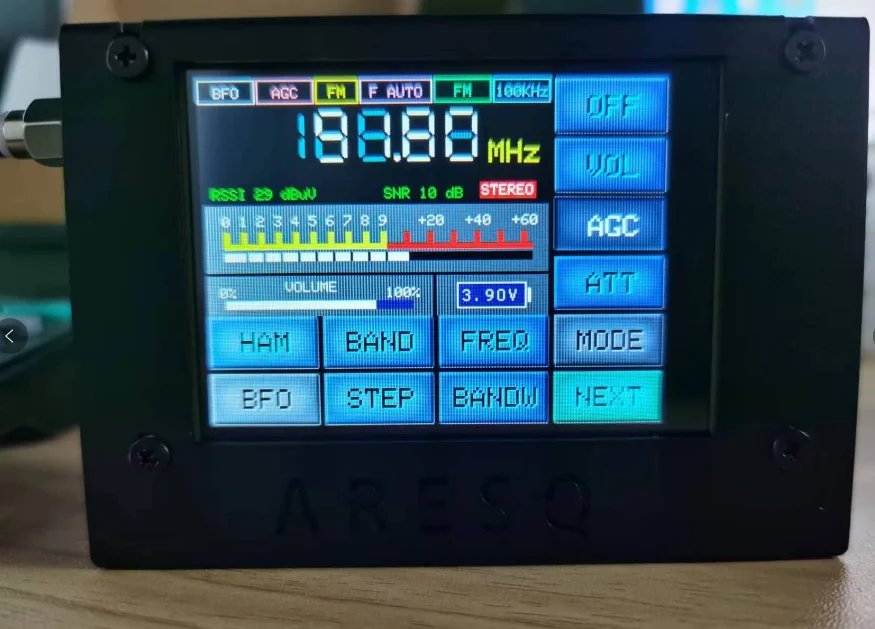

Touch Screen Button Functions:
HAM-Select ham band 10M-630M
BAND-Band Select FM LW MW CB SW 11M-120M
FREQ-Freq input Then Press OK X Exit
BFO-Enable On HAM band +- 975Hz Max (frequency deviation Adjust) or Long Press Encoder
STEP-100K/10K on FM 1k/5k/9k/10k on AM/MW/SW 1k on USB/LSB Ham Band
BANDW-SSB Filter 0.5/1/1.2/2.2/3/4khz; AM Filter 1/1.8/2/2.5/3/4/6 Khz
MODE-LSB/USB/AM/CW
AGC-Auto Gain Control ON/OFF
OFF-Power OFF the Radio
VOL-Volume set 0-63 50-60 is better
RETRO-Old Radio Theme
MEMO-75 Memory BANK EDIT ADD DEL. Click to Select FREQ in Memory
SETUP-Vertical screen/Bright Disp power (10 min power save mode off screen)
>>UP-Freq scan UP and Down
LIGHT-Back Light 0-100%. When save 0%, you can't see anything. Long Press Encoder then Press Power On to Solve
SCAN-frequency spectrum scan mode
CHIP-Firmware Information
INFO-Software version v3.4 Mode freq
RSSI SNR Power Supply EEPROM SIZE
