Specifications
Type: 12 V Automotive Electric AC Compressor
Compressor Style: 12V Semi-closed Horizontal Scroll
Max. Applied Power: 1000W
Refrigerant: R134a
Max. Speed (460V Rating): 2100rpm
Rated Voltage: 12VDC
Speed Range: 1000 - 2100rpm
Refrigeration Oil: POE Oil RL68H/130ml
Max. Incoming Current: 63A
Material: Aluminum Alloy
Features
Control External Design: The air conditioner compressor separates the control panel from the main unit.
LED Flashing Prompt: The control panel adopts a brushless controller unit with LED flashing prompt and protected mode. LED flashing prompts are specially designed for faults.
Multiple Protection: Efficient work, the electric ac compressor will automatically stop working when encountering high pressure/under-voltage and then automatically restart after stable
Widely Used: A/C 12 volt electric compressor unit, suitable for AC air conditioning in automobiles, trucks, and buses.
Led Blinking
LED Blinking hint is special designs for the fault. during the using, some irreguar operate lead to some wrong like,Excessive current,Undervoltage,Locked rotor, Standby mode,over heated,over preasure. This Air conditioner compressor will turn to protection mode and hint by LED blinking.
Blinking 1 times, pause 1 second: Standby mode.
Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.
Fast blinking 3 times, pause 1 second: Locked rotor protection.
Fast blinking 4 times, pause 1 second: Undervoltage protection.
Fast blinking 6 times, pause 1 second: Electric fan fault.
Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.
Fast blinking 8 times, pause 1 second: Compressor over heated protection.
Fast blinking 9 times, pause 1 second: Pressure switch protection.
Package Incluedes

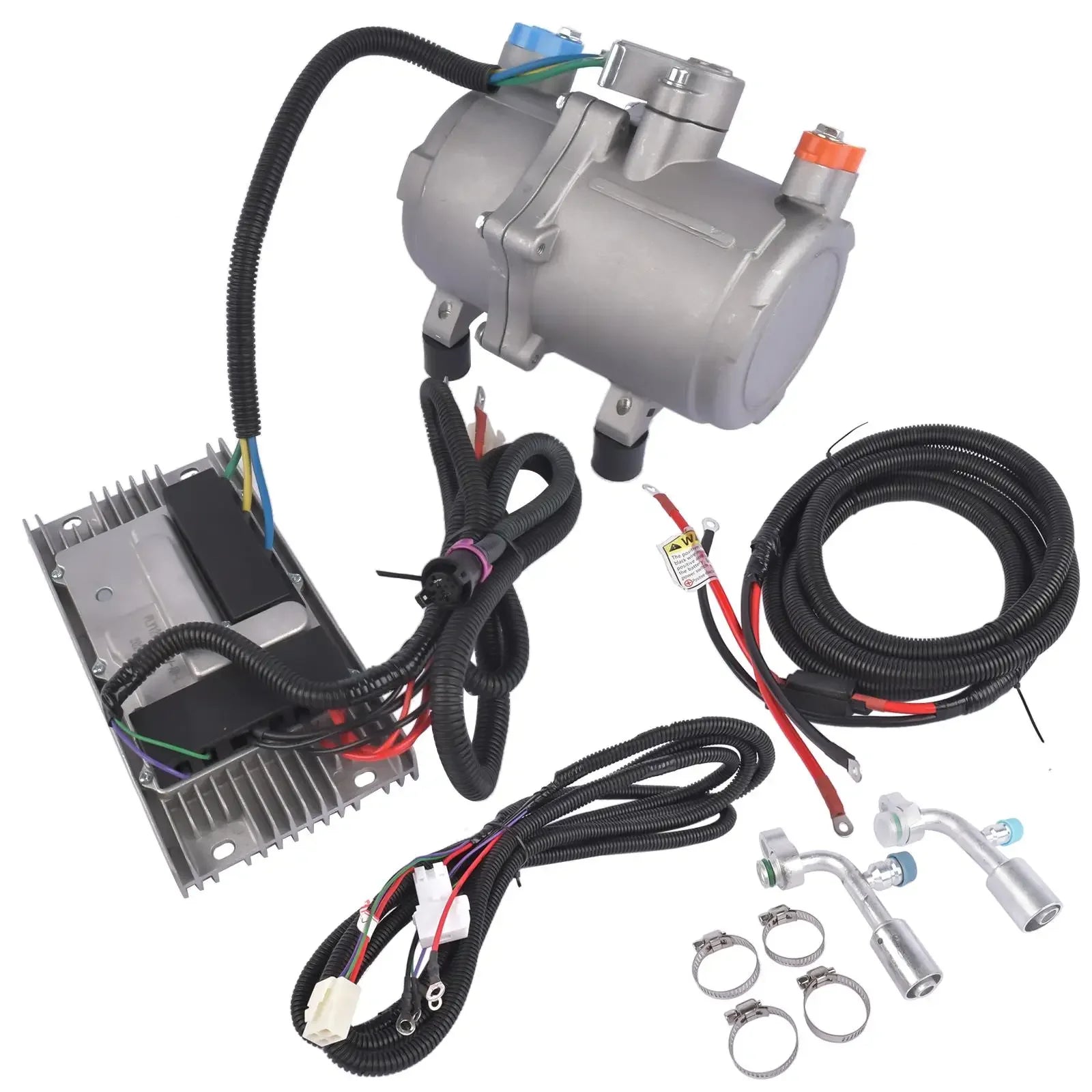

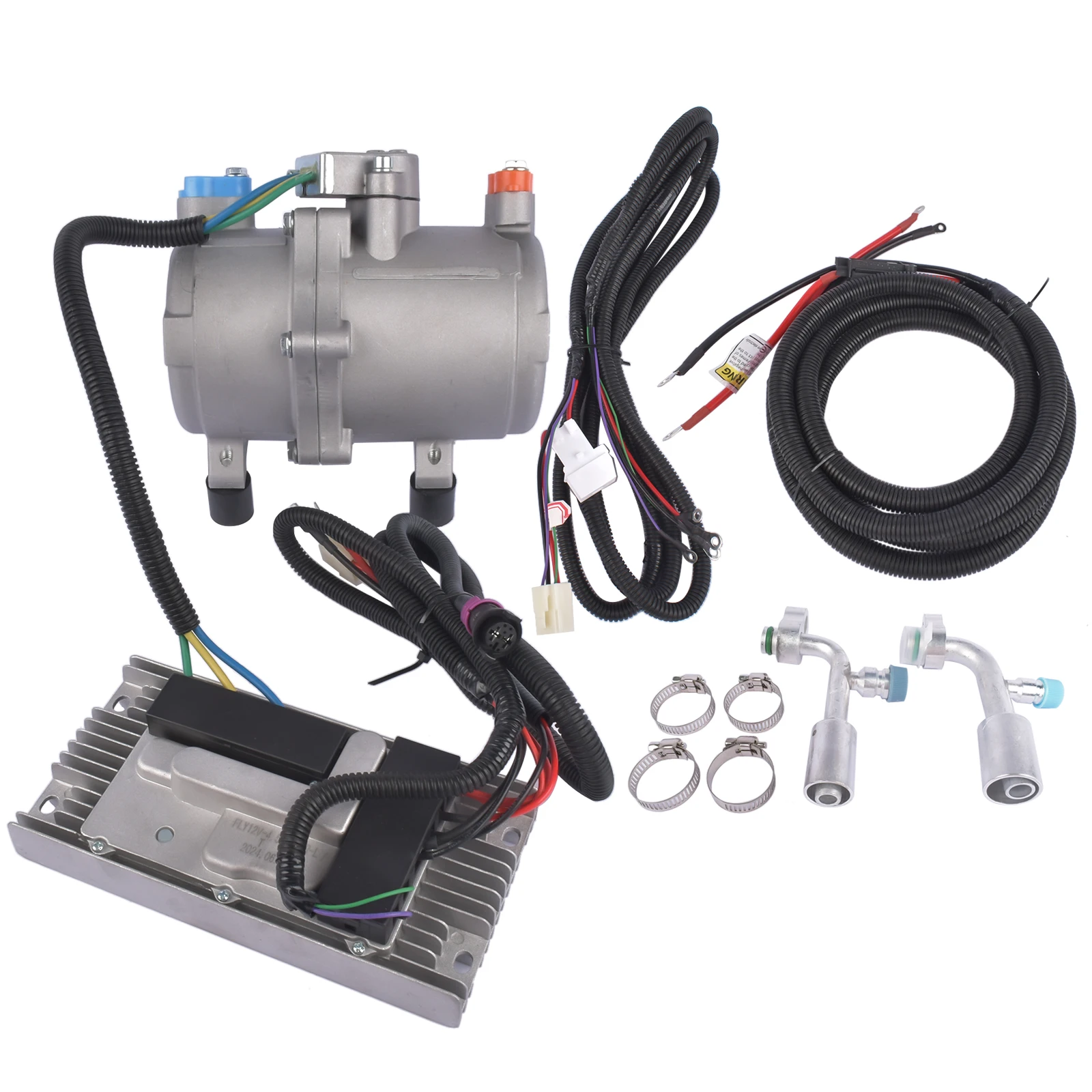

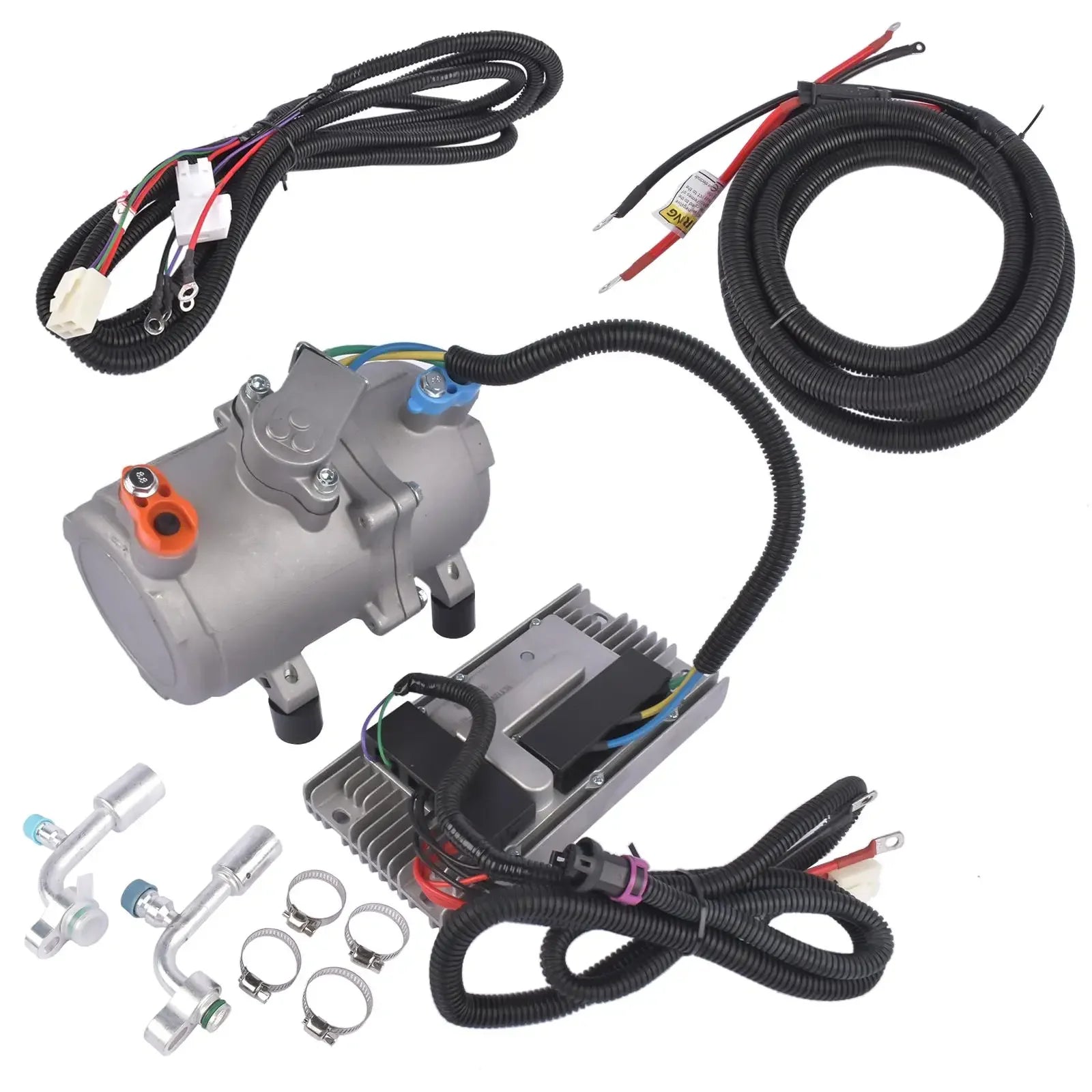

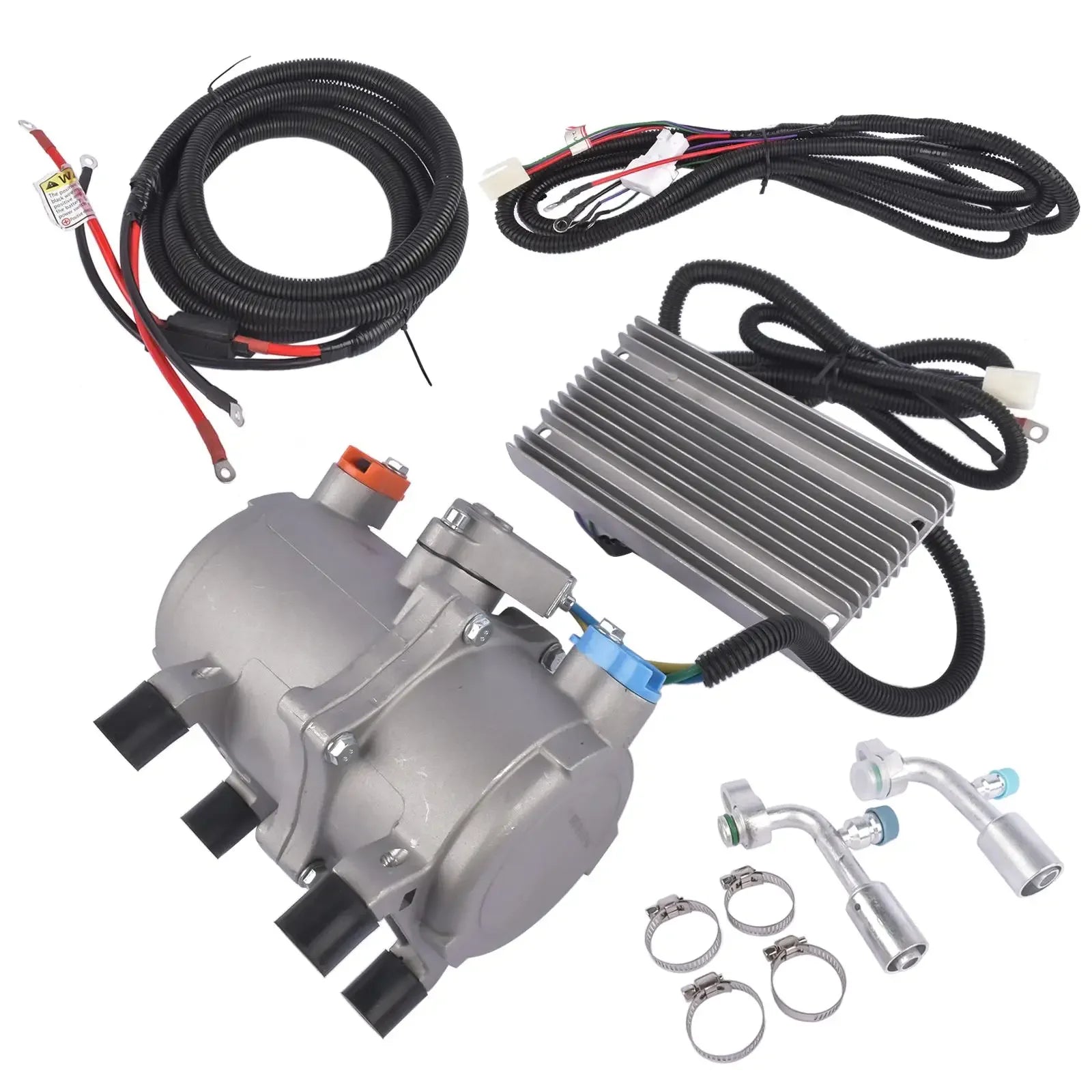

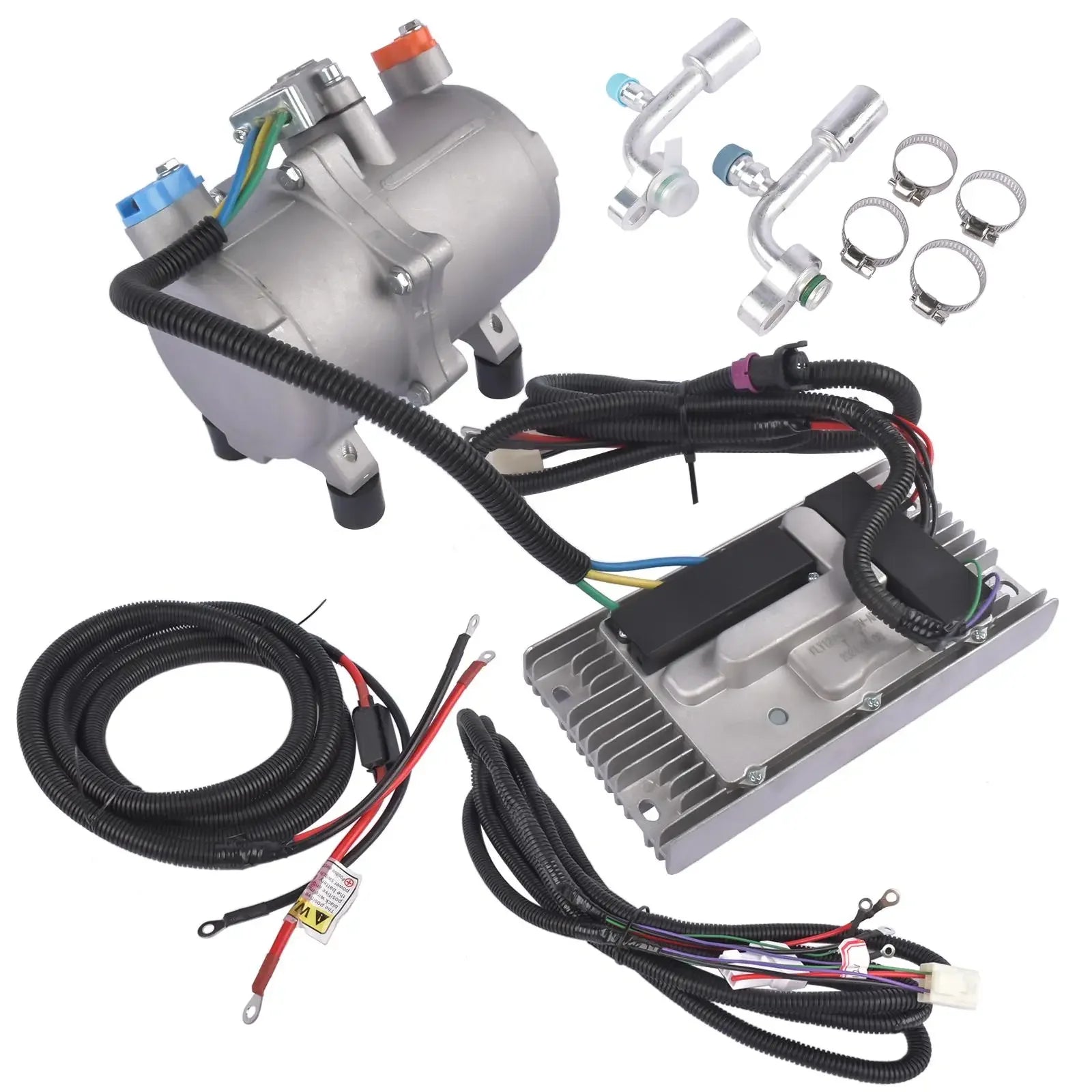

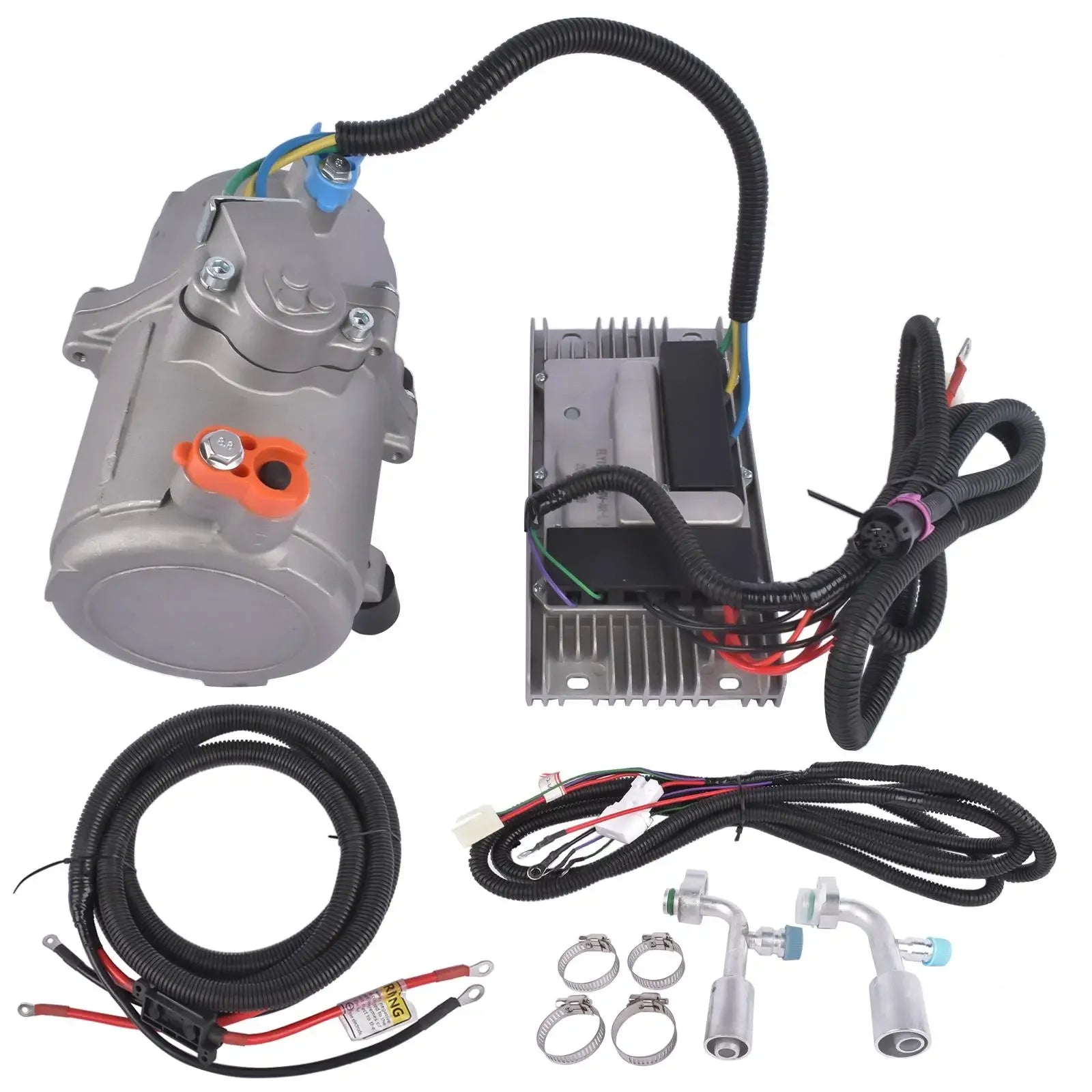

1x Air Conditioning Compressor Kit (As Pics Shown)
NOTICE：
*Compatible table only for reference.
Please be aware that the vehicle compatibility list may not be 100% accurate. However, the OE number provided in our listing is. Match the result with the OE number we have in the listing that would be the best way to guarantee fitment.
Before Purchasing, please carefully check the OEM part number and illustrations to make sure it is compatible with your model. If you are not sure, please feel free to contact us. We are always here to solve any problems you may encounter, and we'll reply you as soon as possible.
