AP03 90 Degree Speed Ratio 1:1 CW/CW Right Angle Bevel Gearbox with 2 Keyed Shafts
AP03 90 Degree Speed Ratio 1:1 CW/CW Right Angle Bevel Gearbox with 2 Keyed Shafts
Sale
Sold out
Pre-order
Regular price
$147.63 USD
Regular price
$227.12 USD
Sale price
$147.63 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Description:

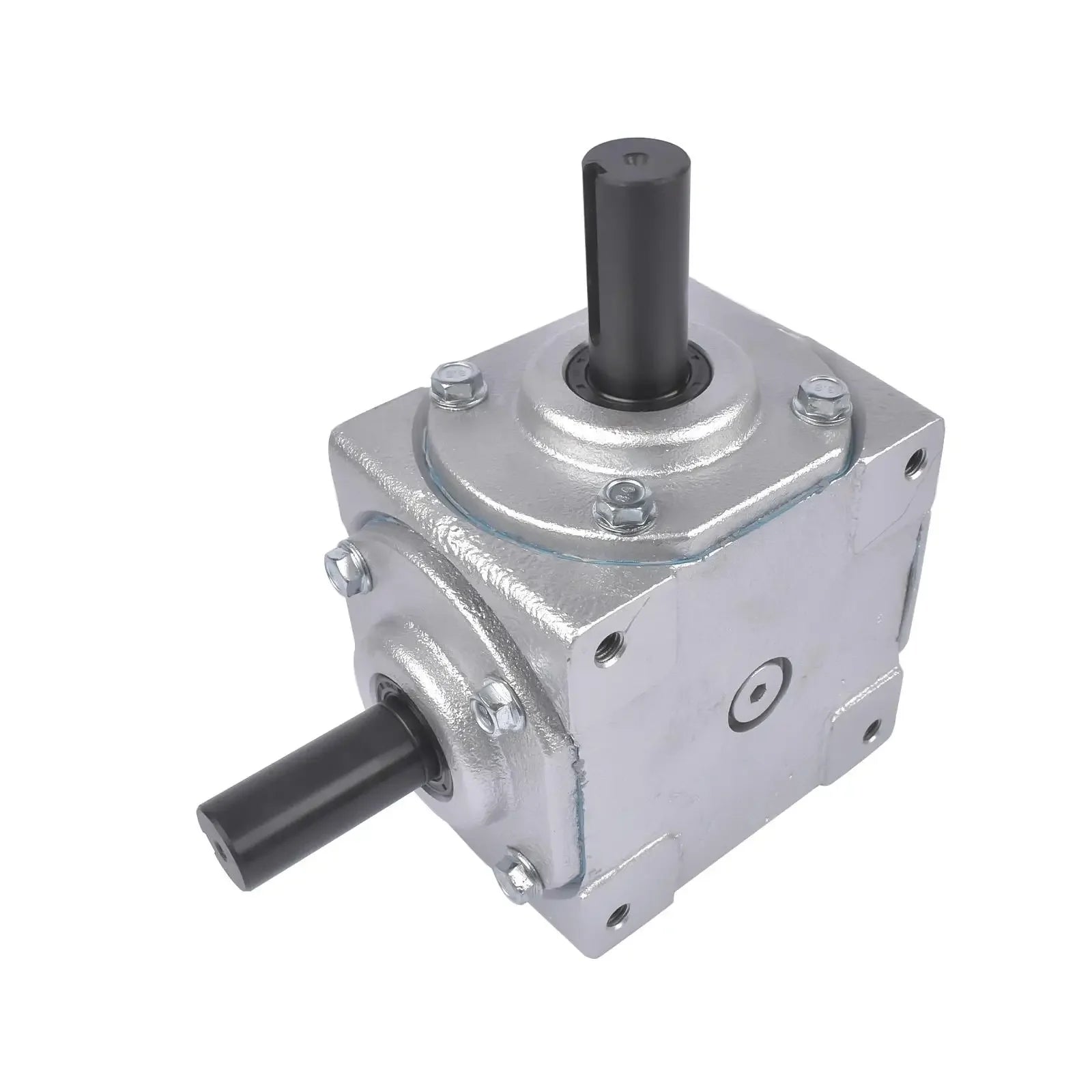

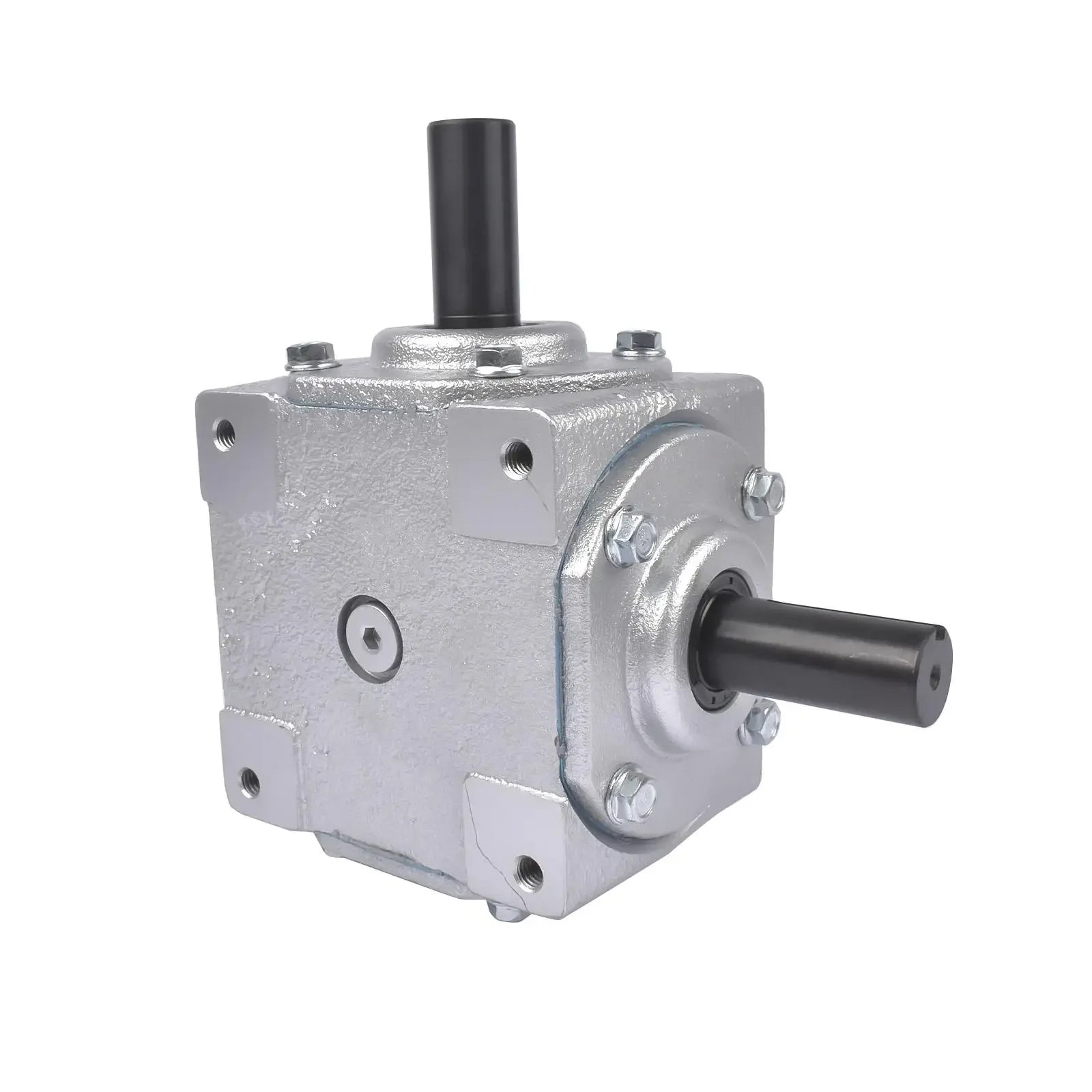

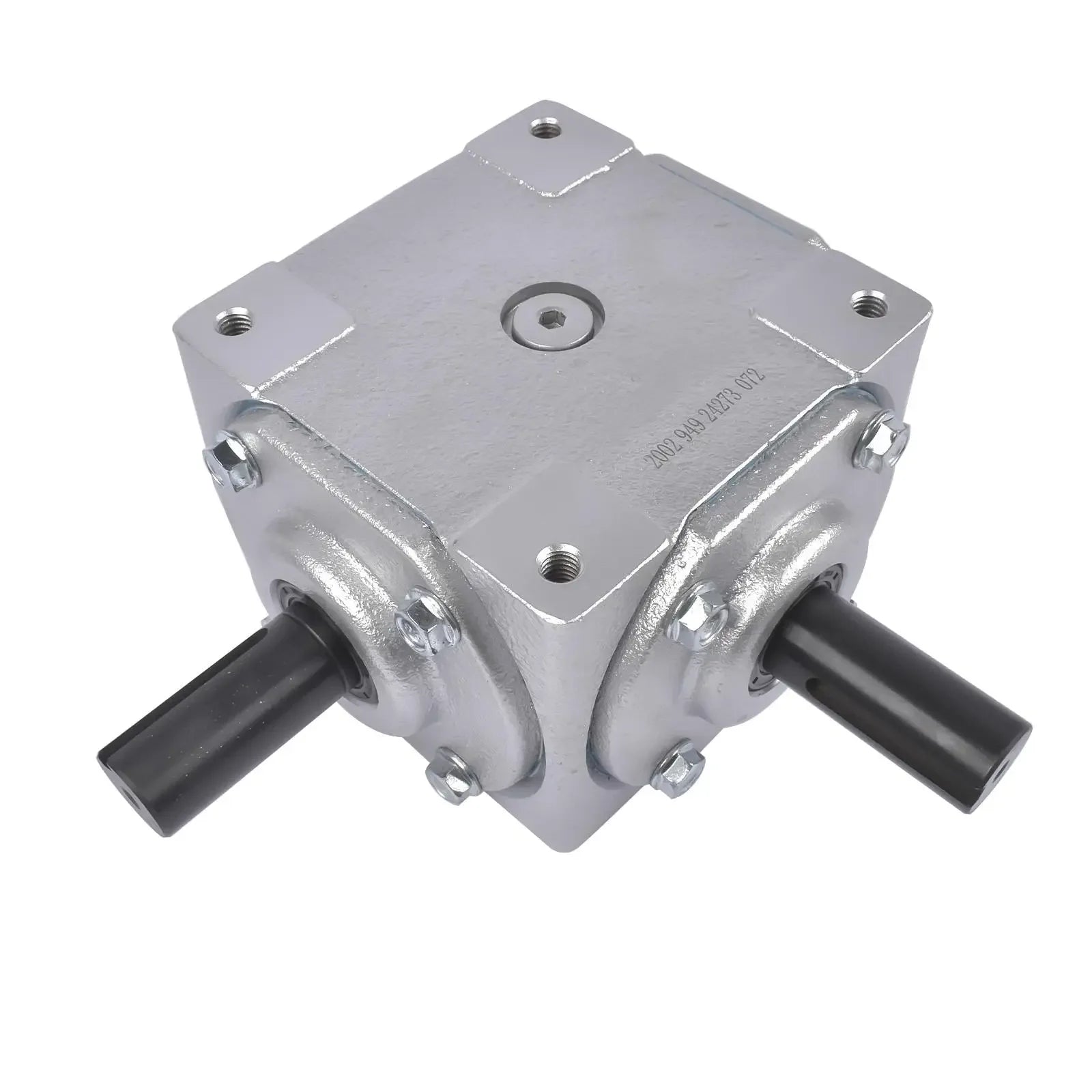

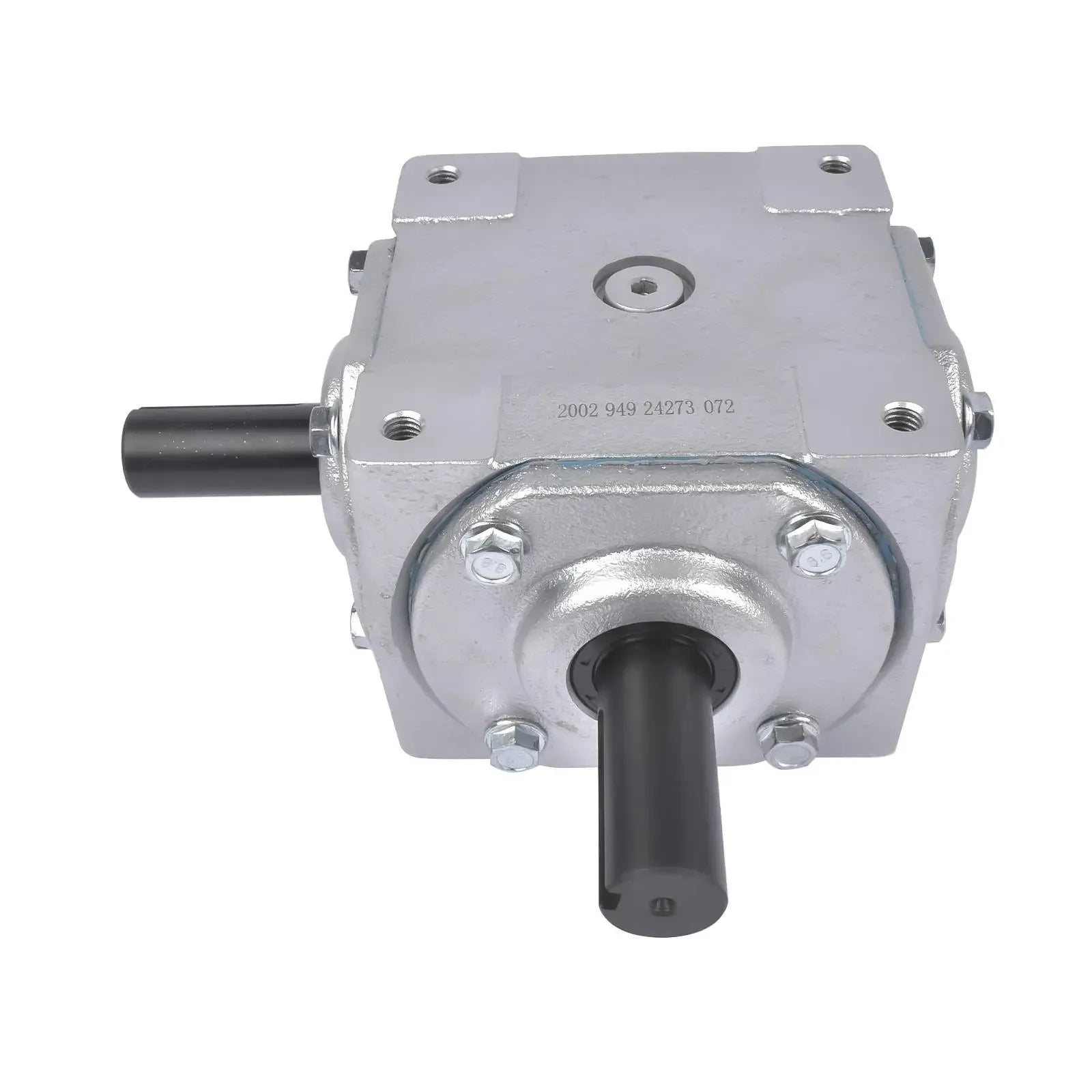

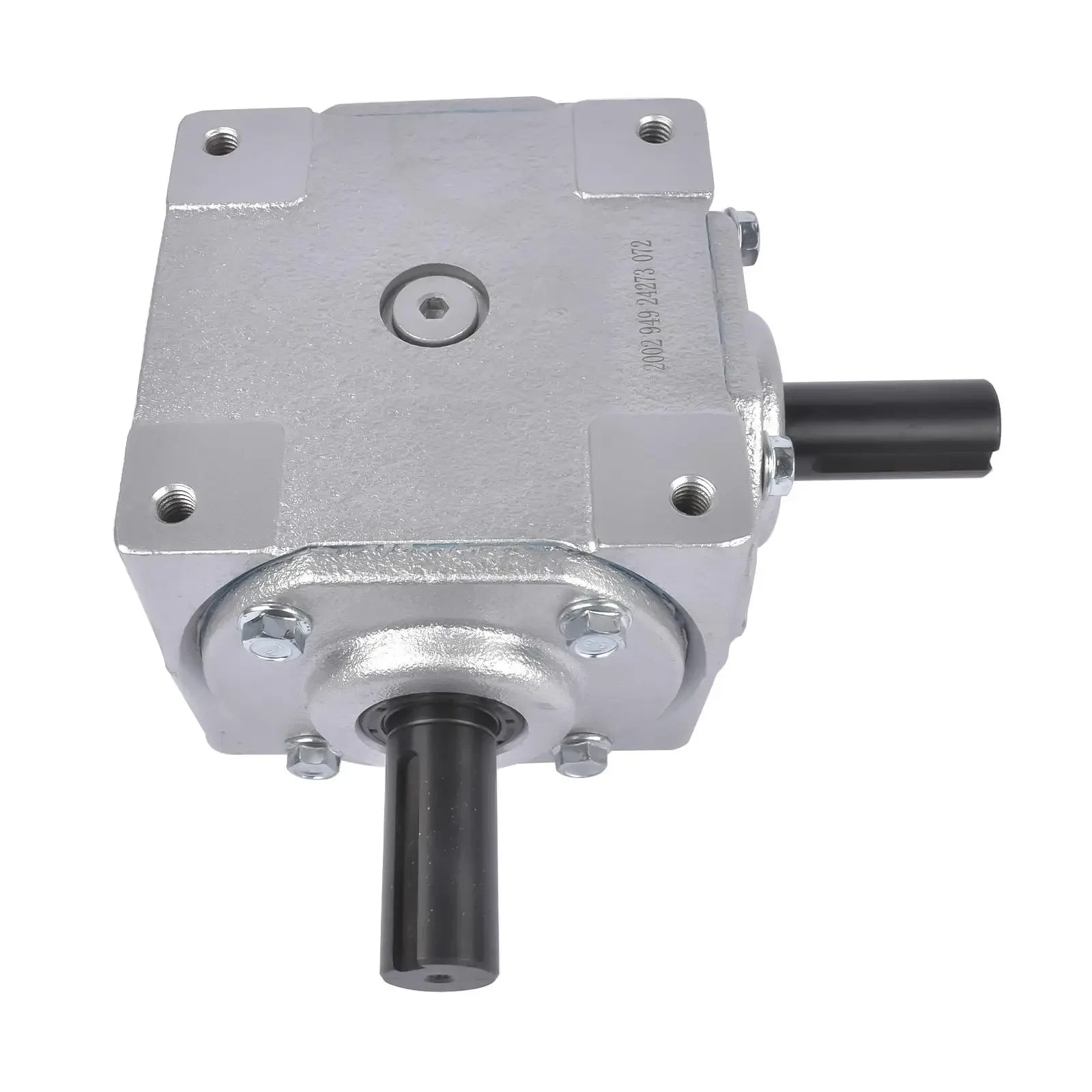

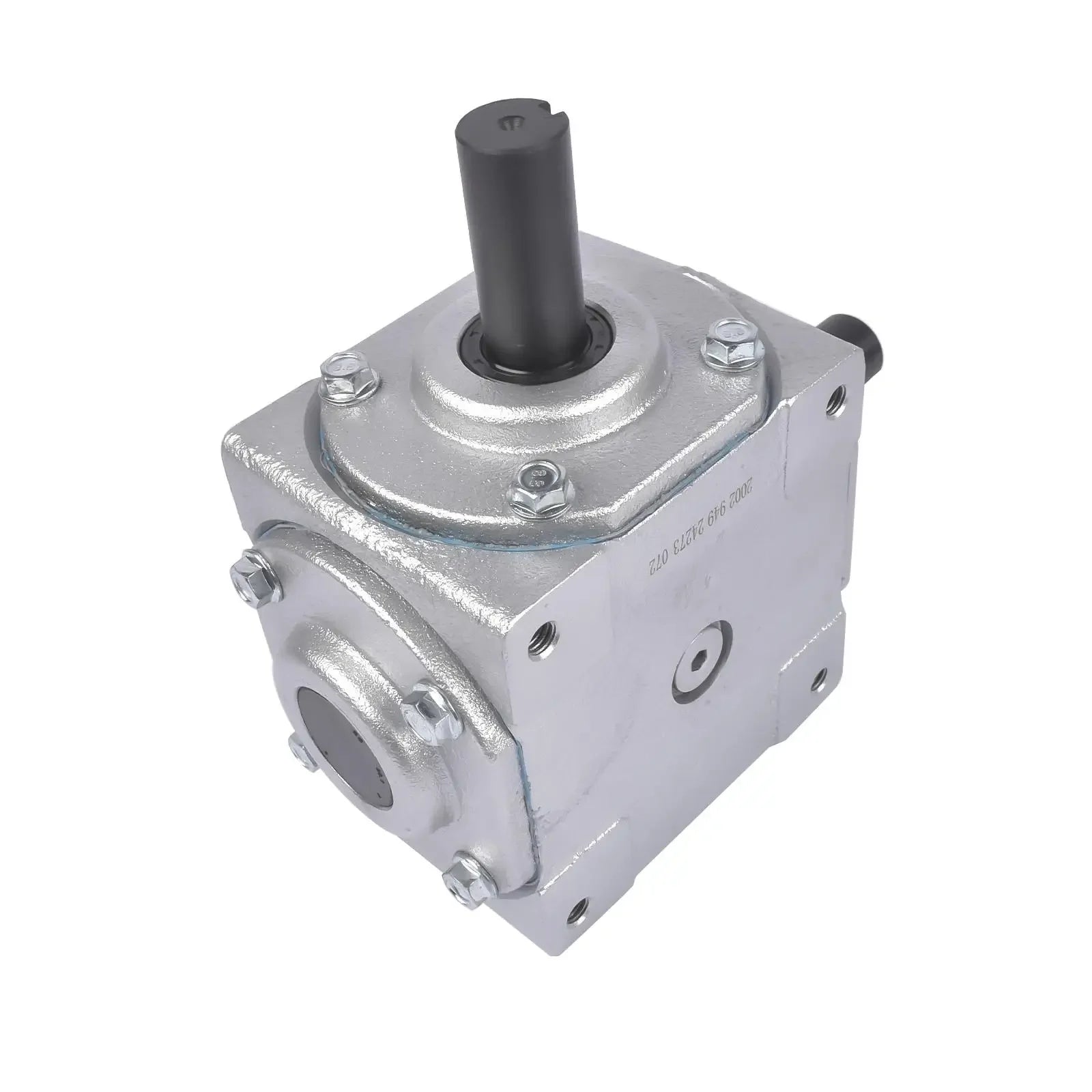

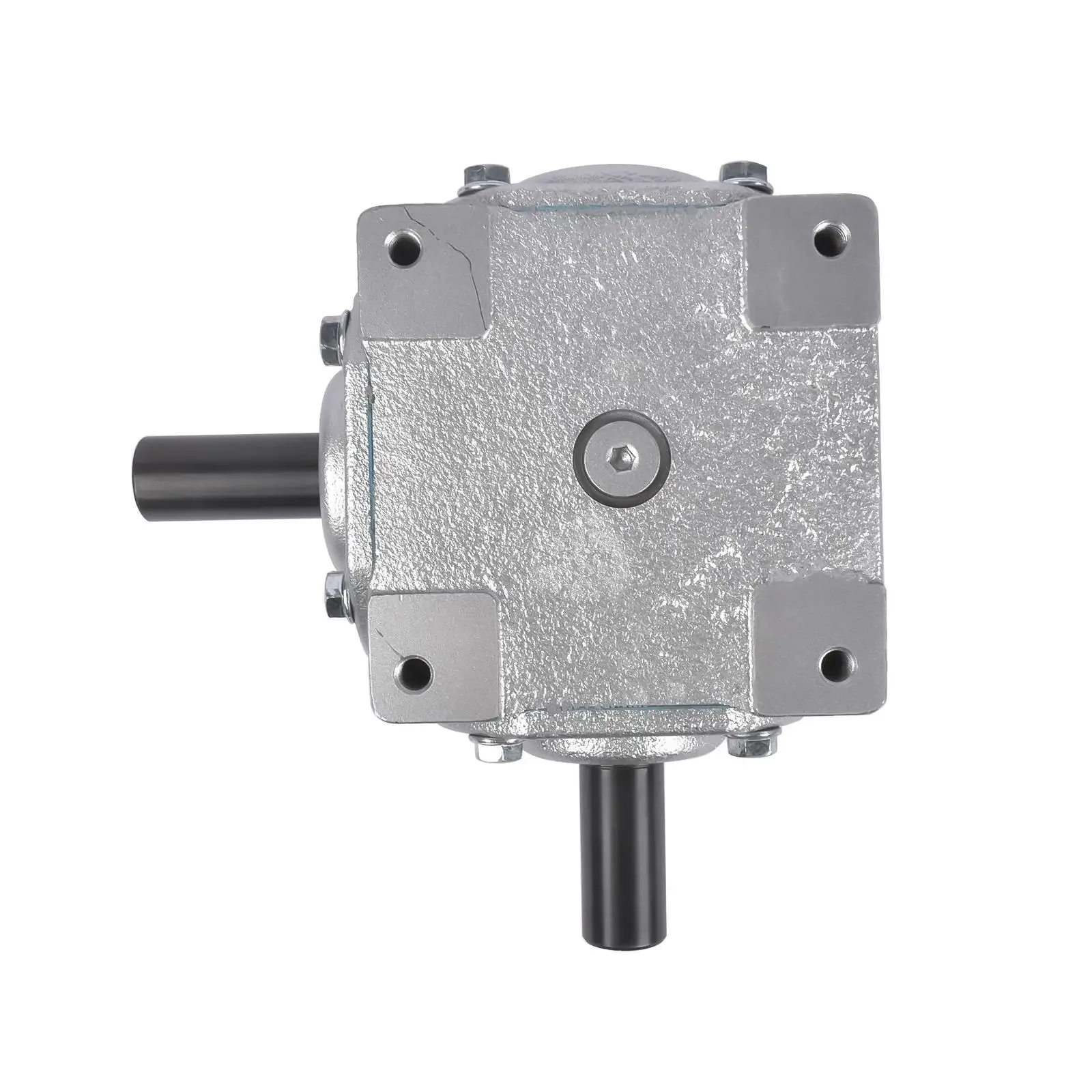

Right angle gearbox with 1" keyed shafts. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W)
Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN THE SAME DIRECTIONS (CW/CW).
Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN THE SAME DIRECTIONS (CW/CW).
Specifications:

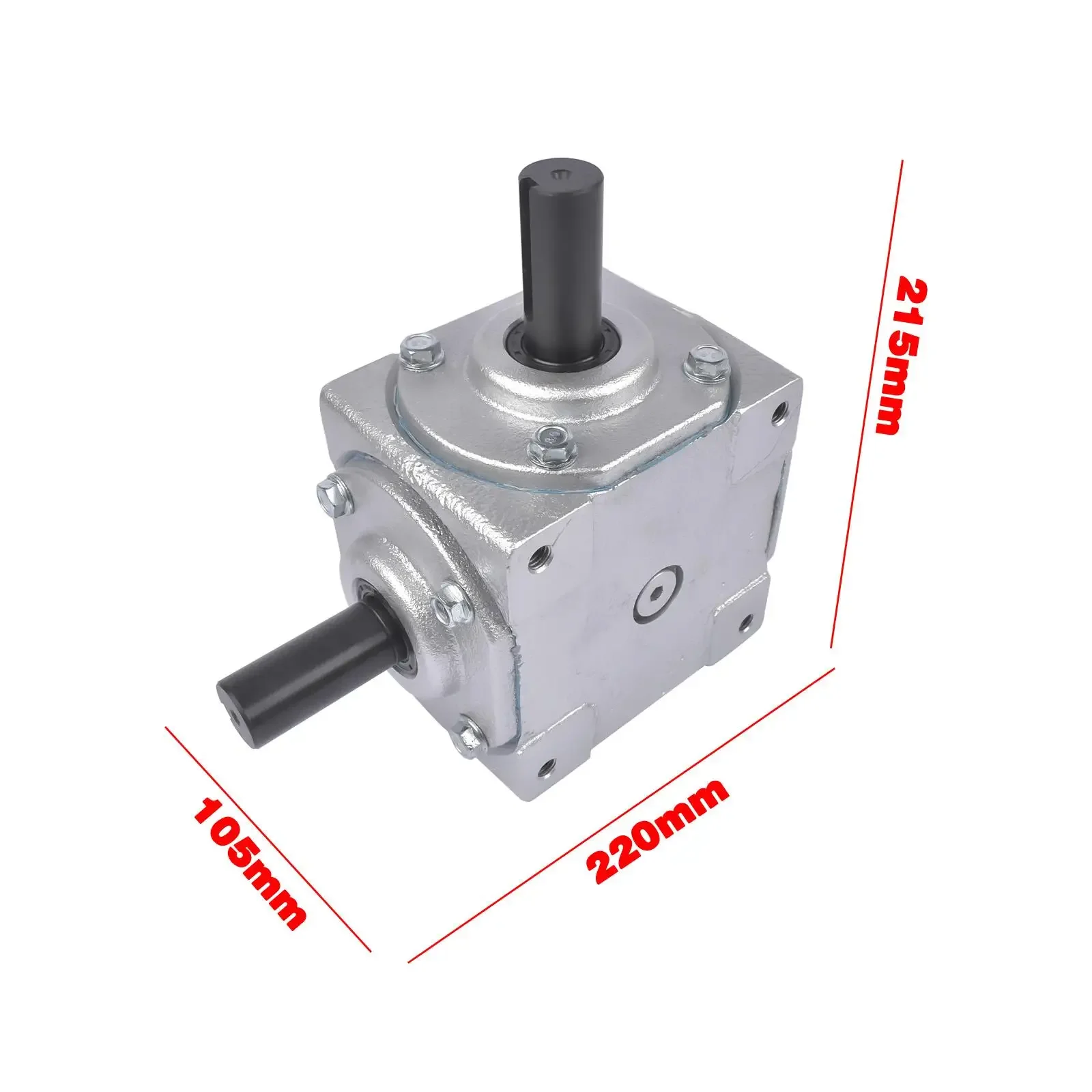

Dimensions: 5-7/8" X 6-1/4" X 4-1/8"
Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes

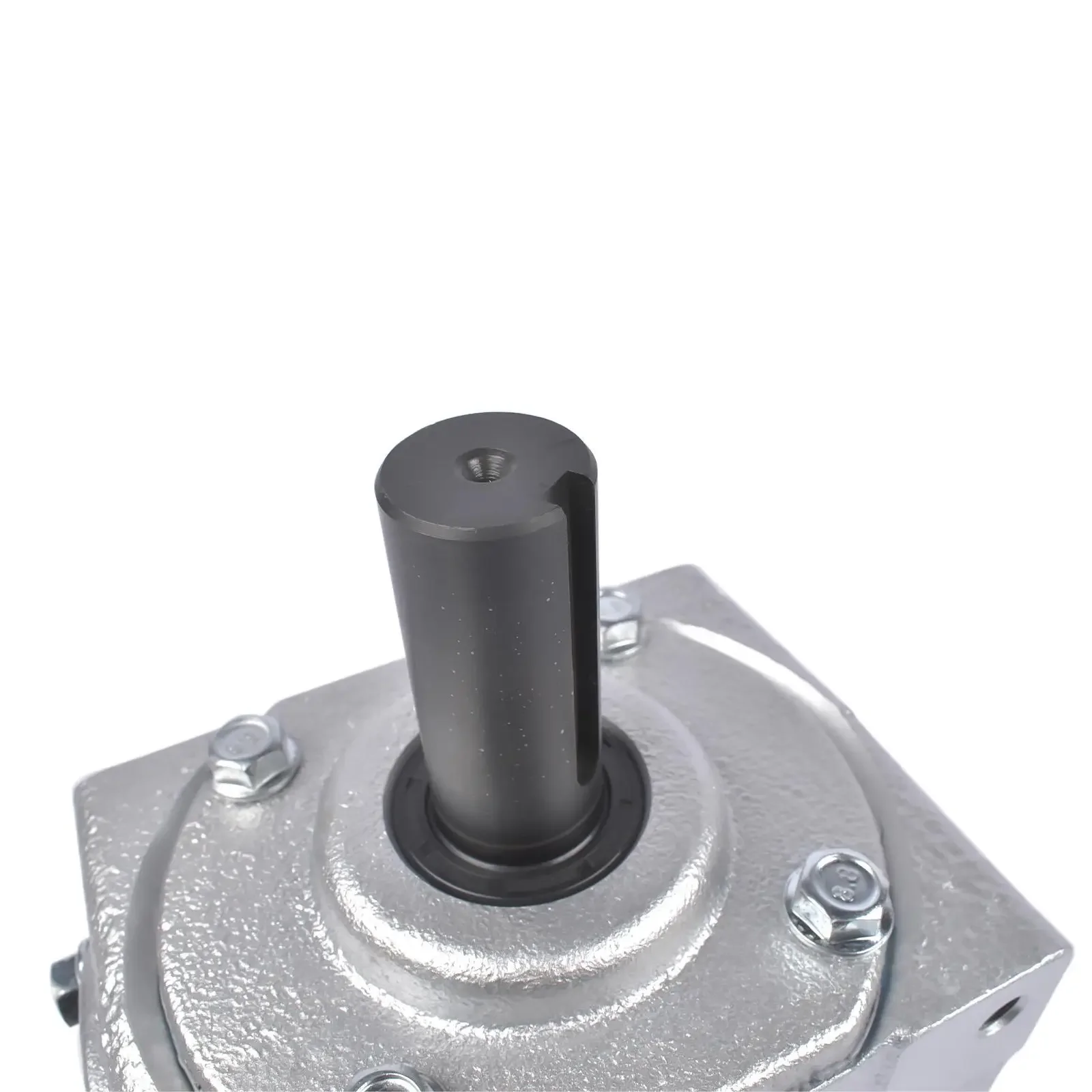

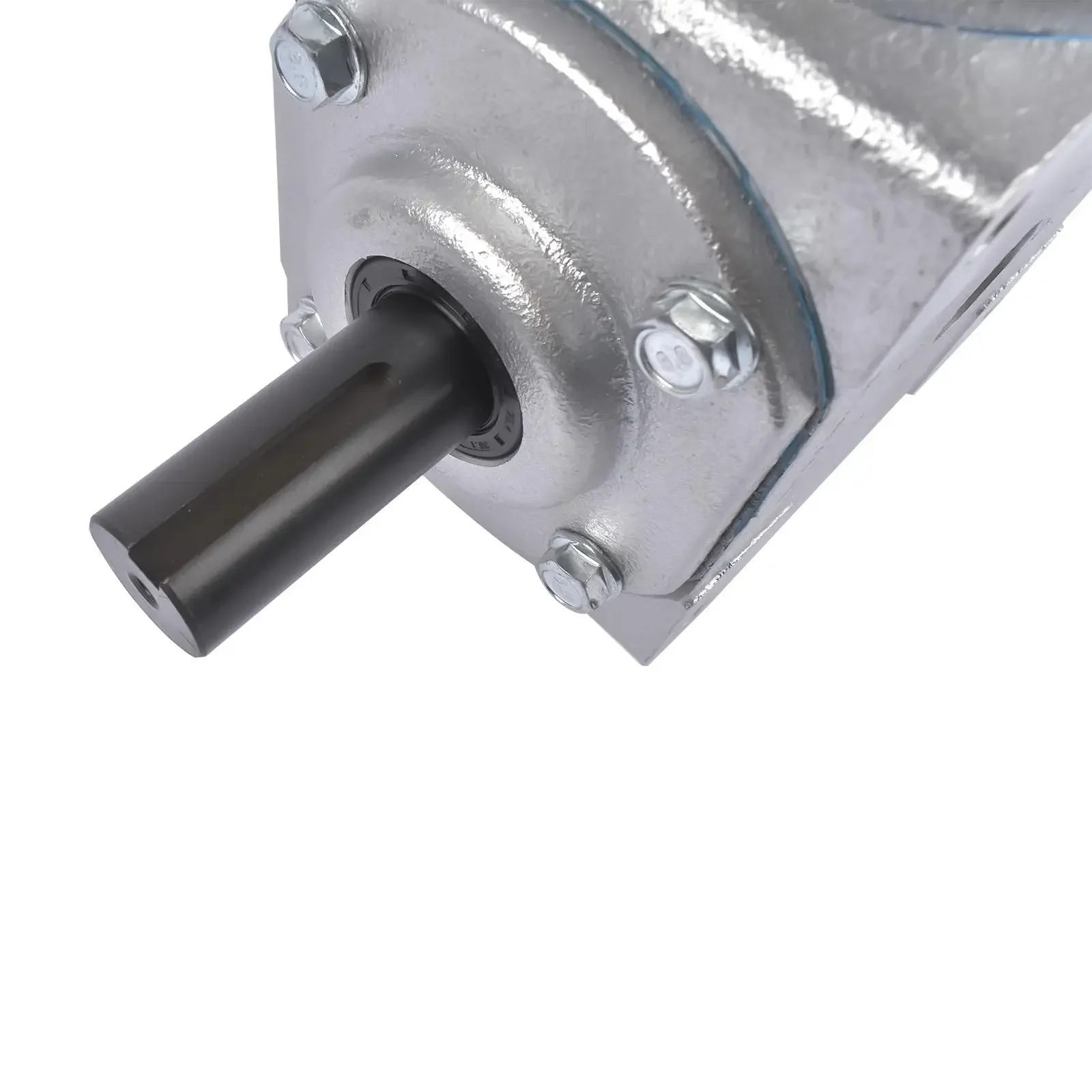

Input Shaft: 1" X 2-1/4" with 1/4" Keyway
Output Shaft: 1" X 2-1/4" with 1/4" Keyway
Input Power: 40 HP
Input Speed: 1,800 Max RPM
Shaft Rotation: CW to CW with 1:1 Ratio
Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
Input Shaft: 1" X 2-1/4" with 1/4" Keyway
Output Shaft: 1" X 2-1/4" with 1/4" Keyway
Input Power: 40 HP
Input Speed: 1,800 Max RPM
Shaft Rotation: CW to CW with 1:1 Ratio
Package Includes:
1x Bevel Gearbox (As Pics Shown)
Product Details
 |
 |
 |
NOTICE
*Compatible table only for reference.
Please be aware that the vehicle compatibility list may not be 100% accurate. However, the OE number provided in our listing is. Match the result with the OE number we have in the listing that would be the best way to guarantee fitment.
Before Purchasing, please carefully check the OEM part number and illustrations to make sure it is compatible with your model. If you are not sure, please feel free to contact us. We are always here to solve any problems you may encounter, and we'll reply you as soon as possible.
*Compatible table only for reference.
Please be aware that the vehicle compatibility list may not be 100% accurate. However, the OE number provided in our listing is. Match the result with the OE number we have in the listing that would be the best way to guarantee fitment.
Before Purchasing, please carefully check the OEM part number and illustrations to make sure it is compatible with your model. If you are not sure, please feel free to contact us. We are always here to solve any problems you may encounter, and we'll reply you as soon as possible.
Description
Description
Description:
Right angle gearbox with 1" keyed shafts. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W)
Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN THE SAME DIRECTIONS (CW/CW).
Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN THE SAME DIRECTIONS (CW/CW).
Specifications:
Dimensions: 5-7/8" X 6-1/4" X 4-1/8"
Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
Input Shaft: 1" X 2-1/4" with 1/4" Keyway
Output Shaft: 1" X 2-1/4" with 1/4" Keyway
Input Power: 40 HP
Input Speed: 1,800 Max RPM
Shaft Rotation: CW to CW with 1:1 Ratio
Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
Input Shaft: 1" X 2-1/4" with 1/4" Keyway
Output Shaft: 1" X 2-1/4" with 1/4" Keyway
Input Power: 40 HP
Input Speed: 1,800 Max RPM
Shaft Rotation: CW to CW with 1:1 Ratio
Package Includes:
1x Bevel Gearbox (As Pics Shown)
