Description
OE Number
27 10 7 566 296, 27107566296, 7566296
27 10 7 541 782, 27107541782, 7541782
27 10 7 566 250, 27107566250, 7566250
0 130 008 507, 0130008507
7528559
Will Fit for Following Models
Actuator application:
BMW with ATC400, ATC500, ATC700 Transfer Case
E83 2003-2010
E53 2003-2005
E70 2006-2009
Reference ATC400 transfer case numbers: 27103455139, 27103455136, 27103455137, 27103455135, 27103455138, 27103455132.
Reference ATC500 transfer case numbers: 27107555297, 27107555295.
Reference ATC700 transfer case numbers: 27107599889, 27107599886, 27107599899, 27107599898, 27107599890, 27107599887.
Reference ATC400, ATC500 actuator number: 27107566296.

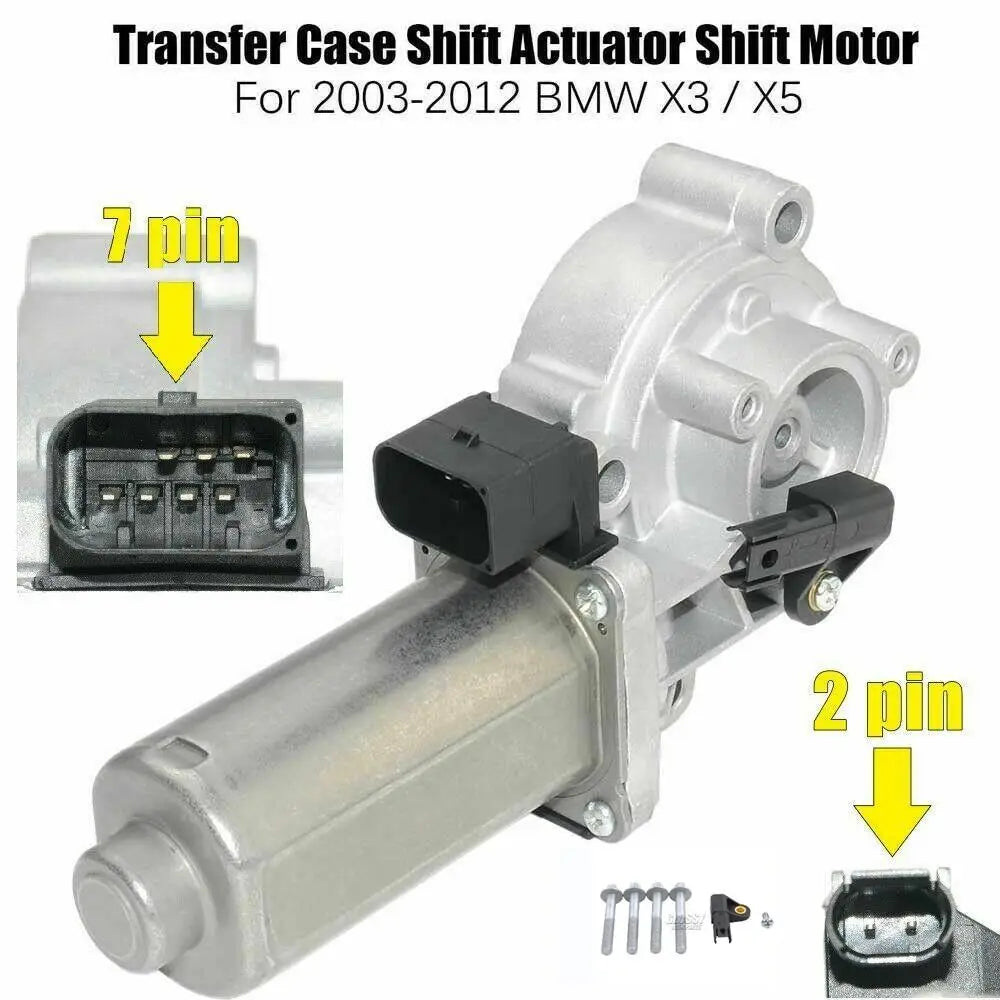

About Transfer Case Shift Motor
Transfer Case Shift Motor is a part of some vehicle’s four-wheel drive (4WD) system and is responsible for switching between the vehicle's different two and four-wheel drive options.
It is a small electric motor that moves parts within the transfer case itself to activate the various modes of the 4WD system.
If the transfer case motor is not functioning, then you may find yourself unable to shift into or out of 4WD.
Transfer Case Shift Motor is a part of some vehicle's four-wheel drive (4WD) system and is responsible for switching between the vehicle's different two and four-wheel drive options. It is a small electric motor that moves parts within the transfer case itself to activate the various modes of the 4WD system.
How to replace the Transfer Case Shift Motor?
Transfer case shift motor is fairly easy to access and replacing it is within the reach of the do-it-yourselfer.
You may have to remove the front driveshaft in order to access the shift motor.
In order to remove the shift motor and install the new one, you’ll need to get the transfer case shifted into its neutral position.
You should be able to do this by turning the transfer case shift shaft with a crescent wrench.
Other than that, you’ll just need to disconnect the electrical connections, unbolt the old shift motor, and bolt on and reconnect the new one.
*Compatible table only for reference.
Please be aware that the vehicle compatibility list may not be 100% accurate. However, the OE number provided in our listing is. Match the result with the OE number we have in the listing that would be the best way to guarantee fitment.
Before Purchasing, please carefully check the OEM part number and illustrations to make sure it is compatible with your model. If you are not sure, please feel free to contact us. We are always here to solve any problems you may encounter, and we'll reply you as soon as possible.
Then, if you have any problems after purchasing, please contact us before opening a return or case. We will do our best to provide you with the best solution. Thanks for your understanding.
