AP03 20GPM 12V Red Fuel Transfer Pump w/Nozzle Kit for Car Truck Tractor Diesel
AP03 20GPM 12V Red Fuel Transfer Pump w/Nozzle Kit for Car Truck Tractor Diesel
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Red Fuel Transfer Pump w/Nozzle Kit for Car Truck Tractor Diesel Blue 20GPM 12V
Item Specifications:
Material: Steel Zinc Coating
Color: Blue
Dimensions: (55 x 36.5 x 34.5)cm (L x W x H)
Weight: 16 kg
Watts: 265W
RPM Speed: 2600RPM
Max. Total Head(ft): 37FT=11.2M
Dimension of Inlet and Outlet: 1"
Hose Length: 8FT=2.5M
Duty Cycle: 30Min
Seal Type: Oil Seal
Flow: 20GPM
Voltage: 12V
Feature
MULTIFUNCTIONAL: This transfer pump delivers gasoline, diesel, paraffin, biodiesel and similar fuels or oils more safely and efficiently. Ideal for lawn tractors, boats, motorboats, snowmobiles and trimmers.
OVERHEAT PROTECTION: This fuel transfer pump features a sealed explosion-proof permanent magnet motor with thermal overload protection. Compact size makes it easy to install, operate and maintain.
HIGH PERFORMANCE: A safe, forged copper pump head is available for 12V or 24V DC to ensure greater safety. Designed for 12V battery-powered tank transfers installed on trailers or trucks, this fuel pump pumps fuel up to 8 feet deep in the tank and discharges fuel up to 37 feet high.
QUALITY: The fuel transfer pump pump body is made of cast iron for rugged durability. The pump body has a waterproof design with a built-in strainer and bypass valve. Ball bearing construction requires no lubrication.
EASY INSTALLATION: The pump comes with a removable junction box that can be easily rotated 180 degrees for electrical wiring and installation in tight spaces.
Will Fit for The Following Models
For Transfer of Gasoline, Diesel Fuel, Kerosene, Mineral Spirits, Heptane, Hexane, E15, Biodiesel, and Similar Fuels or Oils.

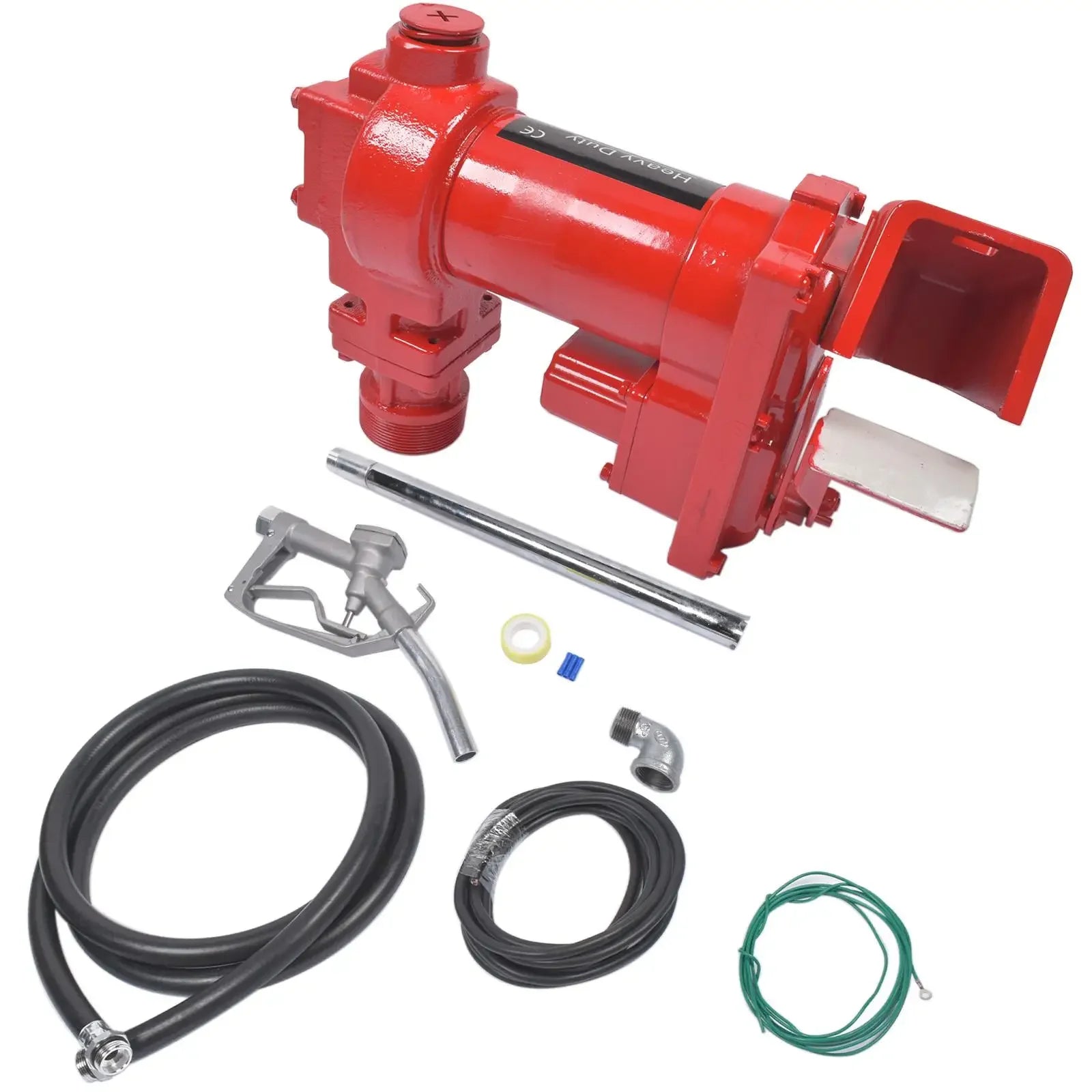

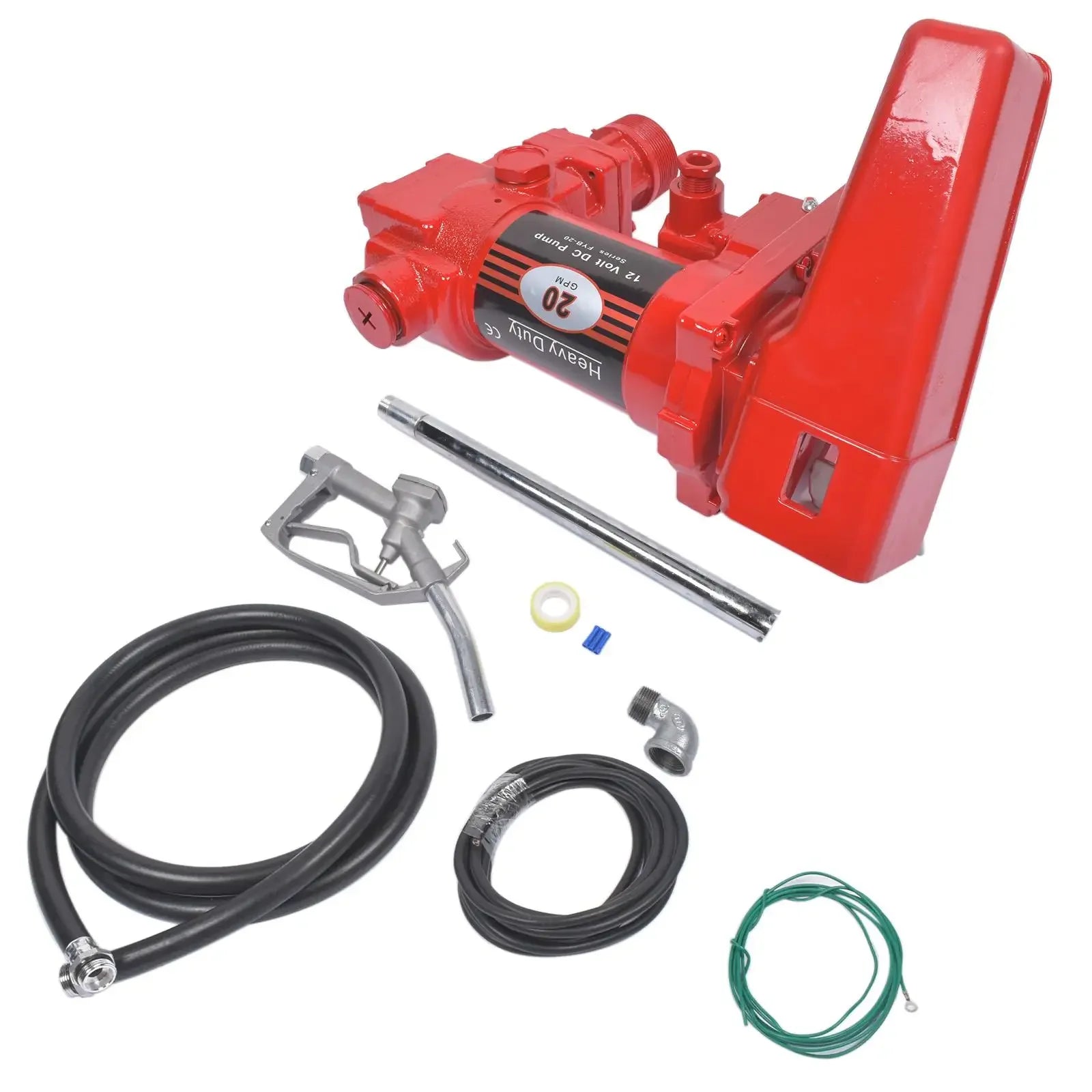

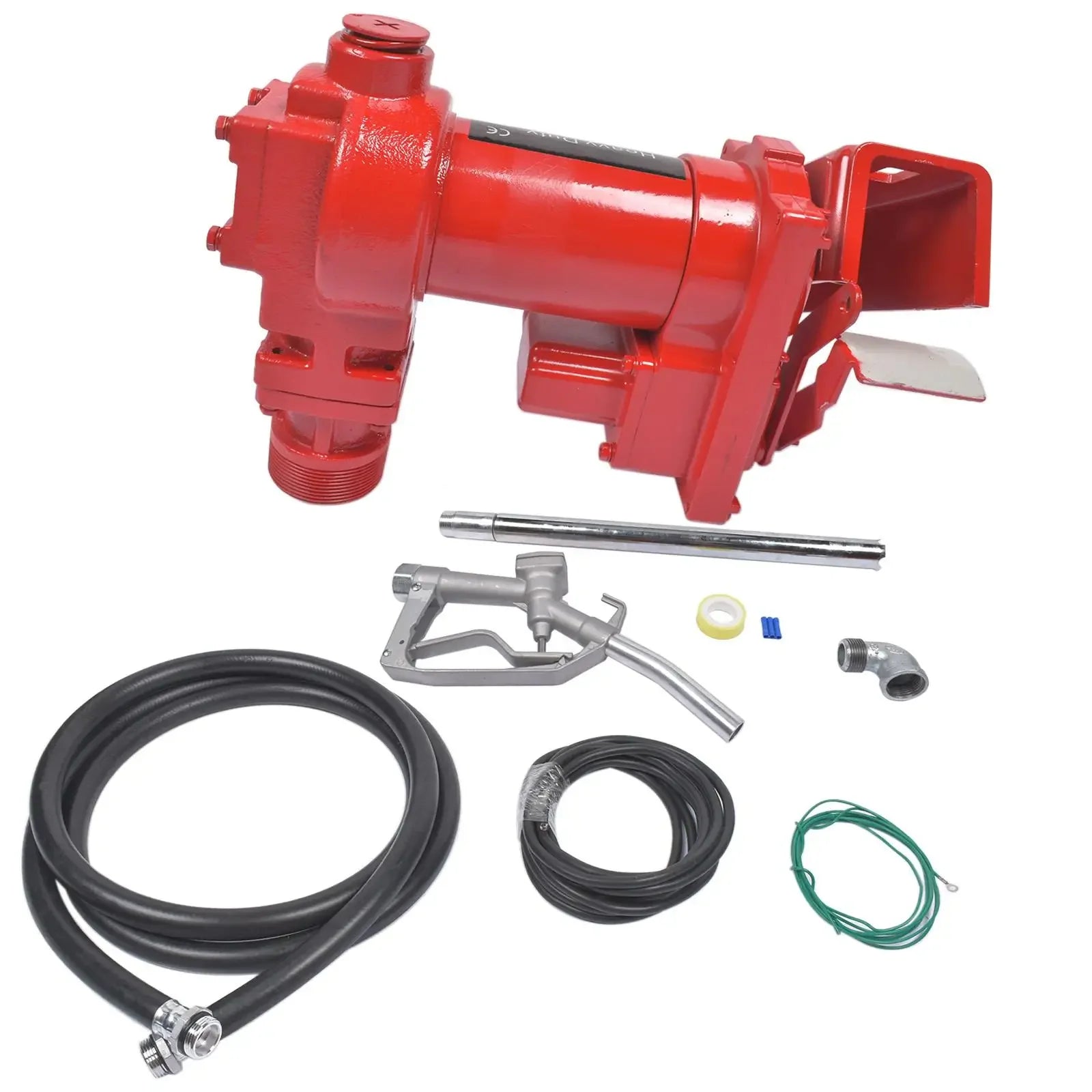

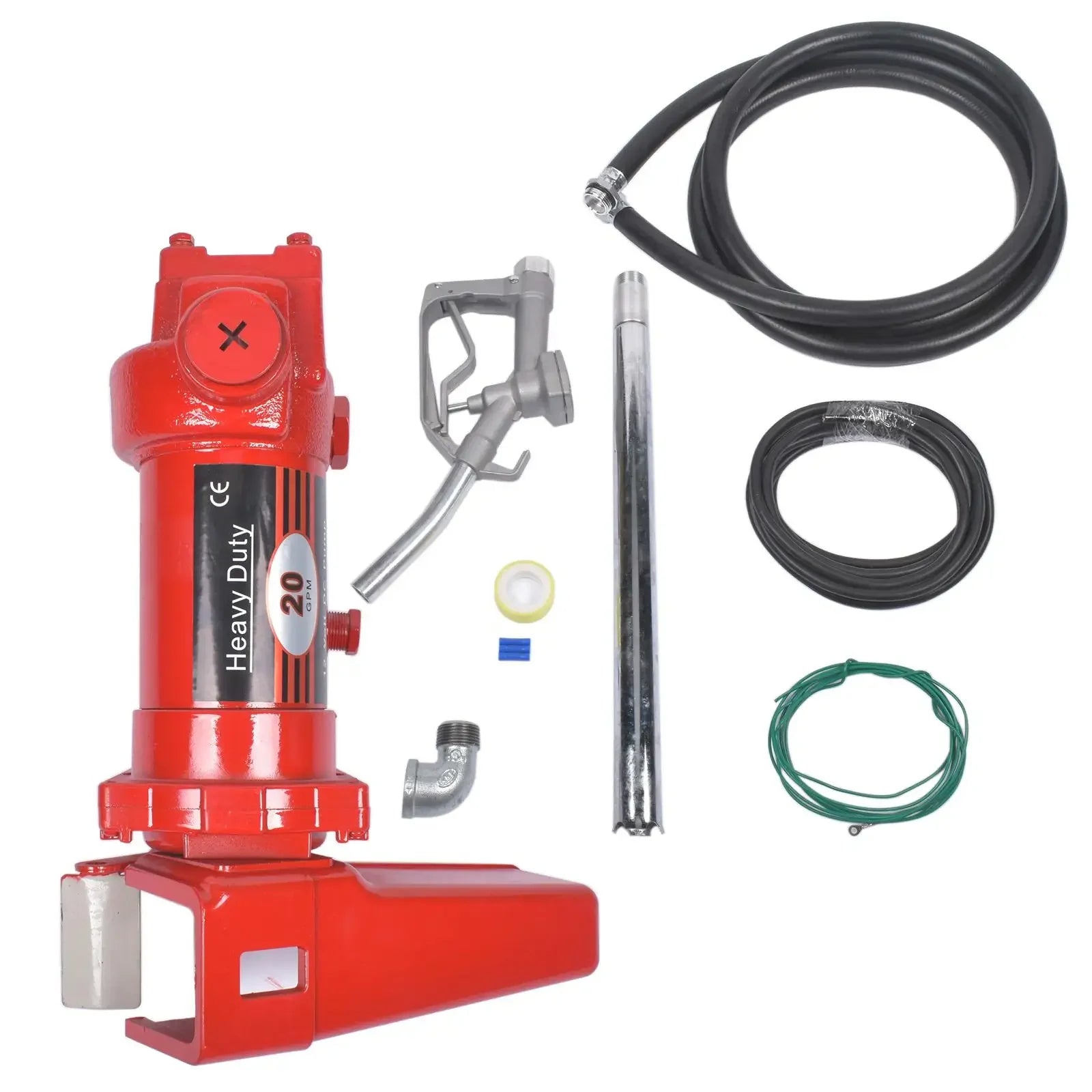

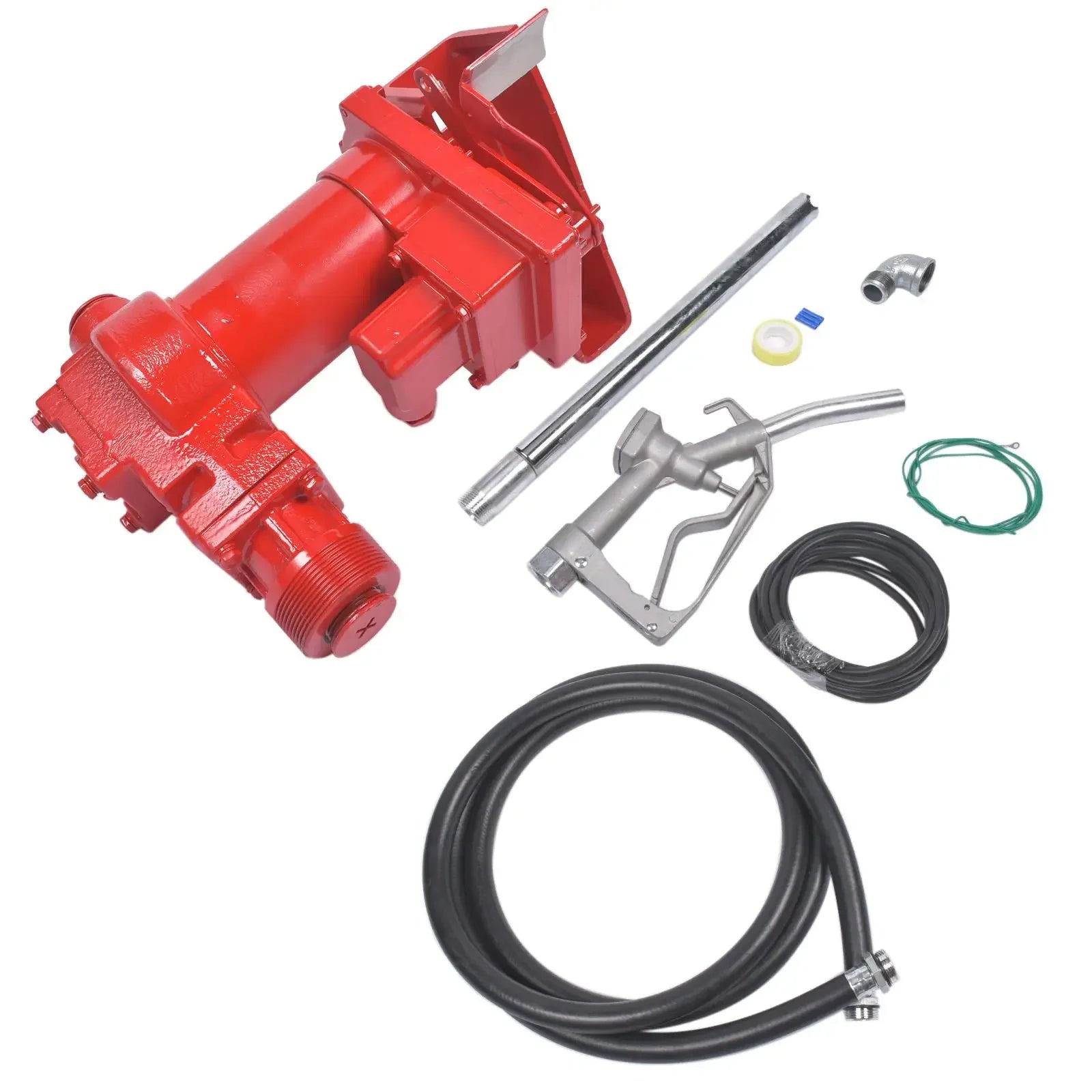

Package Includes:
1 x Wire with the Electrostatic Outlet Tube 12 Feets(3.66m)
1 x 13A Manual Gun BSP
1 x Cable Line 18 Feets
1 x Independent Grounding Line 12 Feets(3.66m)
1 x Steel Galvanized Hard Tube 1"NPT
1 x 1" Pipe Bend(Inside and Outside Wire)
1 x Pumps 20 Gallons, 12V Stickers
1 x Pump with Ground Wire
1 x Instruction Manual
Safety Information
WARNING!Electrical wiring should be performed ONLY by a licensedelectrician in compliance
with local, state, and national electrical codeNEC/ANSI/ NFPA 70, NFPA 30, and NFPA 30A, as
appropriate to the intended use of the pump. Threaded rigid conduit, sealed fittings, and
conductor seal should be used where applicable. The pump must be properly grounded.
Improper installation or use of this pump can result in serious bodily injury, or death!
WARNING!To ensure safe and proper operation of your equipment, it is critical to read and
adhere to all of the following safety warnings and precautions. Improper installation or use of
this product can cause serious bodily injury or death!
WARNING!This product shall not be used to transfer fluids into any type of aircraft.
WARNING!This product is not suited for use with fluids intended for human consumption or fluids containing water.
Description
Description
Red Fuel Transfer Pump w/Nozzle Kit for Car Truck Tractor Diesel Blue 20GPM 12V
Item Specifications:
Material: Steel Zinc Coating
Color: Blue
Dimensions: (55 x 36.5 x 34.5)cm (L x W x H)
Weight: 16 kg
Watts: 265W
RPM Speed: 2600RPM
Max. Total Head(ft): 37FT=11.2M
Dimension of Inlet and Outlet: 1"
Hose Length: 8FT=2.5M
Duty Cycle: 30Min
Seal Type: Oil Seal
Flow: 20GPM
Voltage: 12V
Feature
MULTIFUNCTIONAL: This transfer pump delivers gasoline, diesel, paraffin, biodiesel and similar fuels or oils more safely and efficiently. Ideal for lawn tractors, boats, motorboats, snowmobiles and trimmers.
OVERHEAT PROTECTION: This fuel transfer pump features a sealed explosion-proof permanent magnet motor with thermal overload protection. Compact size makes it easy to install, operate and maintain.
HIGH PERFORMANCE: A safe, forged copper pump head is available for 12V or 24V DC to ensure greater safety. Designed for 12V battery-powered tank transfers installed on trailers or trucks, this fuel pump pumps fuel up to 8 feet deep in the tank and discharges fuel up to 37 feet high.
QUALITY: The fuel transfer pump pump body is made of cast iron for rugged durability. The pump body has a waterproof design with a built-in strainer and bypass valve. Ball bearing construction requires no lubrication.
EASY INSTALLATION: The pump comes with a removable junction box that can be easily rotated 180 degrees for electrical wiring and installation in tight spaces.
Will Fit for The Following Models
For Transfer of Gasoline, Diesel Fuel, Kerosene, Mineral Spirits, Heptane, Hexane, E15, Biodiesel, and Similar Fuels or Oils.
Package Includes:
1 x Wire with the Electrostatic Outlet Tube 12 Feets(3.66m)
1 x 13A Manual Gun BSP
1 x Cable Line 18 Feets
1 x Independent Grounding Line 12 Feets(3.66m)
1 x Steel Galvanized Hard Tube 1"NPT
1 x 1" Pipe Bend(Inside and Outside Wire)
1 x Pumps 20 Gallons, 12V Stickers
1 x Pump with Ground Wire
1 x Instruction Manual
Safety Information
WARNING!Electrical wiring should be performed ONLY by a licensedelectrician in compliance
with local, state, and national electrical codeNEC/ANSI/ NFPA 70, NFPA 30, and NFPA 30A, as
appropriate to the intended use of the pump. Threaded rigid conduit, sealed fittings, and
conductor seal should be used where applicable. The pump must be properly grounded.
Improper installation or use of this pump can result in serious bodily injury, or death!
WARNING!To ensure safe and proper operation of your equipment, it is critical to read and
adhere to all of the following safety warnings and precautions. Improper installation or use of
this product can cause serious bodily injury or death!
WARNING!This product shall not be used to transfer fluids into any type of aircraft.
WARNING!This product is not suited for use with fluids intended for human consumption or fluids containing water.
