AP02 For C3 Corvette Electric Headlight Conversion Kit Fits For 68-82 PLUG & PLAY New
AP02 For C3 Corvette Electric Headlight Conversion Kit Fits For 68-82 PLUG & PLAY New
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
C3 Corvette (1968 thru 1982)
The only kit that guarantees fitment on C3s with or without AC.
Headlights open just like factory, when the headlights are turned on, not with the side marker lights.

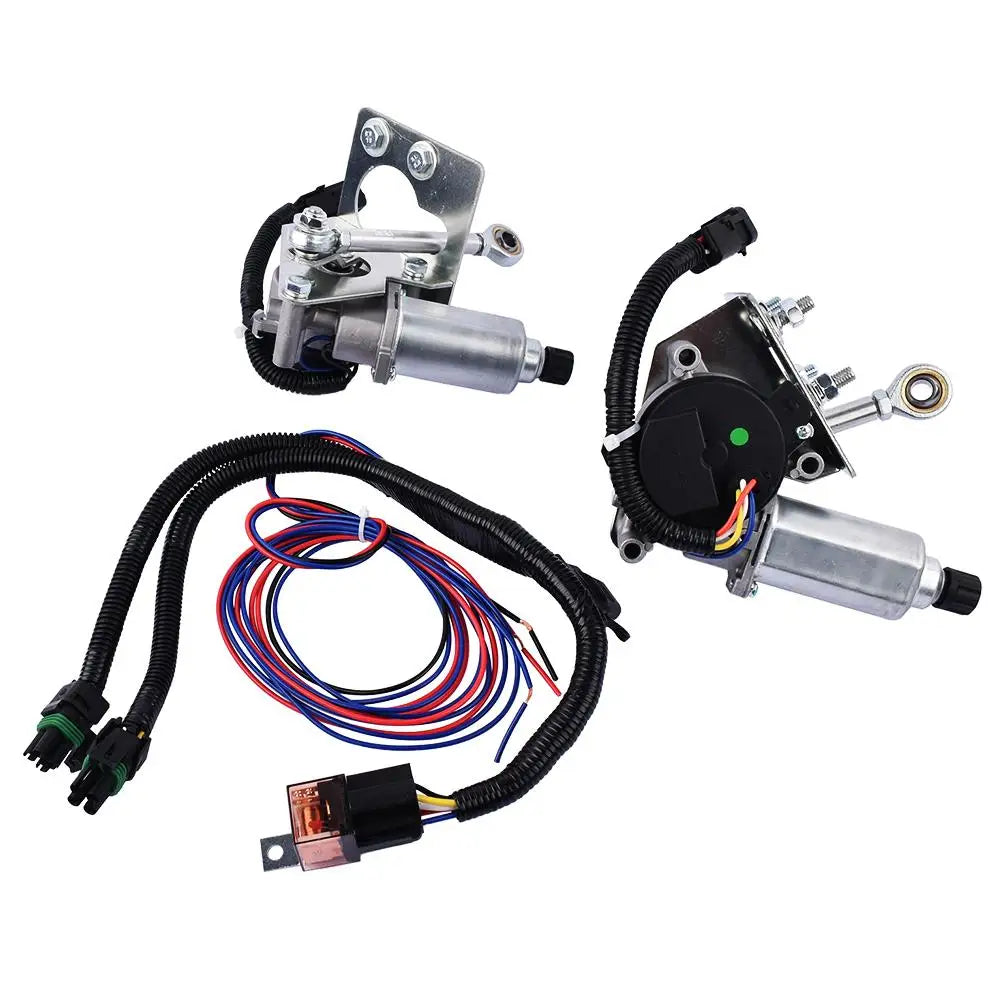

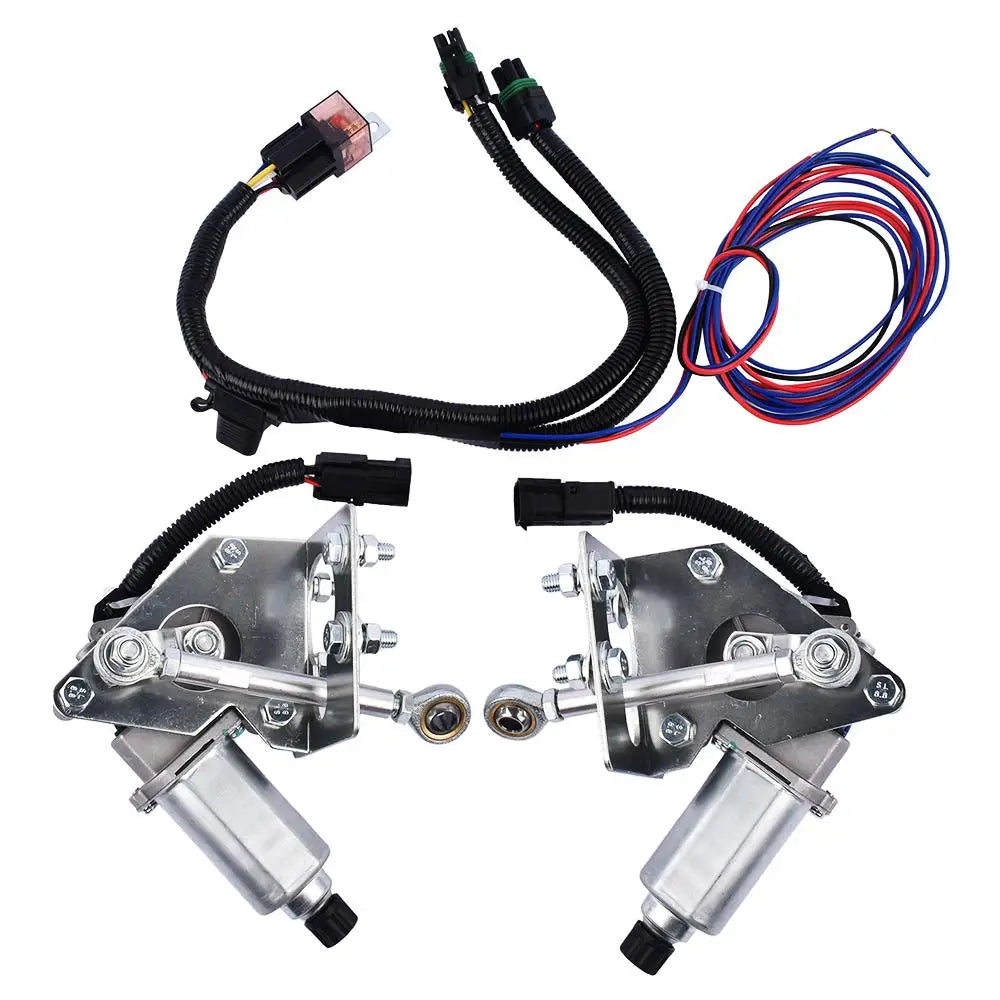

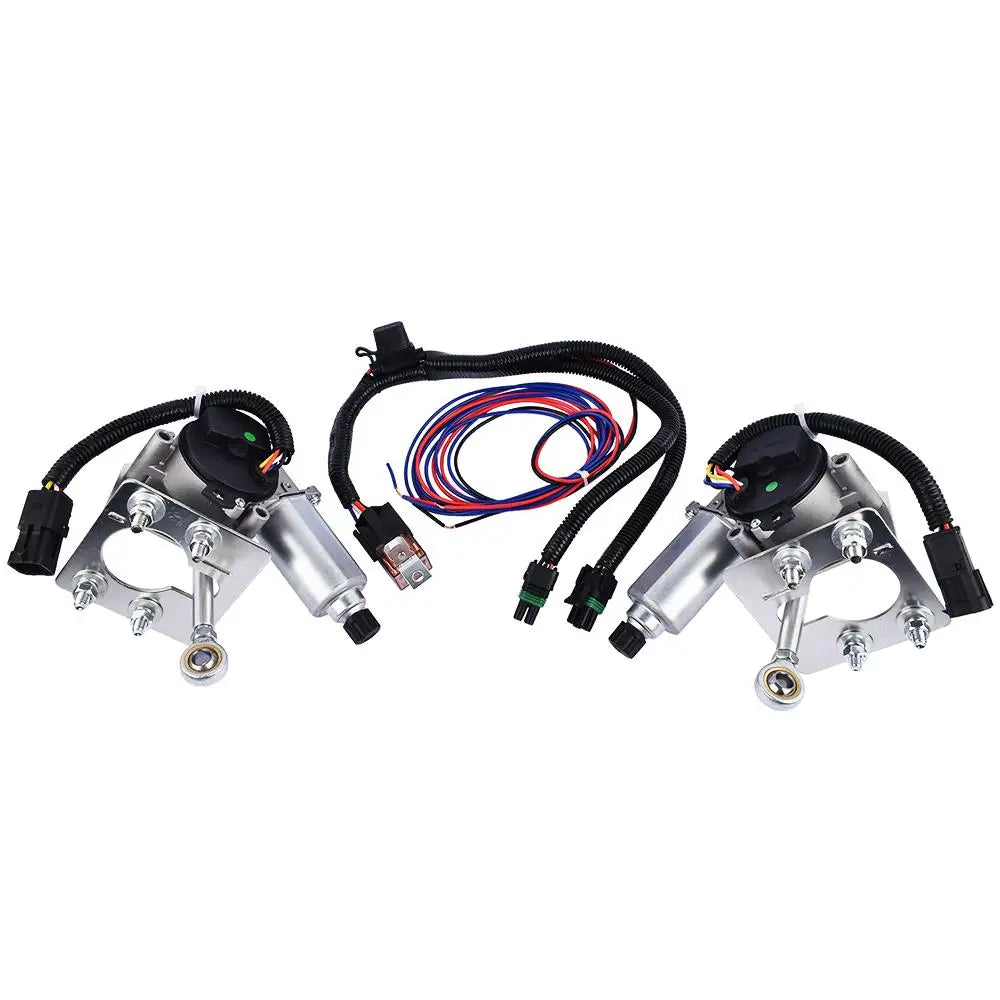

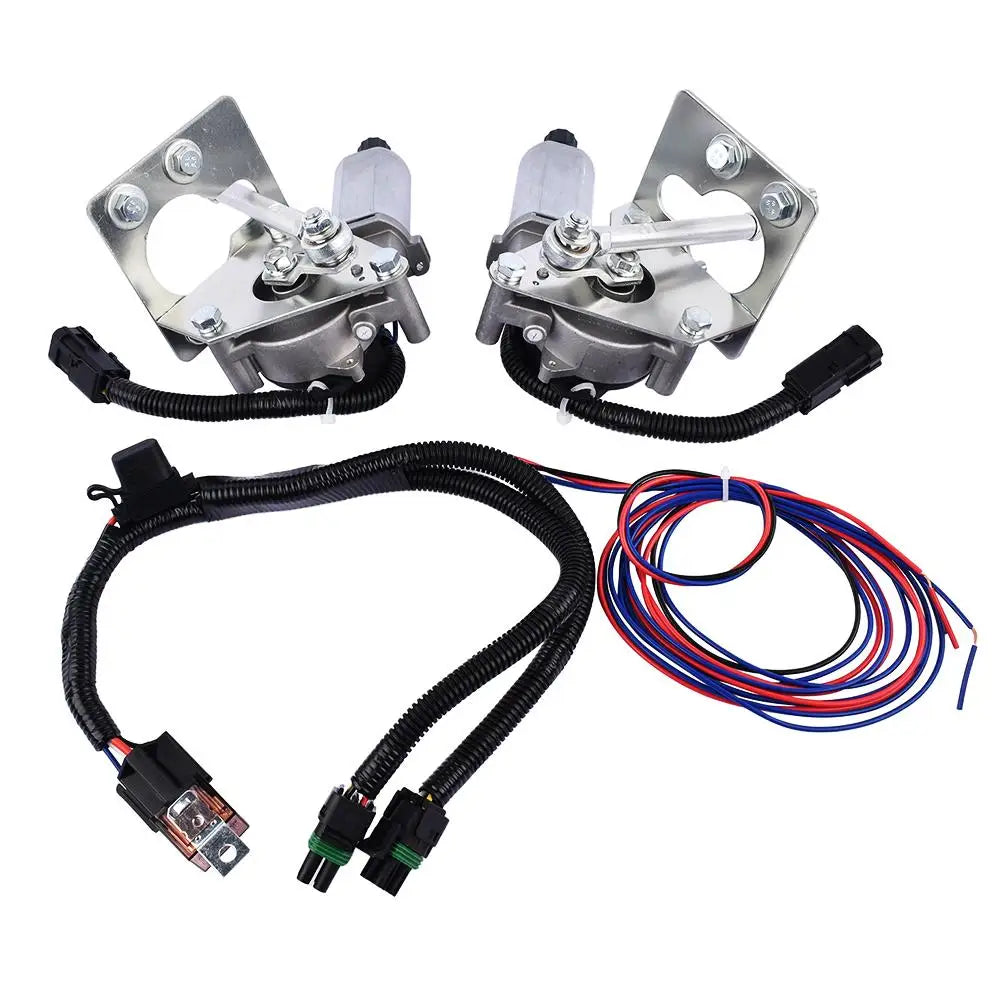

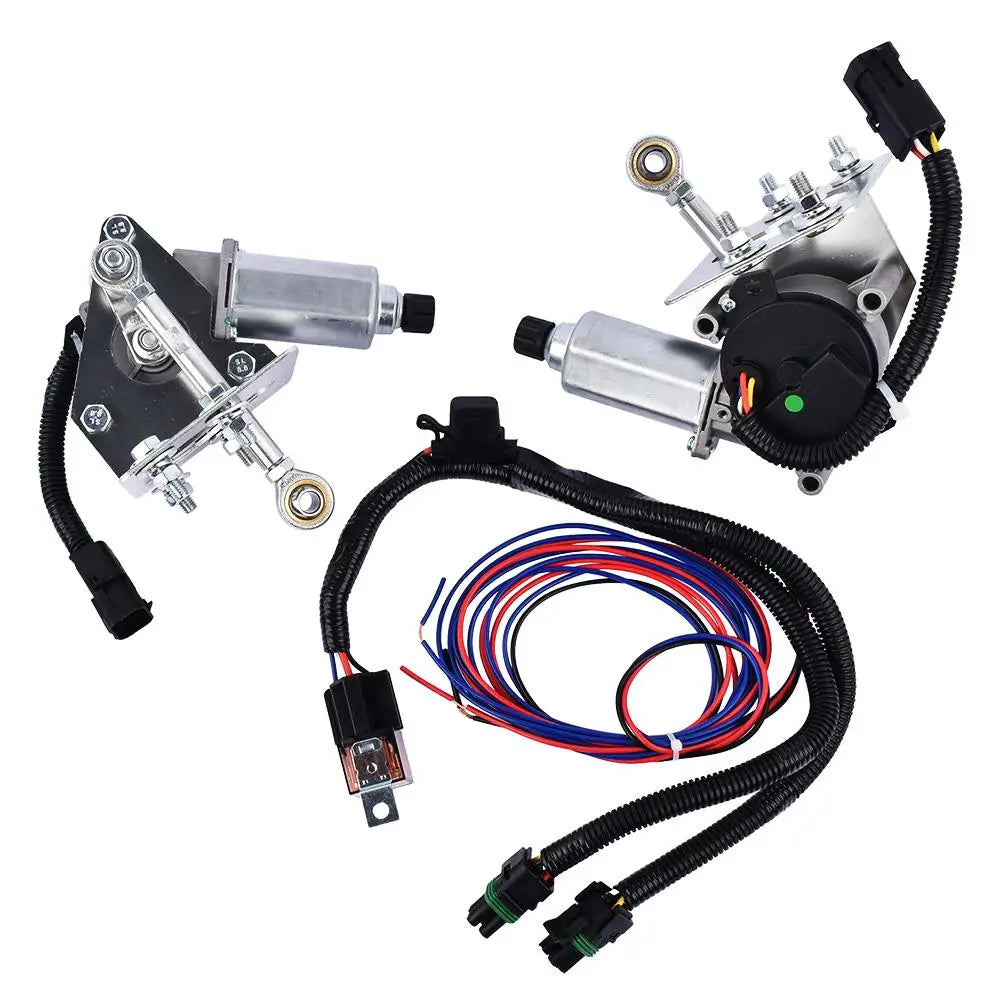

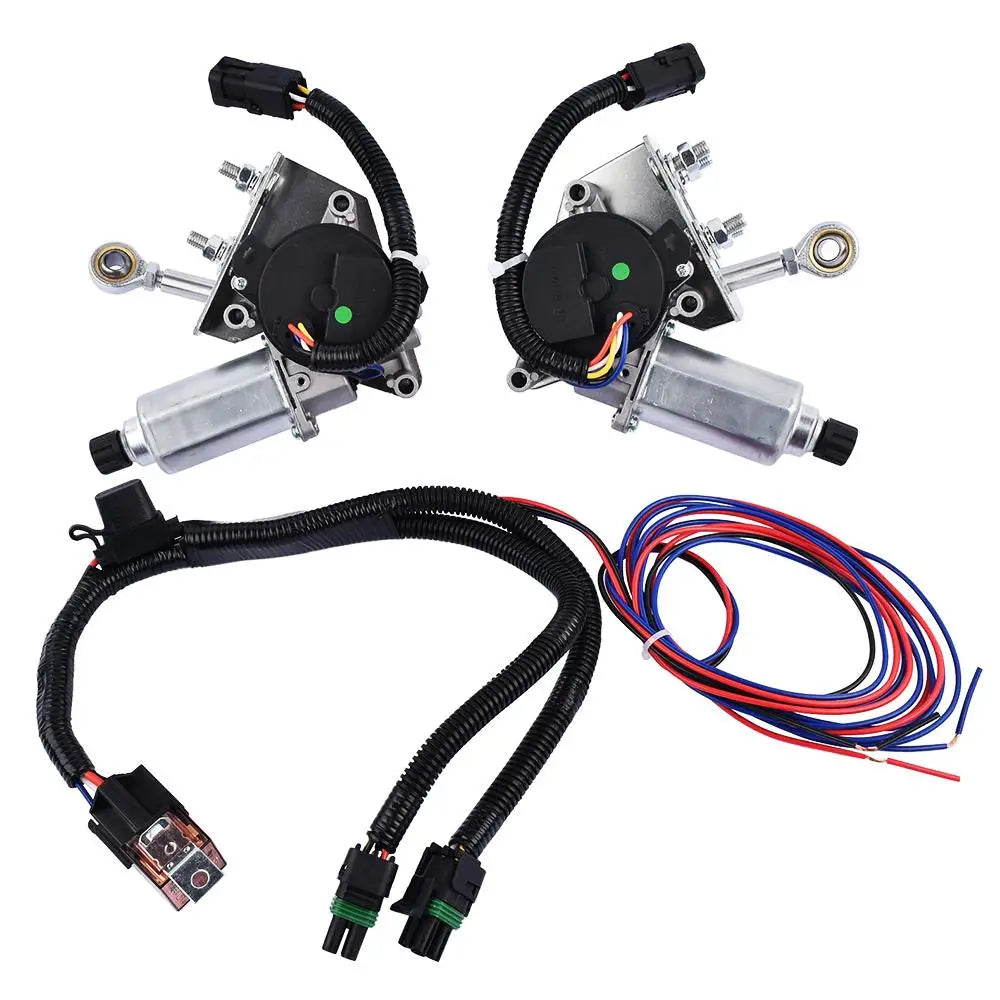

Simply the best engineered kit available. The kit is completely assembled using CNC laser cut mounts professionally welded and use ALUMINUM ARMS with heim joints that can be adjusted in or out for the best operation. The electric headlight motors are used, but have been painted and tested to open and close the headlight doors.
The wiring harness is new with an ATC blade fuse, weather pack connectors and headlight connectors. The wiring harness has a short jumper harness that plugs into a high beam headlight and into the factory headlight connector. No control box to mount, just a clean, simple harness. Then, the power wire can be connected to; horn relay, alternator, battery.
The wiring harness includes 2 extra trigger wires, which could be used for HALO headlights or an open/close switch.
The motors are mounted on the brackets, ready to bolt into place where the original vacuum actuator was bolted. This kit requires no new bolt holes but uses the original holes for the factory parts.
The kit does require some material to be removed from part of the assembly, but the mount will reinforce the removed portion.
The kit requires approx 3 hours to remove the vacuum parts and install.
2 year warranty included on all parts.
The kit uses easy to replace Ford probe and Mazda Miata headlight motors.
Description
Description
C3 Corvette (1968 thru 1982)
The only kit that guarantees fitment on C3s with or without AC.
Headlights open just like factory, when the headlights are turned on, not with the side marker lights.
Simply the best engineered kit available. The kit is completely assembled using CNC laser cut mounts professionally welded and use ALUMINUM ARMS with heim joints that can be adjusted in or out for the best operation. The electric headlight motors are used, but have been painted and tested to open and close the headlight doors.
The wiring harness is new with an ATC blade fuse, weather pack connectors and headlight connectors. The wiring harness has a short jumper harness that plugs into a high beam headlight and into the factory headlight connector. No control box to mount, just a clean, simple harness. Then, the power wire can be connected to; horn relay, alternator, battery.
The wiring harness includes 2 extra trigger wires, which could be used for HALO headlights or an open/close switch.
The motors are mounted on the brackets, ready to bolt into place where the original vacuum actuator was bolted. This kit requires no new bolt holes but uses the original holes for the factory parts.
The kit does require some material to be removed from part of the assembly, but the mount will reinforce the removed portion.
The kit requires approx 3 hours to remove the vacuum parts and install.
2 year warranty included on all parts.
The kit uses easy to replace Ford probe and Mazda Miata headlight motors.
