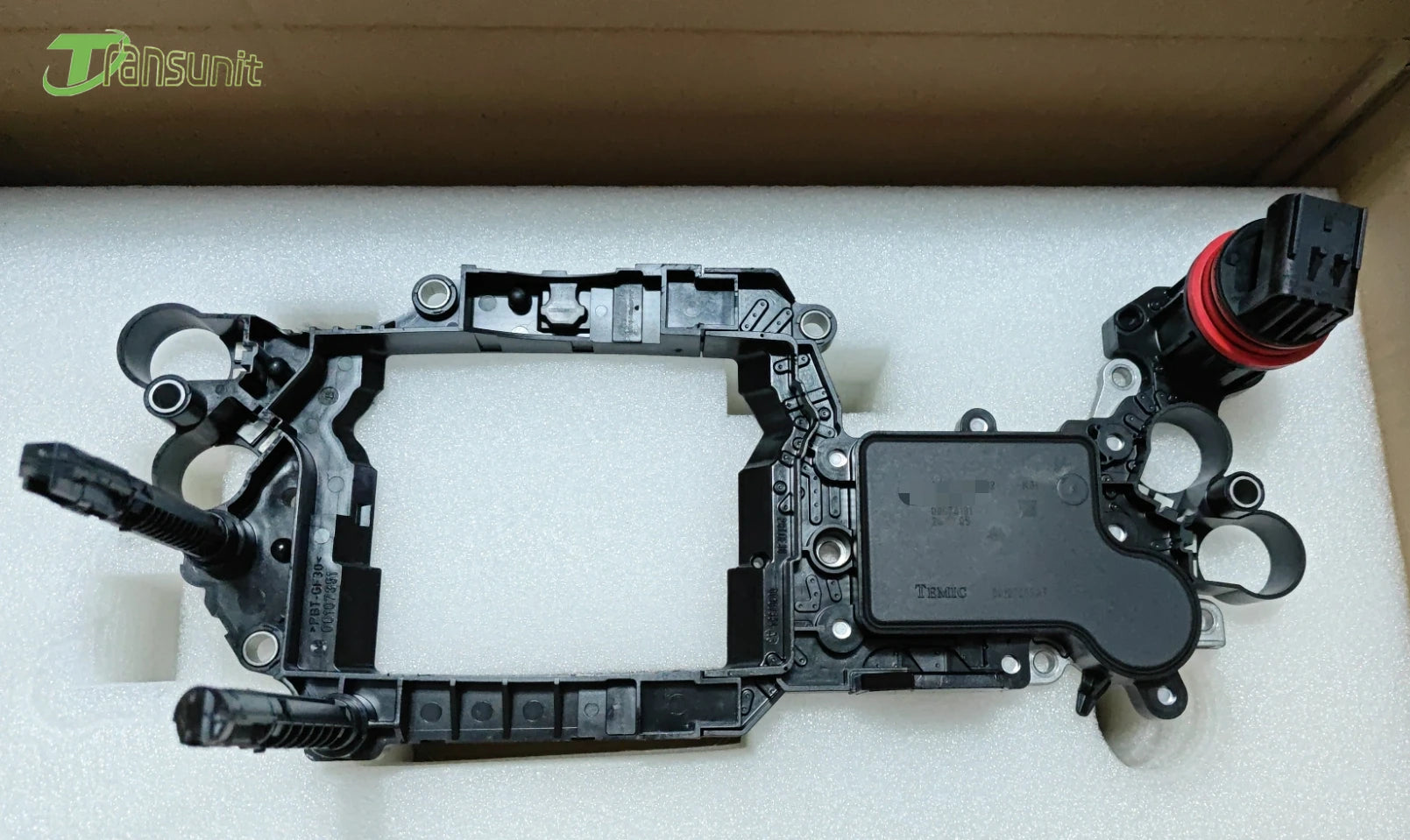

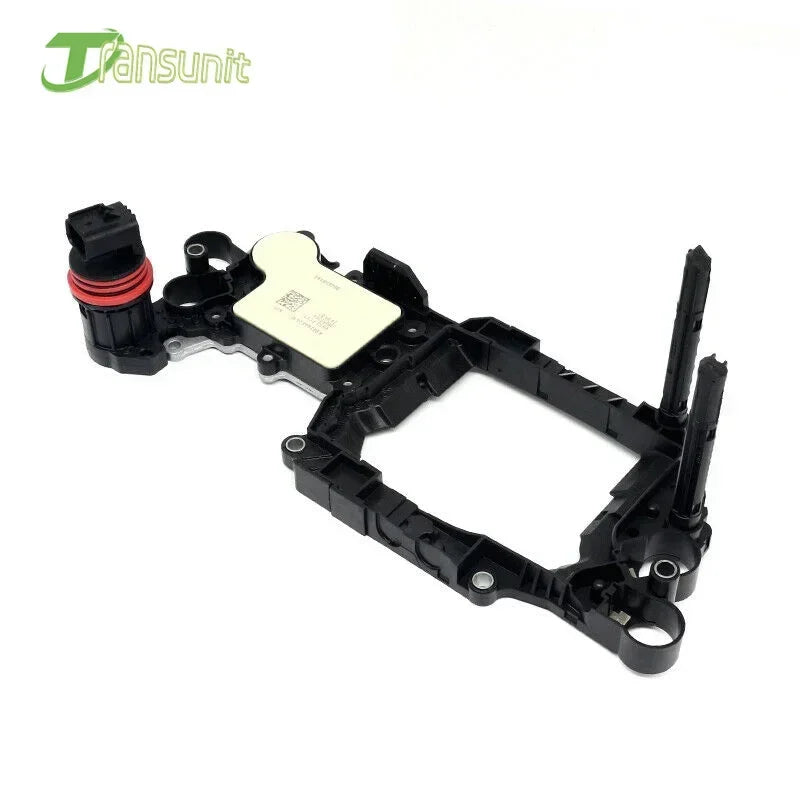

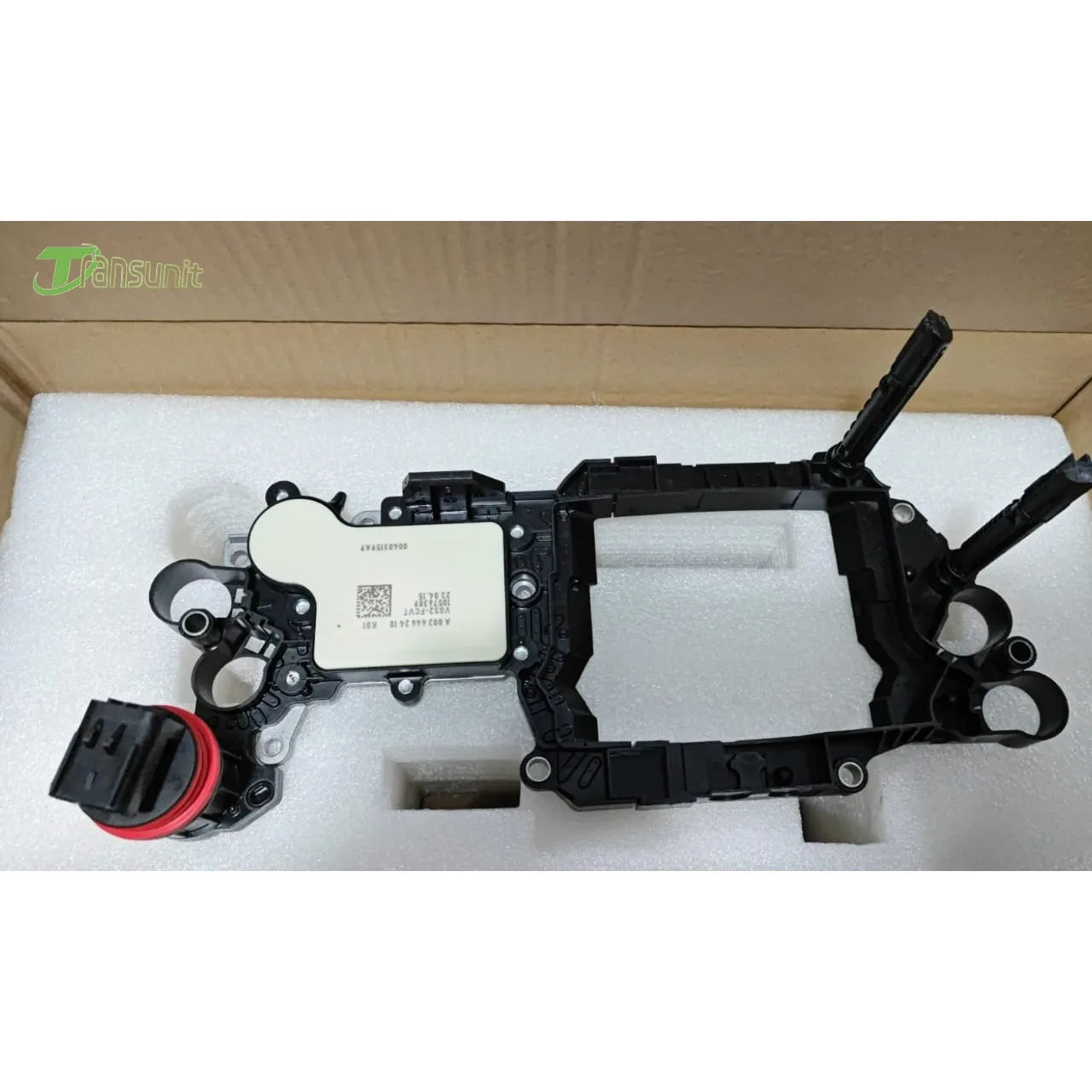

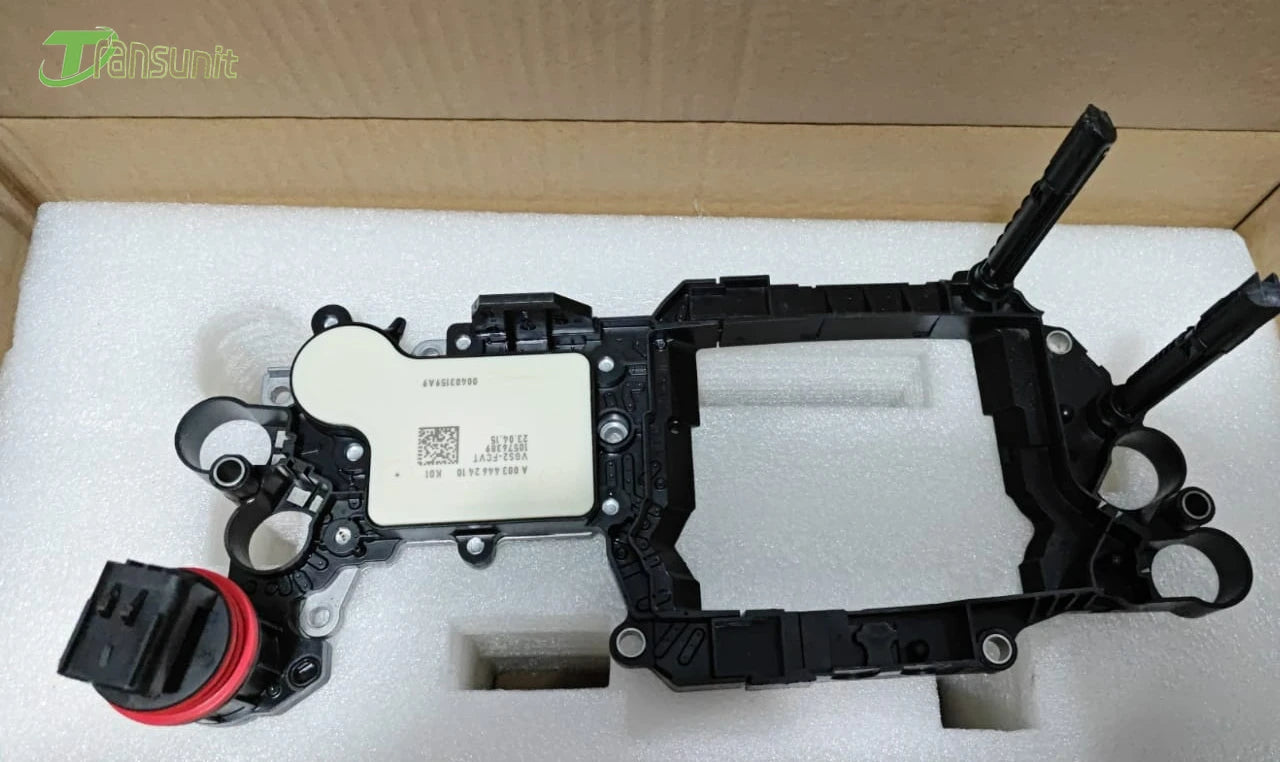

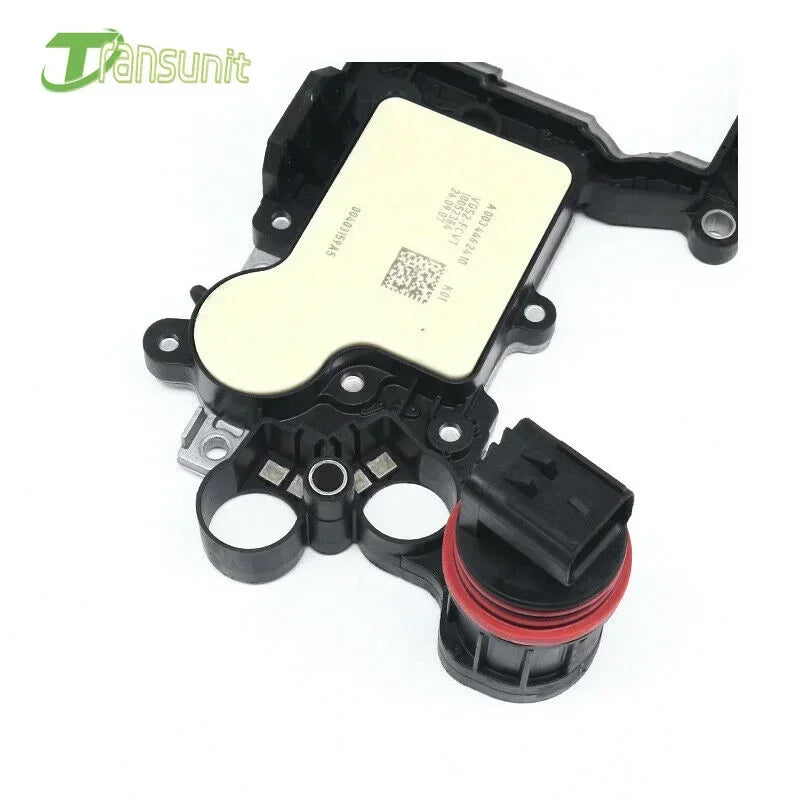

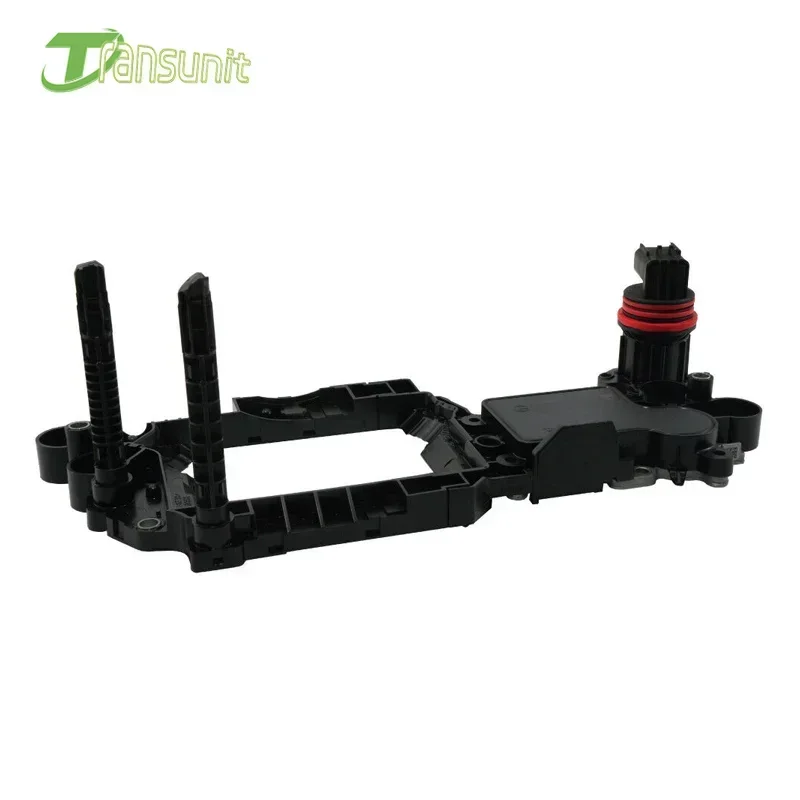

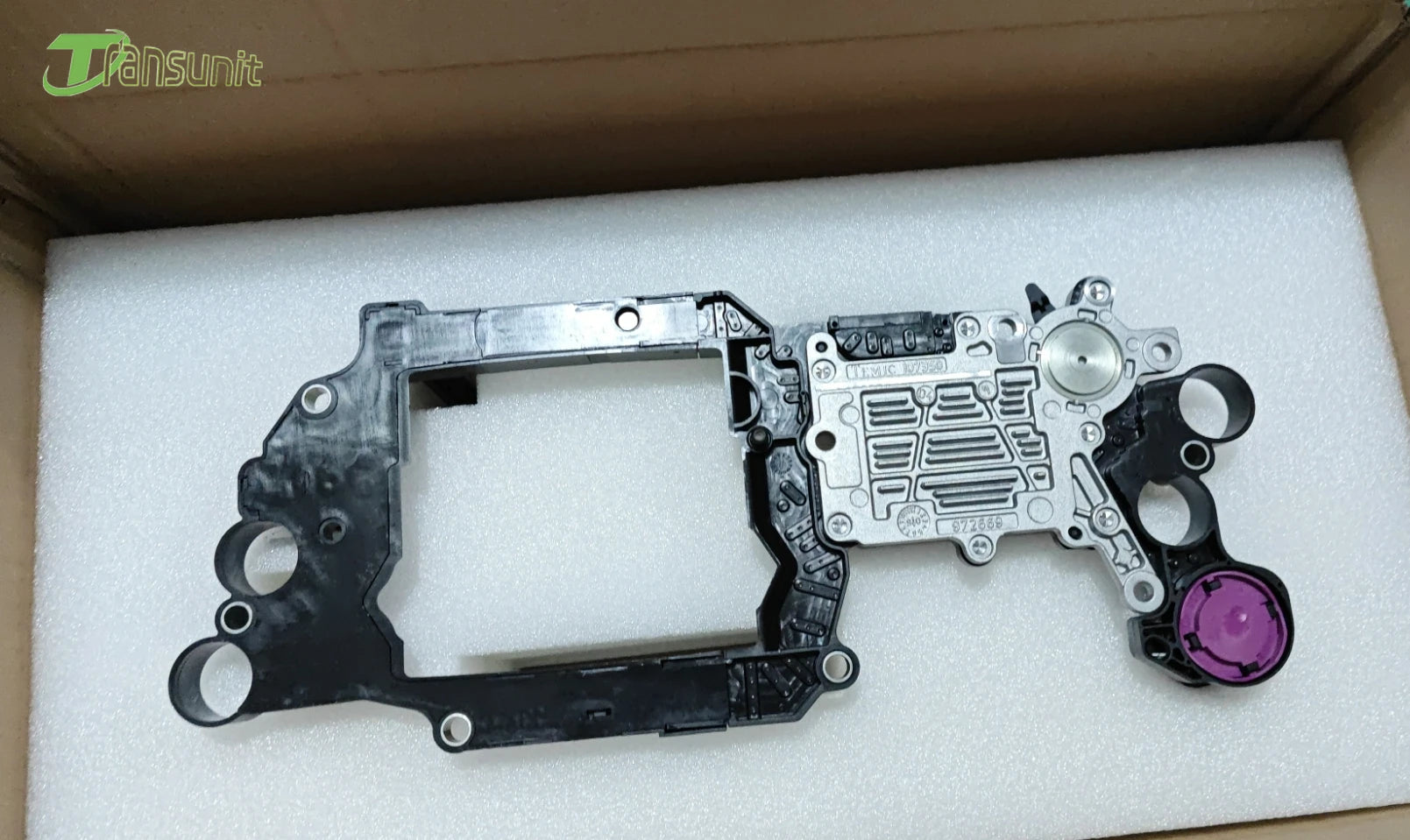

722.8 CVT Conductor Tested Plate With Programming Suit For Mercedes Control Module W245 W169 TCM TCU A1695451032 A1695451062
722.8 CVT Conductor Tested Plate With Programming Suit For Mercedes Control Module W245 W169 TCM TCU A1695451032 A1695451062
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /04/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Fitmen:
A CLASS 04-11 CVT FWD L4 1.5L 1.7L 2.0L
B CLASS 05-11 CVT FWD L4 1.5L 1.7L 2.0L
Typical Troubles:
0657 The voltage supply of the control solenoid valves in the CVT is faulty
0705 Transmission Range Sensor Circuit Malfunction
0706 The signals of the range selector are implausible in comparison to the signals from the electronic selector lever module
0717 The RPM signal from component Y3/9b5 (CVT output rpm sensor) is not available
0720 Speed Gradient nPrimGrd > nPrimGrdMax
0722 The RPM signal from component Y3/9b5 (CVT output rpm sensor) is not available
0723 The RPM signal from component Y3/9b5 (CVT output rpm sensor) is implausible
0730 The gear ratio in the CVT is not permissible
0739 Secondary RPM signal of component Y3/9B5 is not available
0746 An open circuit has occurred in the control loop for component Y3/9y1 (CVT) primary control solenoid valve
0766 An open circuit has occurred in the control loop for component Y3/9y4 (CVT) torque converter lockup clutch control solenoid valve
0776 An open circuit has occurred in the control loop for component Y3/9y2 (CVT) secondary control solenoid valve
0778 a short circuit has occurred in the control loop for component y3/9y2 (CVT) continuously variable automatic transmission secondary control solenoid valve.
0793 Intermediate Shaft Speed Sensor Circuit No Signal
0794 Intermediate Input Shaft Speed Sensor Signal
0796 An open circuit has occurred in the control loop for componentY3/9y3 (CVT) clutch control solenoid valve
0766 An open circuit has occurred in the control loop for componentY3/9y4 (CVT) torque converter lockup clutch control solenoid valve
0842 The output voltage of component pressure sensor is faulty. (Short circuit to ground)
1634 Component Y3/9n1 (CVT) is defective or the voltage supply is faulty (undervoltage)
1744 Torque Converter Clutch System Performance
2722 Impermissible closing of hydraulic brake 'Reverse gear' has occurred in the continuously variable automatic transmission (CVT) when selector lever 'N' was engaged.
2723 Impermissible opening of hydraulic brake "Reverse gear" has occurred in the CVT
2731 Impermissible closing of hydraulic clutch "forward gear" has occurred in the CVT when selector lever position "N" was engaged
2732 Impermissible opening of hydraulic clutch "forward gear" has occurred in the CVT
Description
Description
Fitmen:
A CLASS 04-11 CVT FWD L4 1.5L 1.7L 2.0L
B CLASS 05-11 CVT FWD L4 1.5L 1.7L 2.0L
Typical Troubles:
0657 The voltage supply of the control solenoid valves in the CVT is faulty
0705 Transmission Range Sensor Circuit Malfunction
0706 The signals of the range selector are implausible in comparison to the signals from the electronic selector lever module
0717 The RPM signal from component Y3/9b5 (CVT output rpm sensor) is not available
0720 Speed Gradient nPrimGrd > nPrimGrdMax
0722 The RPM signal from component Y3/9b5 (CVT output rpm sensor) is not available
0723 The RPM signal from component Y3/9b5 (CVT output rpm sensor) is implausible
0730 The gear ratio in the CVT is not permissible
0739 Secondary RPM signal of component Y3/9B5 is not available
0746 An open circuit has occurred in the control loop for component Y3/9y1 (CVT) primary control solenoid valve
0766 An open circuit has occurred in the control loop for component Y3/9y4 (CVT) torque converter lockup clutch control solenoid valve
0776 An open circuit has occurred in the control loop for component Y3/9y2 (CVT) secondary control solenoid valve
0778 a short circuit has occurred in the control loop for component y3/9y2 (CVT) continuously variable automatic transmission secondary control solenoid valve.
0793 Intermediate Shaft Speed Sensor Circuit No Signal
0794 Intermediate Input Shaft Speed Sensor Signal
0796 An open circuit has occurred in the control loop for componentY3/9y3 (CVT) clutch control solenoid valve
0766 An open circuit has occurred in the control loop for componentY3/9y4 (CVT) torque converter lockup clutch control solenoid valve
0842 The output voltage of component pressure sensor is faulty. (Short circuit to ground)
1634 Component Y3/9n1 (CVT) is defective or the voltage supply is faulty (undervoltage)
1744 Torque Converter Clutch System Performance
2722 Impermissible closing of hydraulic brake 'Reverse gear' has occurred in the continuously variable automatic transmission (CVT) when selector lever 'N' was engaged.
2723 Impermissible opening of hydraulic brake "Reverse gear" has occurred in the CVT
2731 Impermissible closing of hydraulic clutch "forward gear" has occurred in the CVT when selector lever position "N" was engaged
2732 Impermissible opening of hydraulic clutch "forward gear" has occurred in the CVT
