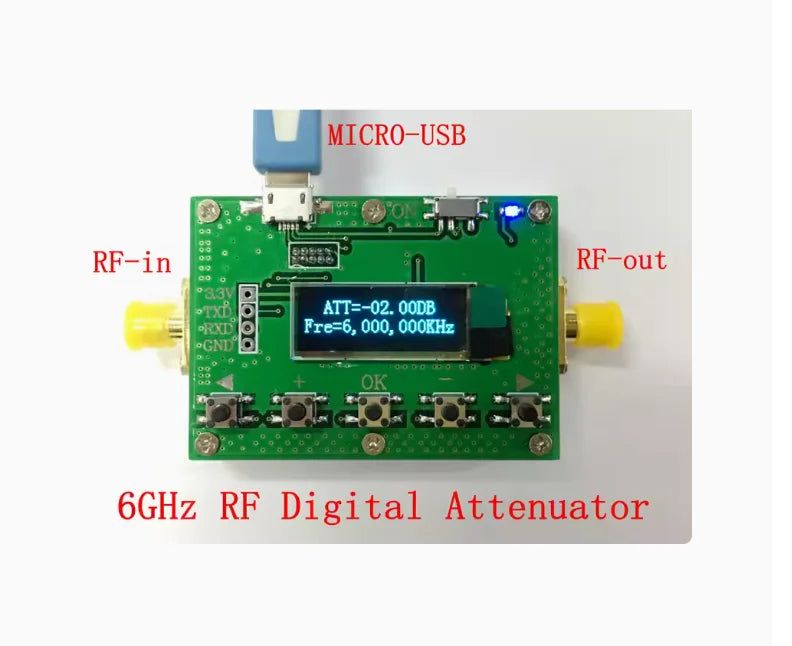

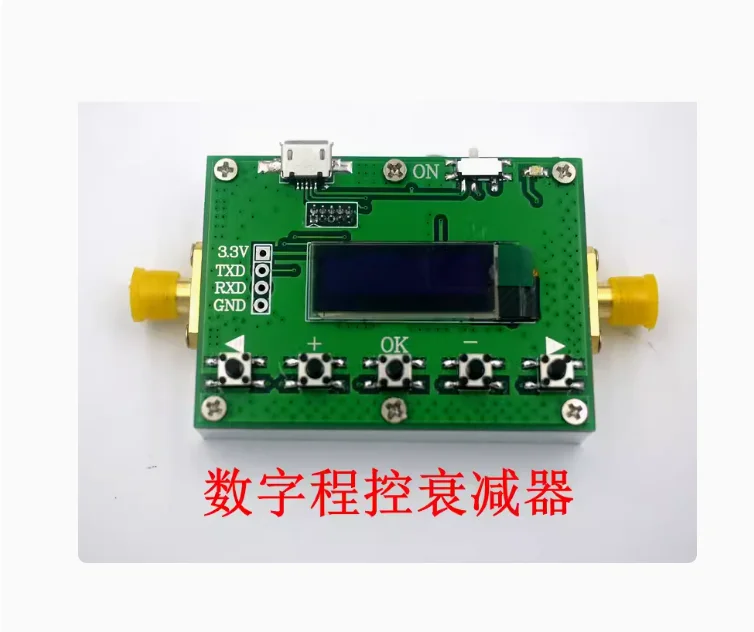

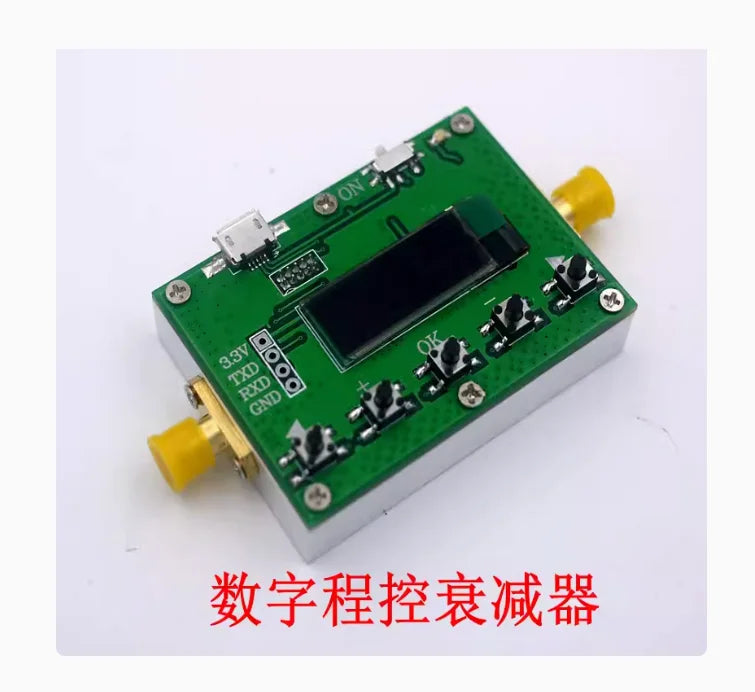

6G RF Digital Programmable Attenuator 30DB Step 0.25 RF Module LF-6GHz 30DB Step Size 0.25DB OLED Display SMA 0-31.75dB
6G RF Digital Programmable Attenuator 30DB Step 0.25 RF Module LF-6GHz 30DB Step Size 0.25DB OLED Display SMA 0-31.75dB
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Features:
* Brand new and high quality
* Made of high quality materials, sturdy and durable
* 6G digital programmable attenuator 30DB step size 0.25 RF module
Specification:
Working frequency: LF-6GHz
Attenuation adjustment range: 0-31.75dB
Attenuation step size: 0.25 (dB)
Insertion loss: ≤1.5dB (high frequency side insertion will be larger)
Standing wave ratio: ≤1.4
Attenuation accuracy: ±0.25dB Max
Rated power: ≤1W
Connector form: SMA (female, female threaded hole)
Temperature range: -10℃～+50℃ (operation)
-40℃～+70℃(not operating)
Size: 55X40X16.5mm (excluding SMA interface protruding part, SMA protruding part 9mm)
Weight: approx. 57 grams
Input and output impedance: 50 ohms
Package Included:
1 x 6G digital programmable attenuator 30DB step size 0.25DB OLED display
Note:
1.The
real color of the item may be slightly different from the pictures
shown on website caused by many factors such as brightness of your
monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
Description
Description
Features:
* Brand new and high quality
* Made of high quality materials, sturdy and durable
* 6G digital programmable attenuator 30DB step size 0.25 RF module
Specification:
Working frequency: LF-6GHz
Attenuation adjustment range: 0-31.75dB
Attenuation step size: 0.25 (dB)
Insertion loss: ≤1.5dB (high frequency side insertion will be larger)
Standing wave ratio: ≤1.4
Attenuation accuracy: ±0.25dB Max
Rated power: ≤1W
Connector form: SMA (female, female threaded hole)
Temperature range: -10℃～+50℃ (operation)
-40℃～+70℃(not operating)
Size: 55X40X16.5mm (excluding SMA interface protruding part, SMA protruding part 9mm)
Weight: approx. 57 grams
Input and output impedance: 50 ohms
Package Included:
1 x 6G digital programmable attenuator 30DB step size 0.25DB OLED display
Note:
1.The
real color of the item may be slightly different from the pictures
shown on website caused by many factors such as brightness of your
monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
