Features:
* Brand new and high quality
* Made of high quality materials, sturdy and durable

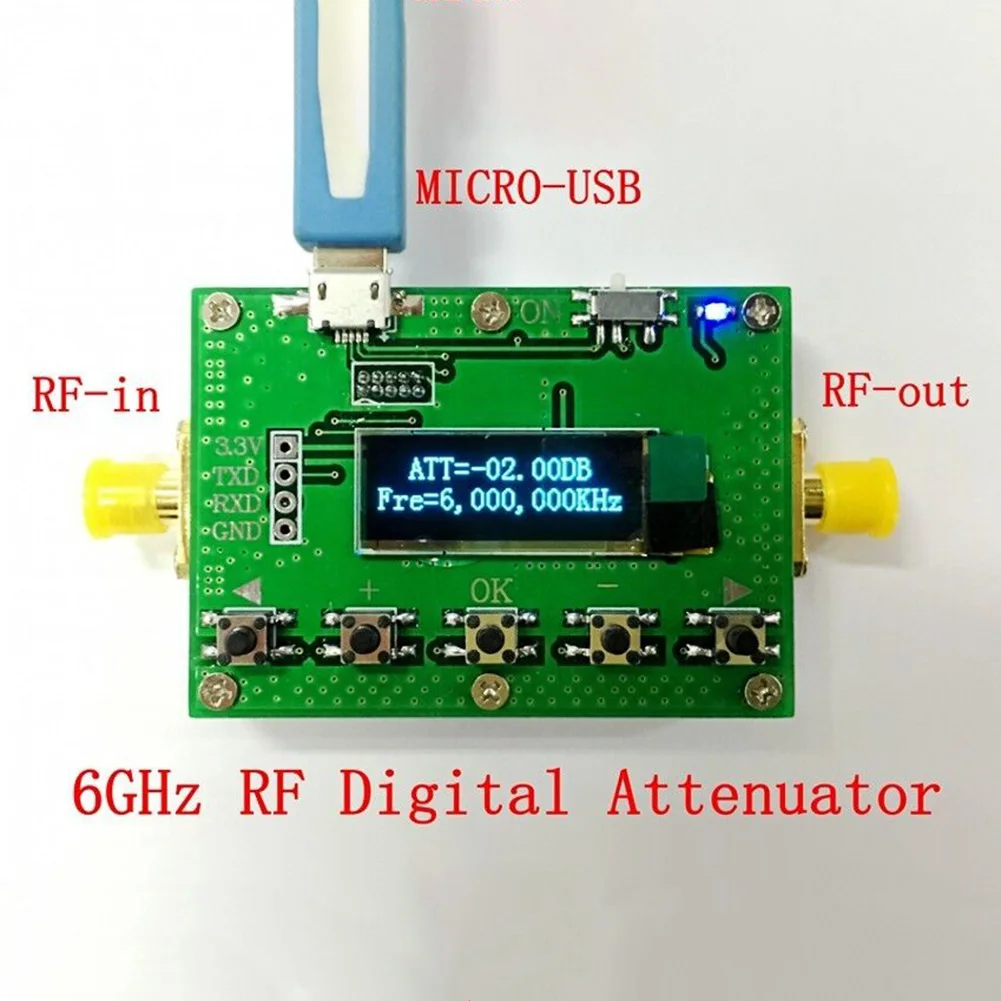

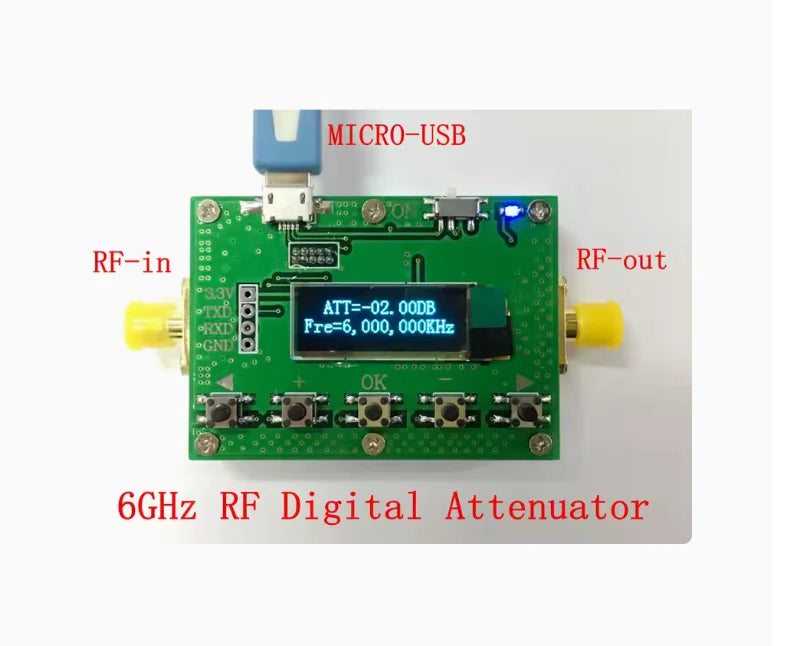

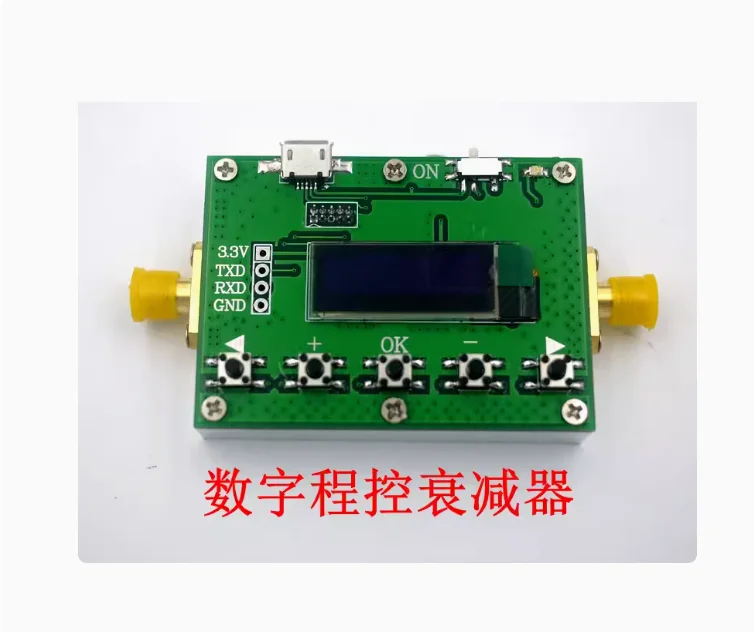

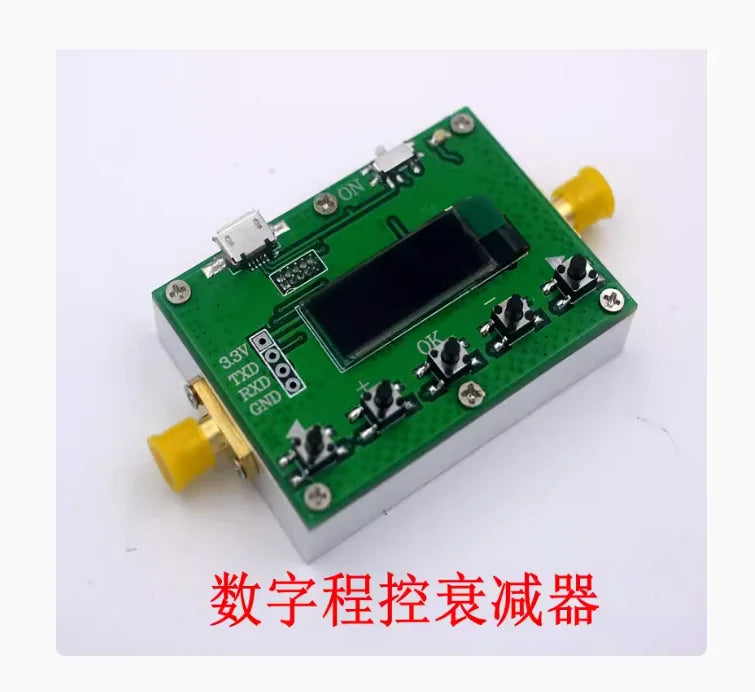

* 6G digital programmable attenuator 30DB step size 0.25 RF module
Specification:
Working frequency: LF-6GHz
Attenuation adjustment range: 0-31.75dB
Attenuation step size: 0.25 (dB)
Insertion loss: ≤1.5dB (high frequency side insertion will be larger)
Standing wave ratio: ≤1.4
Attenuation accuracy: ±0.25dB Max
Rated power: ≤1W
Connector form: SMA (female, female threaded hole)
Temperature range: -10℃～+50℃ (operation)
-40℃～+70℃(not operating)
Size: 55X40X16.5mm (excluding SMA interface protruding part, SMA protruding part 9mm)
Weight: approx. 57 grams
Input and output impedance: 50 ohms
Package Included:
1 x 6G digital programmable attenuator 30DB step size 0.25DB OLED display
