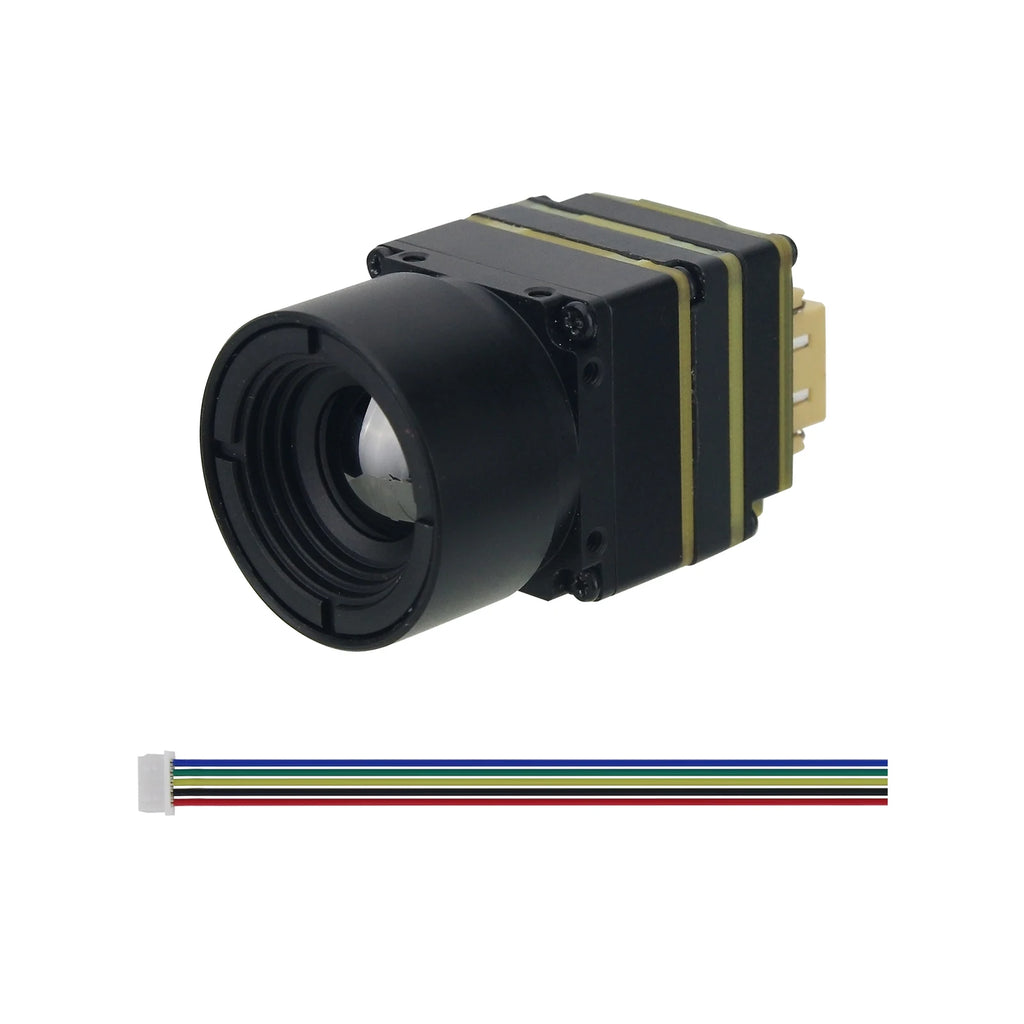

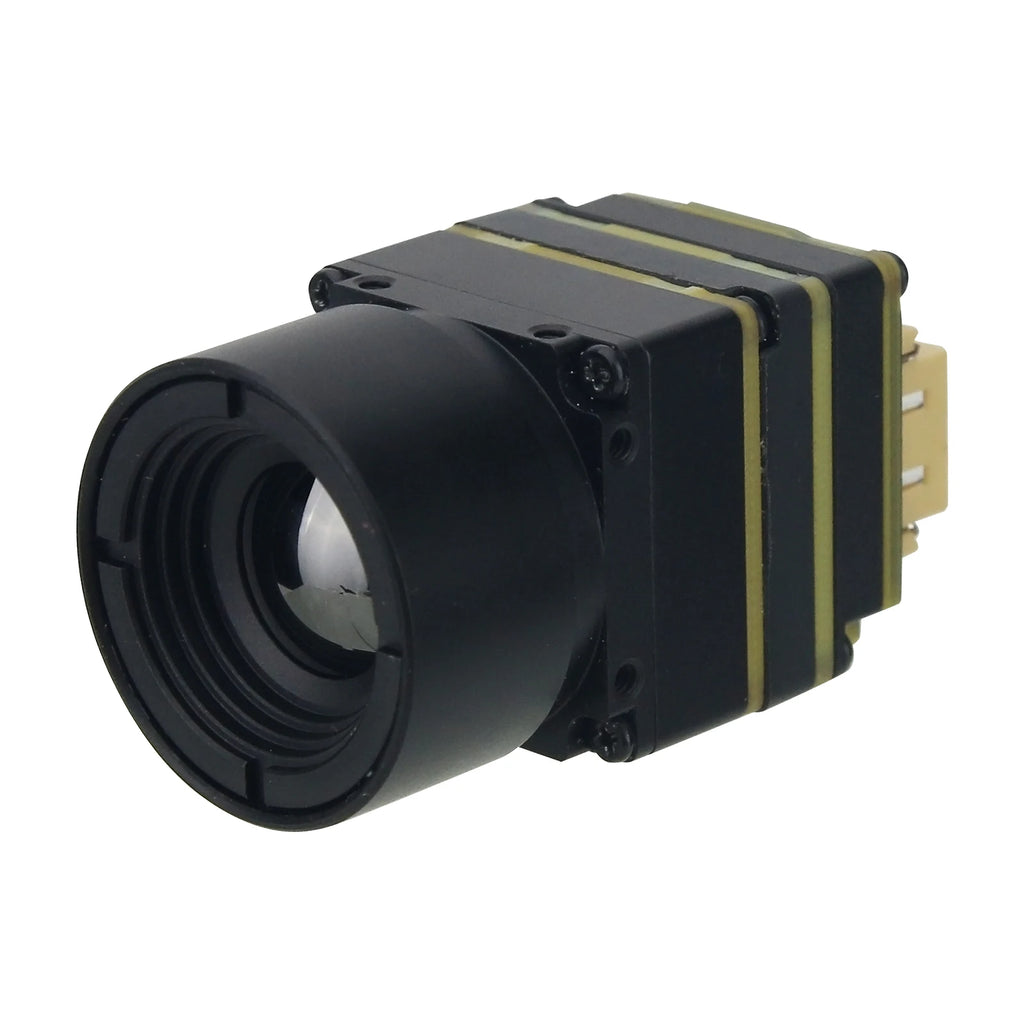

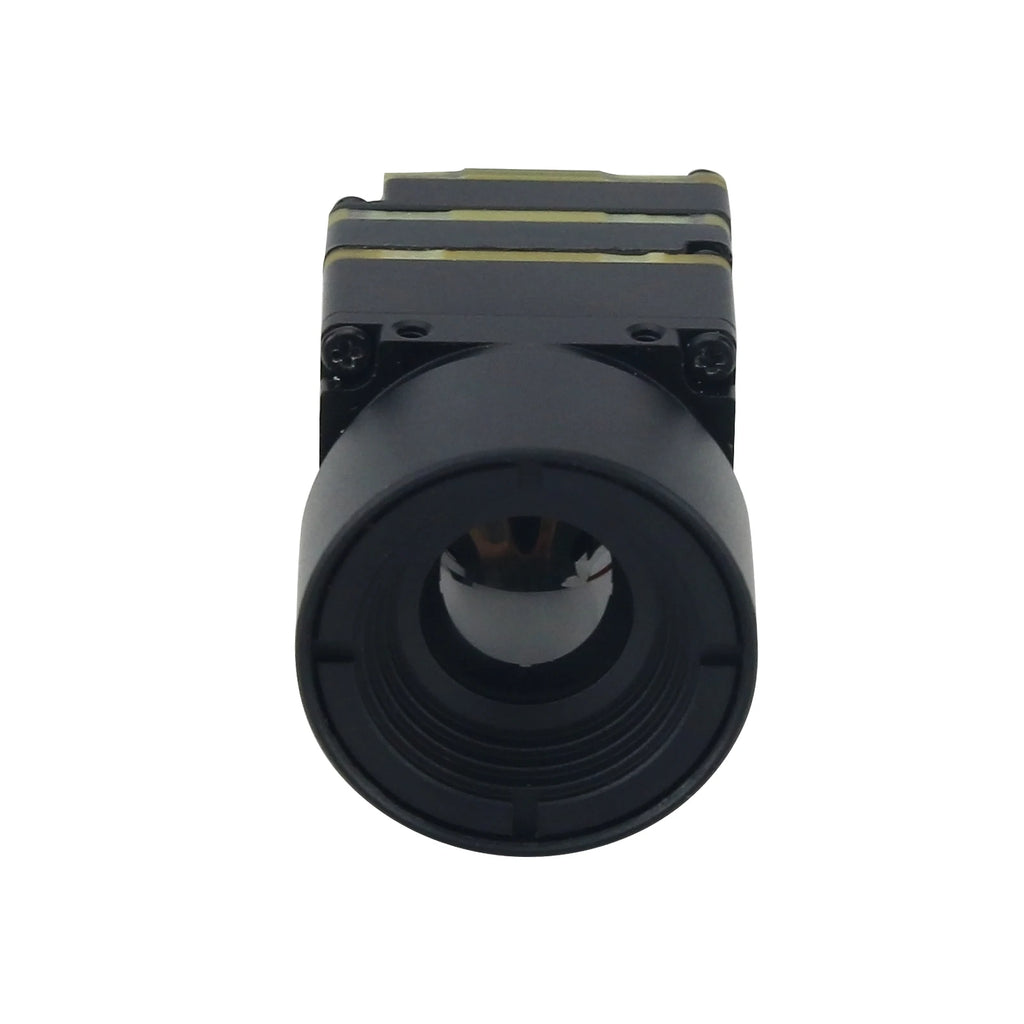

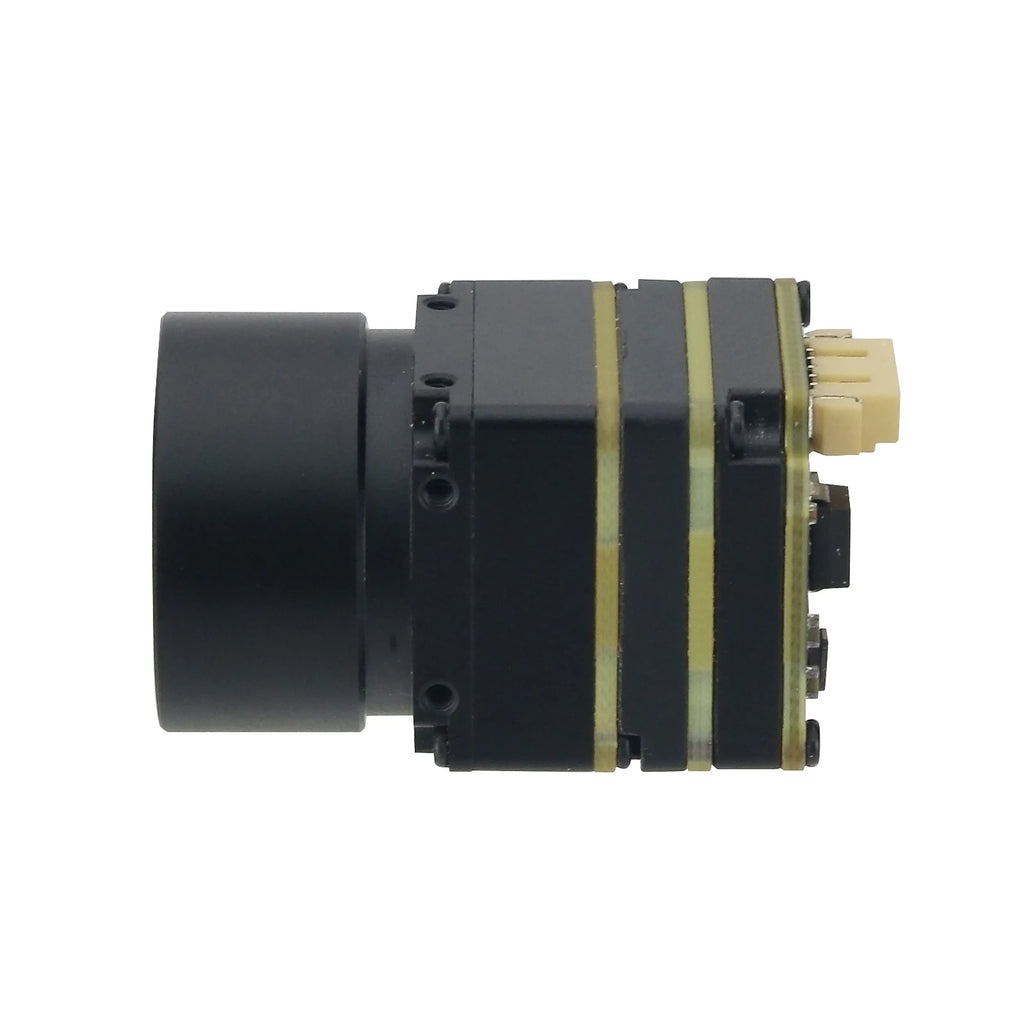

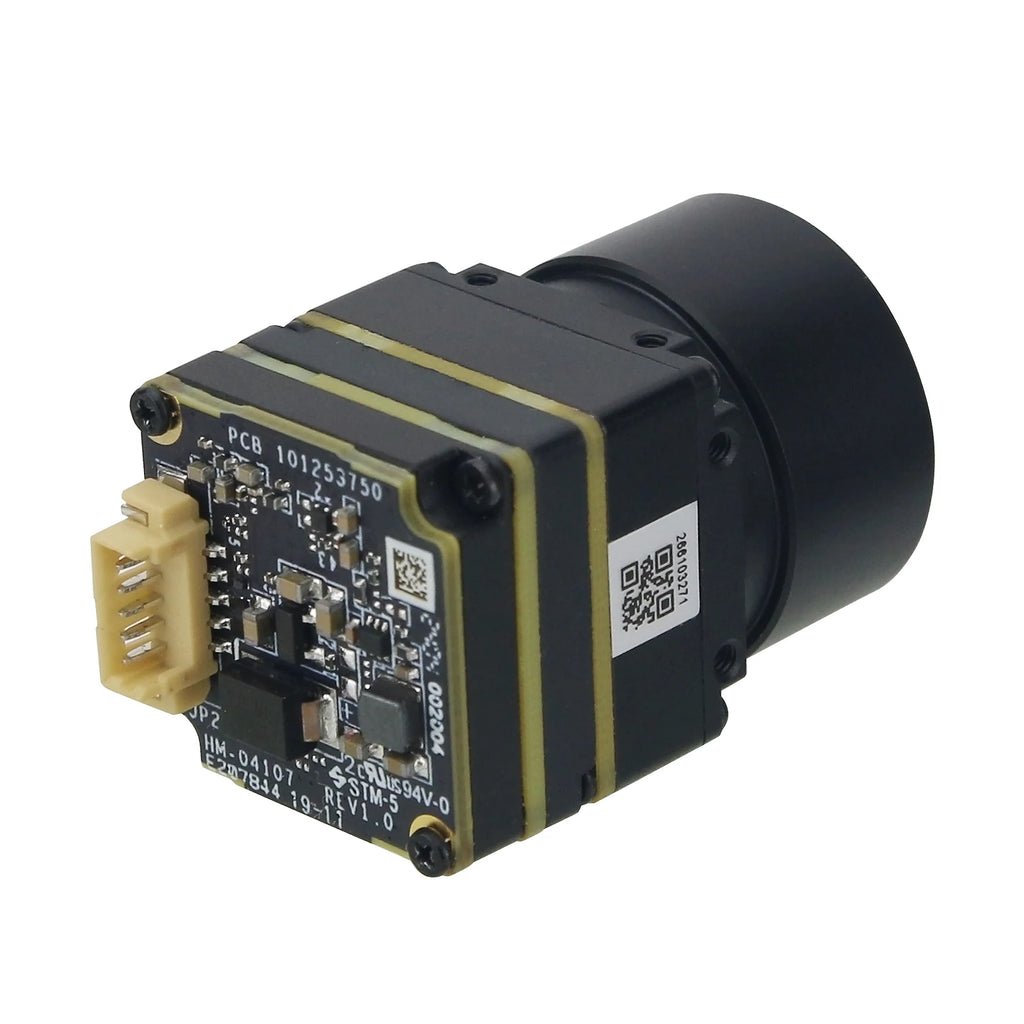

640X512 9.1MM Lens / 384X288 9.7MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module
640X512 9.1MM Lens / 384X288 9.7MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /04/2026
Couldn't load pickup availability
Guaranteed Safe Checkout

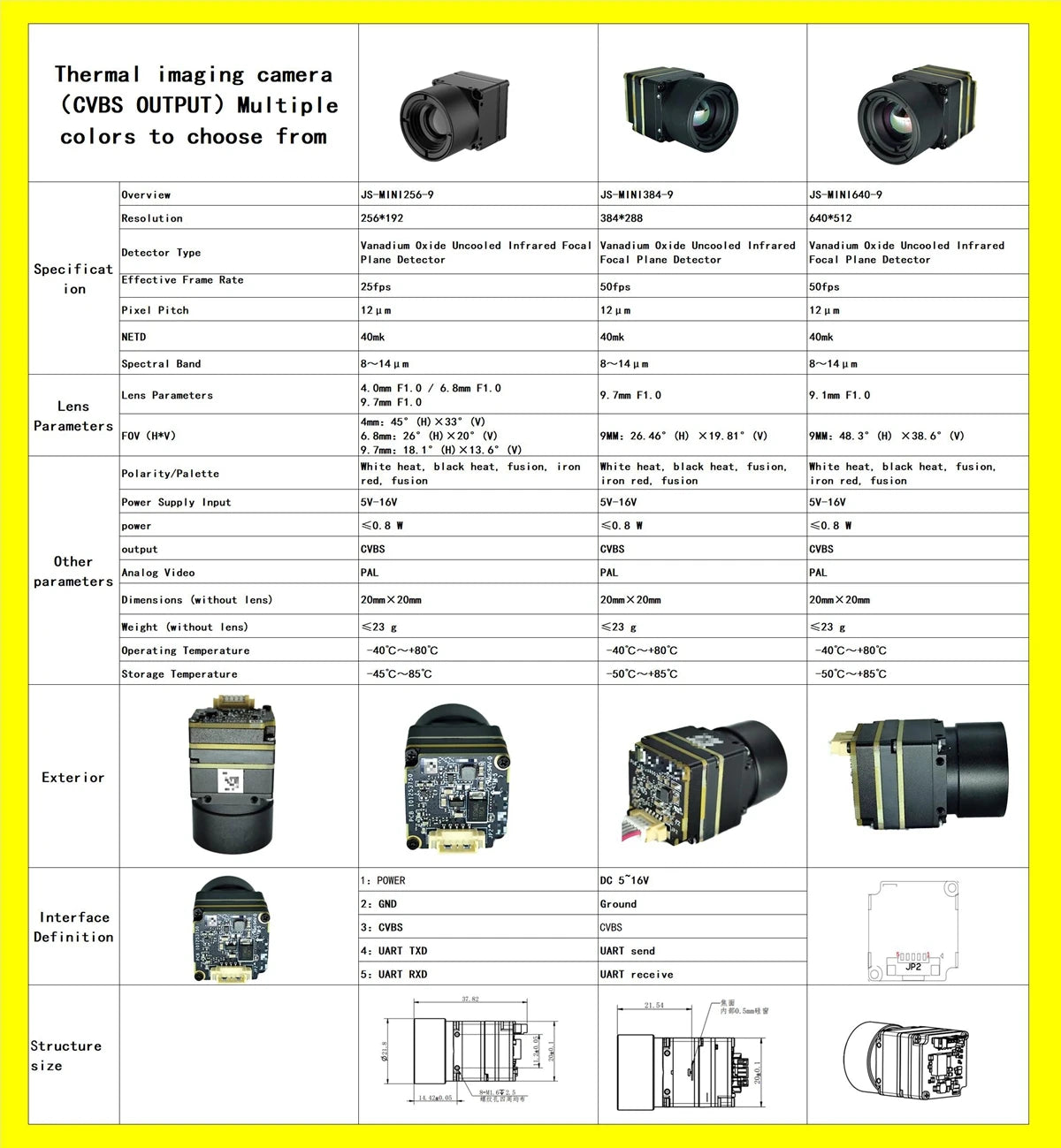

Specification:
- Resolution: 640 x 512/384 x 288 (Choose according to needs or preferences)
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 50fps
- Pixel pitch: 12um
- NETD: 40mk
- Spectral band: 8 - 14um
- Lens parameters: 9.1mm/9.7mm F1.0 (Choose according to needs or preferences)
- FOV (HxV): 9mm: 48.3°(H) x 38.6°(V)
- Polarity/palette: white heat, black heat, fusion, iron red, fusion
- Power supply input: 5V - 16V
- Power: ≤0.8W
- Output: CVBS
- Analog video: PAL
- Product size (without lens): 20mm x 20m
- Weight (without lens): ≤23g
- Operating temperature: -40℃ ~ 80℃
- Storage temperature: -50℃ ~ 85℃
Package Included:
- 1 x Thermal Imager
Description
Description
Specification:
- Resolution: 640 x 512/384 x 288 (Choose according to needs or preferences)
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 50fps
- Pixel pitch: 12um
- NETD: 40mk
- Spectral band: 8 - 14um
- Lens parameters: 9.1mm/9.7mm F1.0 (Choose according to needs or preferences)
- FOV (HxV): 9mm: 48.3°(H) x 38.6°(V)
- Polarity/palette: white heat, black heat, fusion, iron red, fusion
- Power supply input: 5V - 16V
- Power: ≤0.8W
- Output: CVBS
- Analog video: PAL
- Product size (without lens): 20mm x 20m
- Weight (without lens): ≤23g
- Operating temperature: -40℃ ~ 80℃
- Storage temperature: -50℃ ~ 85℃
Package Included:
- 1 x Thermal Imager
