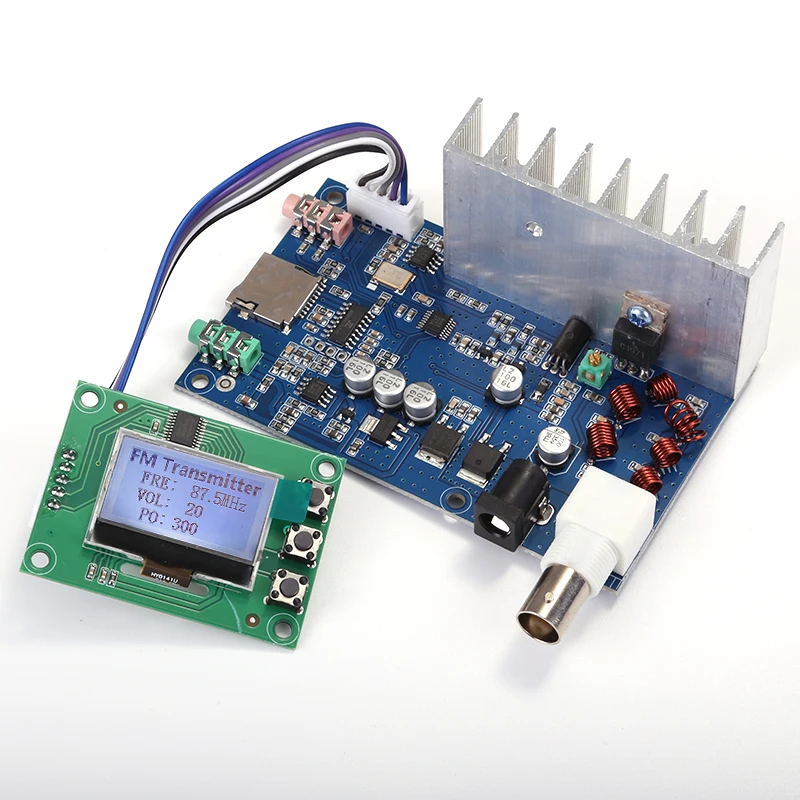

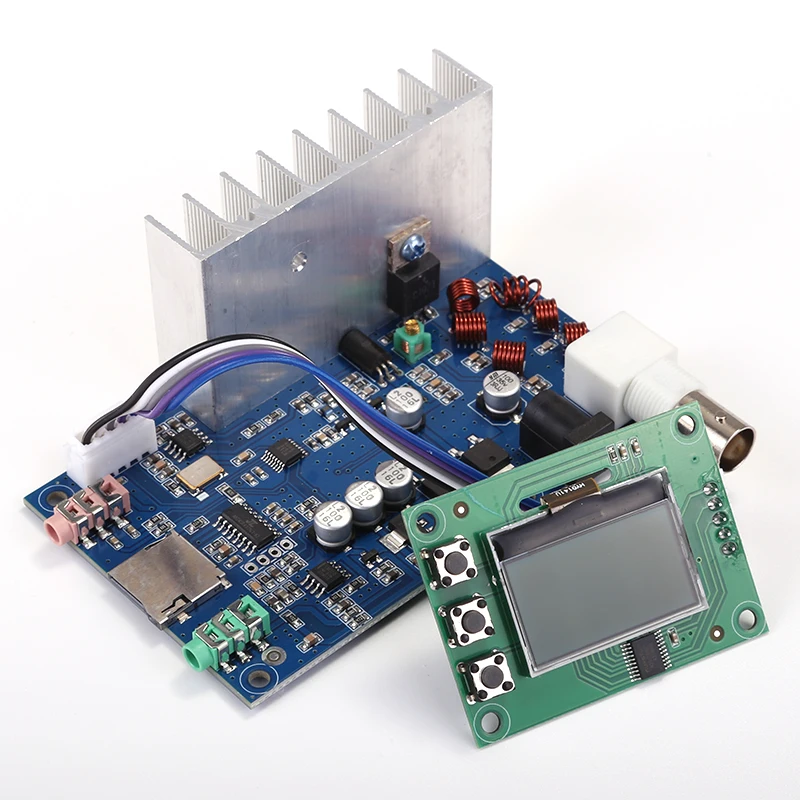

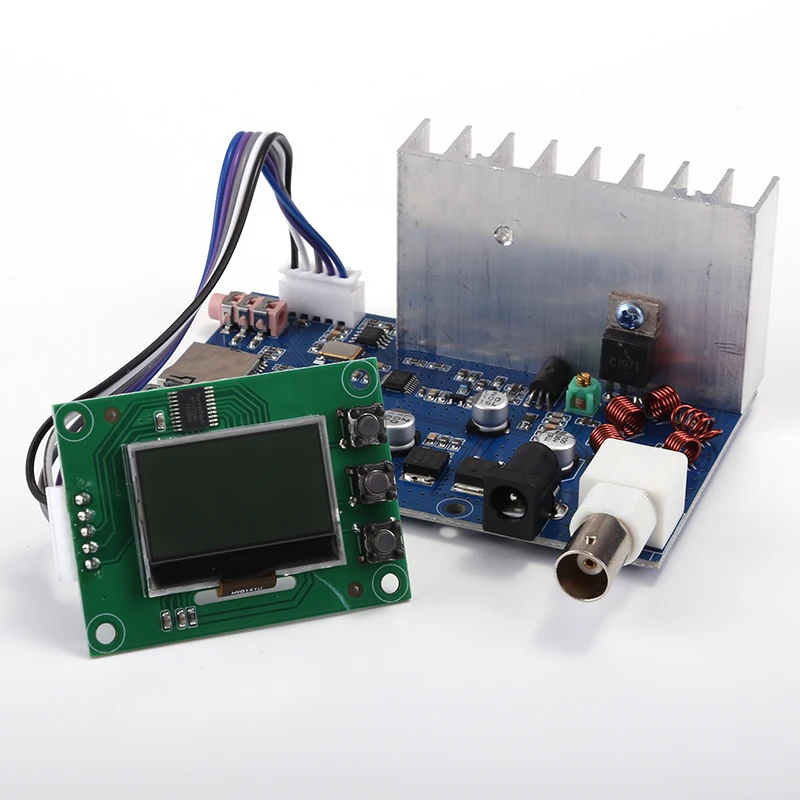

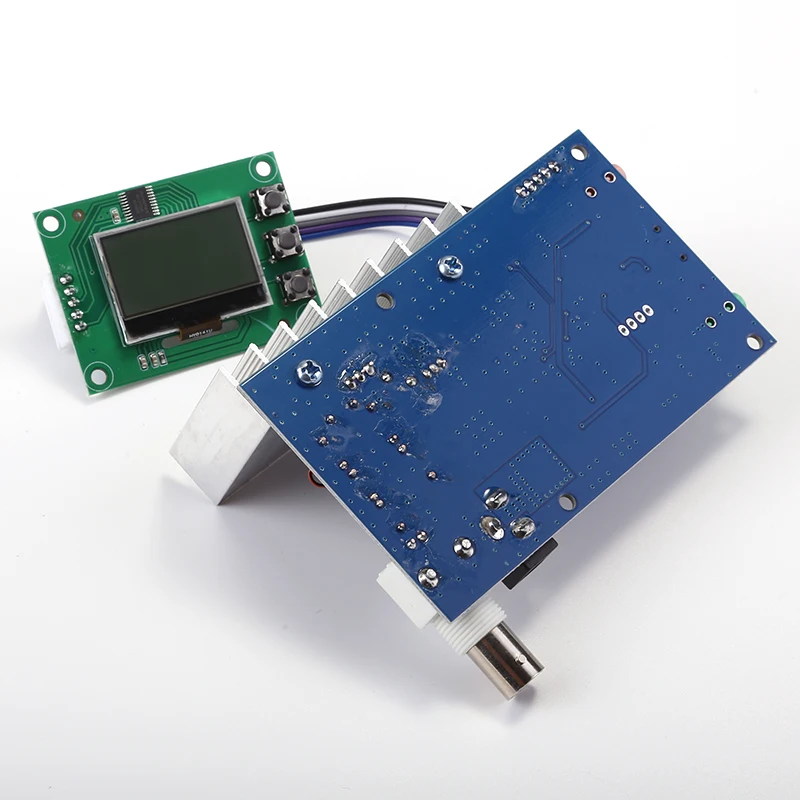

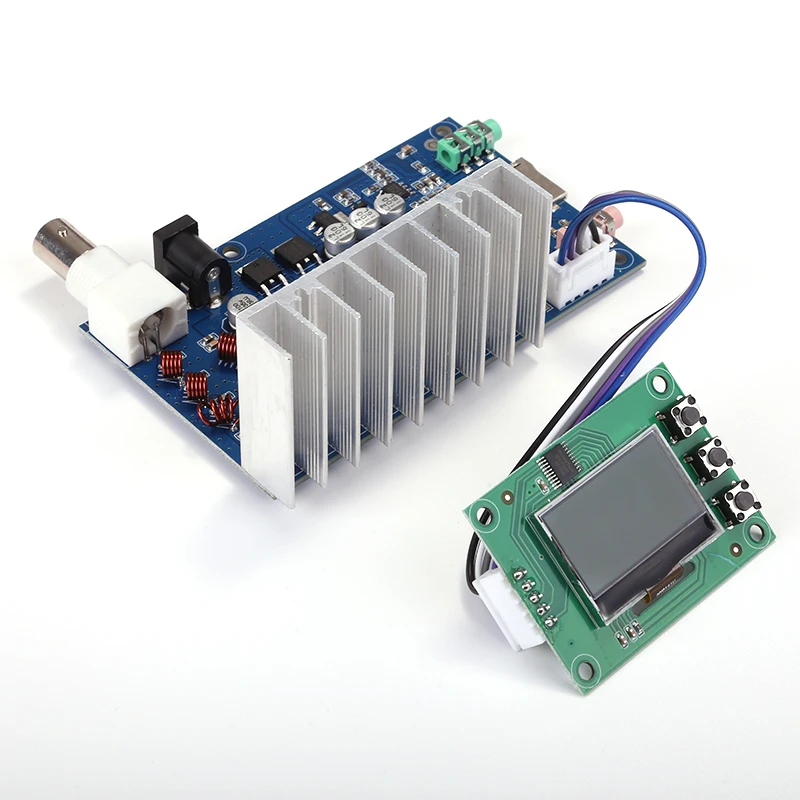

5W 76M-108MHZ 7W Max stereo PLL FM transmitter suite power frequency with LCD display
5W 76M-108MHZ 7W Max stereo PLL FM transmitter suite power frequency with LCD display
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
introduction:
- control panel components: mainly by M8 Series MCU and LCD display and keypad.
-transmitter board components: digital FM transmitter chip + 9018 + 2SC3355 + 2SC2851 + 2SC1971 four high frequency power amplification and power conditioning components.

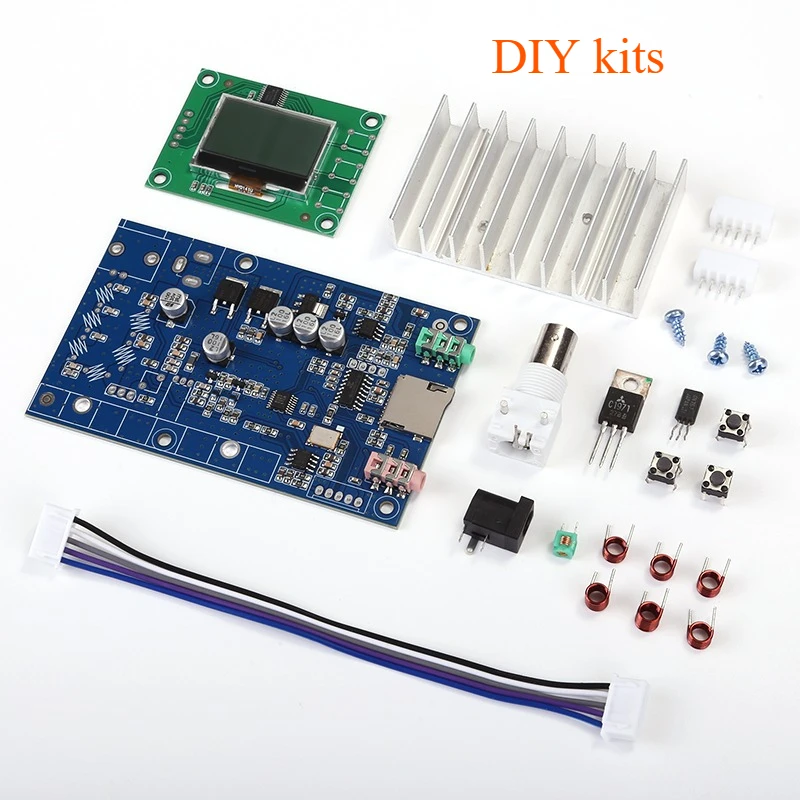

- transmitter kit Main features:
1, DSP + PLL, the frequency is more stable, the frequency will not change with the environment to produce a frequency drift.
2, without any adjustment to bring the fun of DIY beginners.
3, the frequency can be continuously adjusted within a specified range.
4, with a microphone input and speaker volume can be controlled via digital potentiometer.
5, audio input volume can be adjusted via a digital potentiometer.
6, power can be adjusted continuously (non-linear) between the maximum power of 0.5W to 7W.
7, the power output is very good harmonic suppression network, the output spectrum cleaner
8, frequency and volume settings have power failure protection, you do not need to set the next boot!
parameters:
1, Input voltage: 12V DC
2, the input current: approximately 1.0A
3, the audio signal: Maximum input Vpp less than 1V.
4, microphone type: cylinder microphone or microphone!
5, power output: 0.5W-7W adjustable!
6, the output impedance: 50Ω
7, the operating frequency: 76M-108MHz
8, frequency step: 0.1MHz
9, distortion: 0.03% to 0.1%
a, board size: transmitting plate: 100 × 60mm
Dashboard: 55 × 36mm
b, launch distance: more than 5KM (provided that the open area transmit antenna height above the surrounding buildings erected height of 10 times)
c, stereo separation: more than 63db
NOTE:
Do not use dipole antennas
Using Gp antenna
The antenna should be at least 5 meters away from the transmitter
Connected cable with 50 ohms
