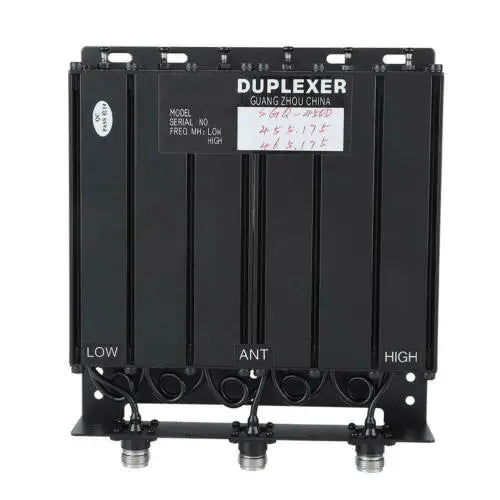

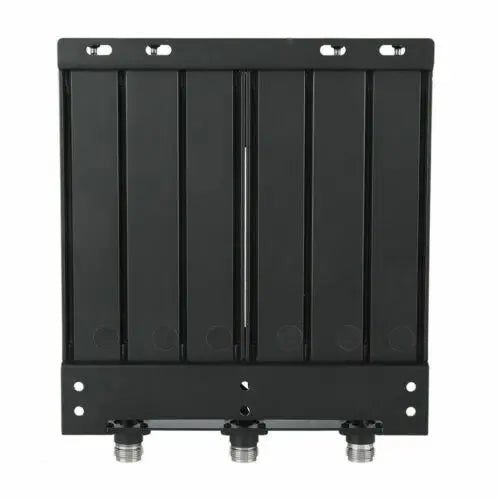

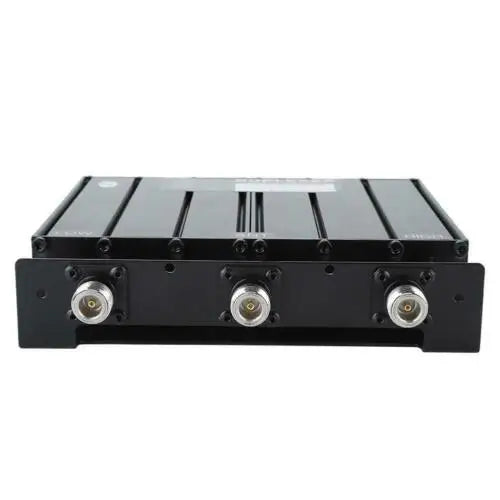

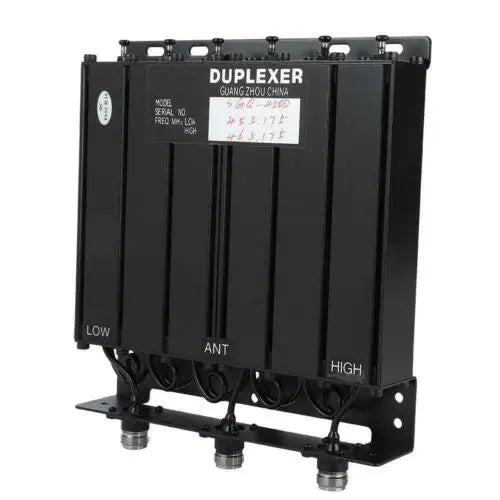

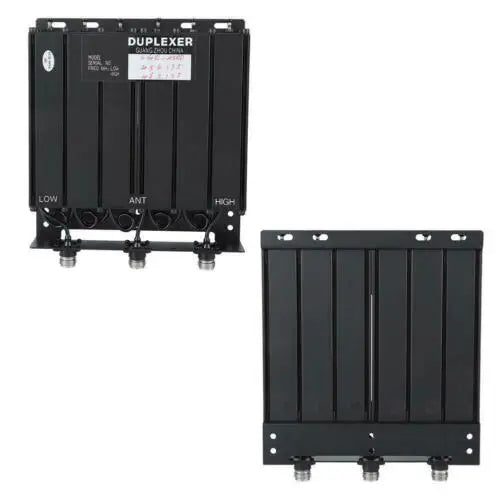

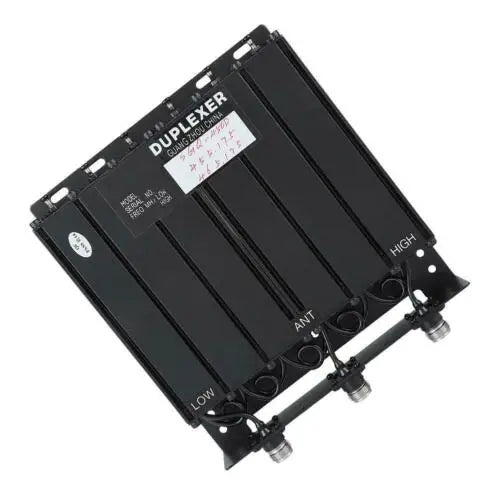

UHF 6 Cavity Duplexer N Connector for Radio-Tone Repeater 380~520MHz SGQ-450D 50W
SGQ-450D
|
Frequency Range(MHz) |
Bandwidth (kHz)) |
Max.powe Input(W) |
standard Termination |
Frequency Spacing(MHz) |
Dimensions(mm) |
|
380~520 |
±400 |
50 |
N |
10 |
225×190×37 |
|
Insertion Loss(dB) |
Nominal Impedance |
V.S.W.R |
Suppression |
Isolation(dB) |
Weight (kg) |
|
≤1.0 |
50 |
≤1.5 |
>75 |
>75 |
1.7 |
Remark : please make note what frequency you want ( High / Low)Mininum Tx and Rx frequency difference :UHF 3.8Mhz-12Mhzand standard TerminationNon paypal payment ,we will turn OK before ship out.
Support Frequency: UHF 380-520Mhz
the Frequency space must >3.8Mhz,for example: 450Mhz-454.8Mhz,N Connector Connector.
Package:
