50W - 300W VHF FM RF Power Amplifier FM 87-108mhz VHF 136-170MHZ Campus radio / Rural Campus Broadcasting

FM Power Amplifier RF Radio Frequency Amplifier for Rural Campus Broadcasting

Description:
-The main function of FM radio frequency power amplifier is to amplify low power so that small devices have high power and increase the communication distance to make the sound clearer. This product is only suitable for campus broadcasting and rural broadcasting systems.

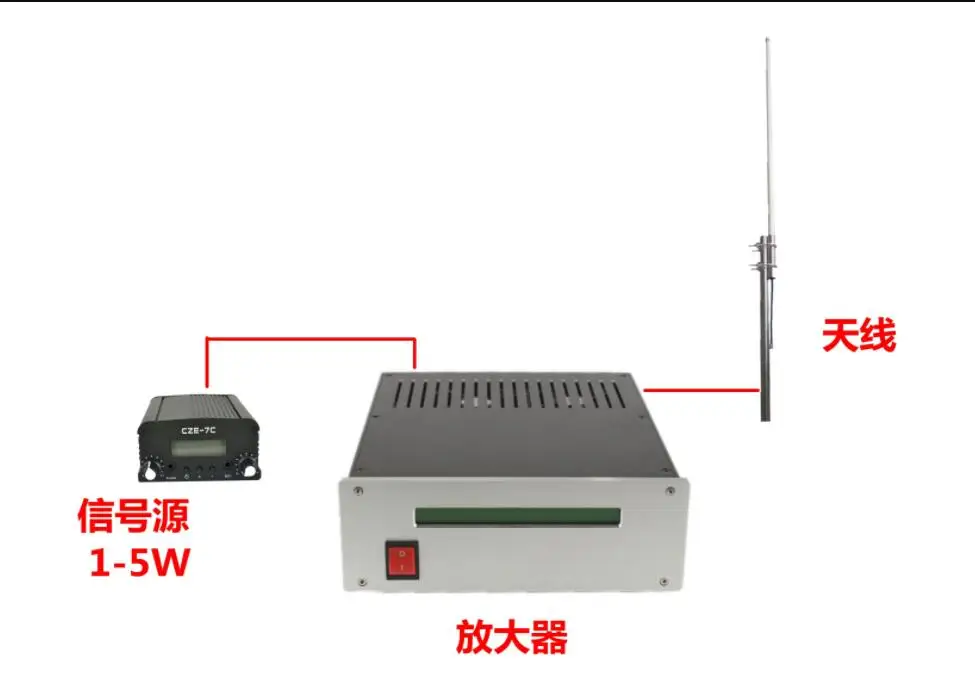

-To use this equipment, please prepare 1-5W signal source and an antenna that with corresponding frequency and withstand power above 400W.

Specification:
- Input power: 1-5W
- Transmitting frequency: VHF 136-170MHZ or FM 87-108MHz (Optional)
- Working mode: FM frequency modulation
- Output power: 50-300W
- Clutter suppression: <-60DB
- Standing wave protection: >2
- Load impedance: 50Ω coaxial
- Power supply voltage: 220V
- Standby current: 200mA
- Cooling method: temperature controlled air cooling

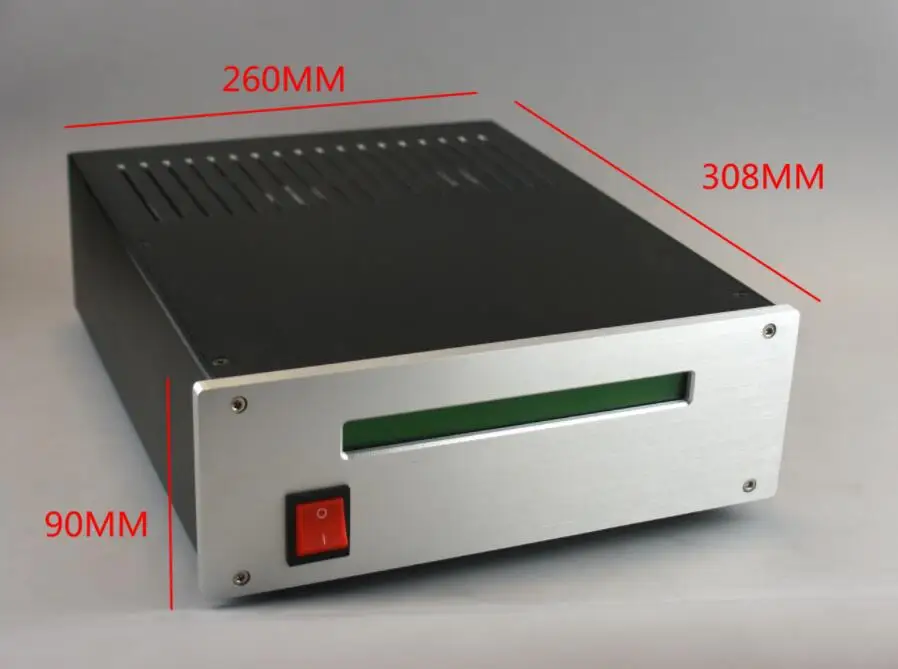

- Size: 308*260*90mm
- Net weight: 4.7kg

Features:
- Adopt all aluminum alloy chassis
- Stable work and long service life
- With standing wave protection function
- Use 220V power supply

Package List:
- 1 x FM Power Amplifier

Note:
-Do not use without antenna installed.
-Please use an antenna corresponding to the transmitting frequency, standing wave within 2.0, and withstand power above 400W.
-Do not touch the antenna in the transmitting state.
-Do not use in explosive environment (gas station, natural gas, etc.).
-Please follow the national laws and regulations and the local radio management department to use.
