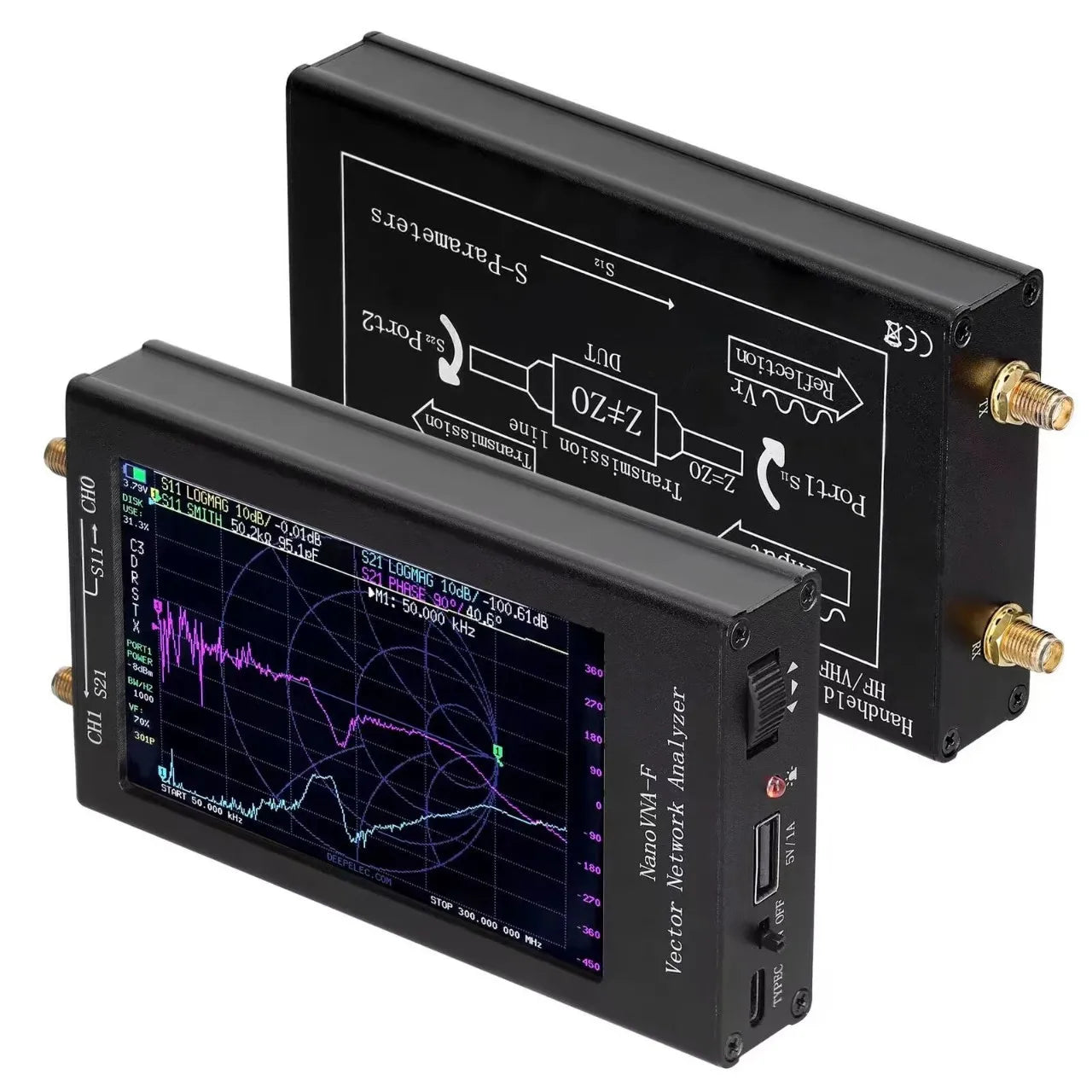

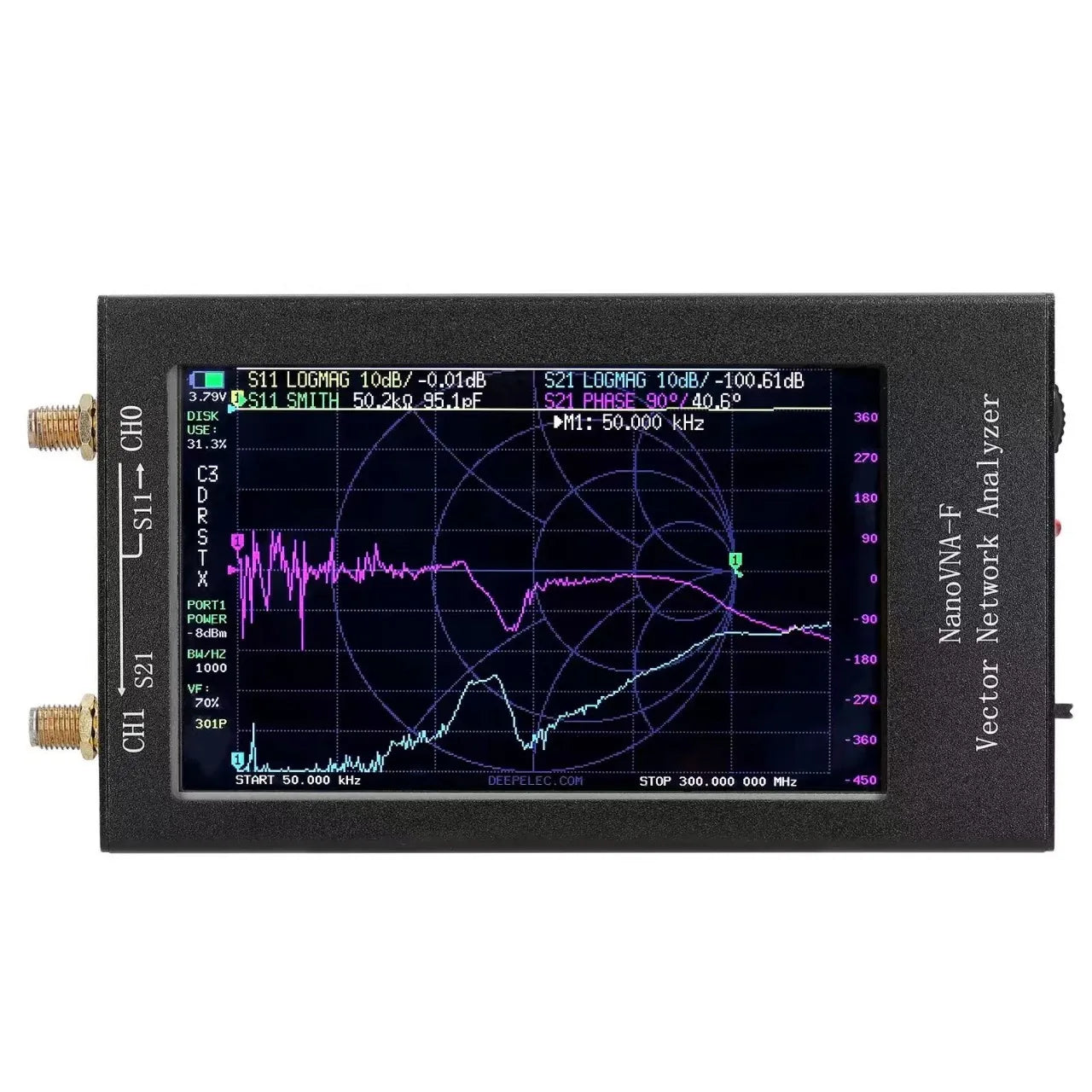

50KHz-1.5GHz HF VHF UHF 4.3 inch NanoVNA Vector Network Antenna Analyzer NanoVNA-F VNA HF VHF UHF + IPS LCD + Metal Case
50KHz-1.5GHz HF VHF UHF 4.3 inch NanoVNA Vector Network Antenna Analyzer NanoVNA-F VNA HF VHF UHF + IPS LCD + Metal Case
Low stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Description:
NanoVNA-F Mini Vector Network Analyser is a product based on the Open Source Project of NanoVNA (https://ttrf.tk/kit/nanovna/). The RF part is consistent with the original version. NanoVNA-F can measure frequency of 50KHz-1.5GHz.
Hardware Main Functions:
- 4.3-inch IPS TFT LCD display with larger viewing angle. Users can read clearly even in strong outdoor light
- Longer standby time. USB expansion port can be used for charging other items when not in use for measurement
- Larger current 2A charging IC with shorter full charging time
- Larger pulsator with better operational sense
- Larger power switch with a better sense of operation
- Support Chinese and English menu switching
- Upgrade user program through the virtual U disk mode
- Software open source github.com/flyoob/NanoVNA-F
Basic Parameters:
- Shell Material: Metal
- Measurement Frequency: 50KHz-1.5GHz
- RF Output: -13dbm (maximum -9dbm)
- Frequency Accuracy: < 0.5ppm
- Port SWR: < 1.1
- Display: 4.3-Inch IPS TFT (800x480)
- USB Interface: USB Type-C communications Mode: CDC (Serial)
- Power Consumption: USB 5V 200mA
- Battery: 4000MAh
- Max. Charging Current: 2A
- Number of Calibration Points: 101
- Number of Scanning Points: 101
- Display Tracking: 4; Marking: 4; Setting Saving: 5
- Scanning Time: about 1.9s/1 times (50KHz-1.5GHz full frequency band)
- Application: Measure S parameters, voltage standing wave ratio SWR, phase map, group delay, Smith chart, etc.

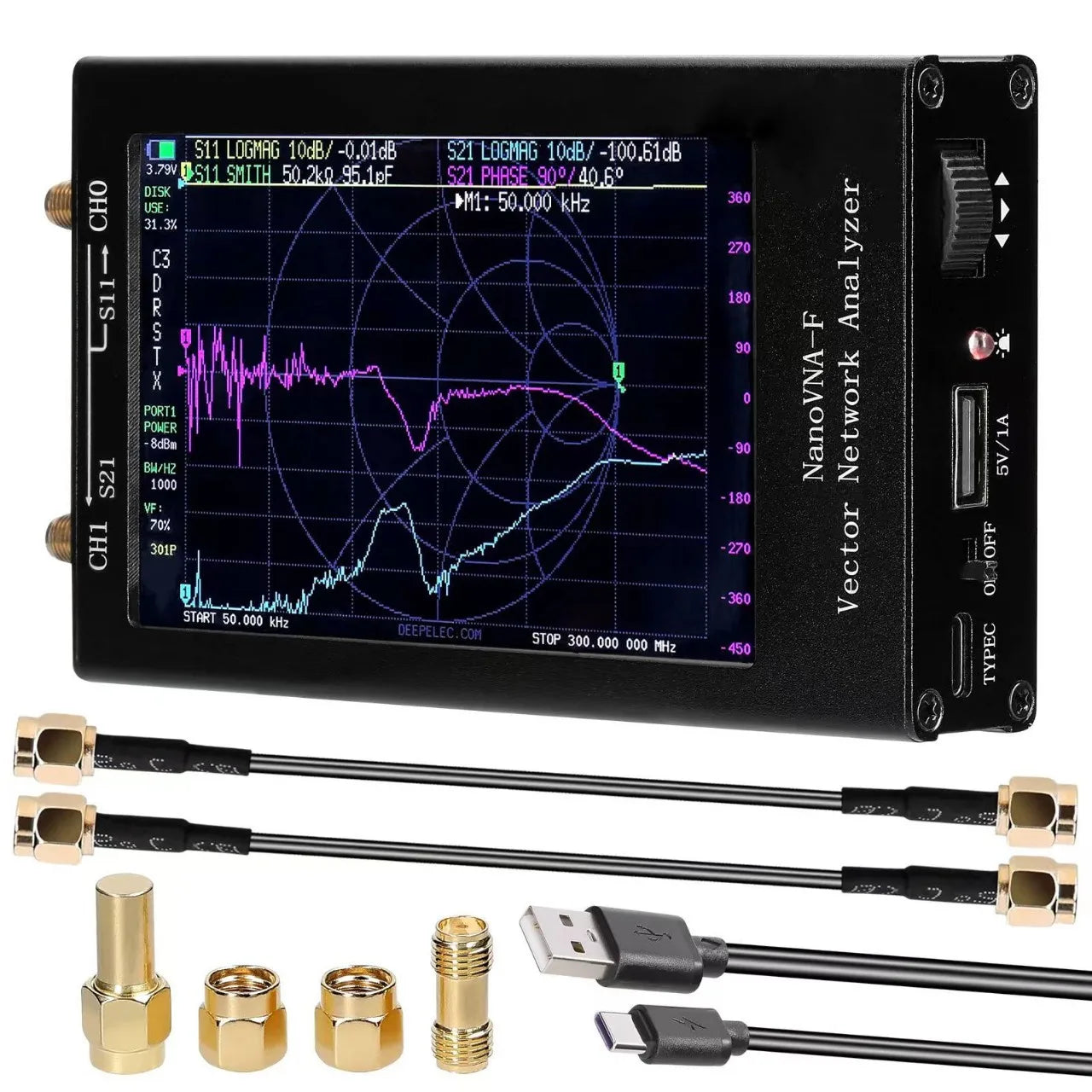

Package Included:
- 1 x Vector Network Analyzer
- 2 x 20cm SMA-JJ RG316 Cables
- 1 x 50Ω Standard Load
- 1 x Open-Circuit Calibration Piece
- 1 x Short-Circuit Calibration Piece
- 1 x Type-C Data Cable
