45W 3-28MHz SSB RF Linear Power Amplifier for Transceiver HF radio shortwave Radio AM FM CW HAM Short wave 13.56MHz RFID Signal

used in SSB, AM linear power amplifier, the CW, FM,
power amplifier, and the most basic signal amplification.
Easy installation and operation.
Low noise, high cost performance, very suitable for DIY
enthusiasts.
Our product is sent by parts, which not include heat
radiator, please help yourself to assemble.
The overall gain more than 40db, which is 10000 times, 10W
input 1mW output.

Specifications:

Input Power: 1-5mW
Output Power: 45W (Max.)
Input Voltage: DC 13.8V 10A or higher
Max. Output Power: 57W (not with cooling fin)
Output Impedance: 50 ohm, can according to need to adjust
between 10-200 ohm
Input Frequency Range: 3M-30MHz(HF channel)
Input/Output Interface: Standard SMA interface, external
thread hole
PCB Size: 60 * 100 mm
Diameter of Located Hole: 3mm
Color: Green
Package Size: 13 * 8 * 1.5cm
Package Weight: 58g / 2.07oz

Note:

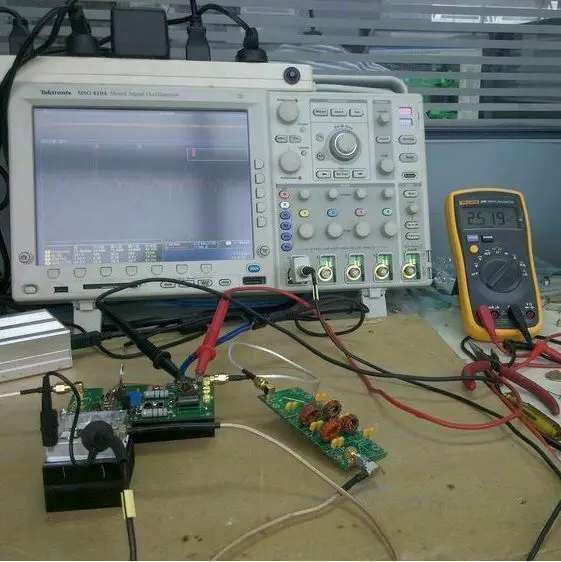

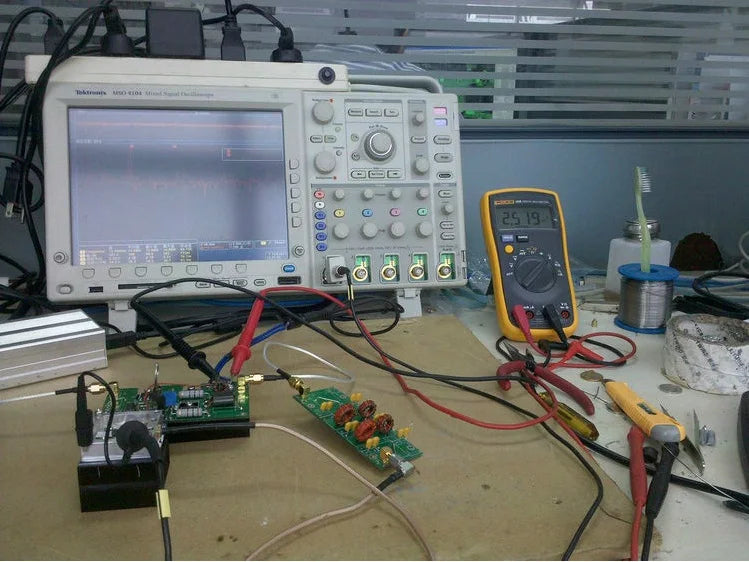

The following data to test in person, these data sheet is in
a large heat sink can withstand 200W above measured, there
is not enough cooling capacity, please do not limit, it's
not safe.
The upgrade board test data,so it can be used for all HF
Channel,
In 3 to 5 MHz this period, because of the low frequency,
small inductance, lead to the gain has a certain loss, the
output power is lower than 7 MHz this point.
3.500MHz 54W
7.050MHz 56W
10.000MHz 57W
14.270MHz 55W
21.400MHz 41W
24.000MHz 37W
28.100MHz 25W
29.600MHz 20W

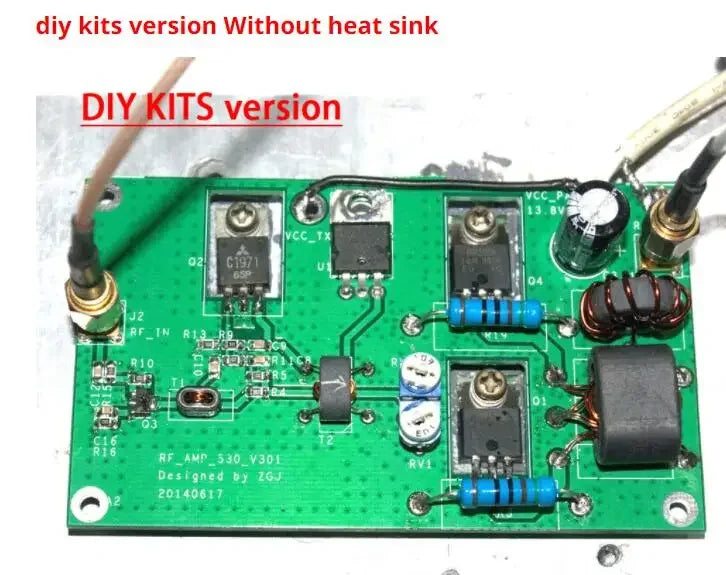

diy kits version Without heat sink

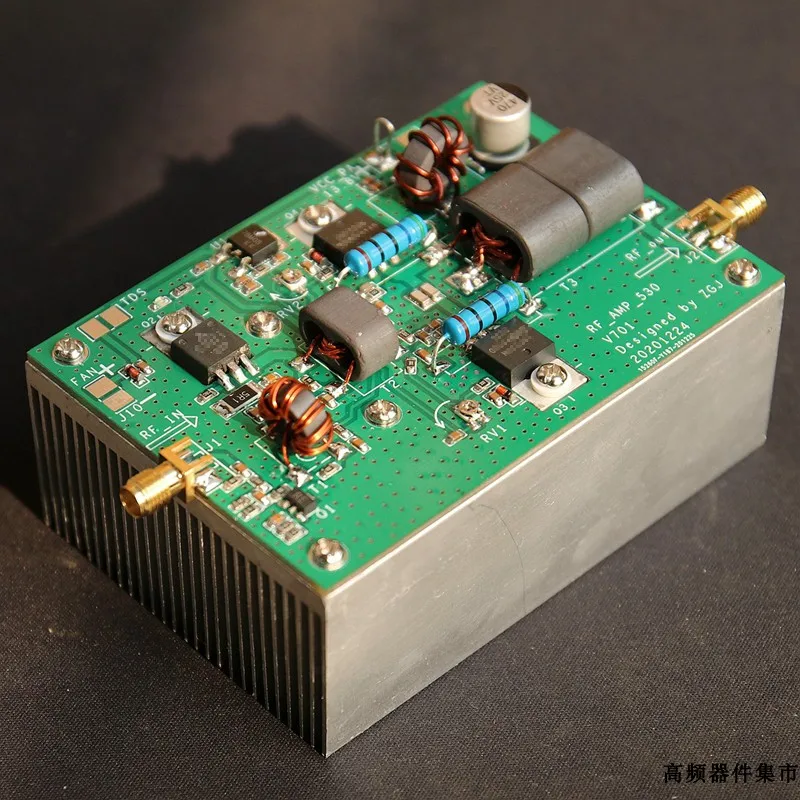

Finished version with heat sink
