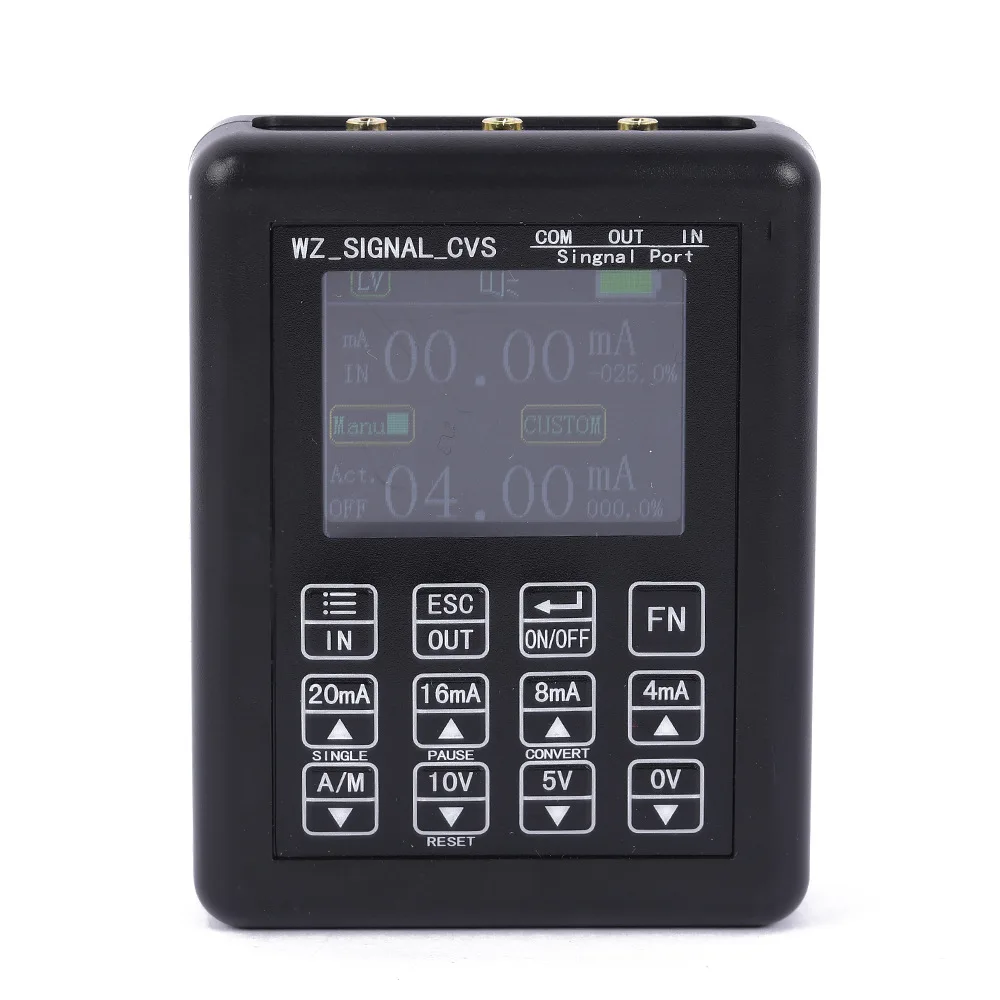

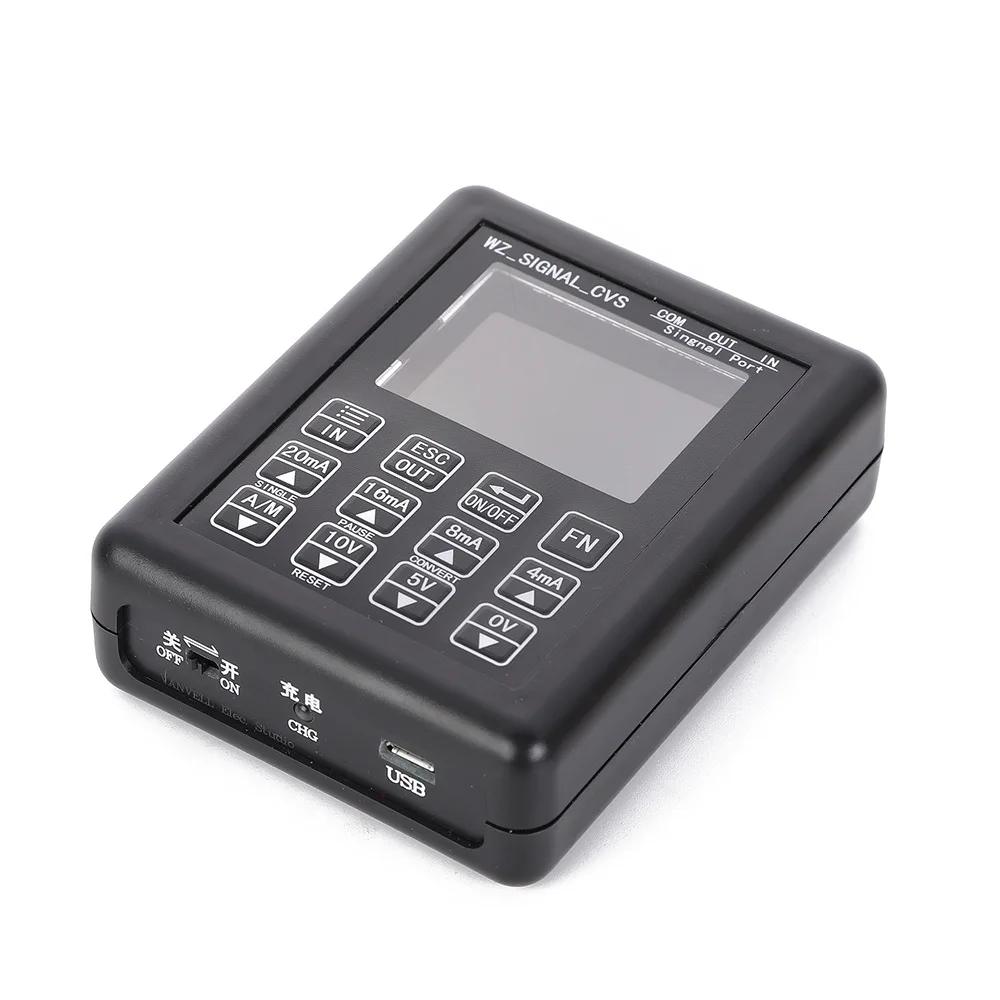

4-20mA 0-10V Signal Generator Process Controlling Signal Calibrator Constant Current Source 0-24mA 0-20mA Simulator
4-20mA 0-10V Signal Generator Process Controlling Signal Calibrator Constant Current Source 0-24mA 0-20mA Simulator
Sale
Sold out
Pre-order
Regular price
$85.48 USD
Regular price
$131.50 USD
Sale price
$85.48 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Low stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
VC conversion function
This function is mainly used for some temporary voltage and current conversions, such as converting a 0-10V input to a 4-20mA output.
VC active conversion: Converts voltage signal input into active current signal output. VC Passive conversion: Converts voltage signal input into reactive current signal output
C-V conversion: Convert the current input signal into a voltage signal output
The functional rules include the following parts: VC conversion switch, conversion mode, upper voltage limit, lower voltage limit, upper current limit, lower current limit and over-range.
Characteristics
Internal reverse and overcurrent protection, with a protection voltage of 30V.
Built-in single 3.7V 2000 mah lithium battery power supply; The usage time may vary depending on the usage situation (continuous output of 20mA May exceed 6 hours).
When the internal battery voltage indication (UV lamp) undervoltage indicator light is on, please turn off the charging.
Do not use for a long time. Please charge it once every two months.

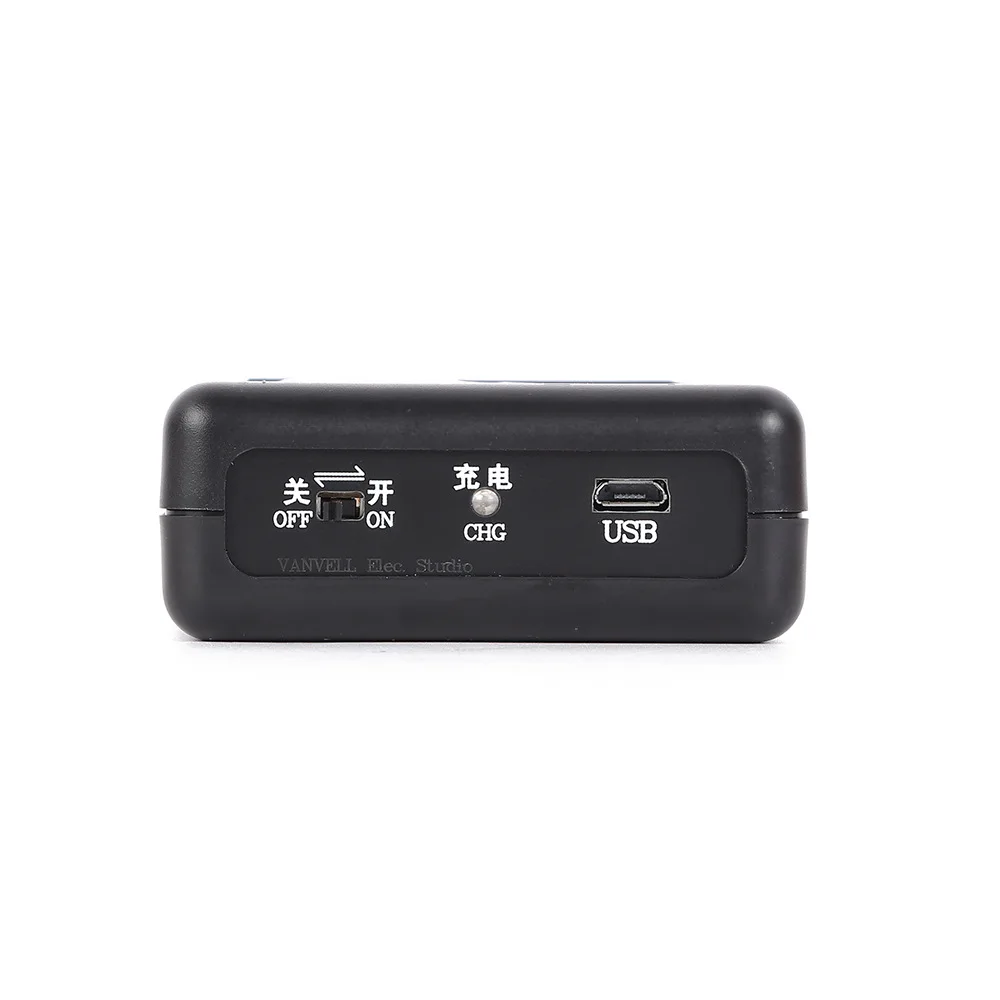

Charge with a micro USB.
The operating temperature range is from 0 to 50 degrees Celsius
Active current output: Range: 0-24mA; Resolution: 0.01mA Maximum load: 750Ω
Passive current output: Range: 0-24mA; Resolution: 0.01mA The external power supply is up to 30V.
Voltage output range: 0-12V; Resolution: 0.01V Maximum current: 30mA
24V voltage output: Drive current: 24mA.
Current input measurement: Range: 0-24mA; Resolution: 0.01mA Input impedance: 100Ω
Voltage input measurement: Range: 0-30V; Resolution: 0.01V Input impedance: 2.5MΩ
Working environment: 0°C-50°C
Protection voltage: 30V
Product dimensions: 90 * 70 * 28mm
Packaging size: 150 * 100 * 80mm
Packaging weight: 120 g

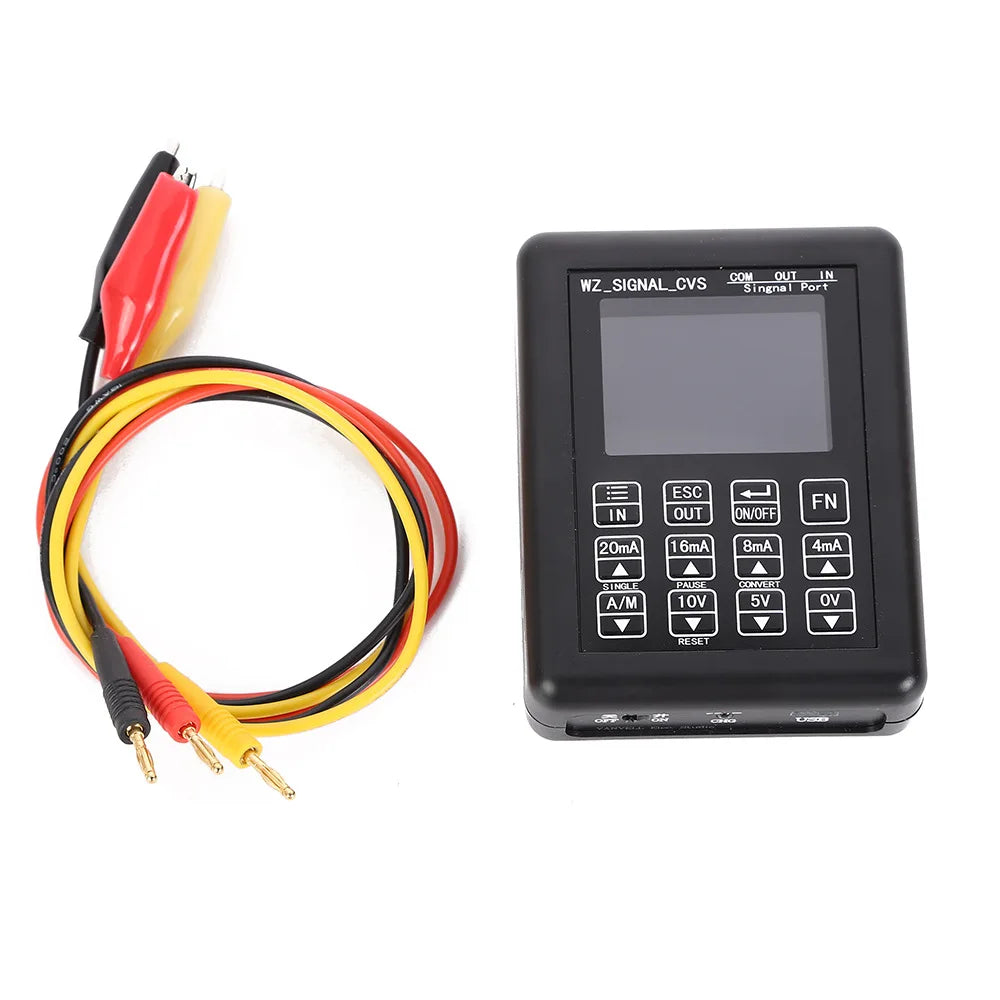

Package contents:
1 x Signal Generator

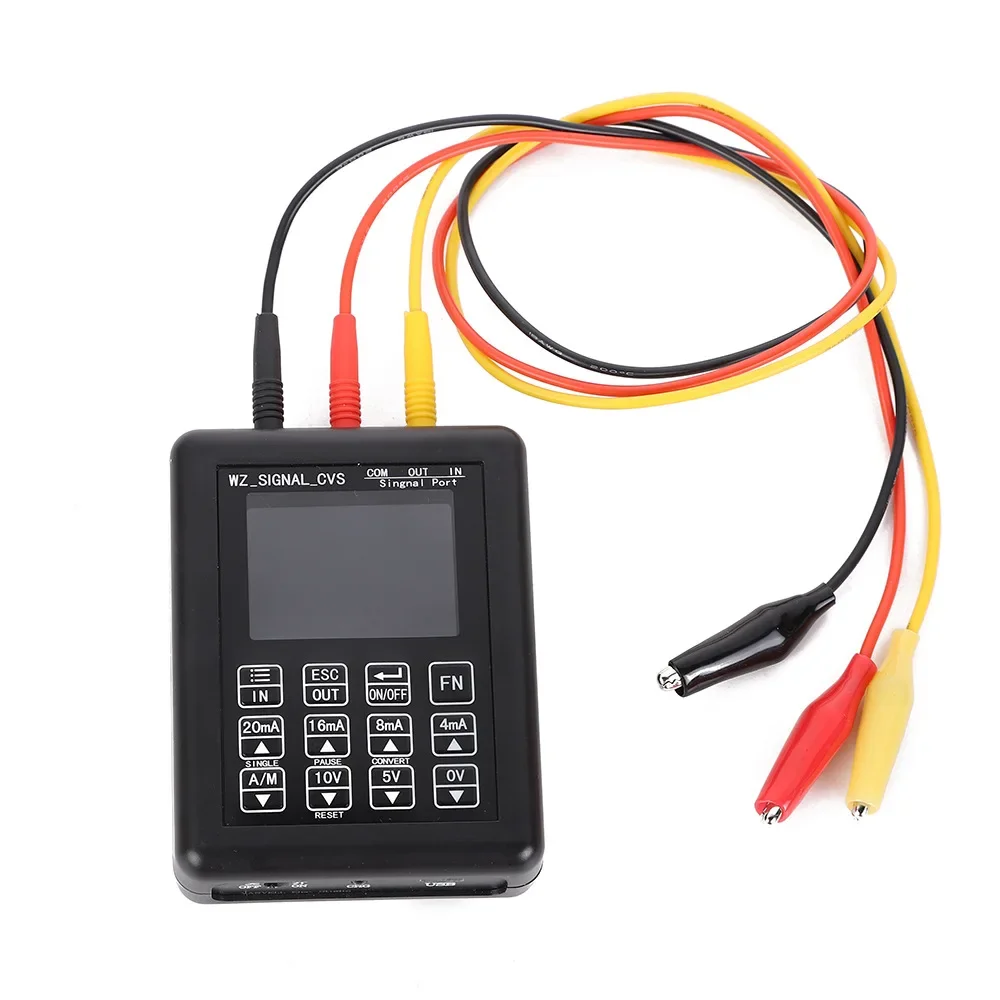

3 x Alligator Testing clip cable
