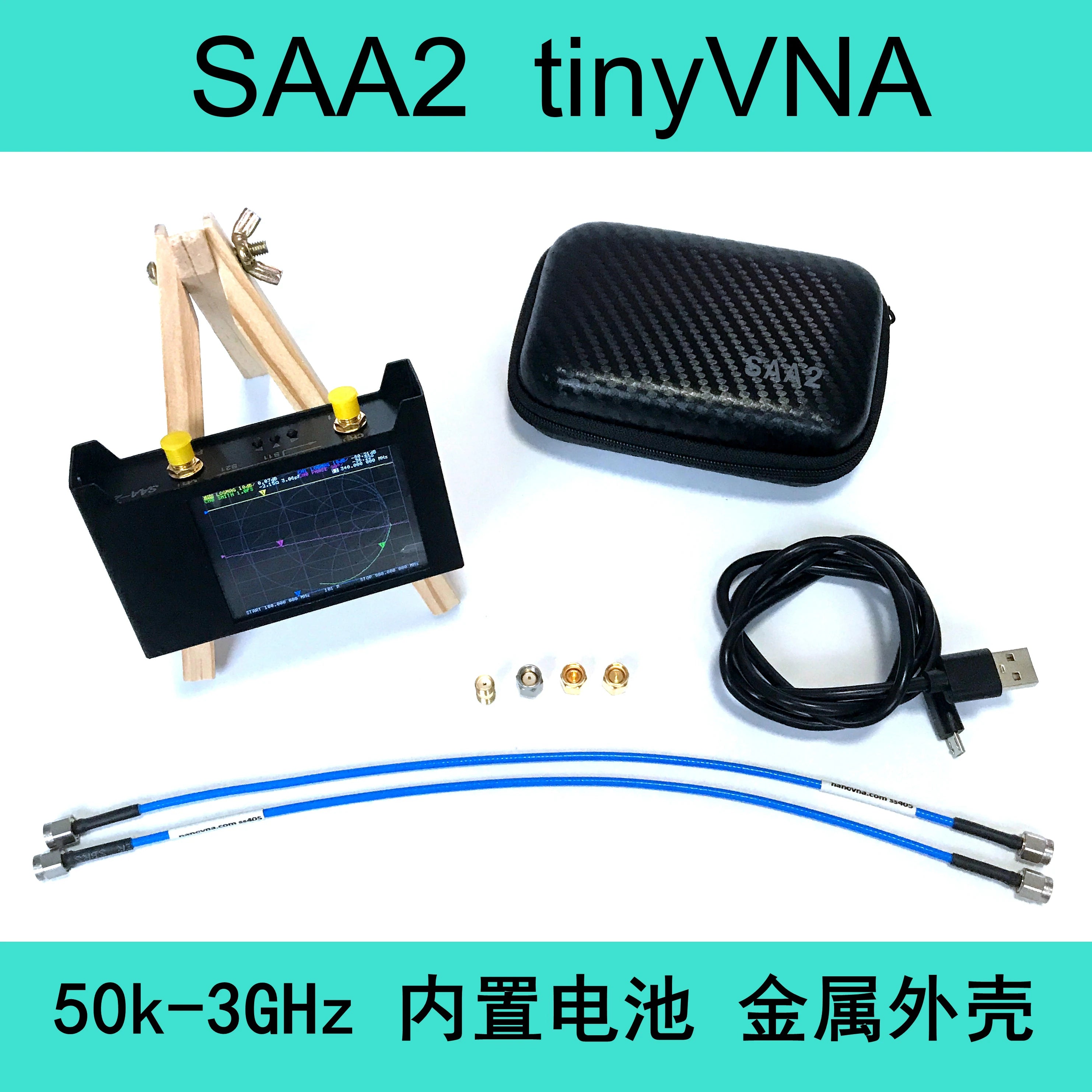

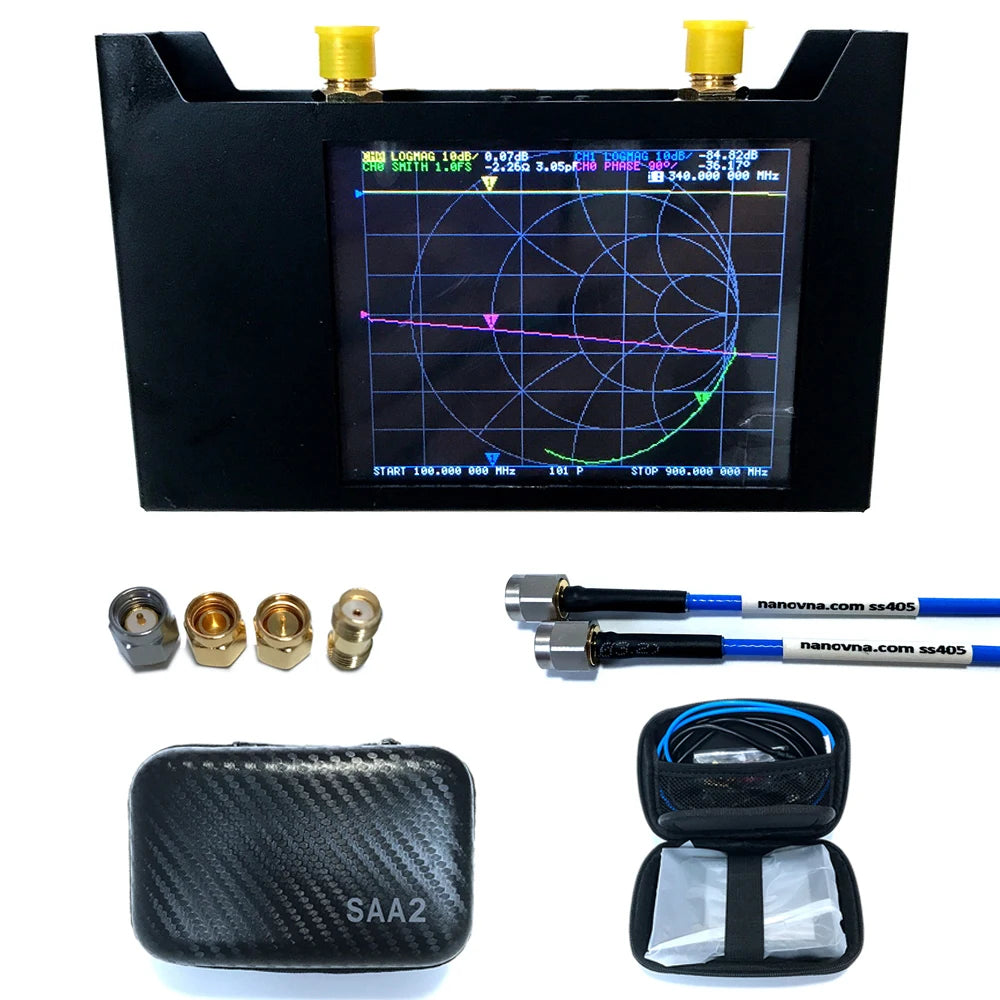

S-A-A-2 NanoVNA V2
|

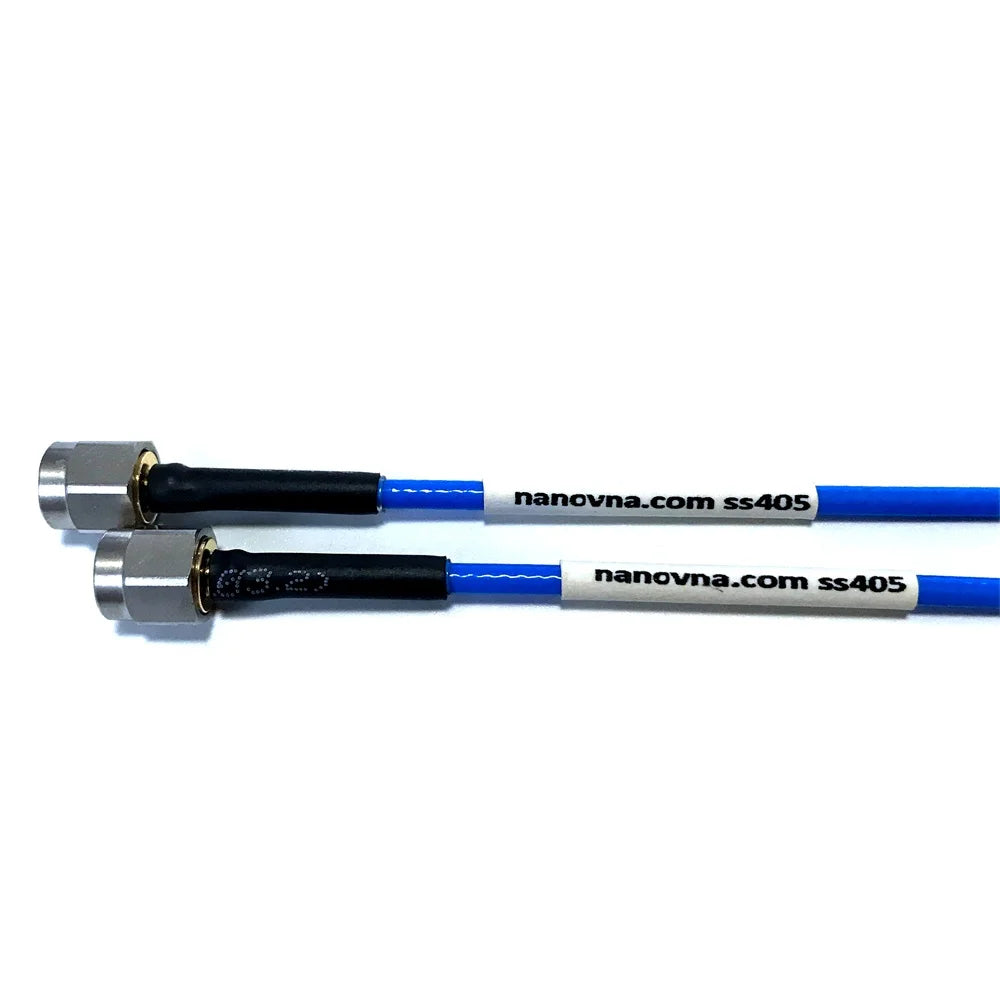

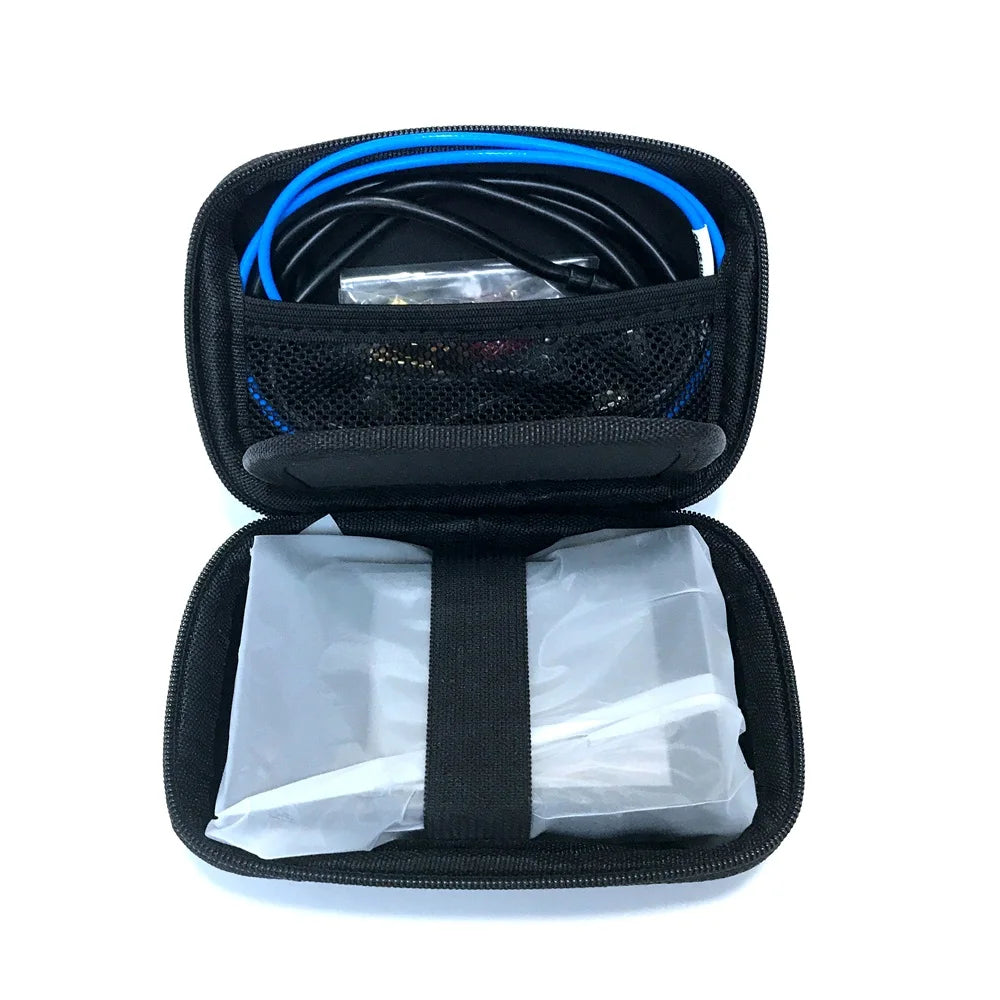

3GHz vector network analyzer, designed by OwOComm, under the LGPL license agreement, we using 0.5ppm TCXO, ensures the frequency accuracy of high frequency measurement; A metal case can fully protect the internal precision circuit, and fully consider the protection of external interface; 2 customized high-performance SS405 SMA RF cables provide good stability of amplitude and phase; Equipped with high-performance calibration kits can ensure that the calibration SWR is less than 1.03 when it reaches 3GHz; An EVA out packaging , make it easier to carry and store. |
The S-A-A-2/NanoVNA_V2 uses a similar user interface to the NanoVNA, but with a different technical architecture, the S-A-A-2/NanoVNA_V2 does not load the initial calibration data at startup, and does not automatically interpolate the calibration data after the user changes the frequency, and must recalibrate or call back the calibration data after each startup and frequency change. Please read the user manual carefully before use to avoid damaging the device.
VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releases
nanovna-saver https://github.com/zarath/nanovna-saver/tree/feature/nanovna-v2
User guide: https://github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf
Test 2.4G antenna
Test 10dB attenuator reflection up to 3.3GHz
Test 30dB attenuator up to 3.3GHz
test UHF duplexer
Basic performance:
Frequency range: 50kHz - 3GHz
Frequency tolerance :2ppm
Frequency Stability:0.5ppm
System dynamic range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Sweep rate: 100 points/s

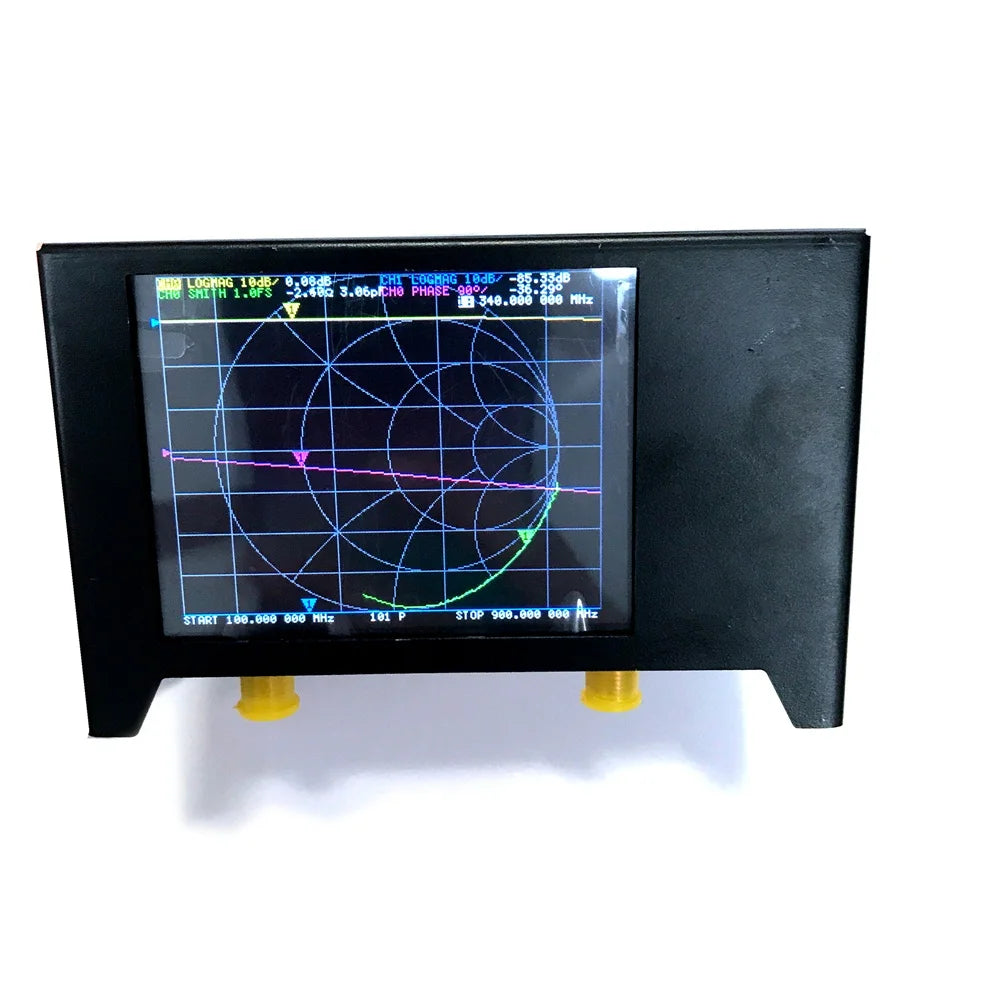

Display: 2.8'', 320 x 240
USB interface: Micro USB
Power: USB, Maximum charge current 1A
Battery:1950mAh lithium-ion
Battery connector: JST-XH 2.54mm
Maximum sweep points (on device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB min
VNA-QT software supported platforms: Linux, Windows (7+), Mac OS planned
