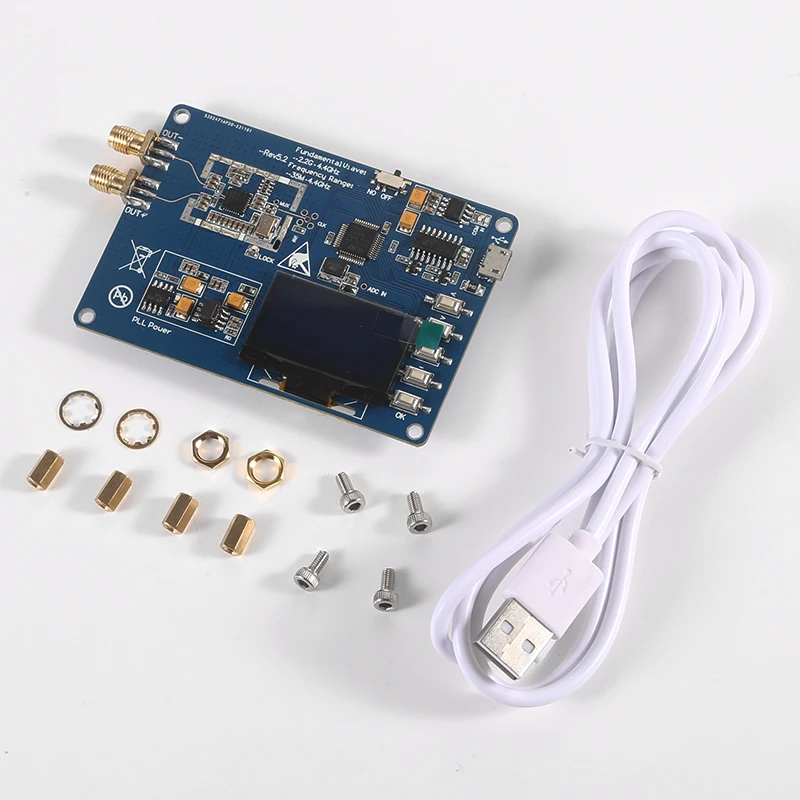

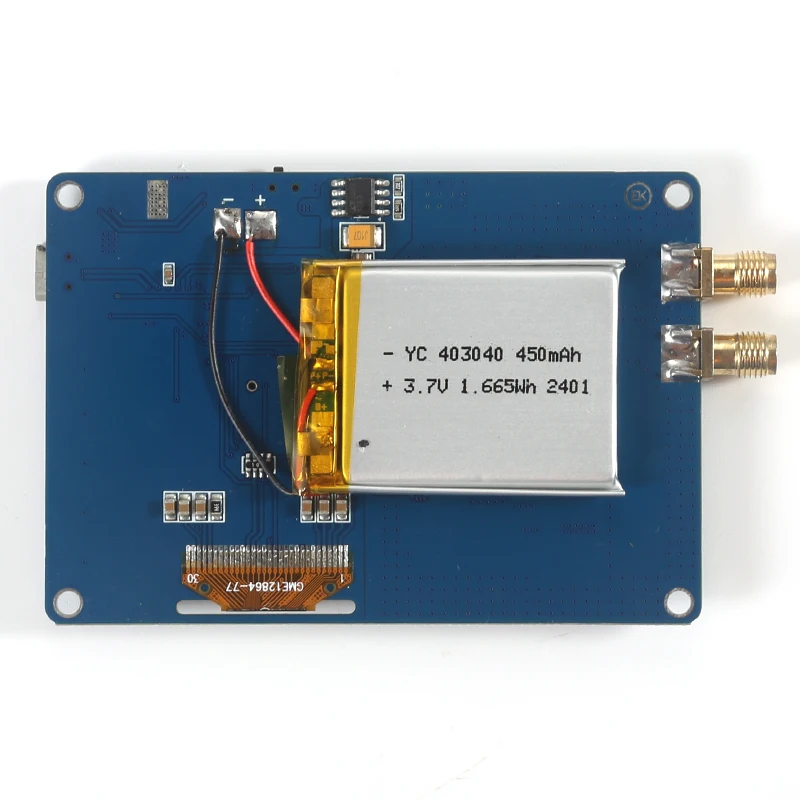

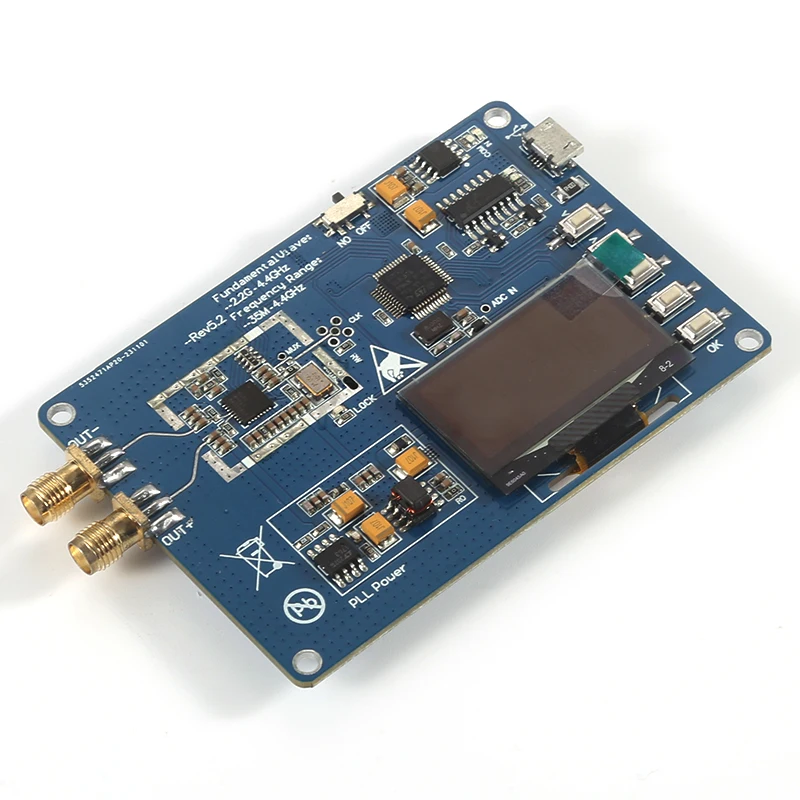

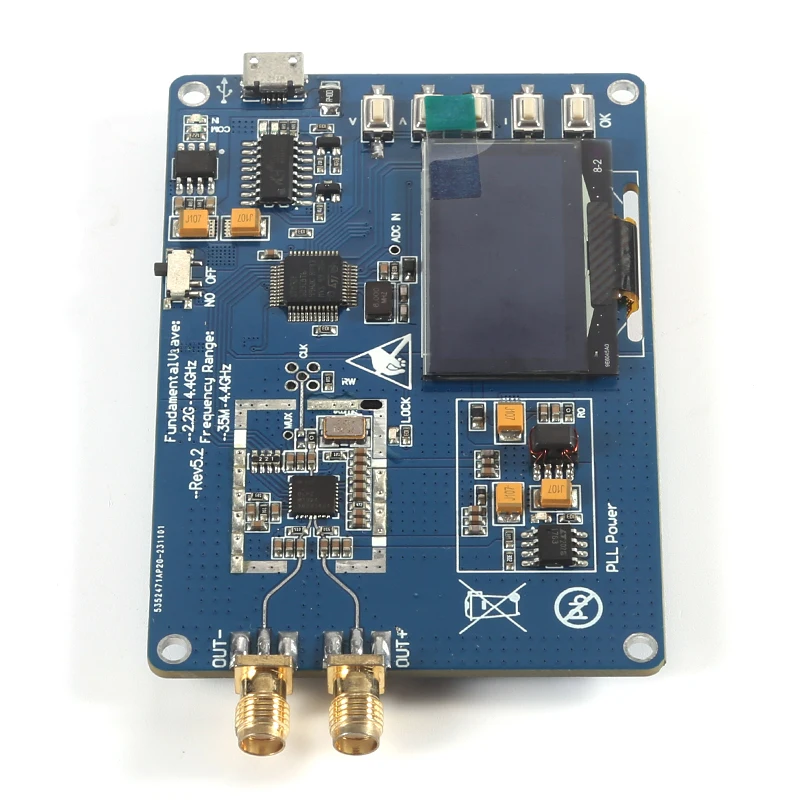

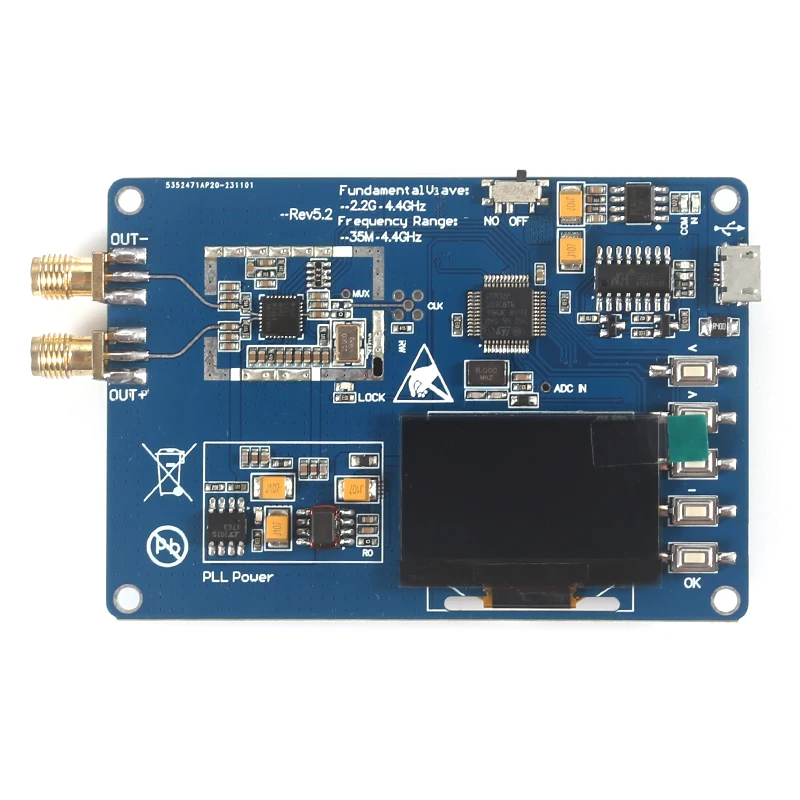

35MHz-4400MHz RF Signal Generator ADF4351 Module Sweep Frequency Generator PLL With OLED Display Battery USB Cable
35MHz-4400MHz RF Signal Generator ADF4351 Module Sweep Frequency Generator PLL With OLED Display Battery USB Cable
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Specification
- Power supply: 5V (Micro USB)
- Bandwidth: 35MHz-4.4GHz (35MHz-4400MHz);
- Module step: 100KHz (minimum)
- Frequency error: ±1KHz
- Output: OUTA and OUTB two ways
- Module phase noise: better than -100dBc at 10KHz (noise varies with the frequency band phase)
- Module output power: 7dBm (maximum)
- Module interface: The external communication port of STM32 USB can be configured as USB or analog serial port (default)
- Module program download mode: SW module, three-wire system (GND SWCLK SWDIO)
For the ADF4351 integrated phase-locked loop, this phase-locked loop module with OLED display, host computer USB & serial port, integrated button operation, wide-range voltage power supply, and good human-computer interaction interface is introduced. The module can achieve 35MHz-4.4GHz frequency output, basic functions such as dot frequency, sweep frequency, and frequency hopping.
Description
Description
Specification
- Power supply: 5V (Micro USB)
- Bandwidth: 35MHz-4.4GHz (35MHz-4400MHz);
- Module step: 100KHz (minimum)
- Frequency error: ±1KHz
- Output: OUTA and OUTB two ways
- Module phase noise: better than -100dBc at 10KHz (noise varies with the frequency band phase)
- Module output power: 7dBm (maximum)
- Module interface: The external communication port of STM32 USB can be configured as USB or analog serial port (default)
- Module program download mode: SW module, three-wire system (GND SWCLK SWDIO)
For the ADF4351 integrated phase-locked loop, this phase-locked loop module with OLED display, host computer USB & serial port, integrated button operation, wide-range voltage power supply, and good human-computer interaction interface is introduced. The module can achieve 35MHz-4.4GHz frequency output, basic functions such as dot frequency, sweep frequency, and frequency hopping.
