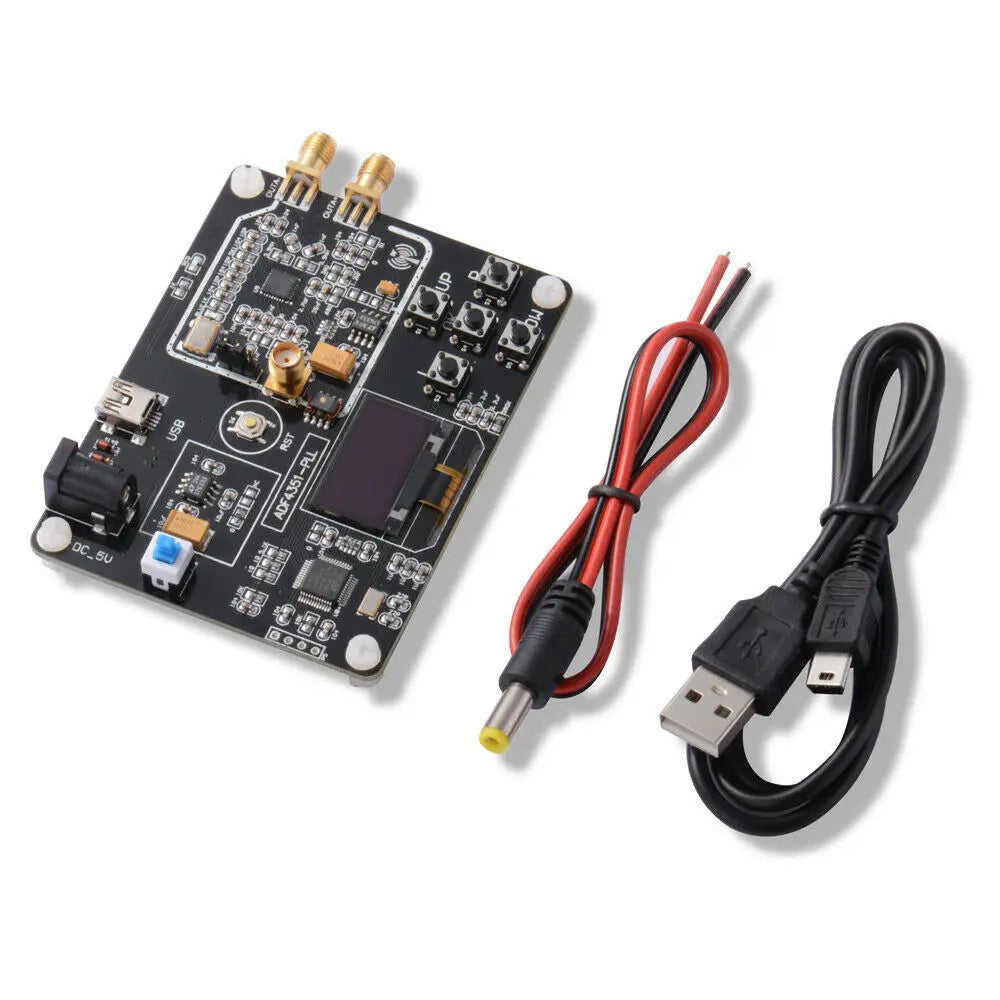

35MHz-4400MHz RF Signal Generator ADF4351 Module Sweep Frequency Generator PLL With OLED Display
Advantages:
- With OLED display
- Host USB and serial ports
- Integrated key operation
Description:

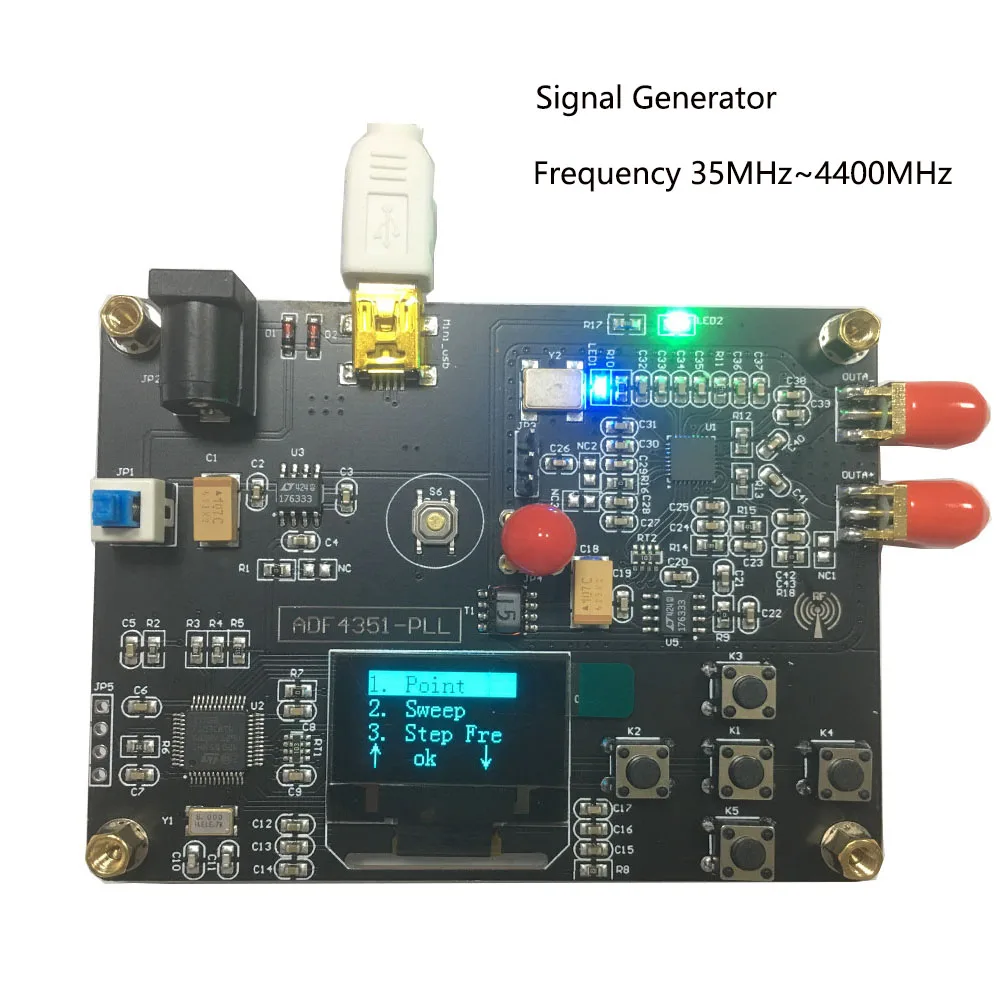

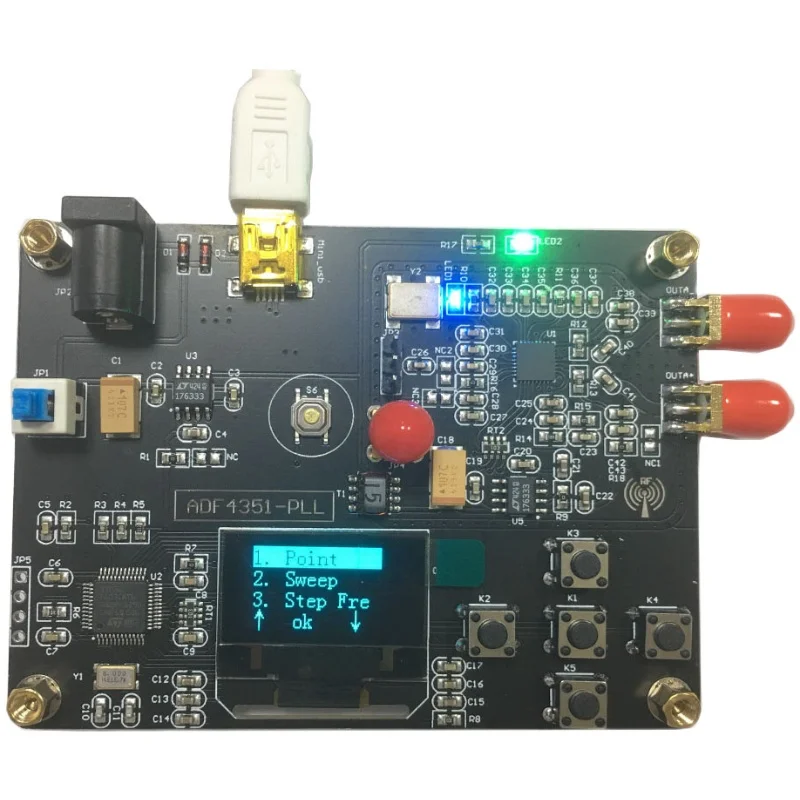

For the ADF4351 ADF4350 integrated phase-locked loop, this phase-locked loop module with OLED display, host computer USB & serial port, integrated button operation, wide-range voltage power supply, and good human-computer interaction interface is introduced. The module can achieve 35MHz-4.4GHz frequency output, basic functions such as dot frequency, sweep frequency, and frequency hopping.
Product Information:
- Size: 88mm * 67mm
- Power supply: 5V (DC 5.1MM); 5V (USB)
- Bandwidth: ADF4351: 35MHz-4.4GHz (35MHz-4400MHz); ADF4350: 137MHz-4.4GHz
- Module step: 100KHz (minimum)
- Frequency error: ±1KHz
- Output: OUTA and OUTB two ways
- Module phase noise: better than -100dBc at 10KHz (noise varies with the frequency band phase)
- Module output power: 7dBm (maximum)
- Module interface: The external communication port of STM32 USB can be configured as USB or analog serial port (default)
- Module program download mode: SW module, three-wire system (GND SWCLK SWDIO)
Package Included:

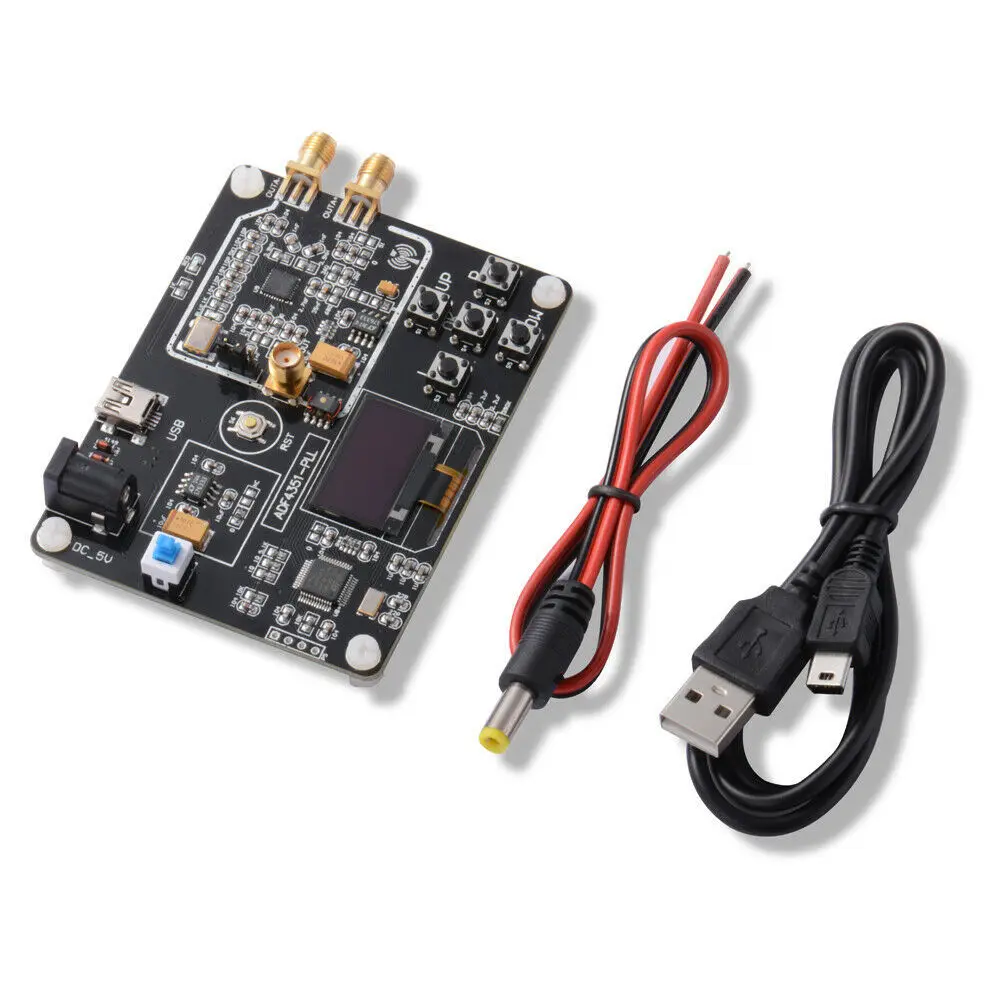

- 1 x Set of Signal Generator Module
