30W 88-108MHz FM Power Amp Amplifier Transmitter 1W-1.5W Input

 30W 88-108MHz FM Power Amp Amplifier Transmitter 1W-1.5W Input

Product Description:
- It  is to increase the variety FM transmitter designed for power,use the baby your 1.5 watts of transmitter power can be increased to 25-30 watt transmitter.Increase the transmission power and coverage.Operating frequency for the entire FM frequency range 88MHZ to 108MHZ.

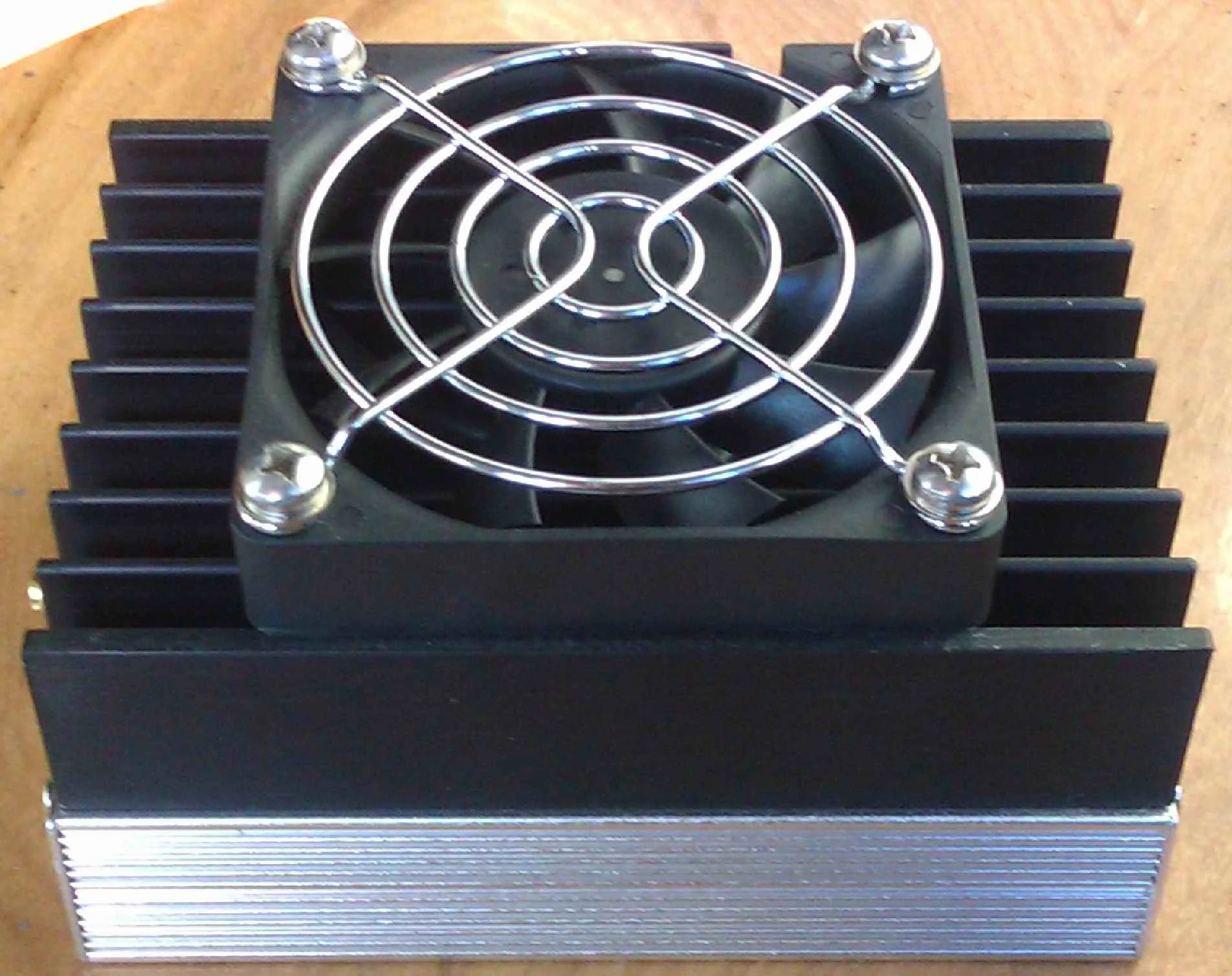

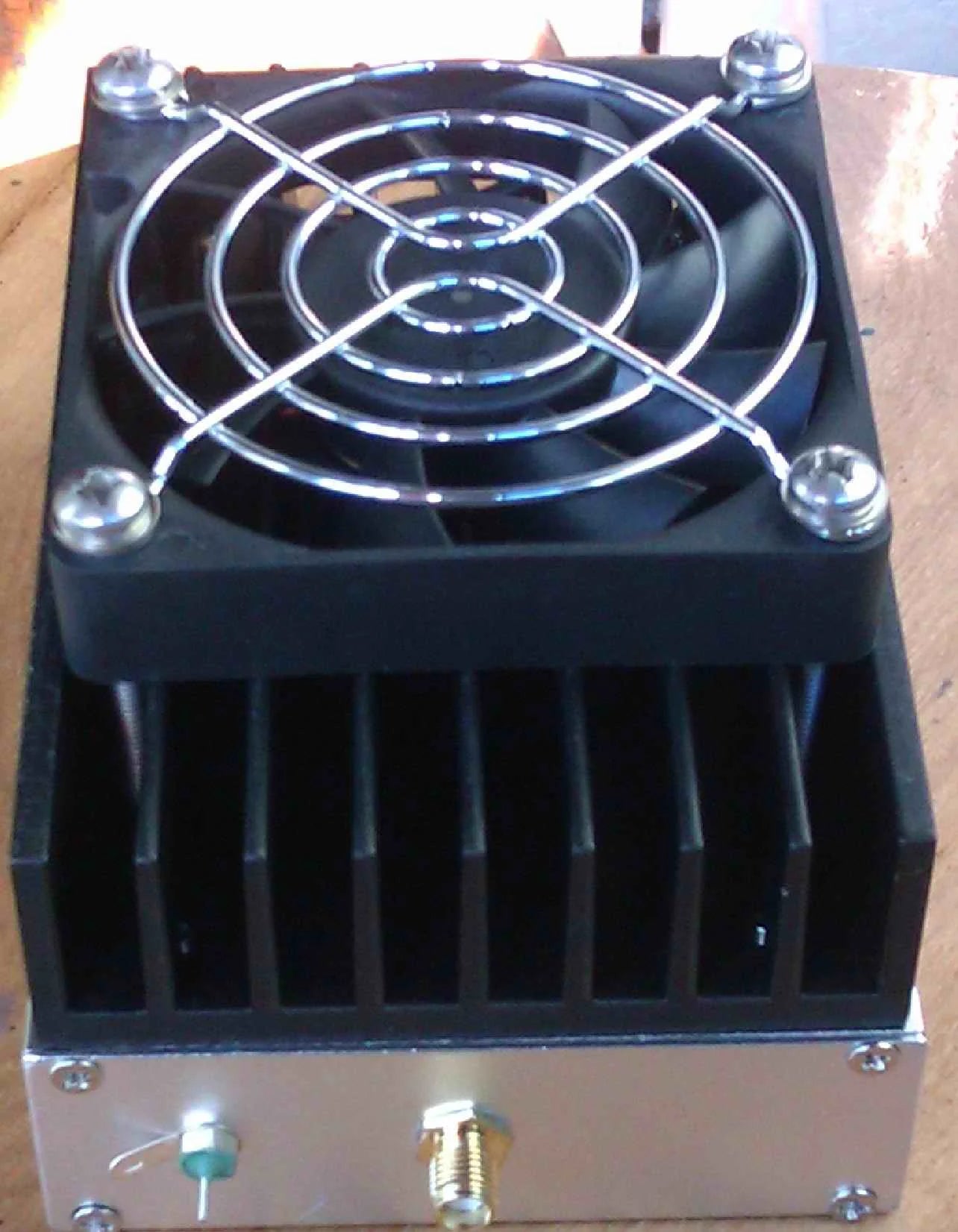

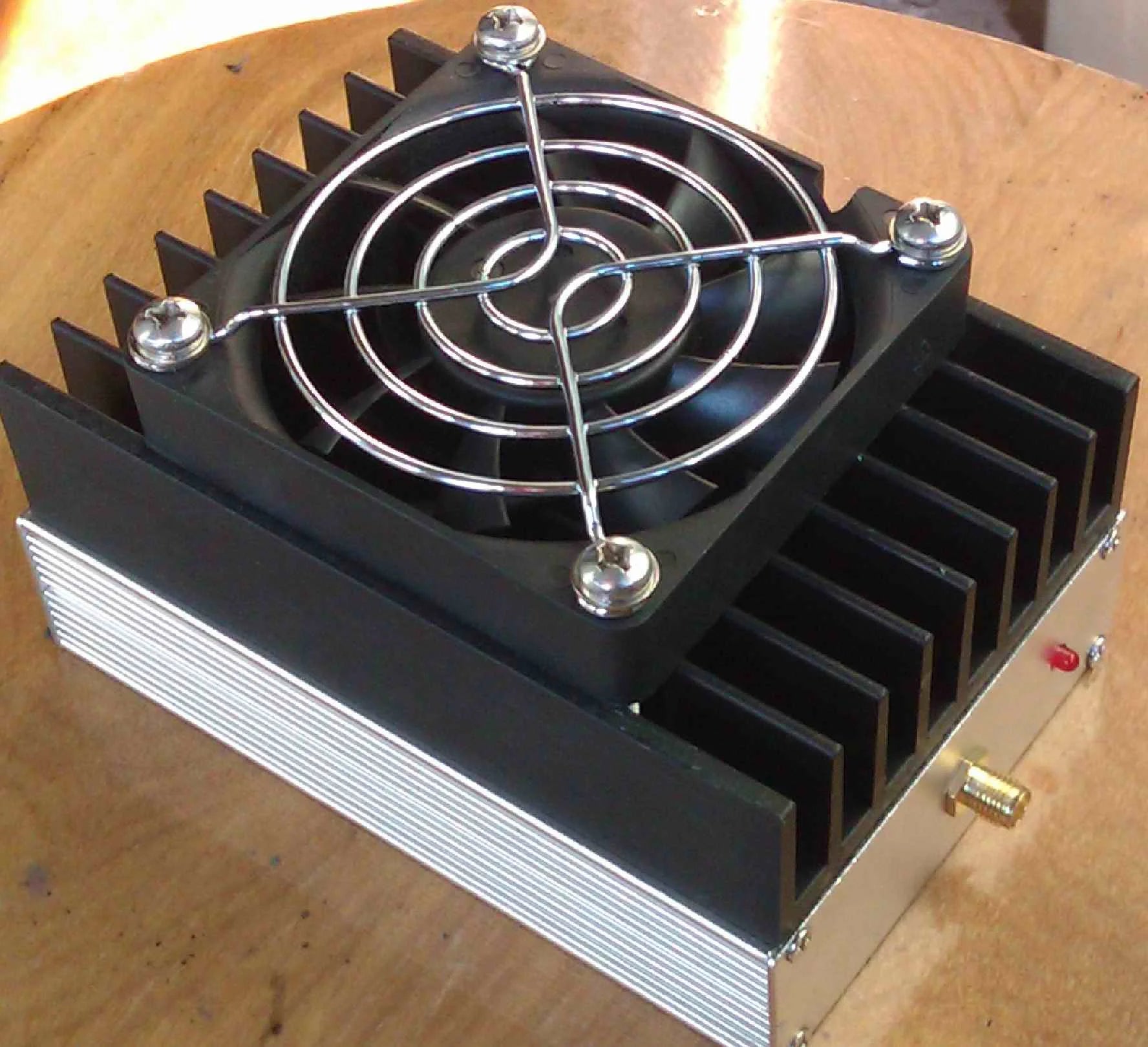

- The machine with fan bearings and large fins,long-time continuous stability.

Specification:
- Operating frequency: 88-108MHz
- Input power: 1 to 1.5 watts
- Output power: 25-30 W @ 12.5V power supply
-Operating voltage: 12-14V,the higher the voltage the greater the power,14V maximum.It will burn more than transmit power measured at 12.5V.Such as 13.8V power supply,the output power greater.
- Current: emission current 4~5A,quiescent current of 0.7A,12V 6--7A can buy power.
- Input and output impedance: 50 ohms
- Harmonic Suppression: Typically -38dB,the output signal is very clean,of course,the sound quality will be better.

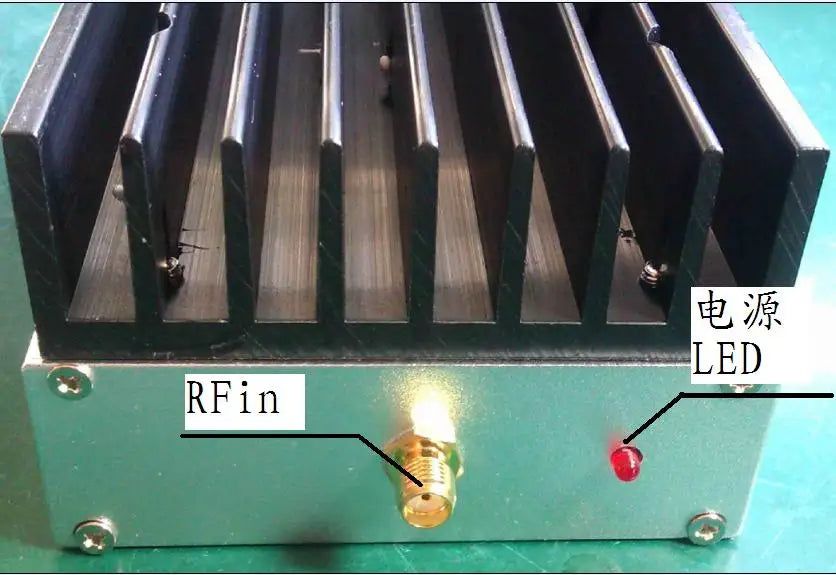

- Input and output interfaces: input and output are of international common RF interface SMA female,which is a small S head threaded!

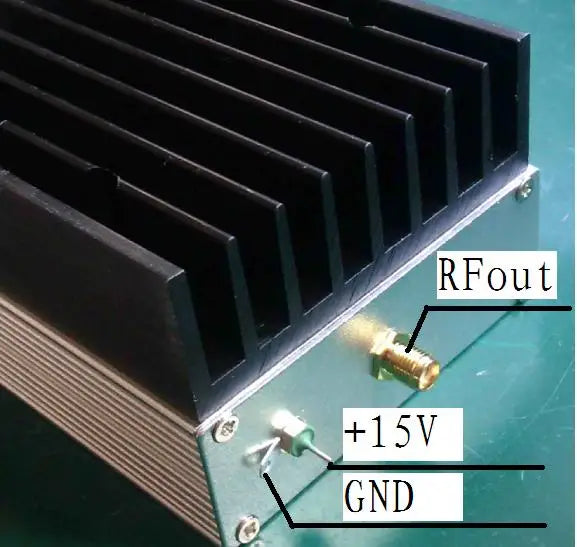

- Power Interface: standard RF power feedthrough capacitor having good broadband filter characteristics,eliminate clutter.

Package List:
- 1 x Amplifier Transmitter
