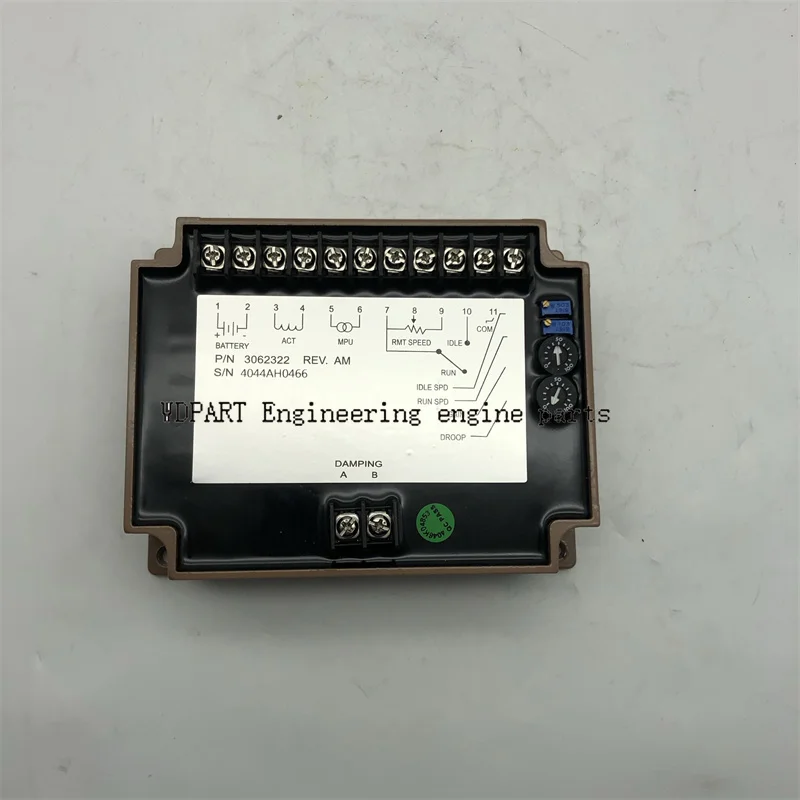

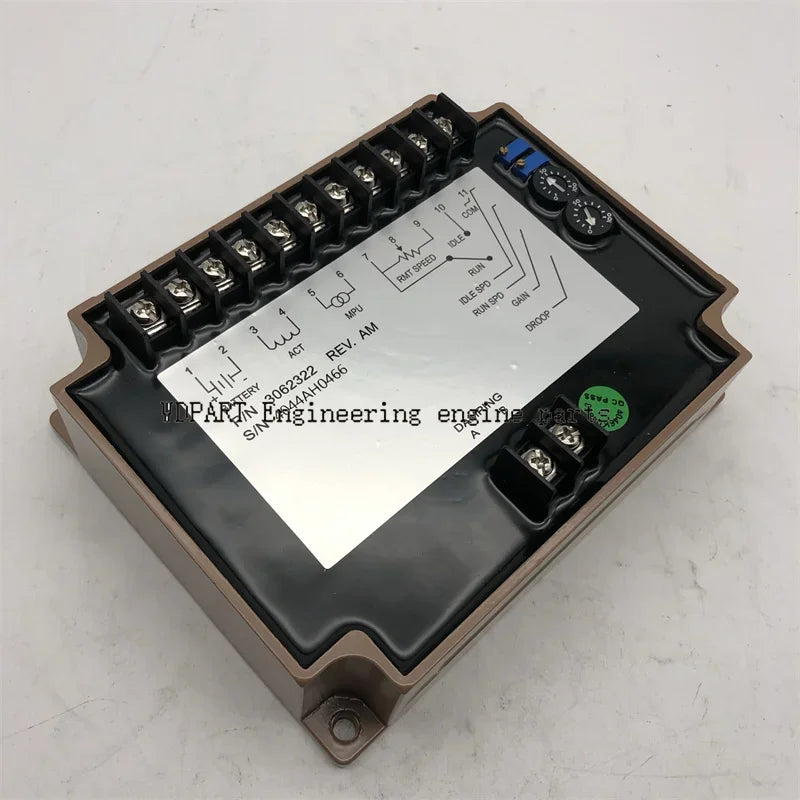

3062322 EFC3062322 Speed Controller For Cummins Generator KTA50 KTA38 KTA19 Engine
Specifics:
Condition: 100% Brand New
Type: Generator Speed Controller
Replaces Part Number: 3062322
Speed stability: Better than ± 0.25%
Speed range: 1kHz ~ 6.5kHz
Heat stability: Maximum ± 0.7%
IDLE adjustment: 260 ± 20Hz ~ 85% of the rated speed
DROOP adjustment: The minimum position is 15Hz ± 6Hz / per Ampert load current change
Maximum position 400Hz ± 75Hz / Mutations of load current per Ampert
External speed adjustment: ± 200Hz (1kΩ external)
AUX input sensitivity: 148Hz / 1V., ± 10Hz.,
Improved: 1MΩ
Environment:
Work temperature range: -40 ℃ ~ 85 ℃
Work humidity range: Maximum 95%
Save temperature: -55 ℃ ~ 92 ℃
Vibration: 20-100Hz 500mm/SEC.
Enter power supply:
Power voltage: 12V Or 24V DC battery system
Ground polarity: Negative electrode
Power consumption: 40mA
Continuous current of the actuator: minimum 1A; maximum 4.5A (3062322 maximum current can reach 8A)
Speed sensor signal: 2 ~ 120V RMS
Note: The above performance parameters are measured when the operating frequency is 3800Hz
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.
Package Included:
1 X Generator Speed Controller
Specifics:
Condition: 100% Brand New
Type: Generator Speed Controller
Replaces Part Number: 3062322
Speed stability: Better than ± 0.25%
Speed range: 1kHz ~ 6.5kHz
Heat stability: Maximum ± 0.7%
IDLE adjustment: 260 ± 20Hz ~ 85% of the rated speed
DROOP adjustment: The minimum position is 15Hz ± 6Hz / per Ampert load current change
Maximum position 400Hz ± 75Hz / Mutations of load current per Ampert
External speed adjustment: ± 200Hz (1kΩ external)
AUX input sensitivity: 148Hz / 1V., ± 10Hz.,
Improved: 1MΩ
Environment:
Work temperature range: -40 ℃ ~ 85 ℃
Work humidity range: Maximum 95%
Save temperature: -55 ℃ ~ 92 ℃
Vibration: 20-100Hz 500mm/SEC.
Enter power supply:
Power voltage: 12V Or 24V DC battery system
Ground polarity: Negative electrode
Power consumption: 40mA
Continuous current of the actuator: minimum 1A; maximum 4.5A (3062322 maximum current can reach 8A)
Speed sensor signal: 2 ~ 120V RMS
Note: The above performance parameters are measured when the operating frequency is 3800Hz
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.
Package Included:
1 X Generator Speed Controller
