3~30Mhz 100w Shortwave power amplifier HF AMP with LPF RF for QRP YAESU FT-817 FT-818 KX3 ic-703 /Xiegu X5105 G90 G1M G106
3~30Mhz 100w Shortwave power amplifier HF AMP with LPF RF for QRP YAESU FT-817 FT-818 KX3 ic-703 /Xiegu X5105 G90 G1M G106
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout

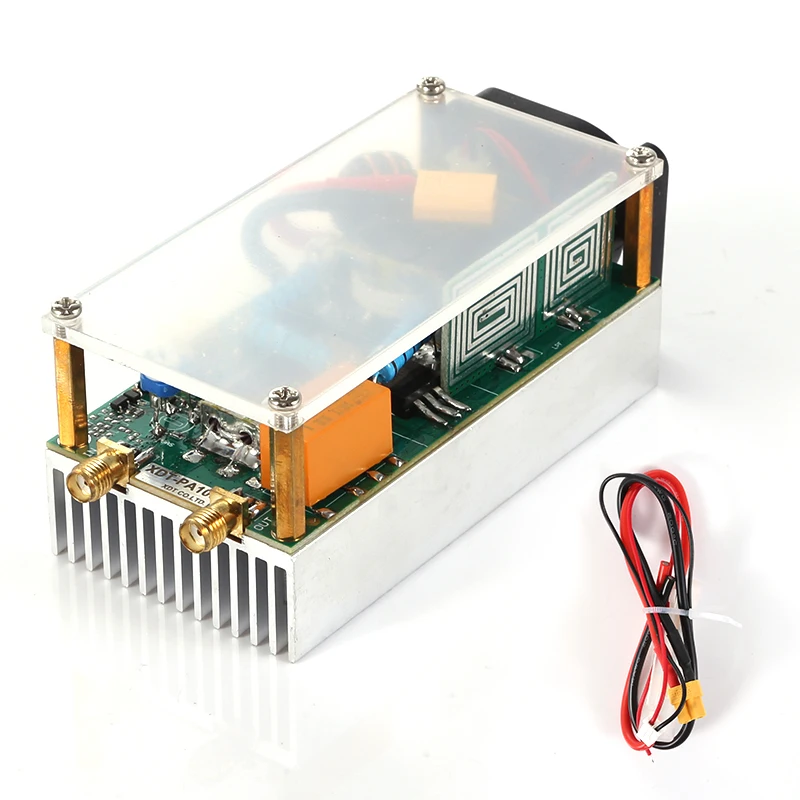

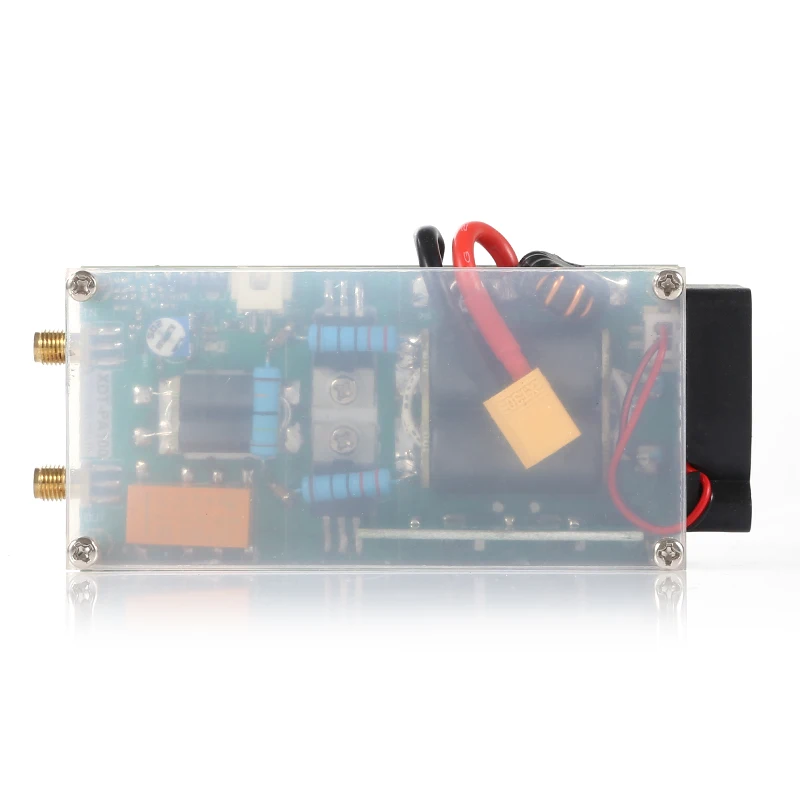

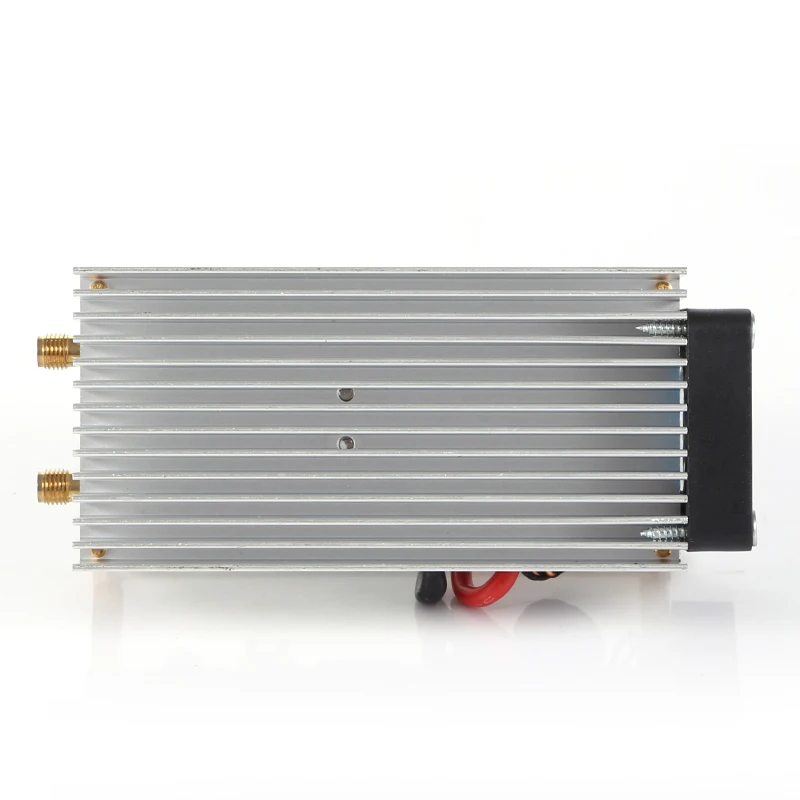

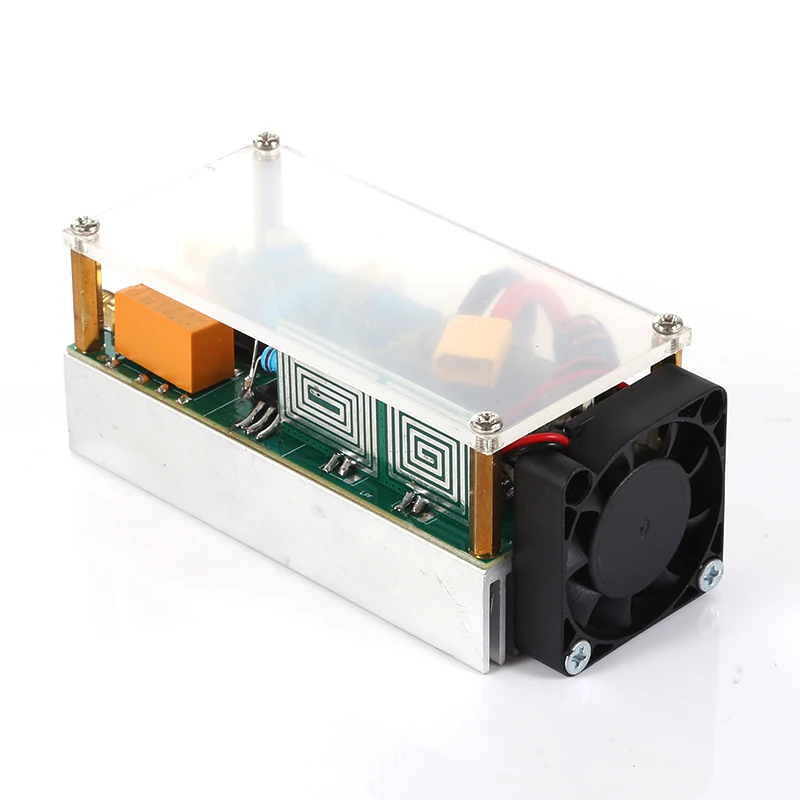

PA100 100w 3~30Mhz Shortwave Power Amplifier HF Amplifier RF for QRP FT817 KX3 IC-703 w/Case
Description:
- This product is a debugged finished product, directly connected to the radio, the power supply can work, with its own transceiver switching, the circuit is AB linear amplifier for ssb ,cw, am, fm power amplification.
- Suitable for FT817 KX3，Xiegu Xiegu X5105 G90S G1M/KN-Q10 KN990
- Can be used as general wireless radio, short wave transmission, RF drive linear amplifier
Features:
- Frequency range: 3-30mhz
- Power supply voltage :12v-16v
- Current: 6-10 A
- Maximum input power: 10w

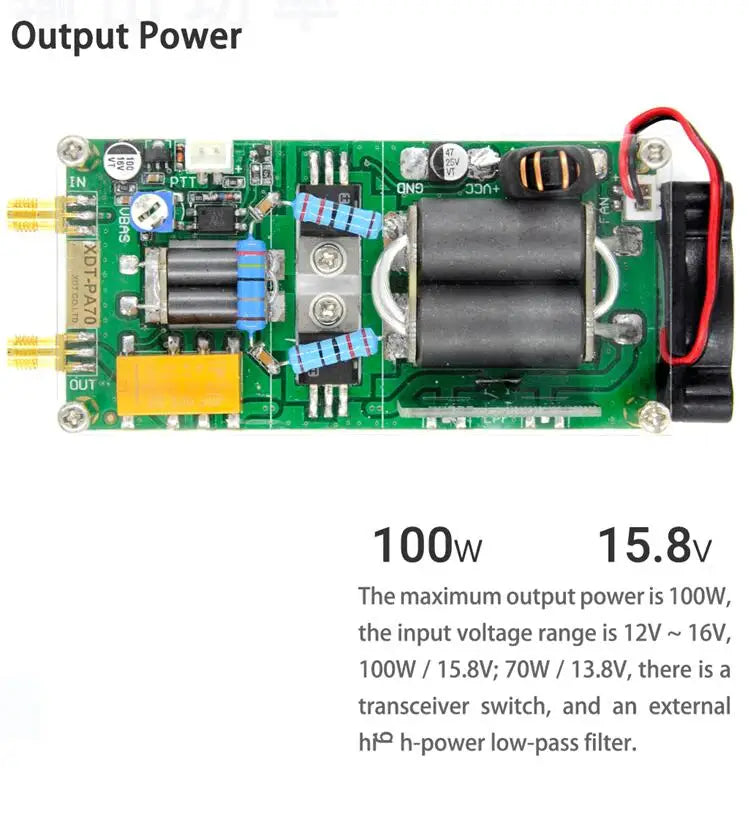

- Maximum output power: 100w
- Weight :240g
- Input and output interface： SMA-K
- Amplifier gain: 10- 18DB
Package Contents
100% Brand New (High Quality)
1 xAssembled100W SSB linear HF Power Amplifier For YAESU FT-817 KX3
Description
Description
PA100 100w 3~30Mhz Shortwave Power Amplifier HF Amplifier RF for QRP FT817 KX3 IC-703 w/Case
Description:
- This product is a debugged finished product, directly connected to the radio, the power supply can work, with its own transceiver switching, the circuit is AB linear amplifier for ssb ,cw, am, fm power amplification.
- Suitable for FT817 KX3，Xiegu Xiegu X5105 G90S G1M/KN-Q10 KN990
- Can be used as general wireless radio, short wave transmission, RF drive linear amplifier
Features:
- Frequency range: 3-30mhz
- Power supply voltage :12v-16v
- Current: 6-10 A
- Maximum input power: 10w
- Maximum output power: 100w
- Weight :240g
- Input and output interface： SMA-K
- Amplifier gain: 10- 18DB
Package Contents
100% Brand New (High Quality)
1 xAssembled100W SSB linear HF Power Amplifier For YAESU FT-817 KX3
