2pcs 45mm Big VU Meter Stereo Audio Amplifier Board level Indicator Adjustable With Driver Board
2pcs 45mm Big VU Meter Stereo Audio Amplifier Board level Indicator Adjustable With Driver Board
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout

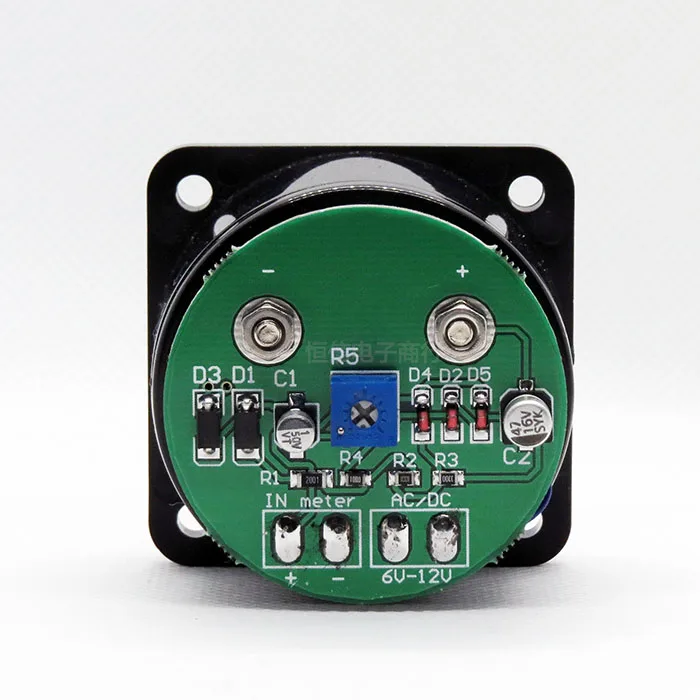

Note:The R5 adjustable resistor can adjust the pointer jump amplitude.

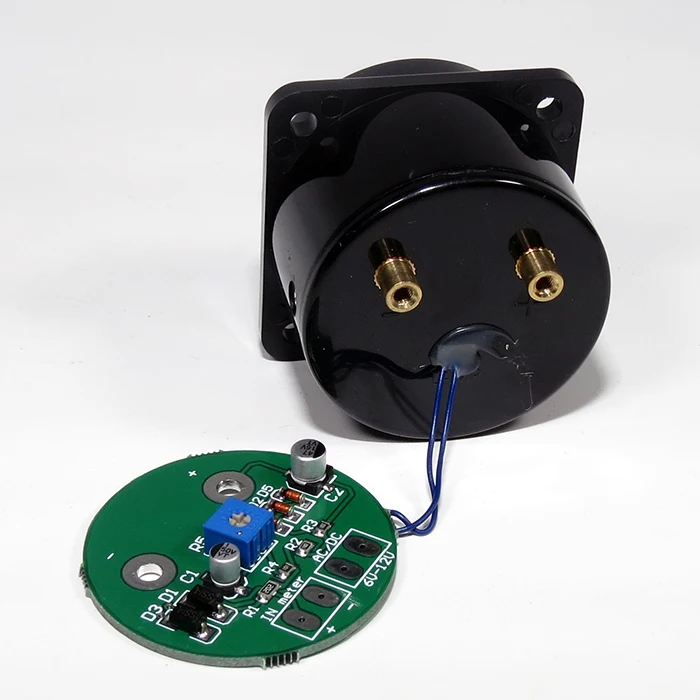

This is a 45mm VU meters with drive boards For 3W-50W amplifiers ,Tube amplifeir and radios.

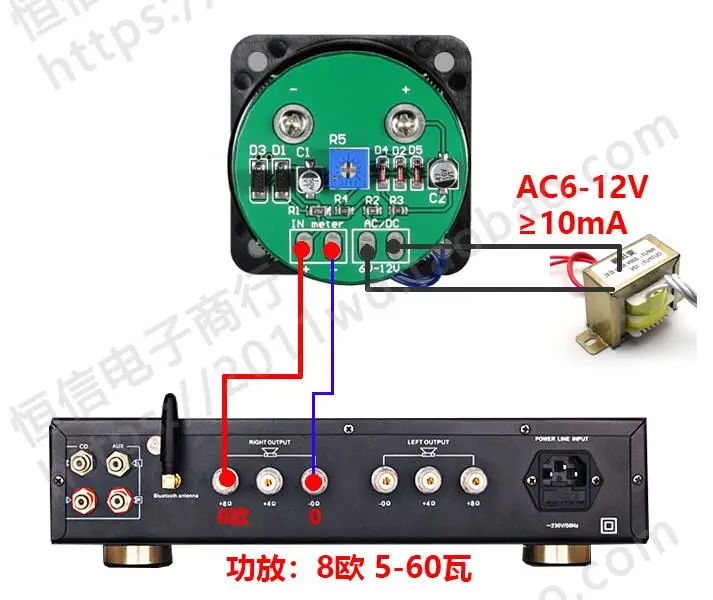

It can be directly Connected to the amplifier output (Parallel to the speaker). The sensitivity is high, the beating effect is good, the circuit is over-punched, and the moisture-proof adjustable resistor is used, and the service life is long.
DC internal resistance: 650 ohm + -15%
Color:White
Calibration position: +5
Accuracy: Level 5
DC current; 500uA +-15%
Backlight: Tungsten bulb
Working temperature: -22%-55 degrees Celsius
Backlight voltage: AC/DC 6V-12V (9V is recommended)
Net weight: 50g/pc
Package include
2pcs VU meter with Driver
