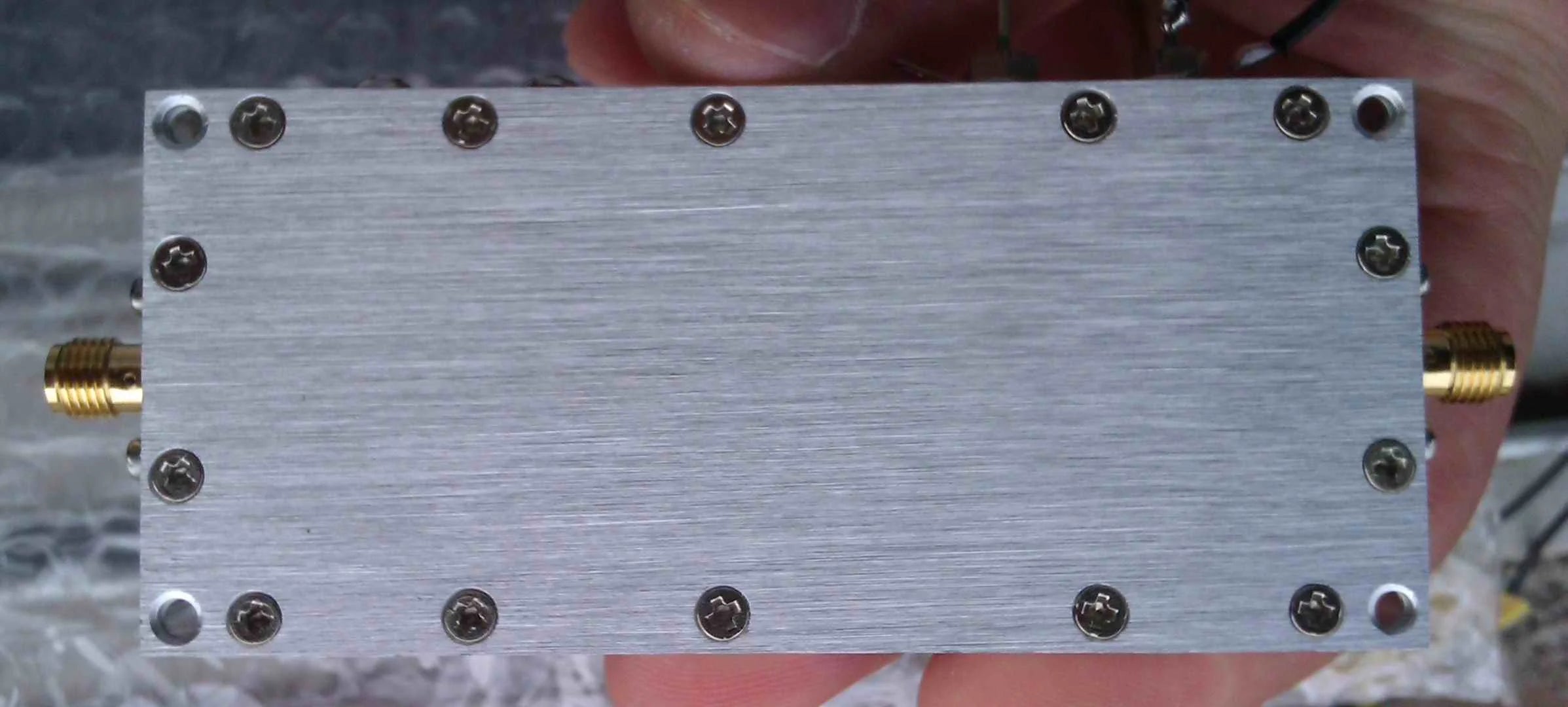

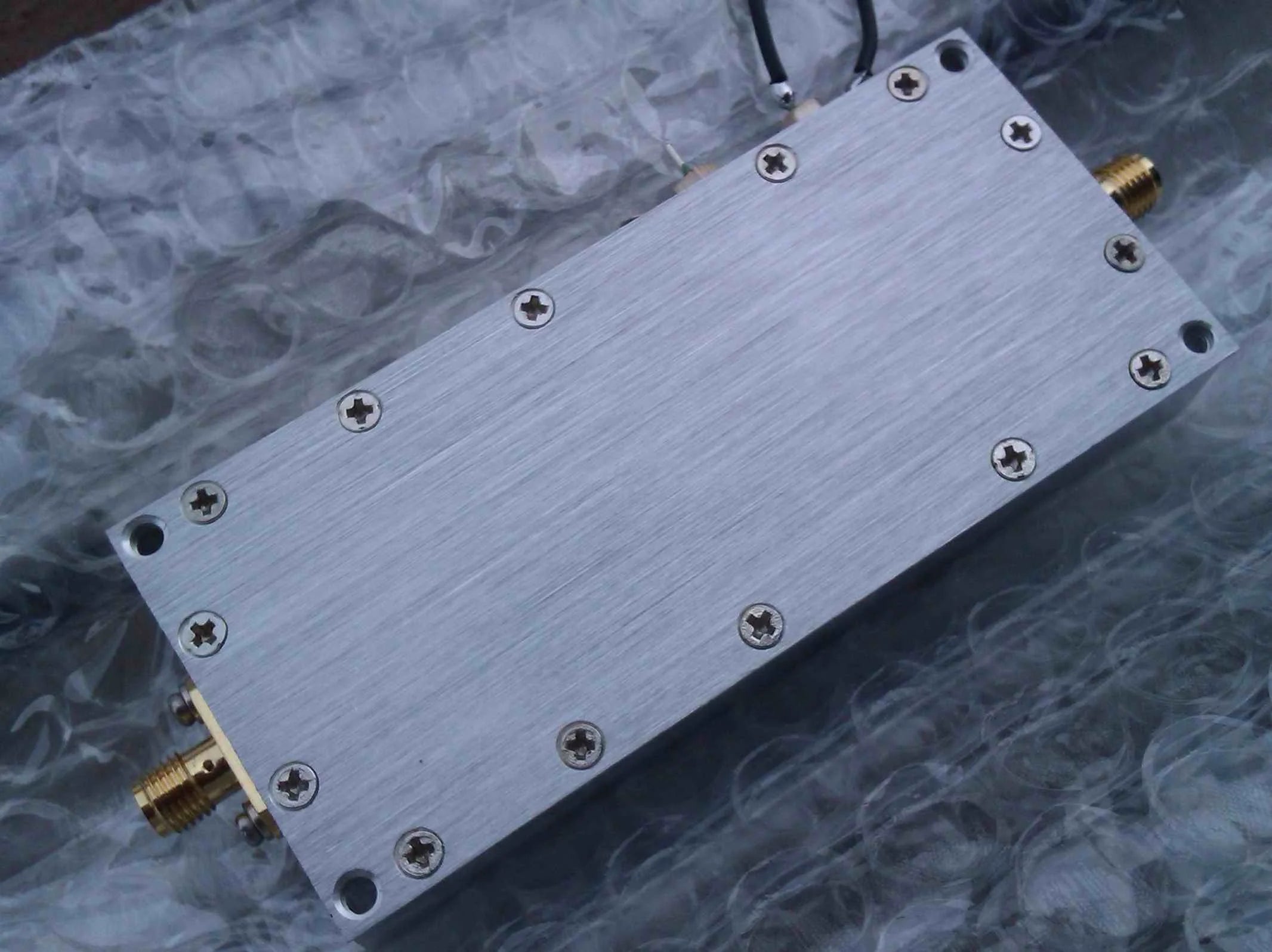

2MHz-40MHz HF Short Wave Outpu RF Power Amplifier for RF Ham Radio
2MHz-40MHz HF Short Wave Outpu RF Power Amplifier for RF Ham Radio
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Product introduction:
It is mainly used for low-noise small signal amplification of various systems in the range of 100-500mhz, such as RF Small signal amplification, trunk line amplification, walkie talkie coverage, etc. Wide operating frequency range, strong versatility and adjustable gain,
Specifications:
Operating frequency 100-500mhz
Working gain 30-60db, maximum 60dB, minimum 30, adjustable!
Typical value of noise coefficient: 1.1dB
Working voltage 12-14v,
Operating current 130 ma

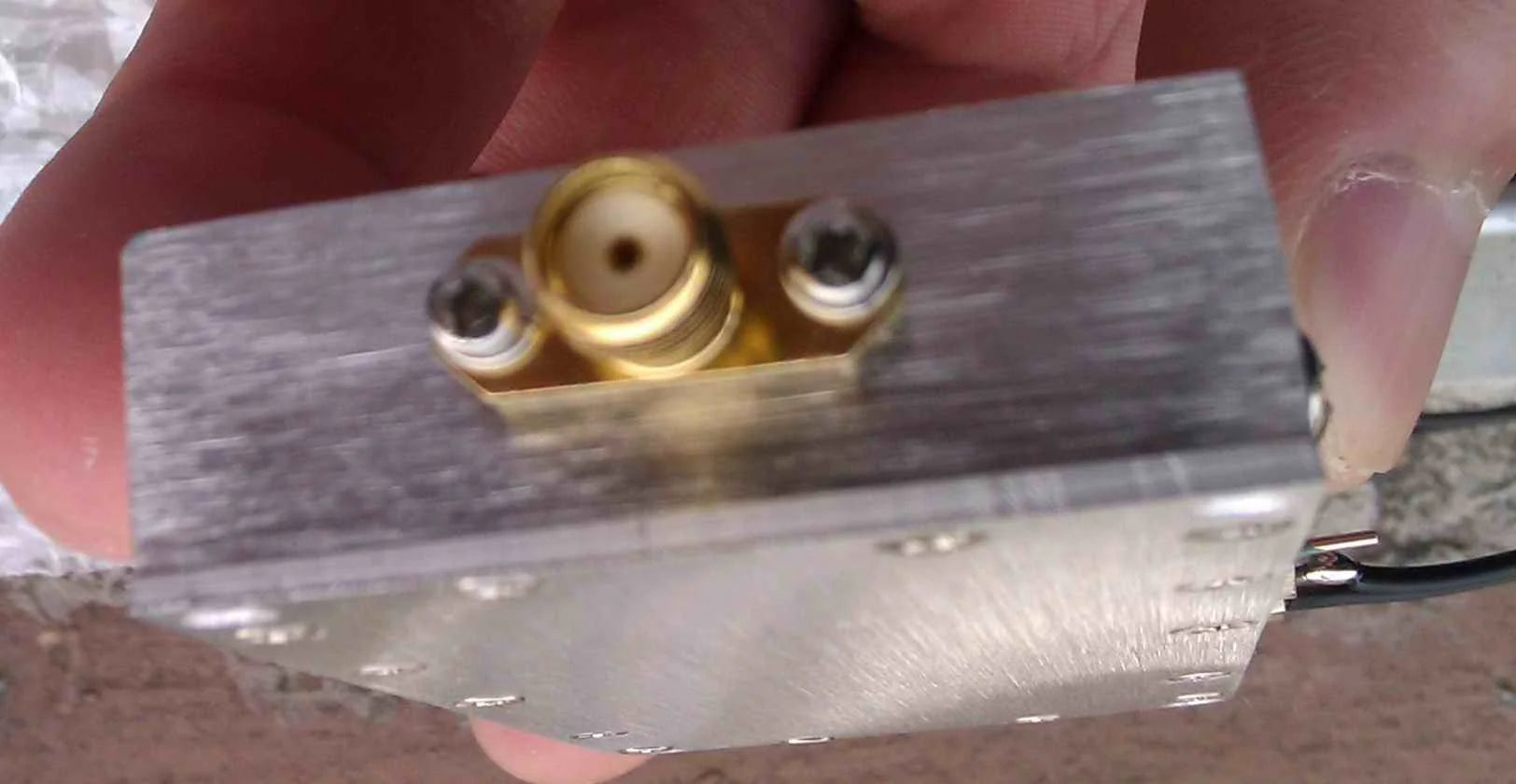

The input and output of RF interface are SMA female head, which is an international common and very common interface
Adjustment mode: the gain is adjusted by the resistance array of external dial switch

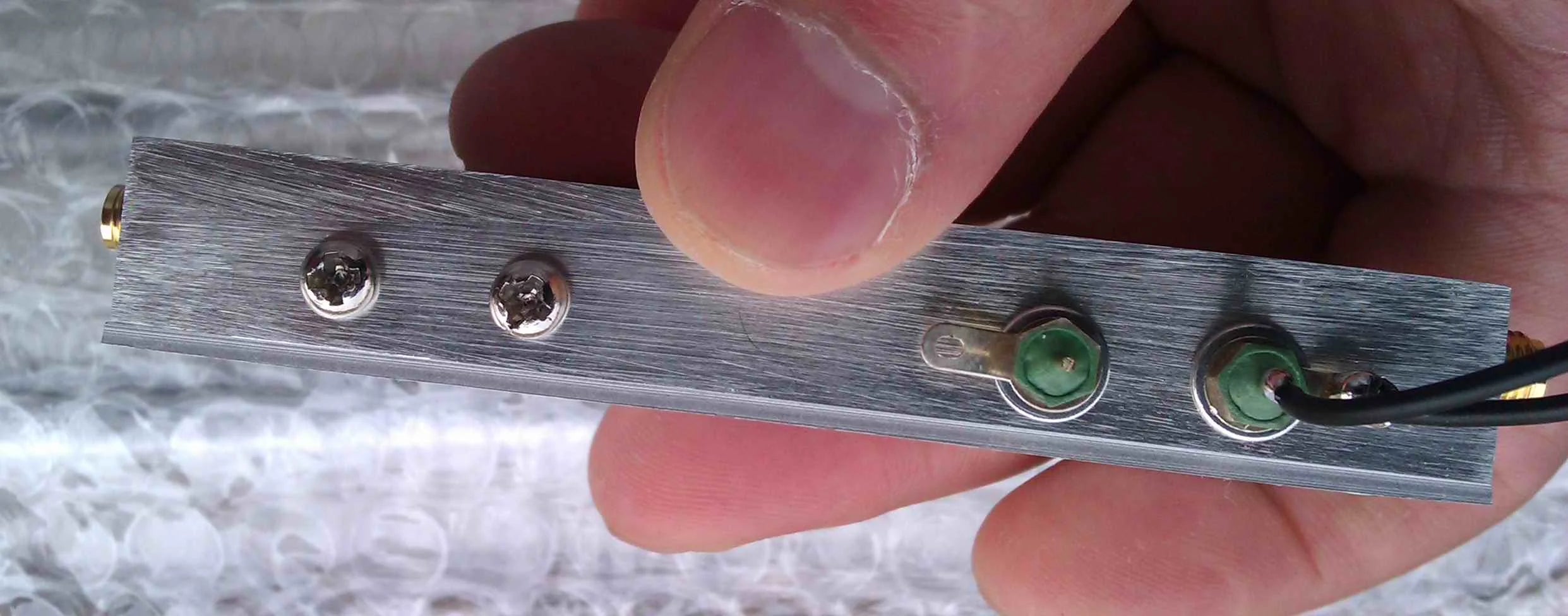

Power interface standard through core capacitor, shell negative pole, metal pin positive pole
