Product introduction:

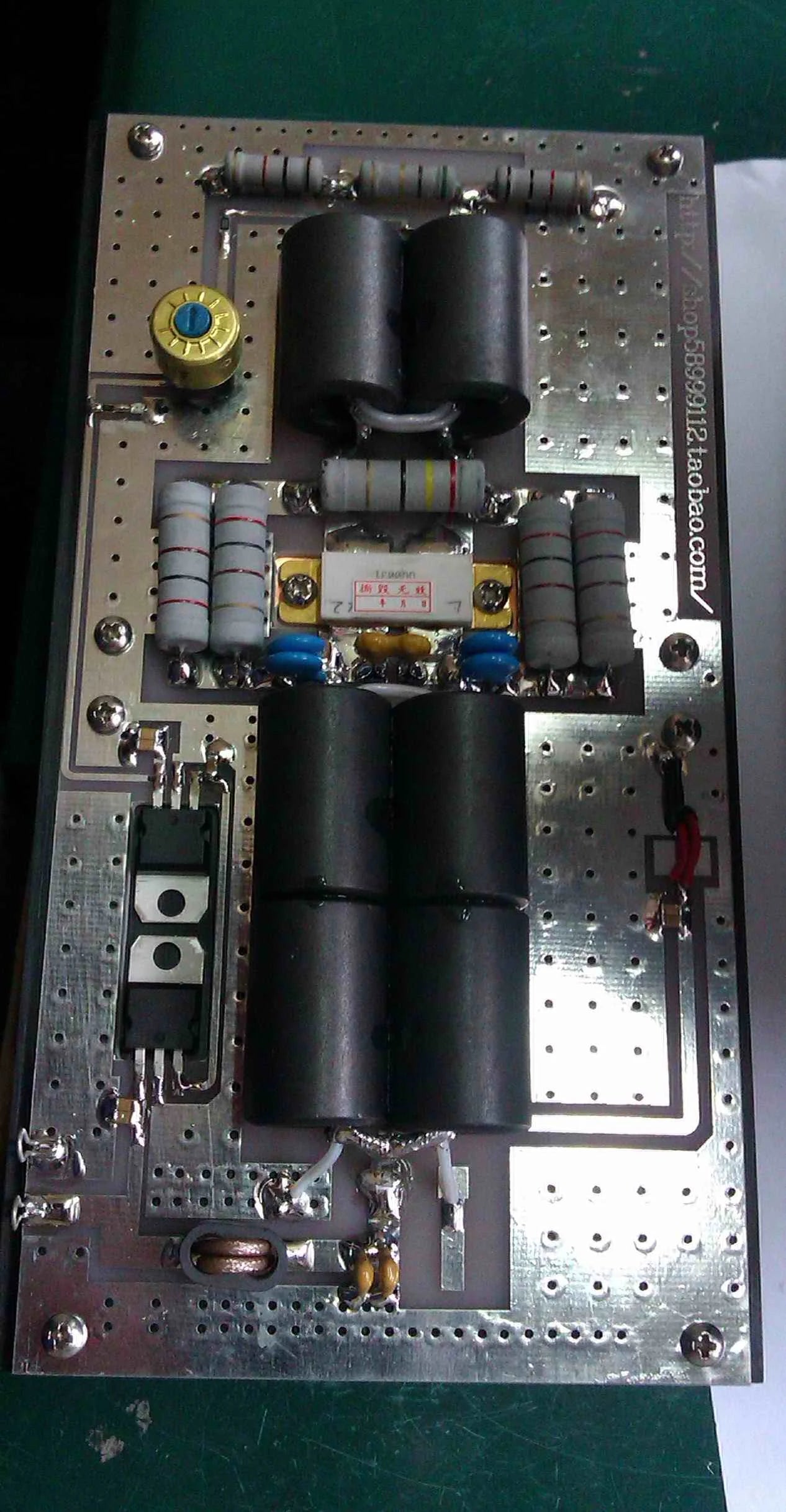

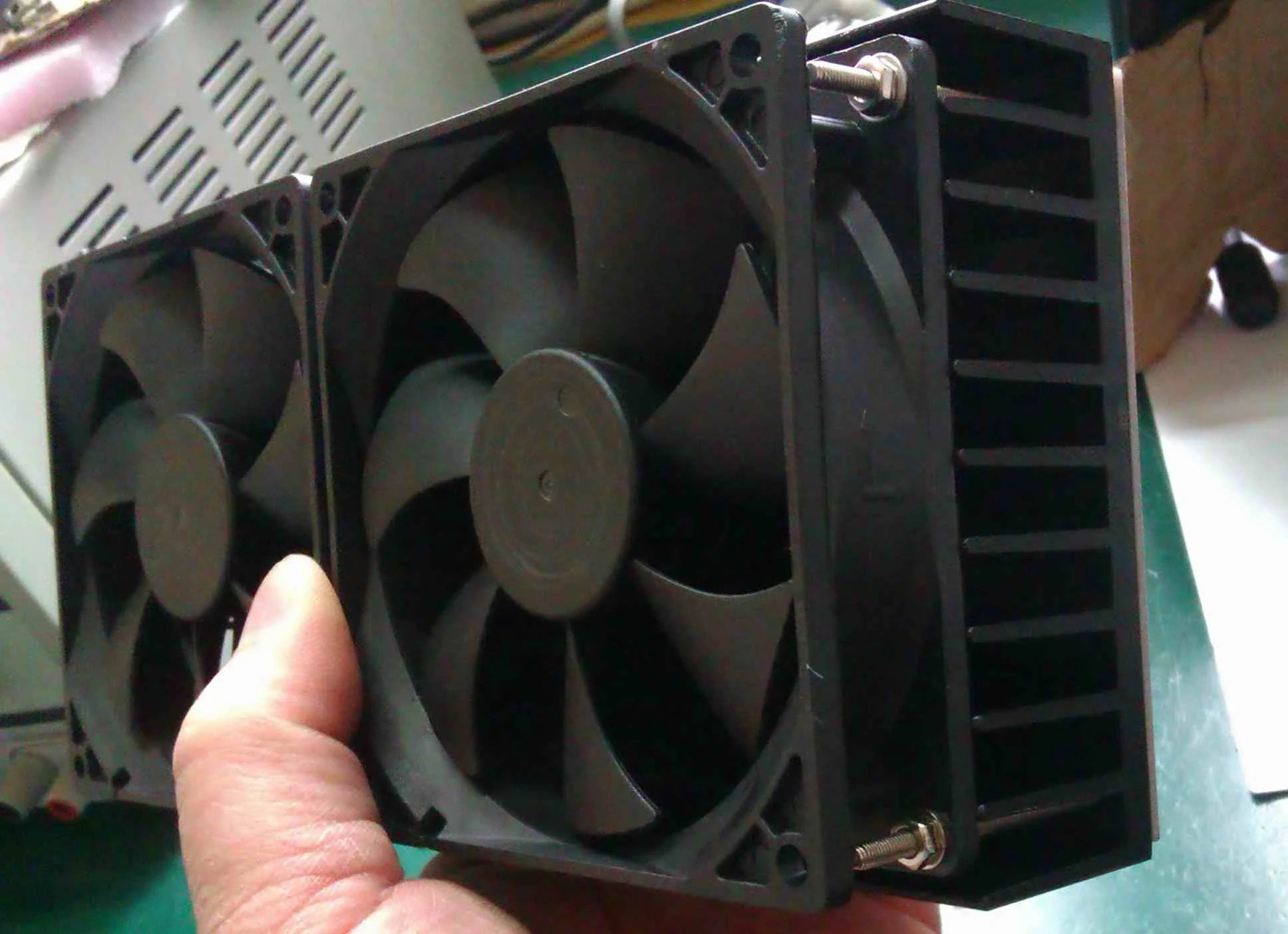

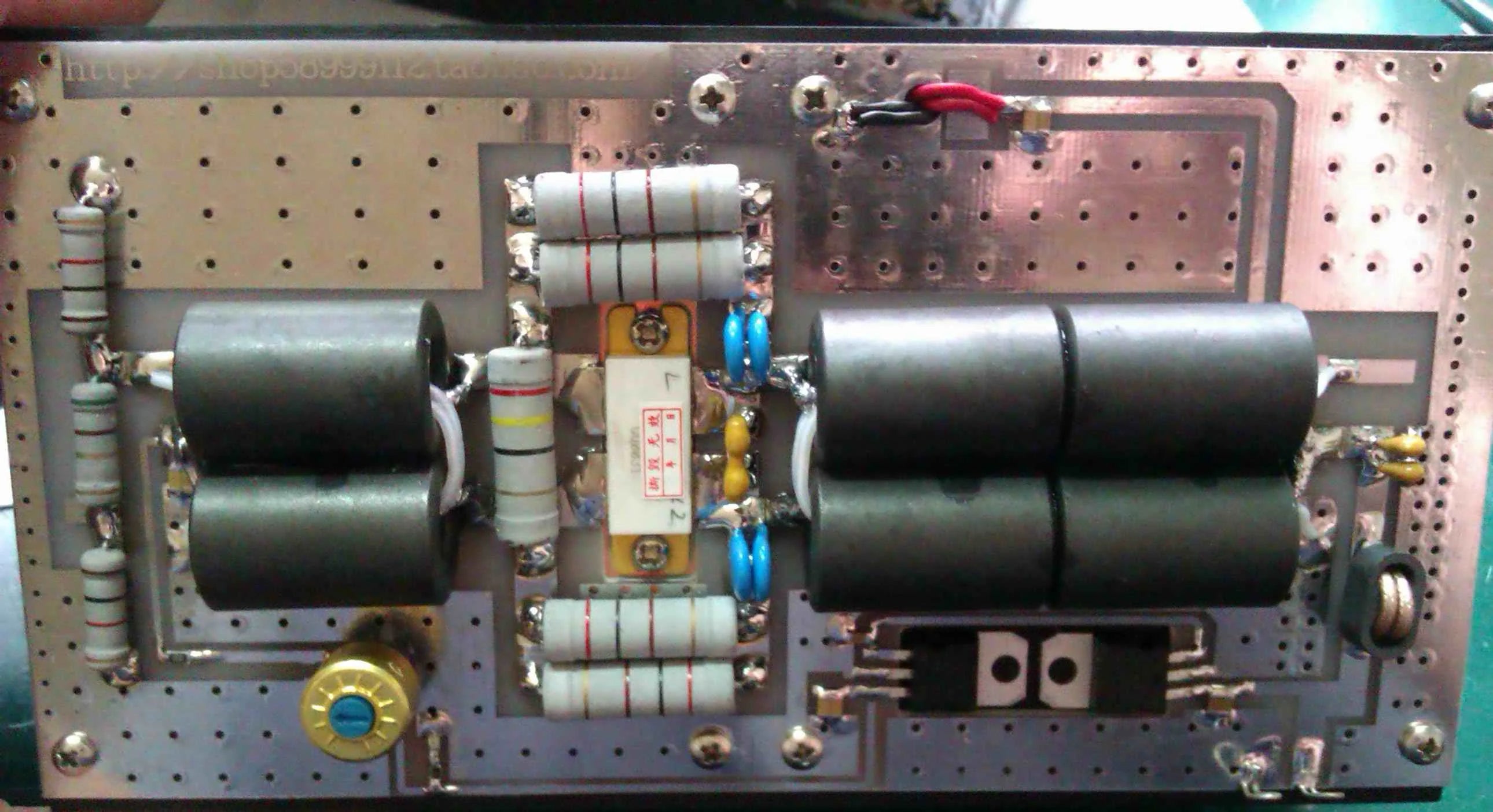

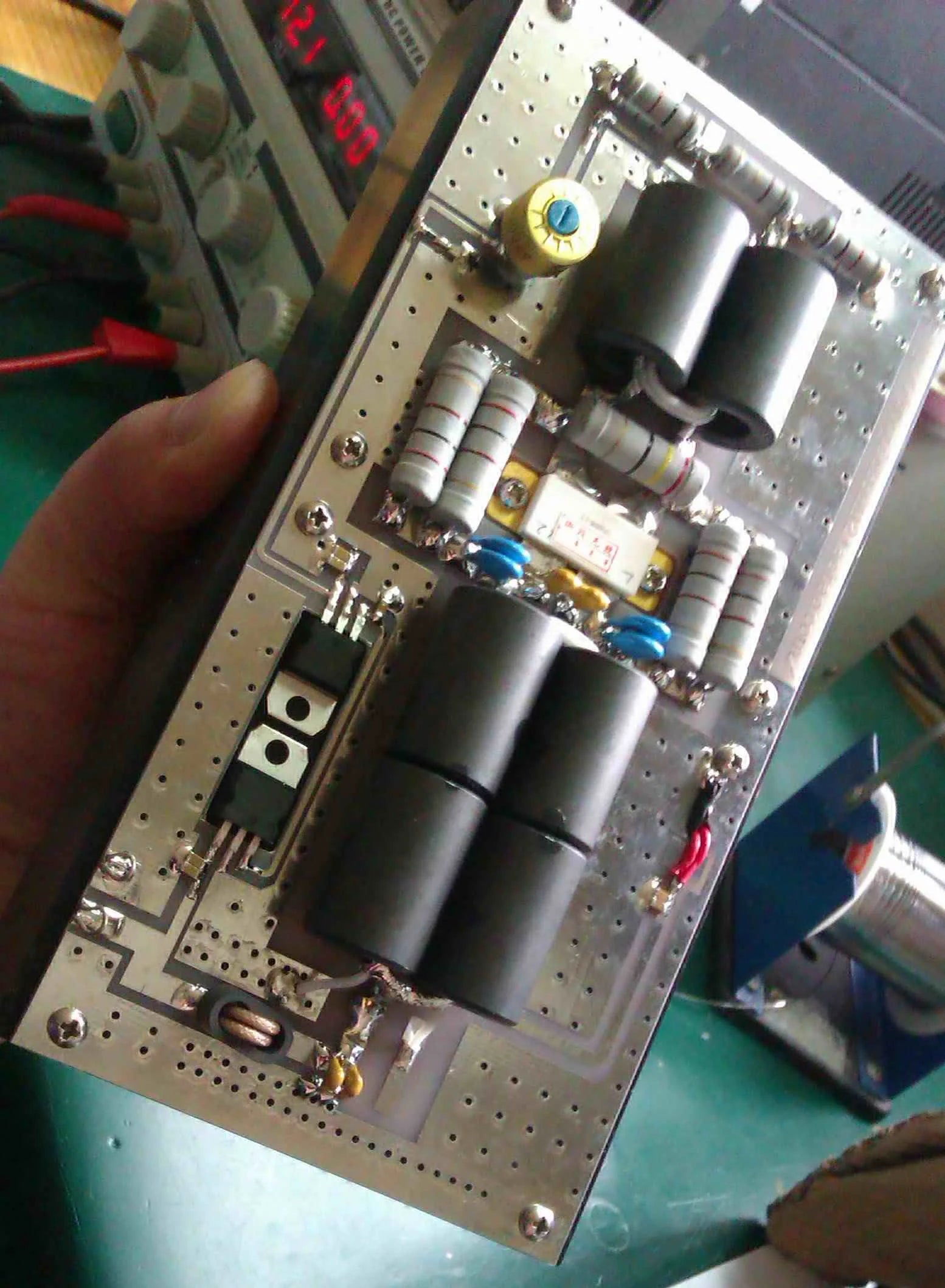

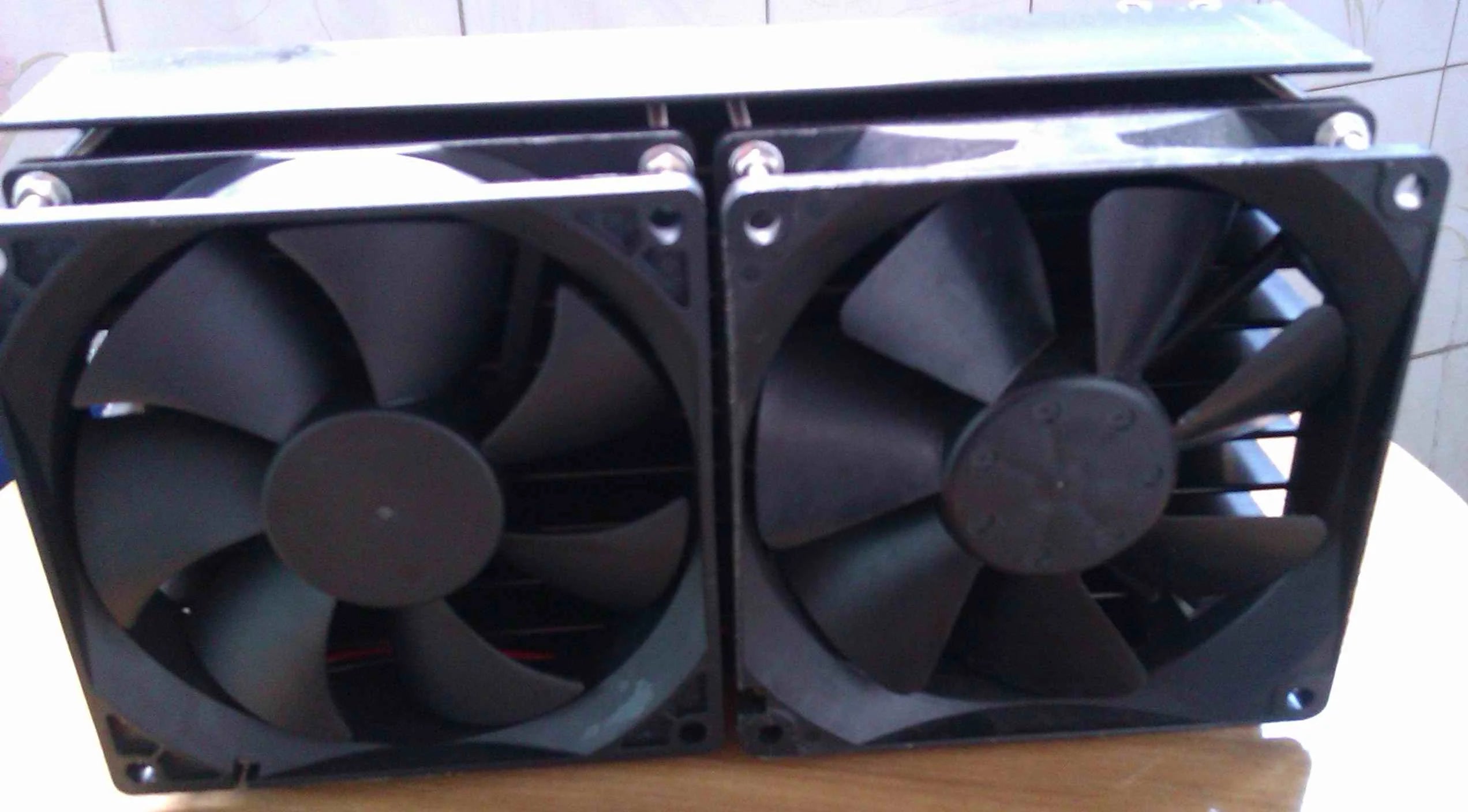

This product adopts high stability gold-plated ceramic MOS RF transistor and class AB push-pull mechanism. It has large output power and stable performance. With large heat sink, it can stably and continuously output power for a long time. It can work in broadband. It can be used to amplify various short wave signals and various short band RF signals, which can bring great convenience to scientific research institutions, universities and companies, It can also be used for 13.56MHz power source, various laser drivers and so on!
Features and specifications:
Operating frequency 2MHz --- 40MHz
The output power is 50 watts. Refer to the last detailed list for the relationship between output power and current harmonic at each frequency point!
Input power 5W
The working voltage is 12-15v. The output power of 15V is large and 12V is small.
The working current is more than 50 watts, and the typical current is 8A
For harmonic values, please refer to the last list on the web page

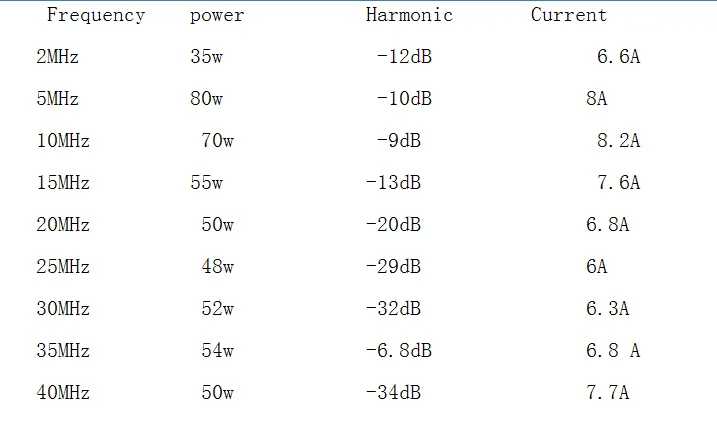

The relationship between operating frequency, output power, spectrum harmonics and supply current is listed below
Description
Description
Product introduction:
This product adopts high stability gold-plated ceramic MOS RF transistor and class AB push-pull mechanism. It has large output power and stable performance. With large heat sink, it can stably and continuously output power for a long time. It can work in broadband. It can be used to amplify various short wave signals and various short band RF signals, which can bring great convenience to scientific research institutions, universities and companies, It can also be used for 13.56MHz power source, various laser drivers and so on!
Features and specifications:
Operating frequency 2MHz --- 40MHz
The output power is 50 watts. Refer to the last detailed list for the relationship between output power and current harmonic at each frequency point!
Input power 5W
The working voltage is 12-15v. The output power of 15V is large and 12V is small.
The working current is more than 50 watts, and the typical current is 8A
For harmonic values, please refer to the last list on the web page
The relationship between operating frequency, output power, spectrum harmonics and supply current is listed below
