Description :

 This ammeter is suitable for testing the magnitude of current and voltage. The current can be used in both directions and is displayed as the positive or negative value of the current. It is suitable for use in chargers and other devices and has high accuracy. It can be used to calculate the charging capacity and discharging capacity of batteries, etc

Features:

- Working Voltage:8-150V resolution: 0.001V.

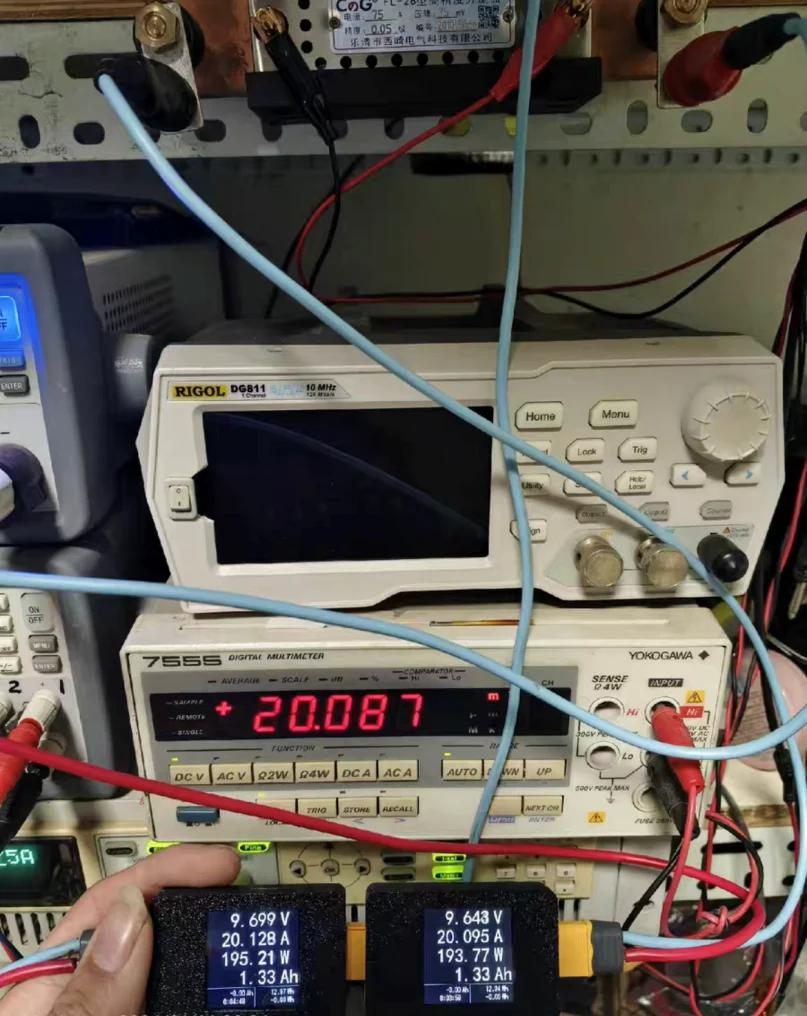

-Test Current: -25A to 25A,resolution 0.001A (50A in 3sec).

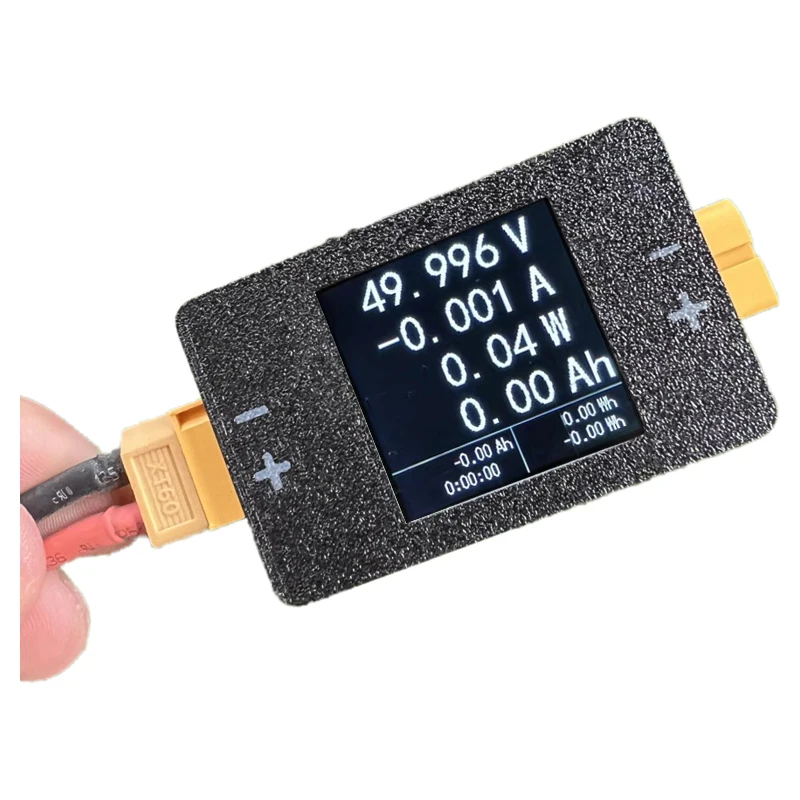

-Screen:LCD 1.5 inches
-Screen Refresh:3Hz

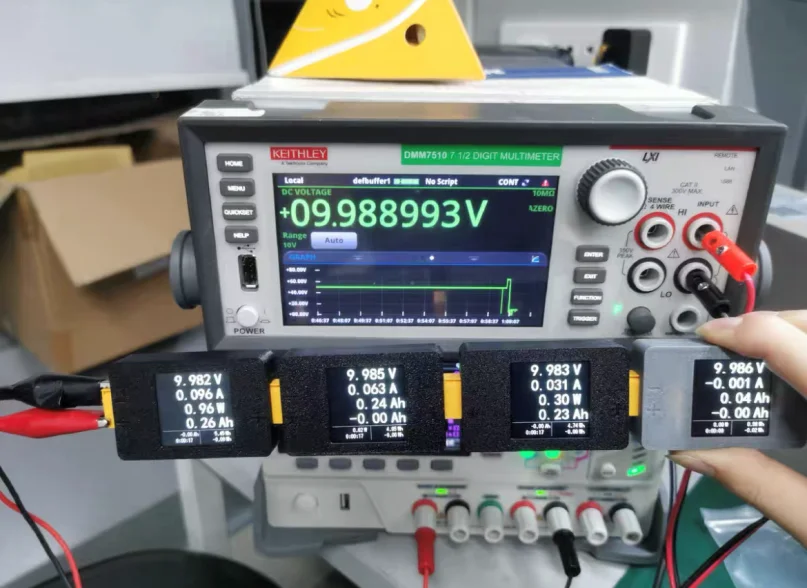

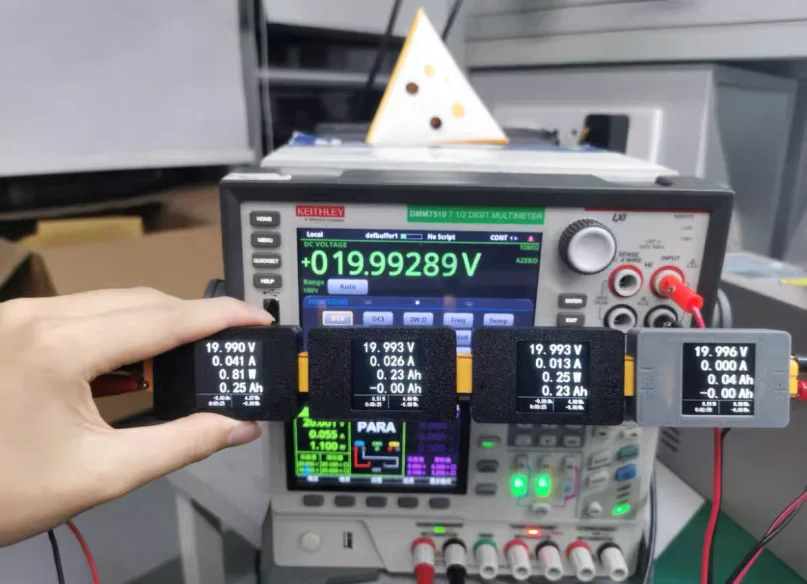

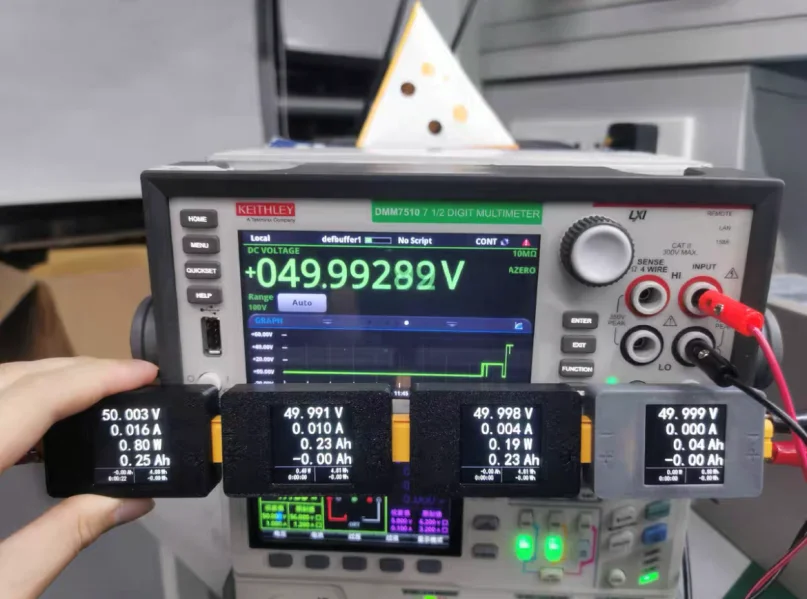

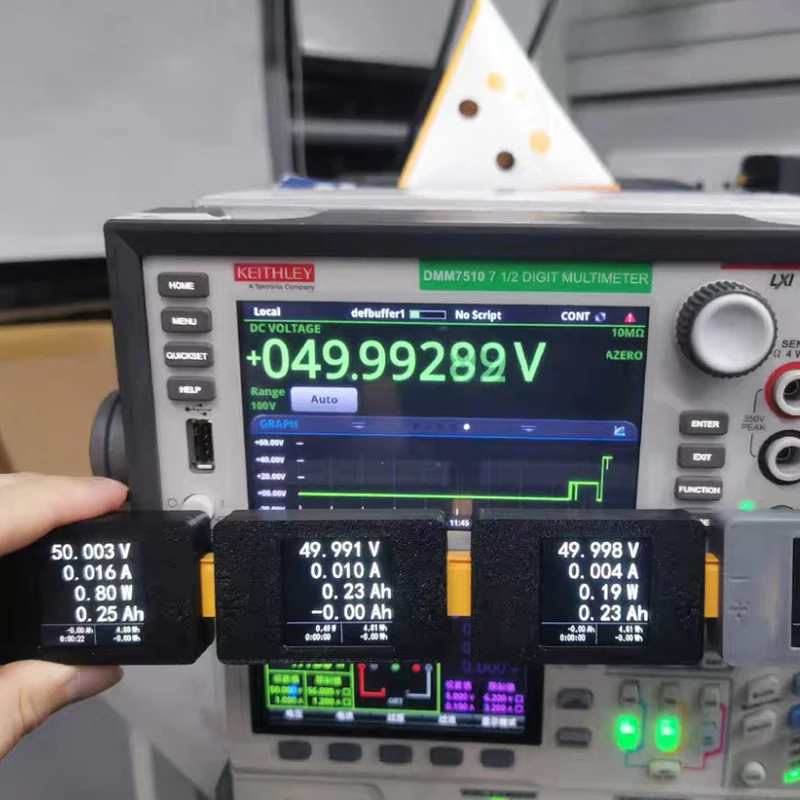

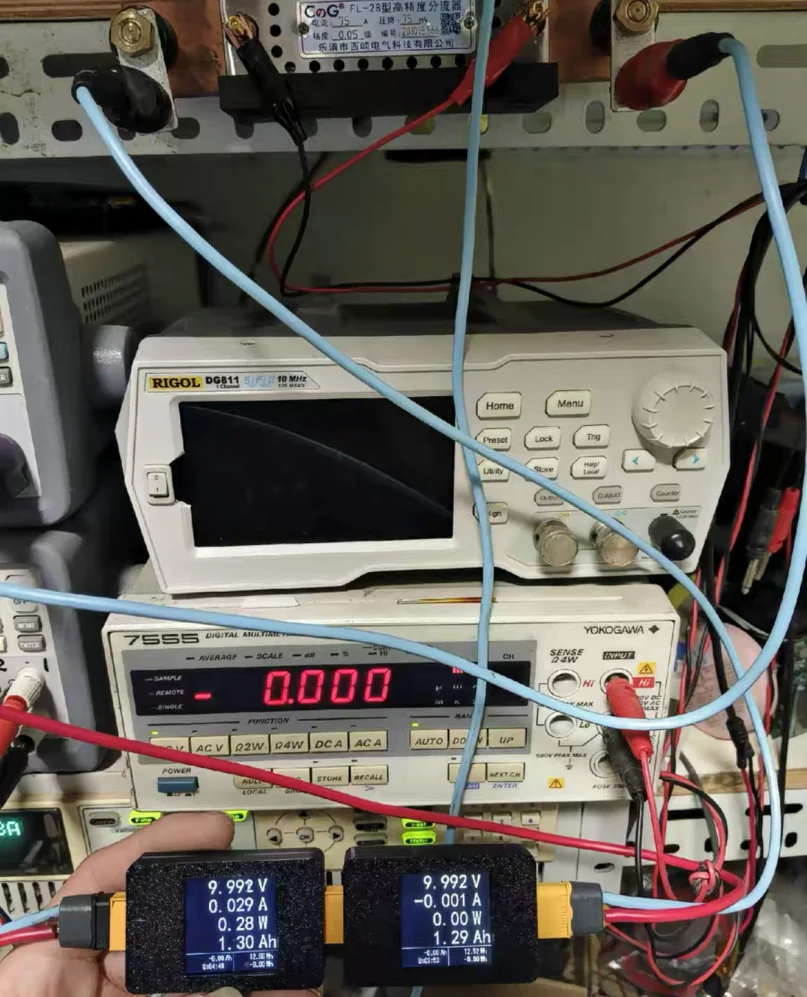

-precision:less than 0.2%
-Colour:grey
-Material:ABS
- Size: 60 mmx38mmx13. 5 mm
-Weight: 30.9g
Note  :
1. Working for a long time above 25A may affect accuracy.
2. Does not work below 8V. Unable to measure voltages below 8V.

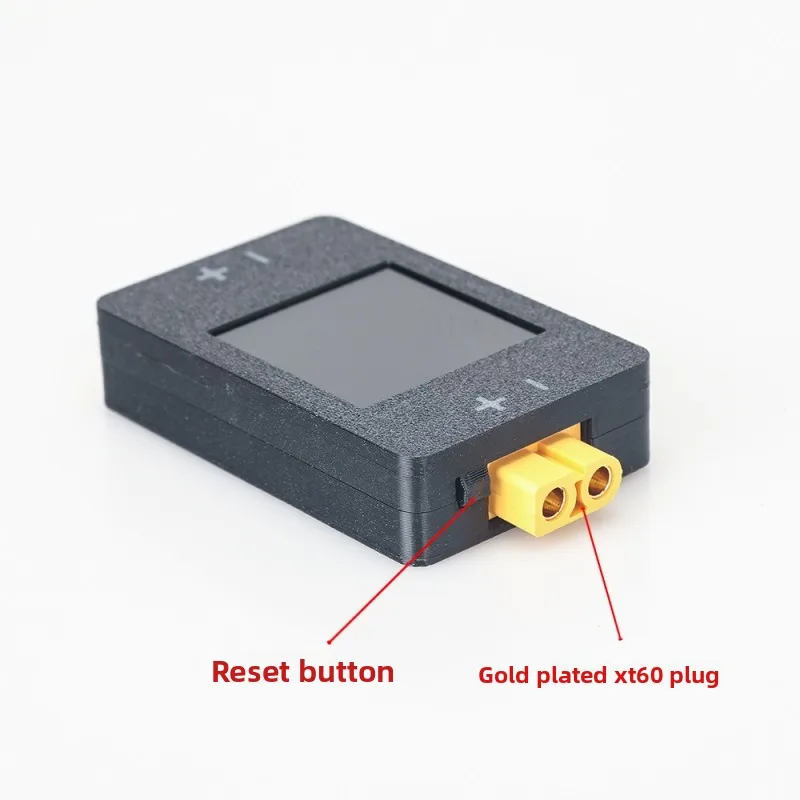

3. Do not open the soldering wire,   as the thickness of the solder will affect its accuracy. Because each of them has undergone separate calibration before   leaving the factory. Please use the XT60 plug for wiring,
4. OLED screens may shatter upon impact, please handle with care.
5.The Analyzer can work in charger or discharge ircuit,screen will display ositive or negative current.

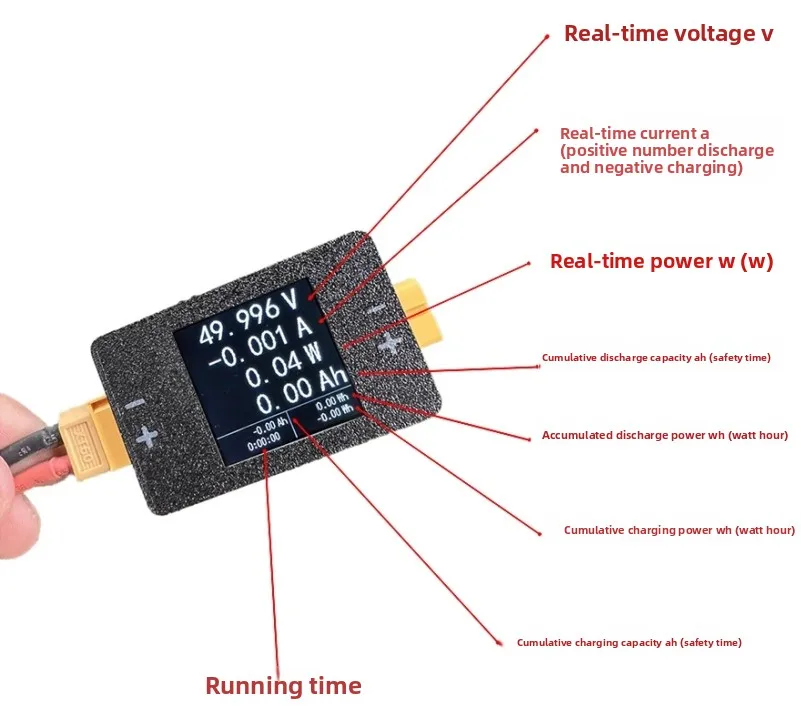

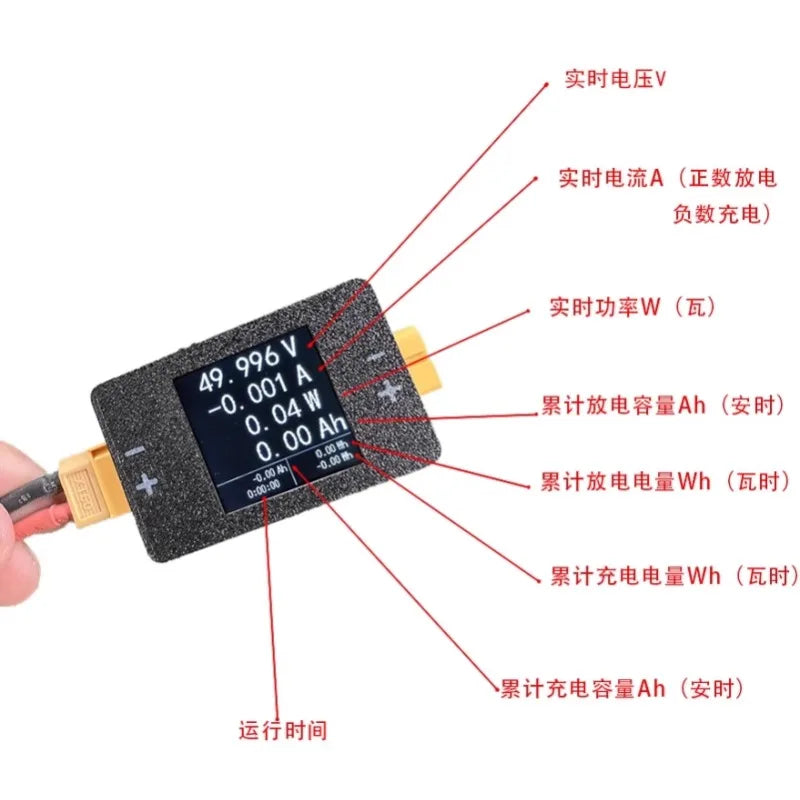

6. Press the rest button to switch the display interface. Long press to reset the capacity to zero.
7. The capacity of charging or discharging is independently accumulated, and if you use it for an electric motorcycle,   you may be able to measure the amount of energy recovered

Package Contents:

1 PCS Current Power Analyzer

2 pcs  adapter
