2025 Original Hugen Latest firmware 50kHz ~ 6.3GHz tinyVNA LiteVNA 64 4" Display Vector Network Analyzer HF VHF UHF Antenna
2025 Original Hugen Latest firmware 50kHz ~ 6.3GHz tinyVNA LiteVNA 64 4" Display Vector Network Analyzer HF VHF UHF Antenna
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Attention:clients from EU countries will be charged with VAT cost&service cost by the local express when doing custom clearance from July 1st, 2021. Pls be noted.
Manual and software download:
https://www.zeenko.tech/litevna

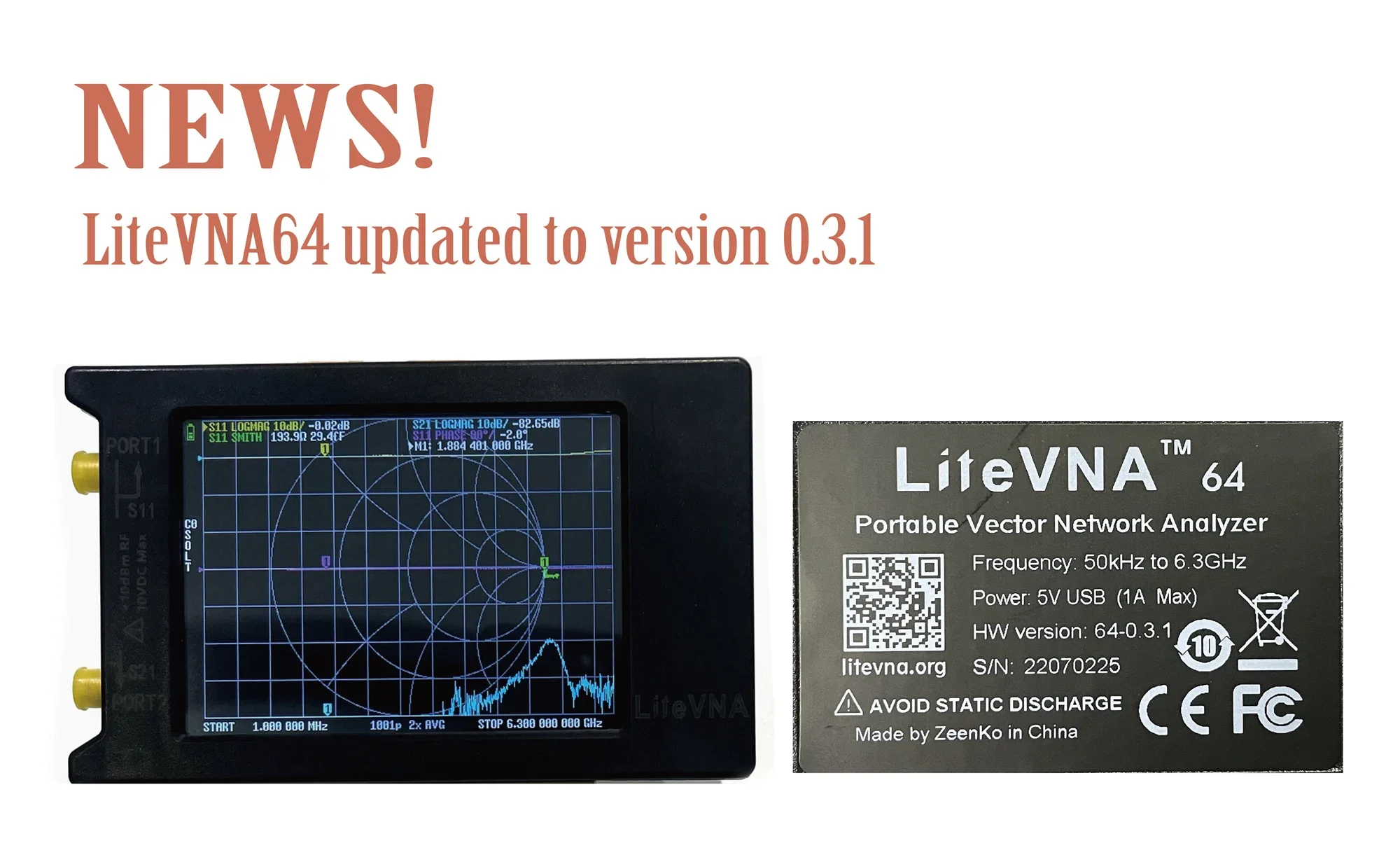

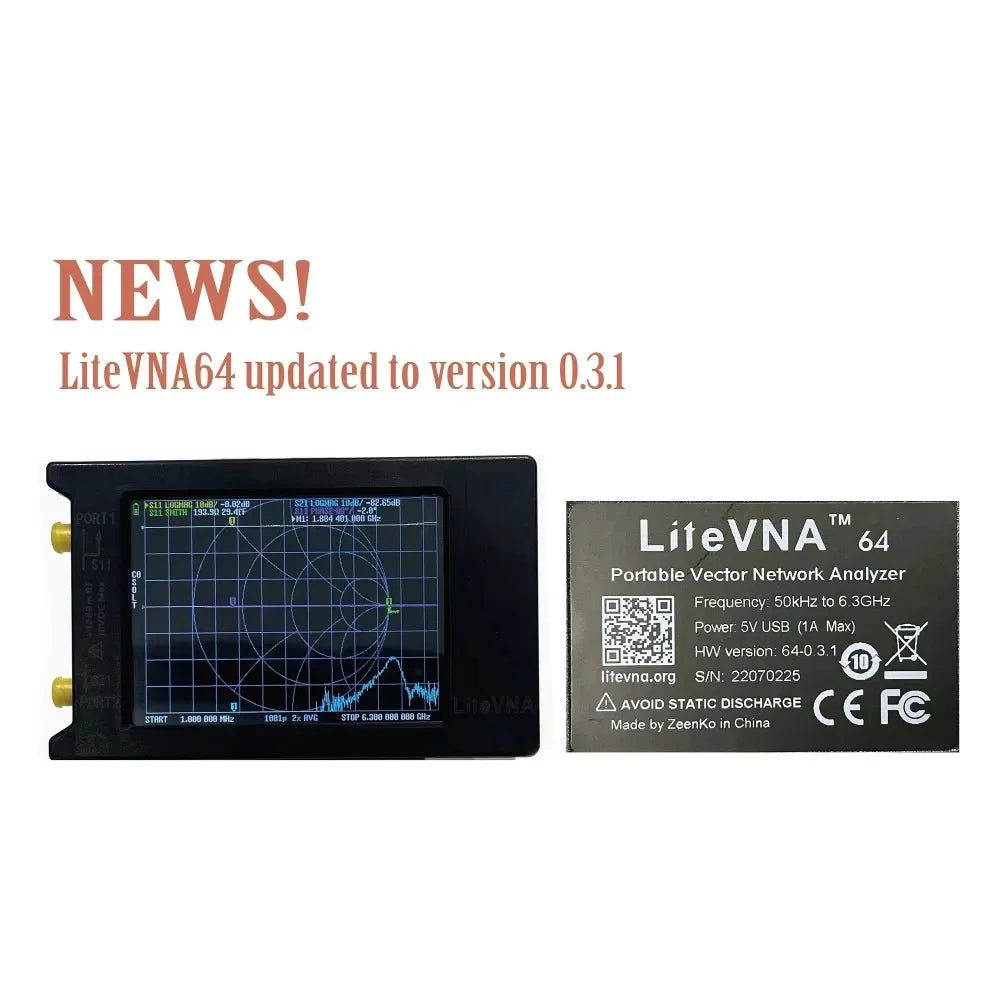

We have updated tinyVNA- liteVNA 64 to version 0.3.1. The power supply and if circuit are redesigned to greatly reduce the background noise and completely solve the interference problem when connecting external power supply. At frequencies below 1mhz-3ghz, the effective dynamic performance can be better than 90dB when 20avg is used. When the frequency is higher than 3GHz, the limited isolation is reduced, and when the frequency is 6.3ghz, the effective dynamic performance is reduced to 50dB. Compared with similar products, litevna has a wider frequency measurement range and effective dynamic range, and is more portable and reliable!
Affected by the current tight supply of chips, and we still hope that litevna is an affordable device for enthusiasts and start-ups. The 0.3.1 version of litevna is currently in short supply, and the 2.8-inch version of litevna62 is still 0.3. We are working with suppliers to provide better equipment to users as much as possible!

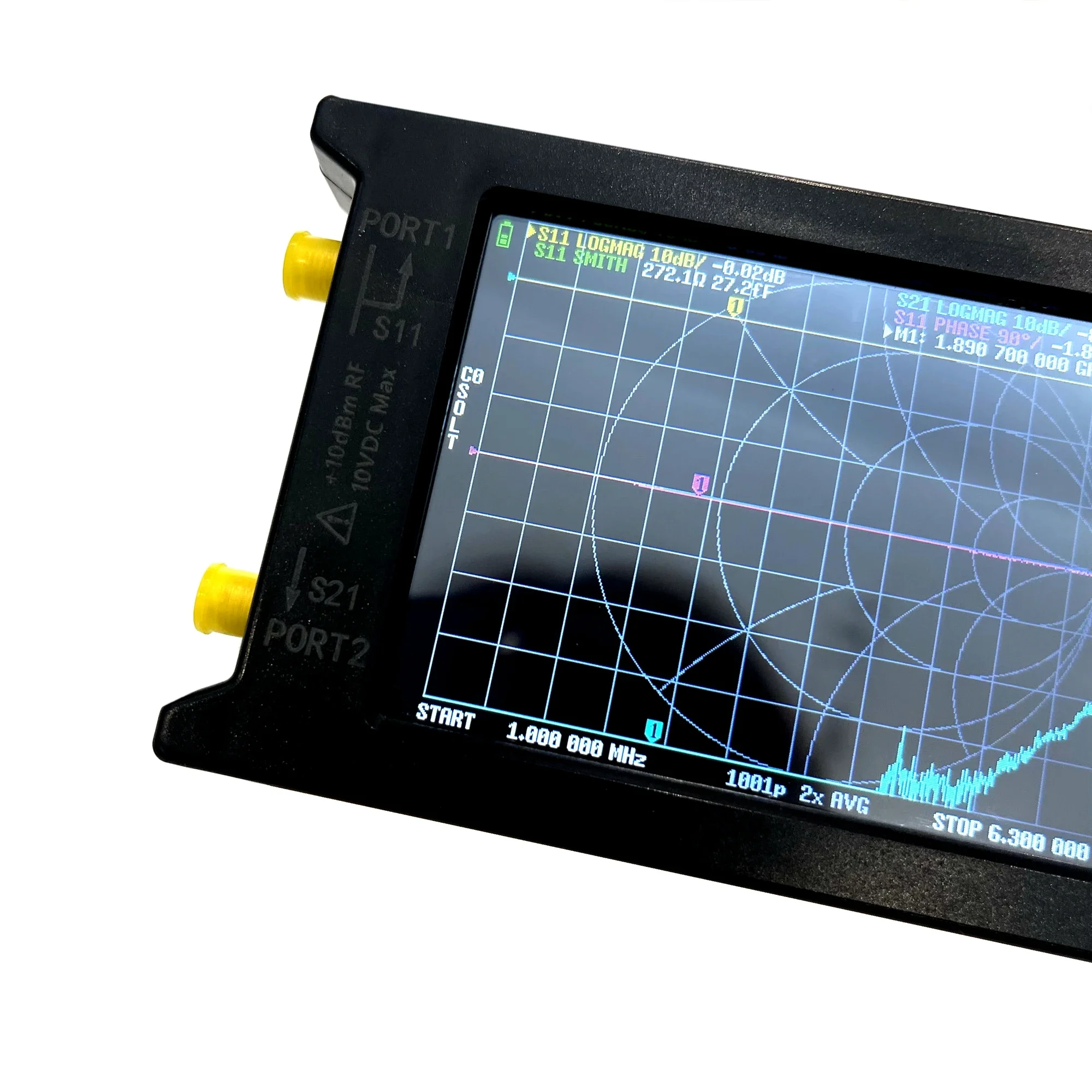

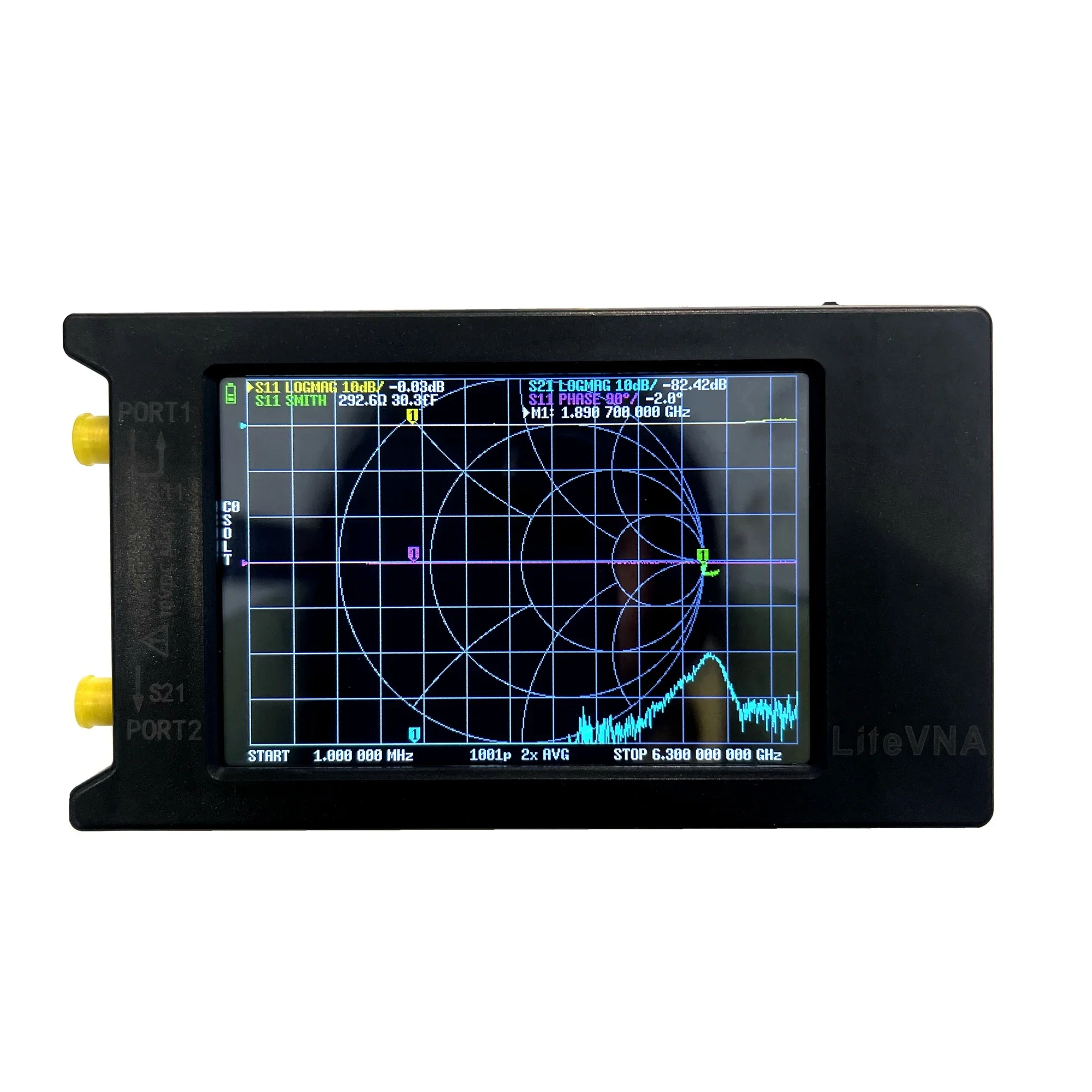

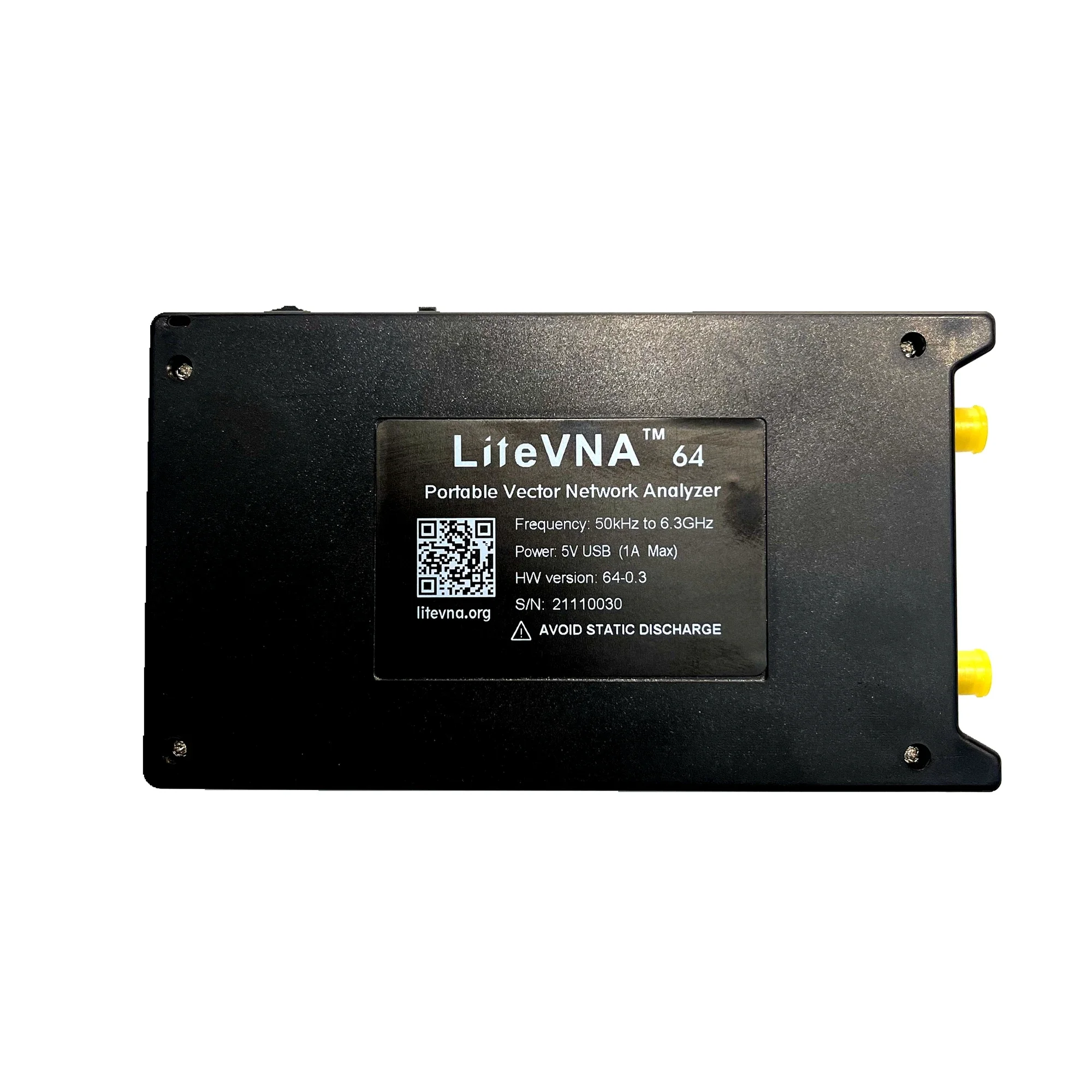

tinyVNA - LiteVNA 64 (50 kHz ~ 6.3 GHz)

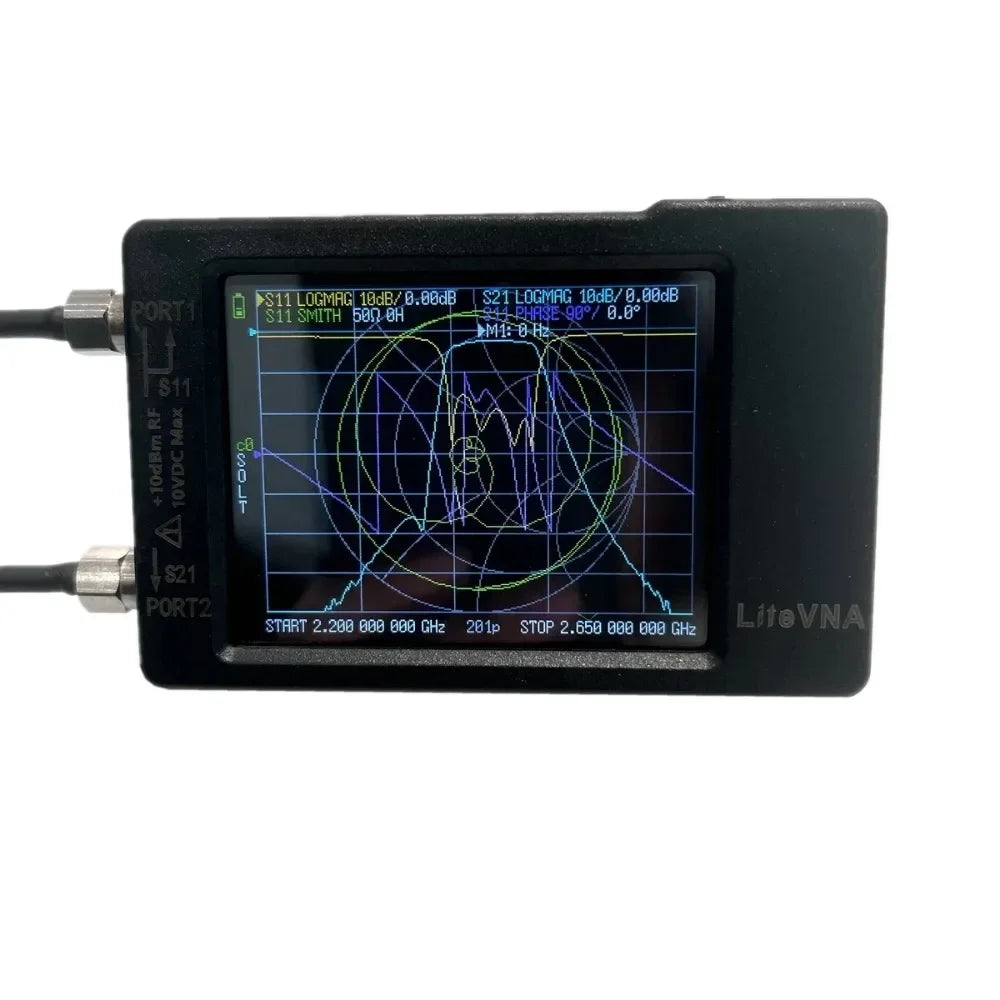

tinyVNA - LiteVNA improves on the popular NanoVNA and SAA2. Now you can get a portable vector network analyzer (VNA) as small as the NanoVNA and capable of meeting the ultra-wide measurement range of 50 kHz to 6.3 GHz.
To minimize power consumption and size, the LiteVNA uses only one mixer, with multiple internal RF switches for S11 and S21 measurements, and IFFT calculations for TDR and DTF measurements.
Designed with the community's input in mind, the LiteVNA now brings faster scanning speeds and more scan points in addition to a wider measurement range. Combined with an easy-to-use interface consistent with the NanoVNA, the LiteVNA can now be easily used as a field test tool.
LiteVNA includes a MicroSD slot, so you can save field test data or screens to a MicroSD card at any time. With a measurement range of up to 6.3GHz, the LiteVNA is capable of meeting common amateur radio and IoT applications, as well as emerging 5GHz testing, enabling the application of the latest 5.8GHz wifi and 5.8GHz image transmission.

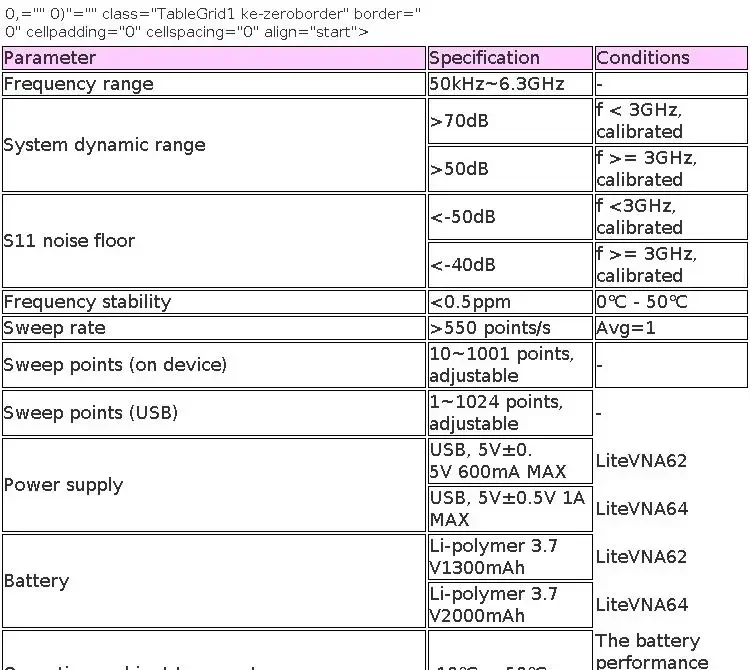

LiteVNA Specifications
Packaging & Shipping

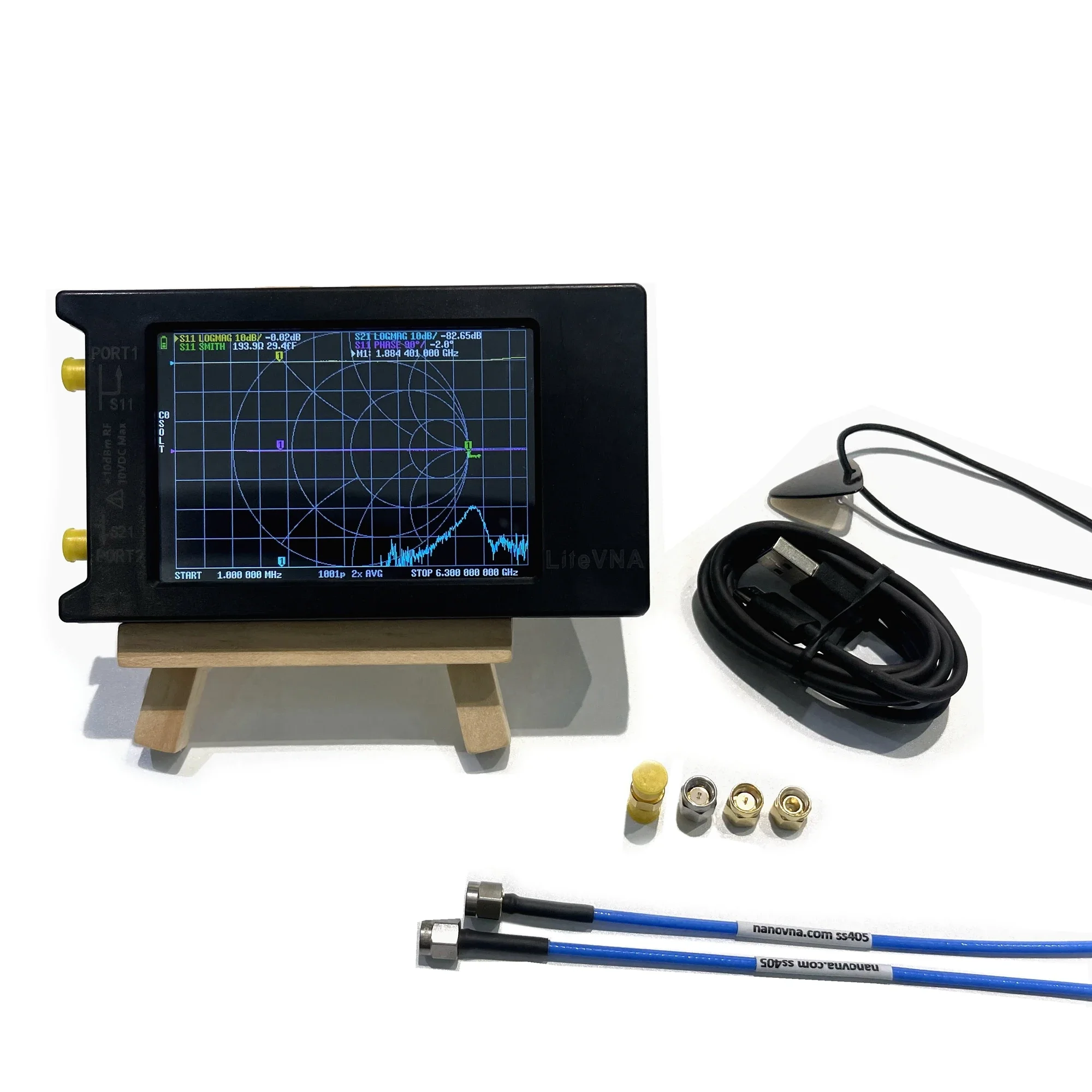

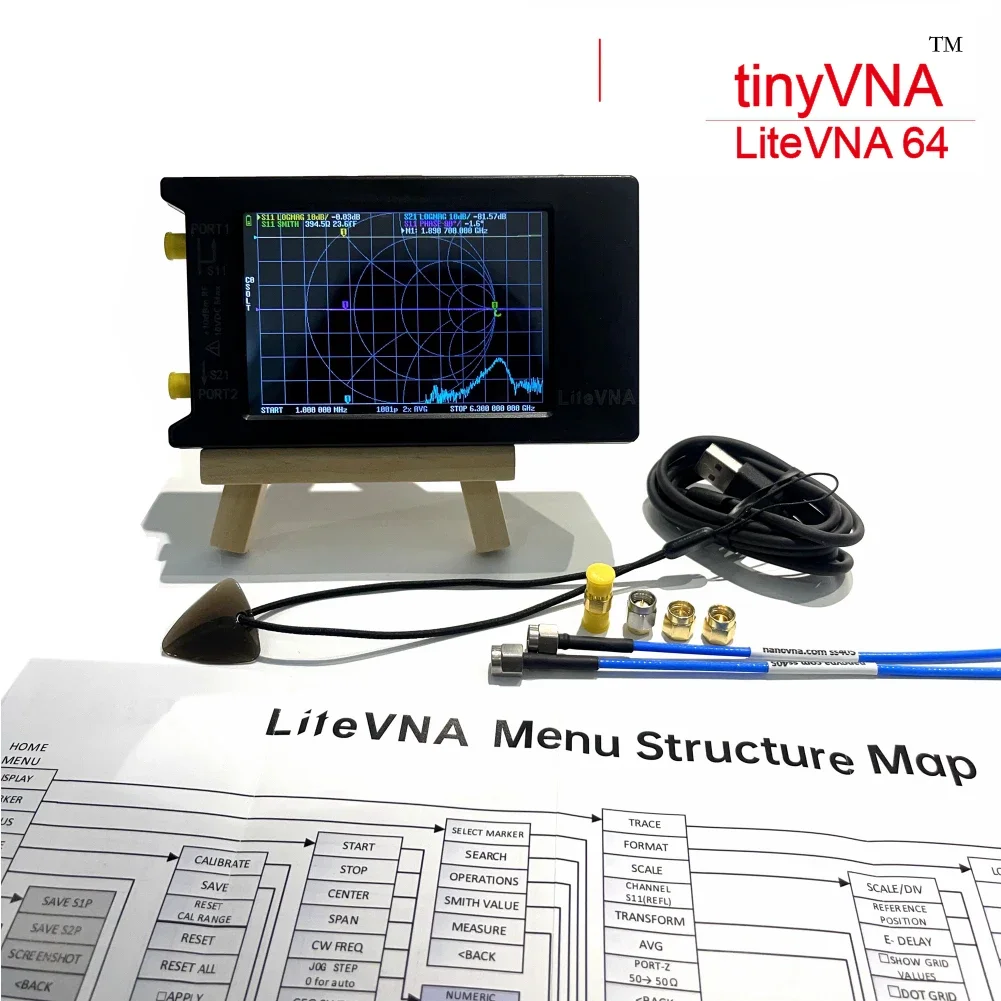

Packaging includes:
Host (with 2000mAh battery, 4"display) x 1
USB Type-C data cable x1
30cm SMA male to male SS405 RF cable x2
SMA male calibration kit - OPEN x1
SMA male calibration kit - SHORT x1
SMA male calibration kit - LOAD x1
SMA female to female connector x1
Shipping way:
This NanoVNA includes a battery. We ship by Aliexpress post shipping way. Then shipping time is longer than DHL/UPS etc. But lower shipping cost. Any question pls feel free to contact us. sales11
zeenko.cn
For more please click:
https://zeenko.tech/litevna

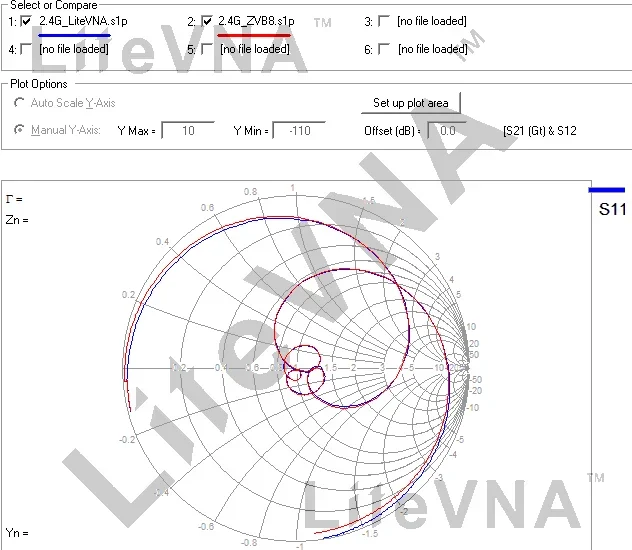

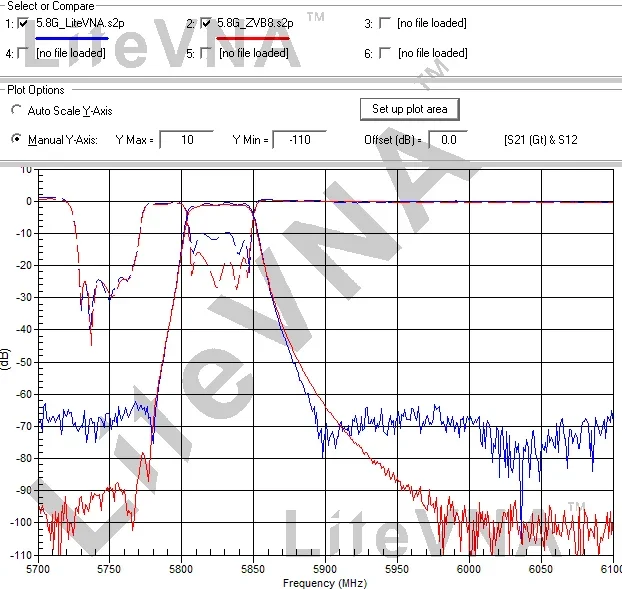

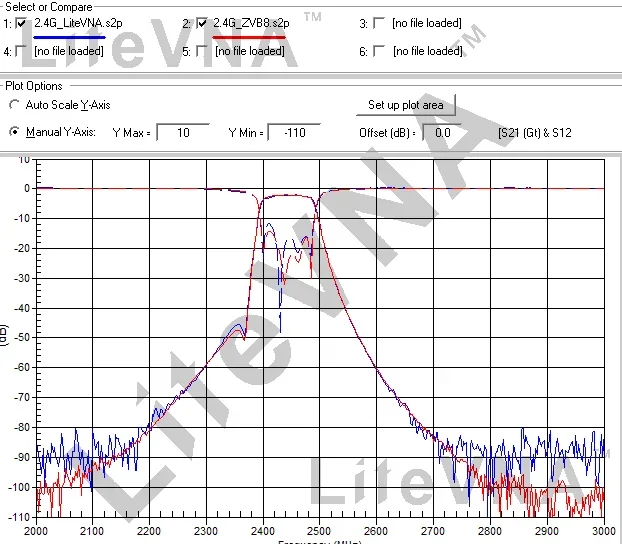

Compared with Rohde & Schwarz ZVB8
