Description
Technical parameters:

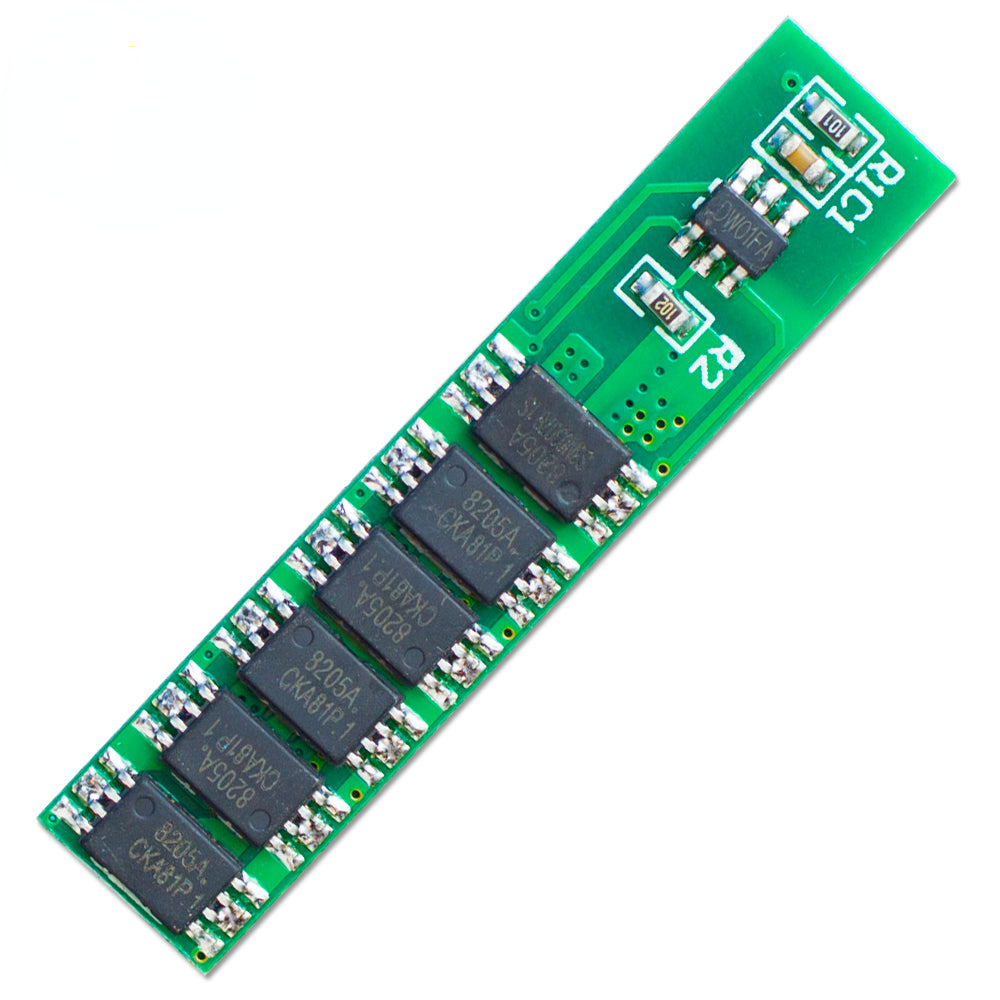

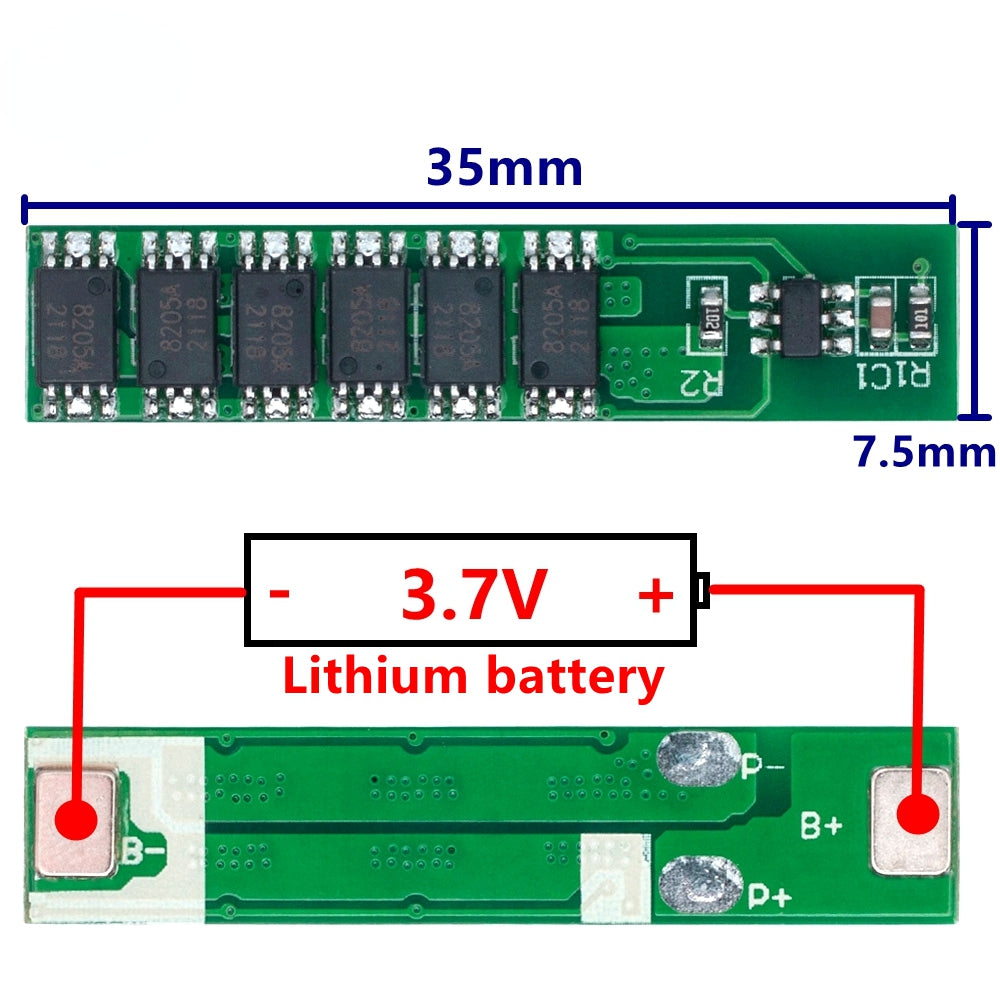

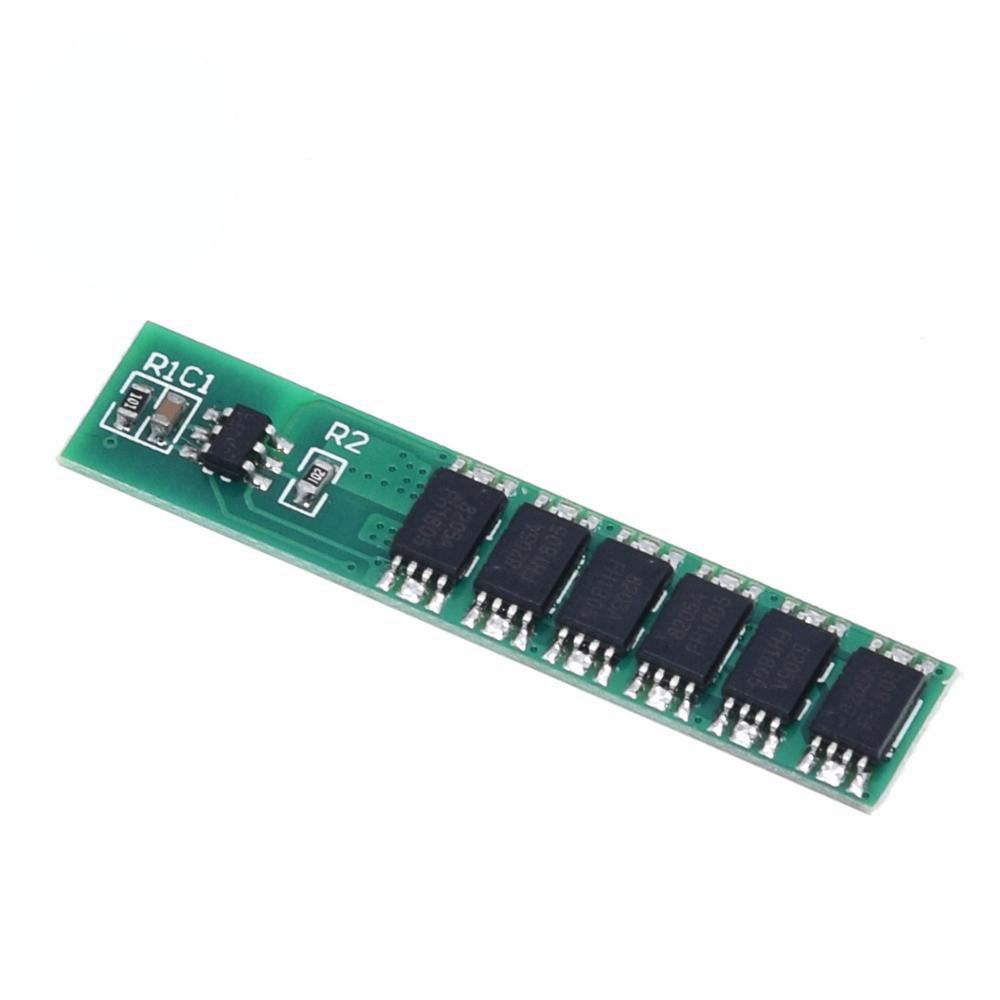

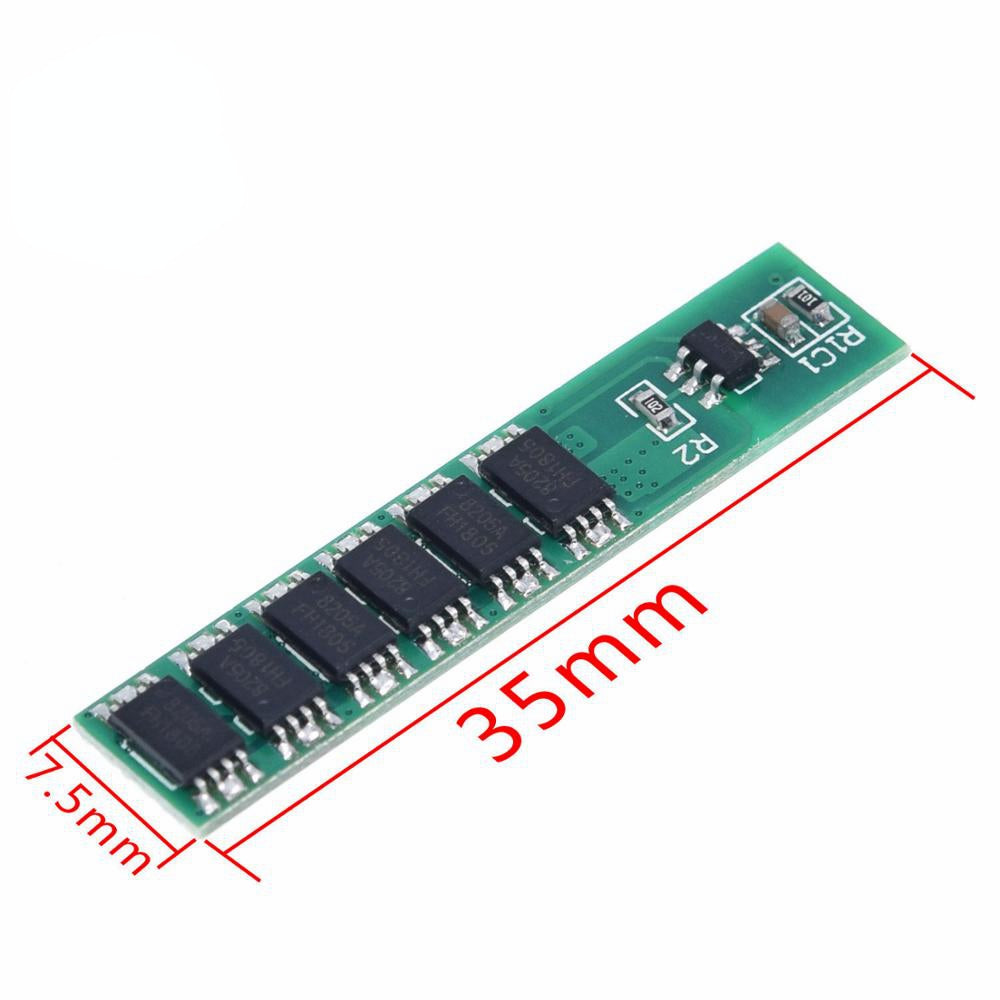

Overcharge detection voltage: 4.25 + 0.05V Overcharge disconnection voltage: 4.23 + 0.05V Overdischarge detection voltage: 2.45 + 0.1v Maximum continuous current: 12A Overcurrent detection current: 15A Charging voltage: 4.2v Product size: 35*7.6*2MM IC component: DW01+8205A
Main functions: Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection.

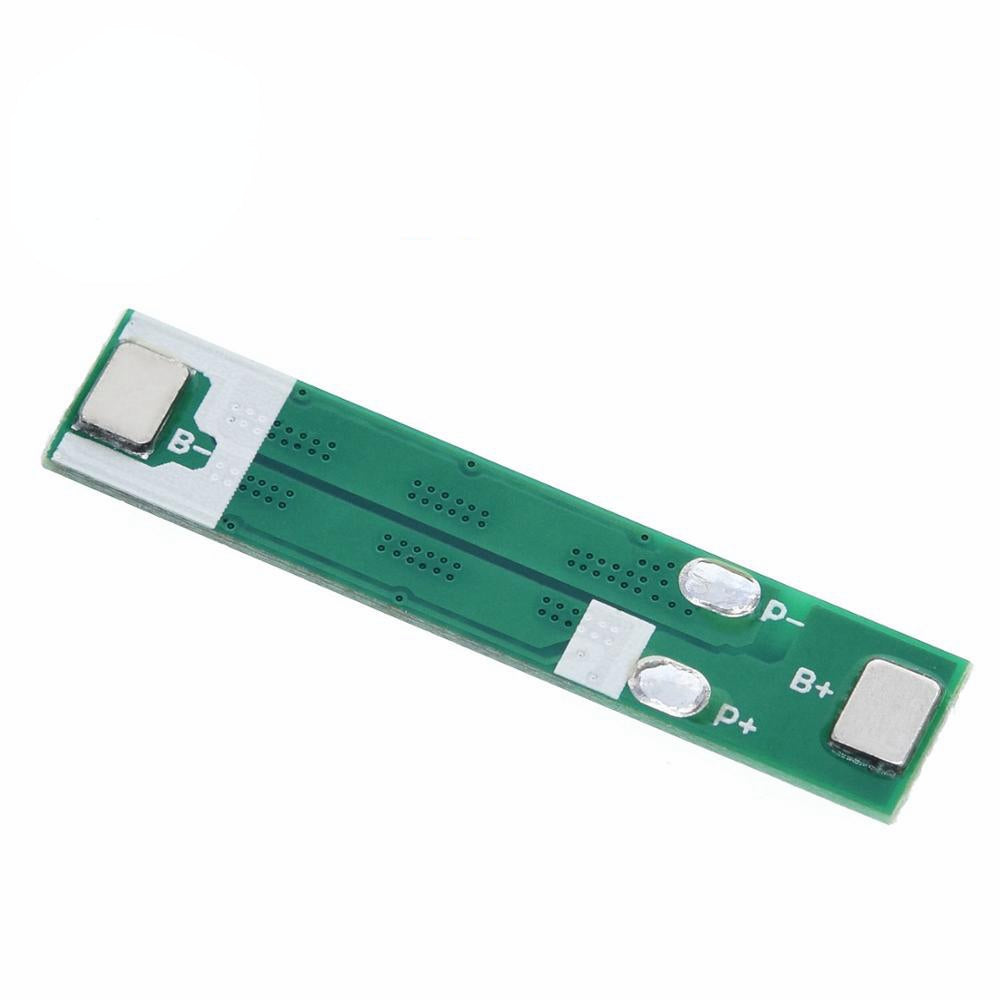

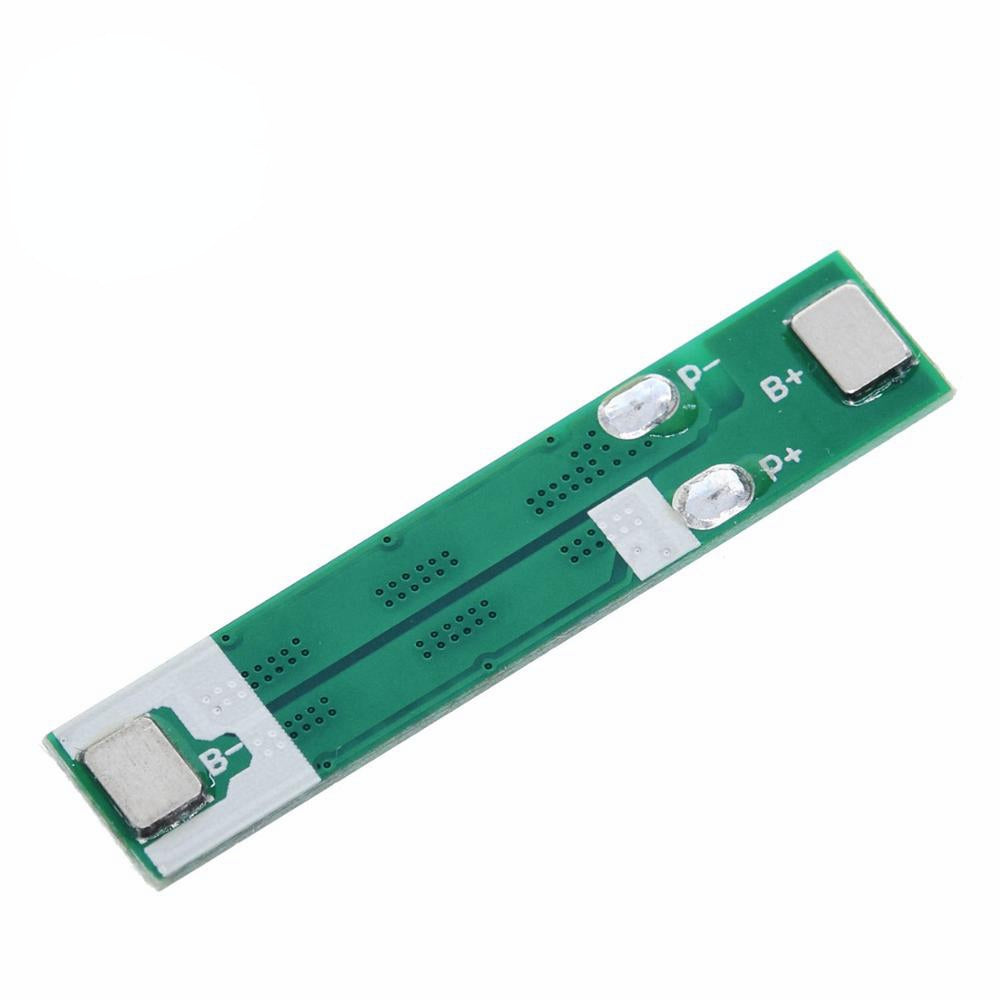

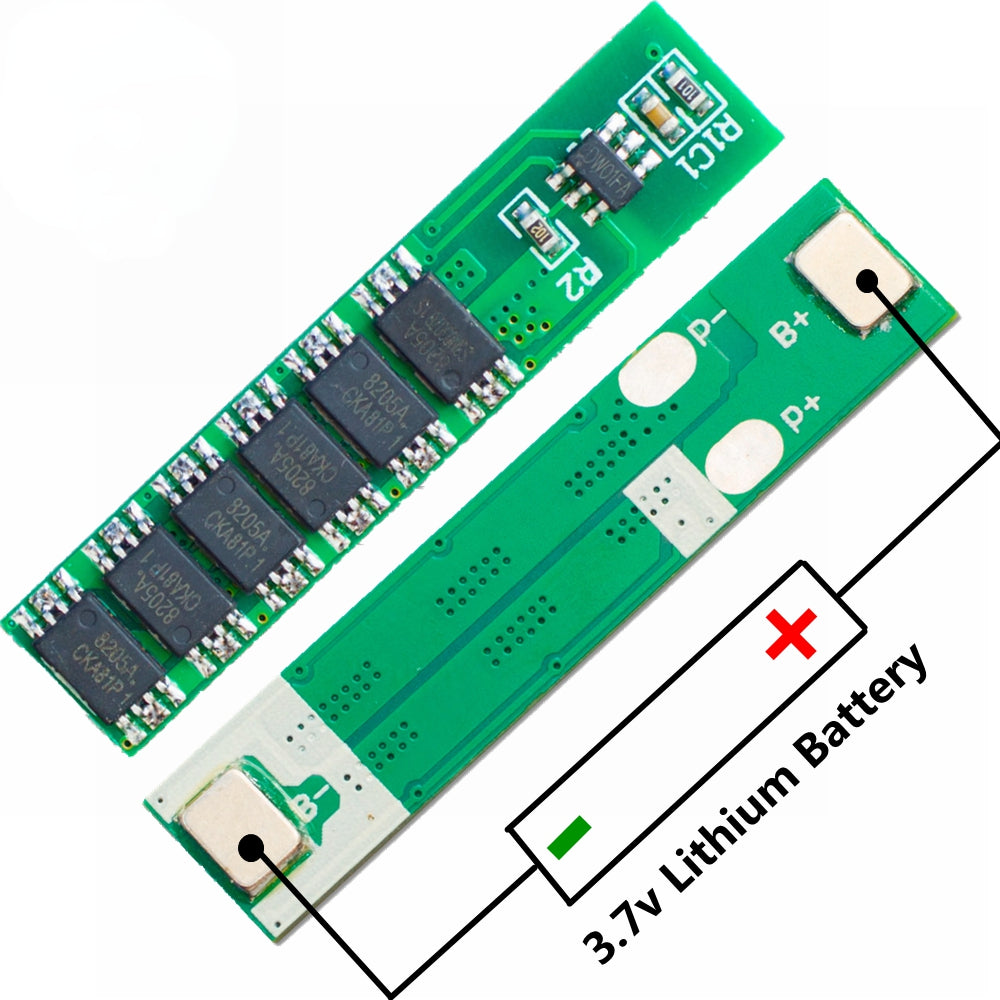

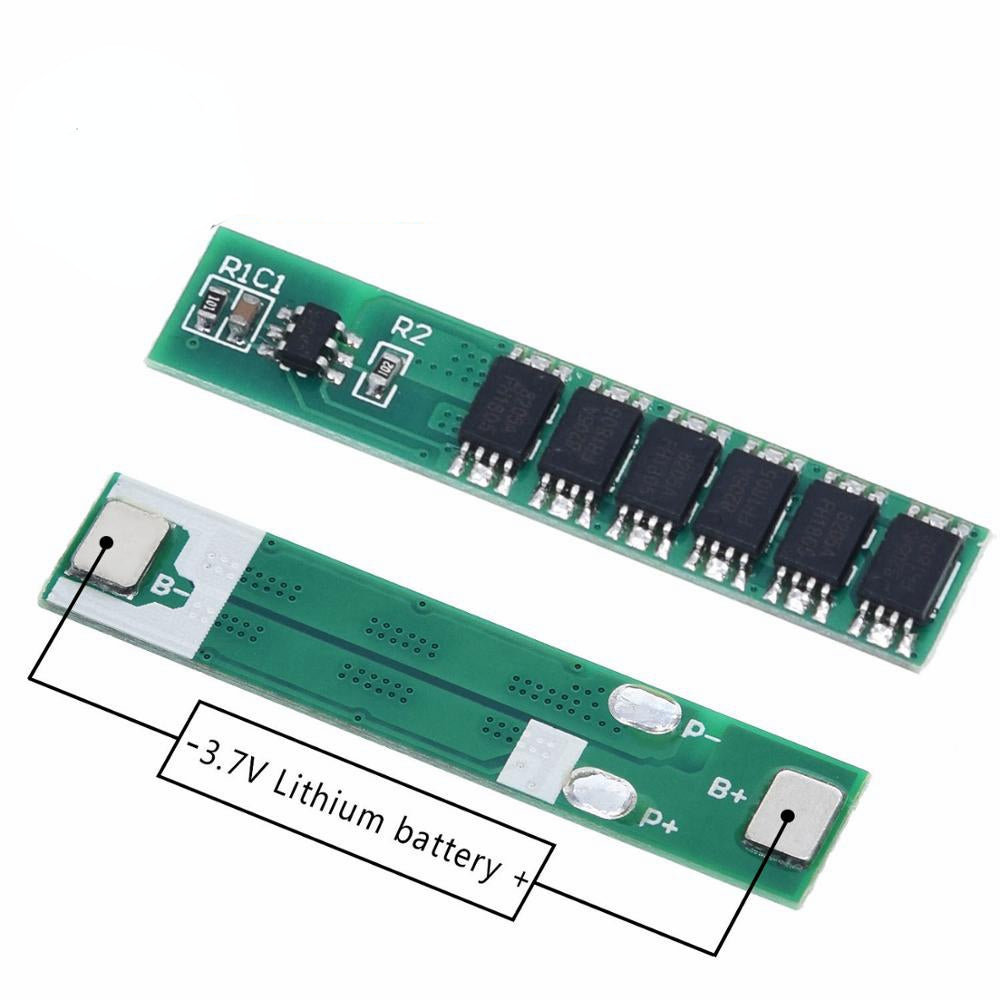

Wiring instructions: B+ connect the positive electrode of the battery. B- connect the battery cathode. P+ is the input positive pole of battery output P- is the output input cathode of the battery pack
![](https://wxalbum-10001658.image.myqcloud.com/wxalbum/55450/20220714102750/dc6abb00958a8ce6bacb350cd03baa14.jpg)
![](https://wxalbum-10001658.image.myqcloud.com/wxalbum/55450/20220714102725/045686b4ffc851cdedd9bd0699052c6d.jpg)
![](https://wxalbum-10001658.image.myqcloud.com/wxalbum/55450/20220714102659/386208dca621c3721fe99d8f95ef6644.jpg)
![](https://wxalbum-10001658.image.myqcloud.com/wxalbum/55450/20220714102559/72d4605d7df7275fd058c9e8ab52386e.jpg)
![](https://wxalbum-10001658.image.myqcloud.com/wxalbum/55450/20220714102529/2488e3a4969eae62a228b538521da662.jpg)
![](https://wxalbum-10001658.image.myqcloud.com/wxalbum/55450/20220714102506/c47623459c16876c83e4455fe699473c.jpg)
![](https://wxalbum-10001658.image.myqcloud.com/wxalbum/55450/20220714102445/ff59bfefdd661cdf54f2f8b288ca3f03.jpg)
![](https://wxalbum-10001658.image.myqcloud.com/wxalbum/55450/20220714102403/d6de05009477a7d55b145f12912be751.jpg)
