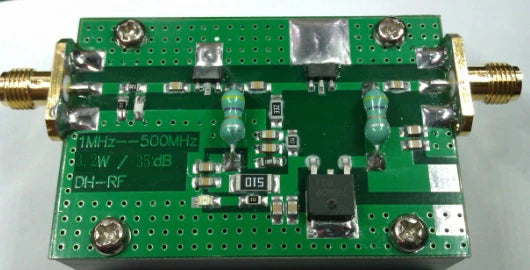

Description:
- Condition: 100% Brand New
- Quantity: 1Pc
- Color: As the picture show

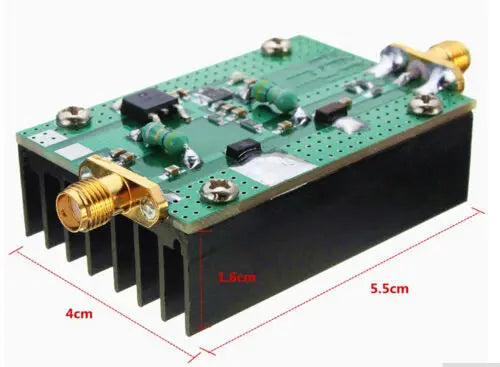

- Size app: 37x56x15mm
- Conversion: 1cm=0.39inch

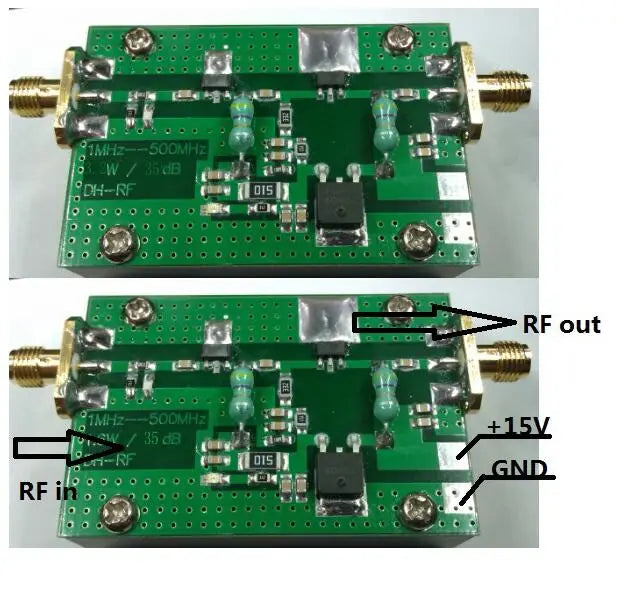

- Supply voltage: + 15V DC (typical current value 450mA / maximum gain output)
- The operating frequency: 1MHZ-700MHZ, input and output impedance: 50 ohms;
- The maximum output range: 35dbm (3.2W / 50 ohms)
- Gain: 35 dB (see the specific curve S21 curve, there are differences between different frequency)
- The input signal size: low frequency band (0DBM / 1 mW), high frequency band (2DBM)

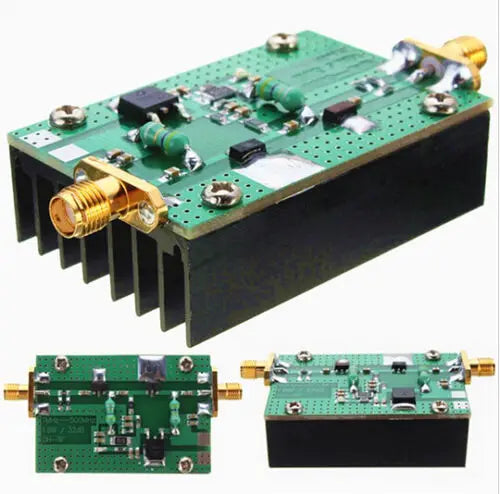

As a result of sophisticated design, in the low-frequency side can reach 35DBM (3W), at 500M, the output power can reach 32DBM (1.6W), the specific reference to the S21 parameters and point frequency test. Amplifier size 37MM * 56MM * 1.5CM (behind with a large heat sink).
Note: Do not enter the signal or output is not connected to the load power
Notice:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
3.Thank you for your kindly understanding
Description
Description
Description:
- Condition: 100% Brand New
- Quantity: 1Pc
- Color: As the picture show
- Size app: 37x56x15mm
- Conversion: 1cm=0.39inch
- Supply voltage: + 15V DC (typical current value 450mA / maximum gain output)
- The operating frequency: 1MHZ-700MHZ, input and output impedance: 50 ohms;
- The maximum output range: 35dbm (3.2W / 50 ohms)
- Gain: 35 dB (see the specific curve S21 curve, there are differences between different frequency)
- The input signal size: low frequency band (0DBM / 1 mW), high frequency band (2DBM)
As a result of sophisticated design, in the low-frequency side can reach 35DBM (3W), at 500M, the output power can reach 32DBM (1.6W), the specific reference to the S21 parameters and point frequency test. Amplifier size 37MM * 56MM * 1.5CM (behind with a large heat sink).
Note: Do not enter the signal or output is not connected to the load power
Notice:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
3.Thank you for your kindly understanding
