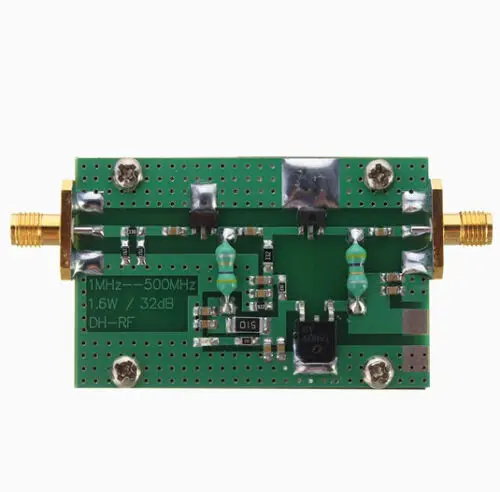

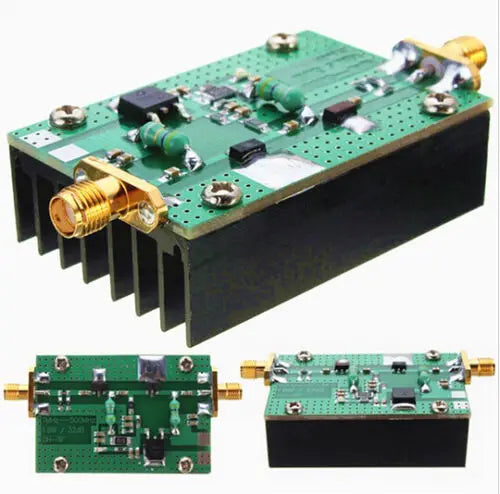

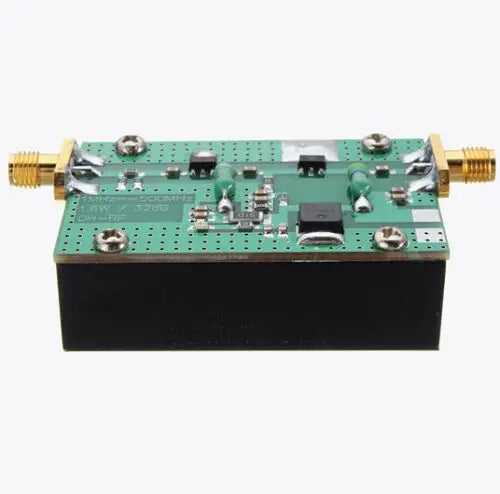

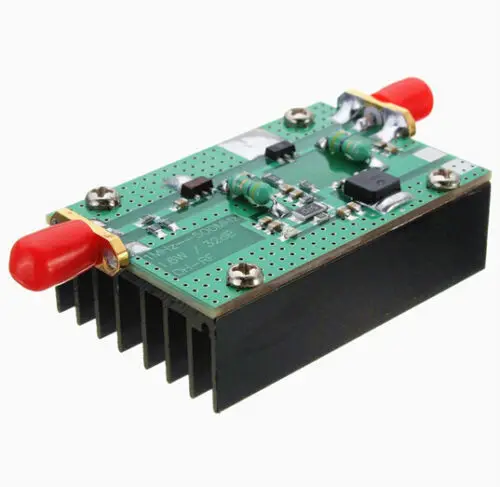

1MHz - 500MHZ 1.5W HF FM VHF UHF RF Power Amplifier For Ham Radio + Heatsink
1MHz - 500MHZ 1.5W HF FM VHF UHF RF Power Amplifier For Ham Radio + Heatsink
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
RF power amplifier, for a variety of wireless applications, shortwave, FM, remote control toys 315MHZ, 433MHZ, radios, digital radio, etc., input 1 mW output 1.6 watt, 12V power supply, broadband work 1MHZ to 500MHZ are OK!
Features:
Operating frequency: 1MHz - 500MHz
Input power: 0dBm, 1mw
Output Power: 32dBm, which is a typical value of 1.6 W, 0.7 to 1 watt high frequency
Operating voltage: 12V
Working Current: 0.3A
Harmonic Suppression: A typical low-end frequency -12dBc, high frequency -20dBc typ

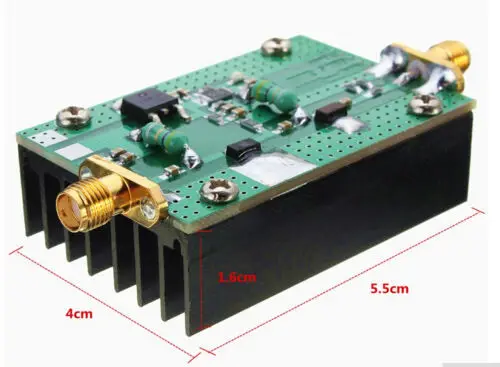

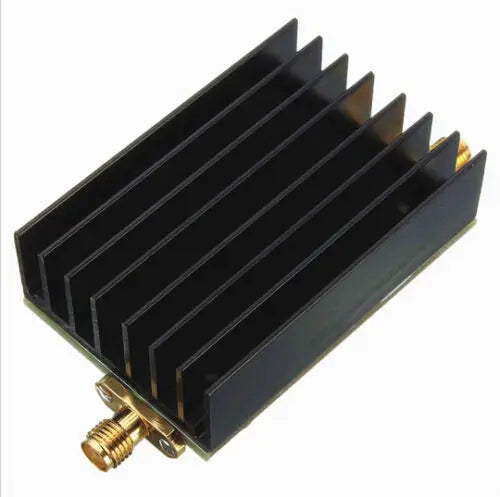

Inputs and outputs are SMA female, with good heat sink, long-term stabilit
Description
Description
RF power amplifier, for a variety of wireless applications, shortwave, FM, remote control toys 315MHZ, 433MHZ, radios, digital radio, etc., input 1 mW output 1.6 watt, 12V power supply, broadband work 1MHZ to 500MHZ are OK!
Features:
Operating frequency: 1MHz - 500MHz
Input power: 0dBm, 1mw
Output Power: 32dBm, which is a typical value of 1.6 W, 0.7 to 1 watt high frequency
Operating voltage: 12V
Working Current: 0.3A
Harmonic Suppression: A typical low-end frequency -12dBc, high frequency -20dBc typ
Inputs and outputs are SMA female, with good heat sink, long-term stabilit
