Short wave amplifier board HF amplifier kit 1200W amplifier board MRFX1K80H amplifier board BLF188 amplifier

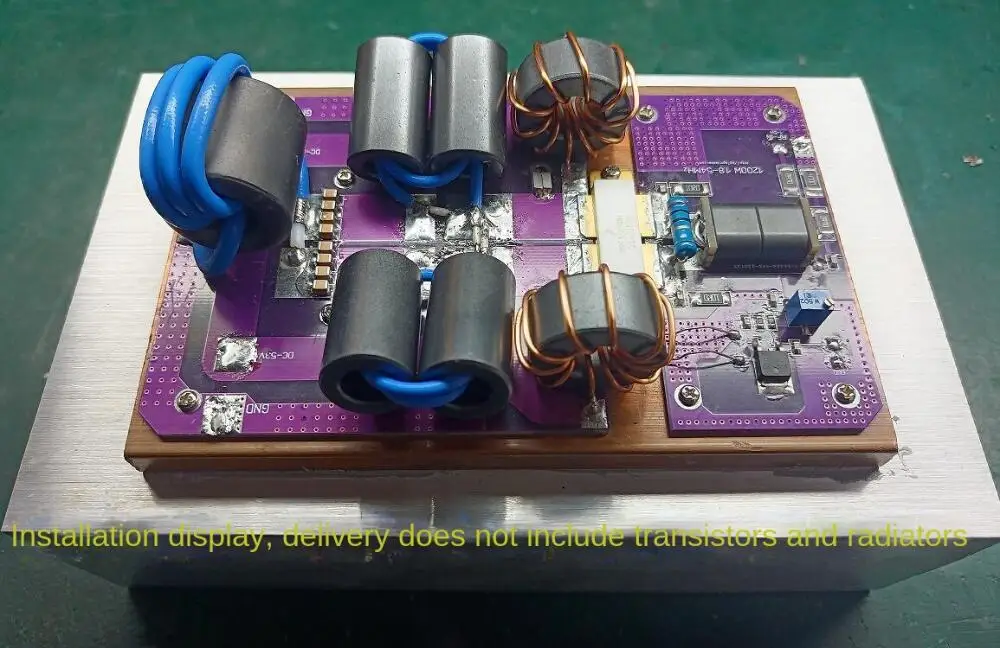

It is shipped without transistors or heat sinks.

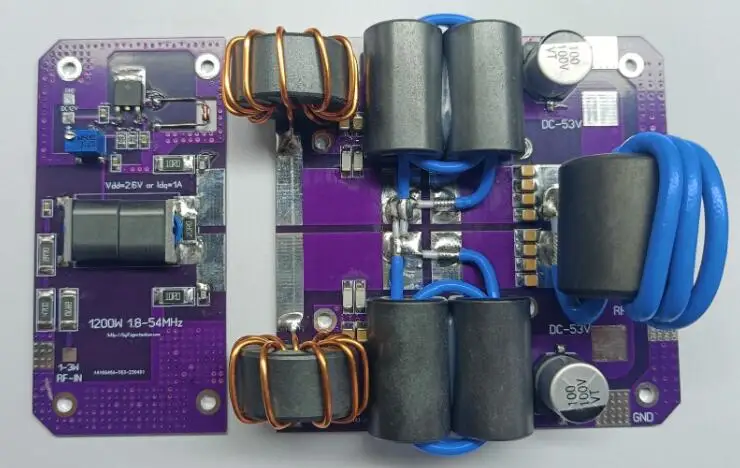

The HF 1200W shortwave power amplifier board consists of two parts: input and output.
Power amplifier tube, compatible with MRFX1K80H, MRFX1K50, MRFE6VP61K25H, ART2KFE, ART1K60, BLF188XR .
Please refer to the official PDF to adjust the bias voltage for different models of LF188XR transistors before installation.
Input power: 1-3W
Frequency: 1.8 -54MHz
Input power: 600-1250W
Voltage: DC48-53V
Current: 35A
Front PCB size: 43 * 90MM
Rear PCB size: 92 * 90MM
Total weight: 285G
Description
Description
Short wave amplifier board HF amplifier kit 1200W amplifier board MRFX1K80H amplifier board BLF188 amplifier
It is shipped without transistors or heat sinks.
The HF 1200W shortwave power amplifier board consists of two parts: input and output.
Power amplifier tube, compatible with MRFX1K80H, MRFX1K50, MRFE6VP61K25H, ART2KFE, ART1K60, BLF188XR .
Please refer to the official PDF to adjust the bias voltage for different models of LF188XR transistors before installation.
Input power: 1-3W
Frequency: 1.8 -54MHz
Input power: 600-1250W
Voltage: DC48-53V
Current: 35A
Front PCB size: 43 * 90MM
Rear PCB size: 92 * 90MM
Total weight: 285G
