10MHz GPSDO GPS-DO OCXO For SDR USRP B210 B210-MICRO USRP-B200 Disciplined Oscillator High-Precision Clock
10MHz GPSDO GPS-DO OCXO For SDR USRP B210 B210-MICRO USRP-B200 Disciplined Oscillator High-Precision Clock
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout

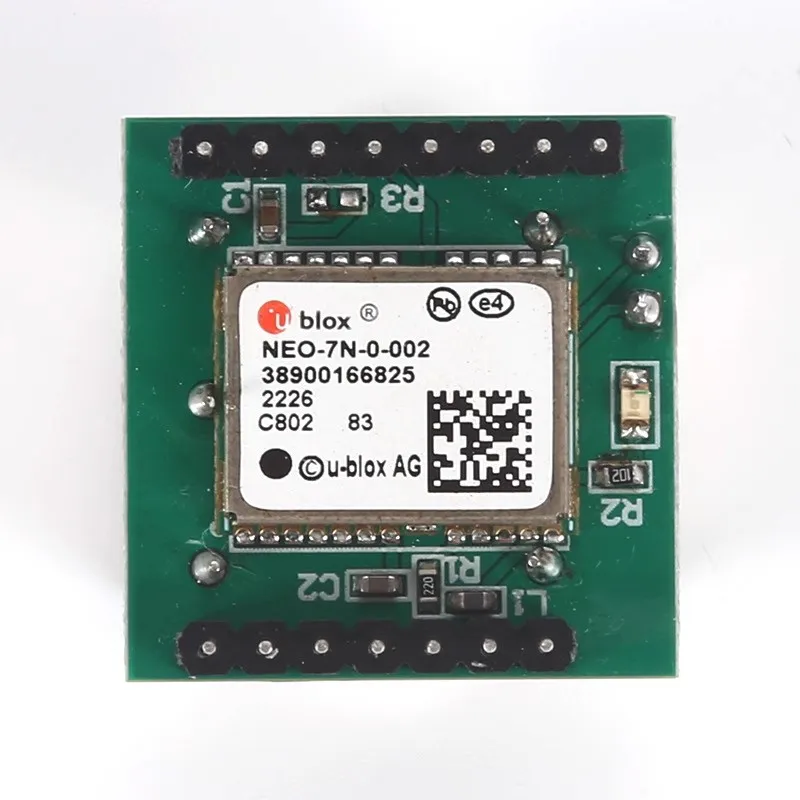

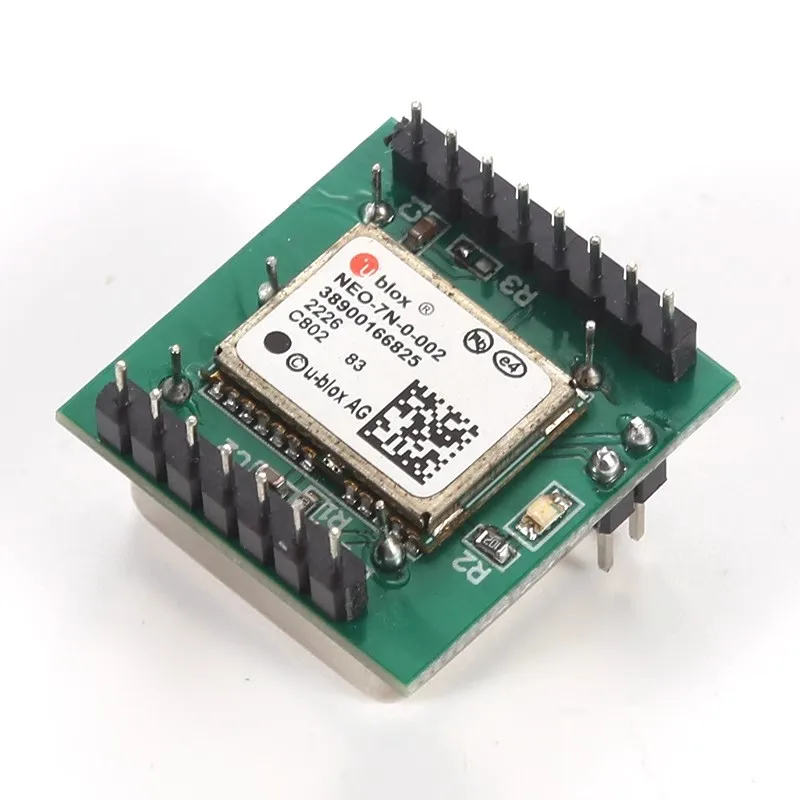

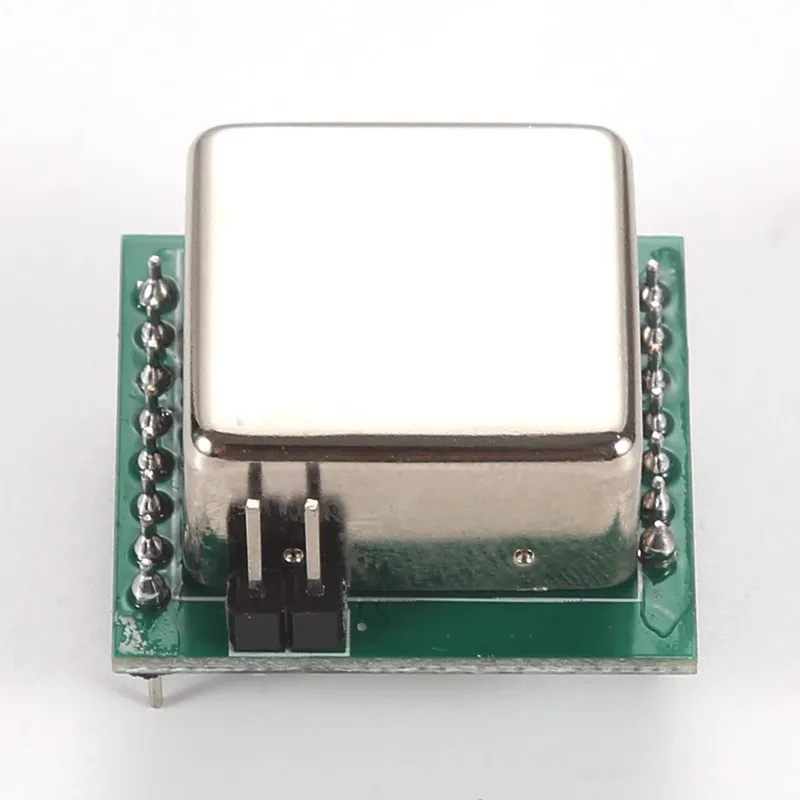

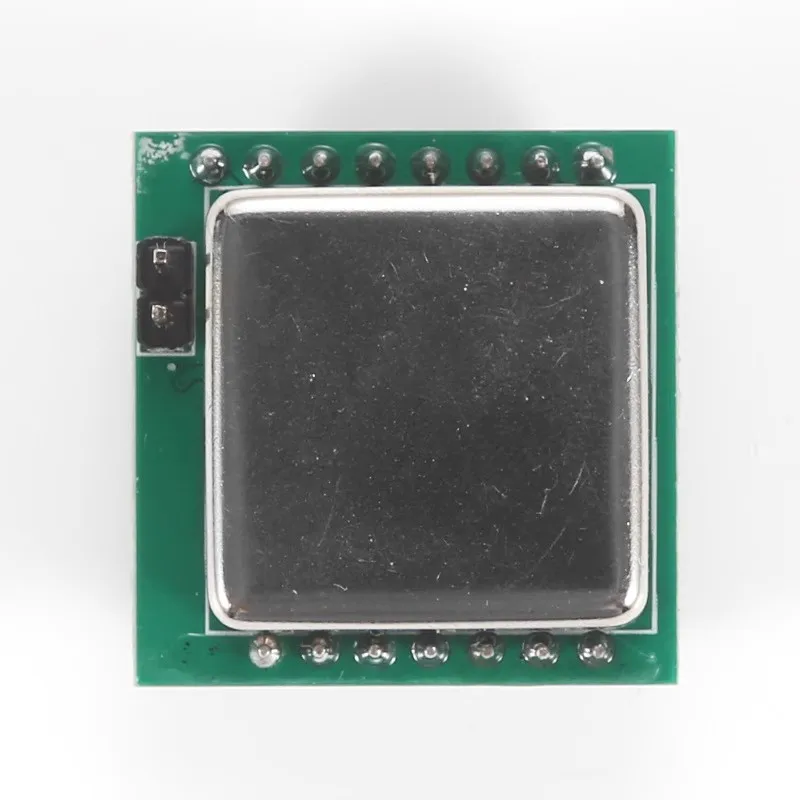

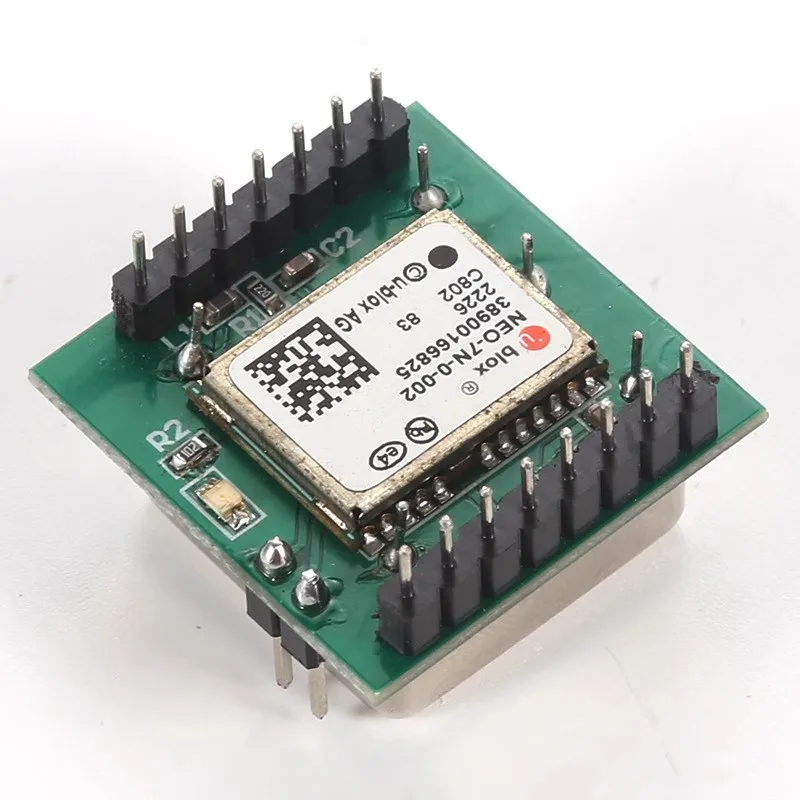

This module is composed of a GPS module and an OCXO module. The GPS module is used to provide PPS and GPS messages. The OCXO module is used to provide a 10Mhz high-precision clock of 0.01PPM.
Suitable for the-original B210 and B200, the function is the same as GPSDO, but it is not a real GPSDO.
Compared to GPSDO, the advantage is that it can provide a high-precision 0.01PPM10Mhz reference clock without GPS signal. If there is no GPS signal, the clock accuracy of general GPSDO is generally only 0.5PPM.
This is more suitable for indoor development. If PPS pulses are needed to achieve synchronization, GPS signals are required.
Made of high-quality materials.
Name:GPSDO OCXO Module

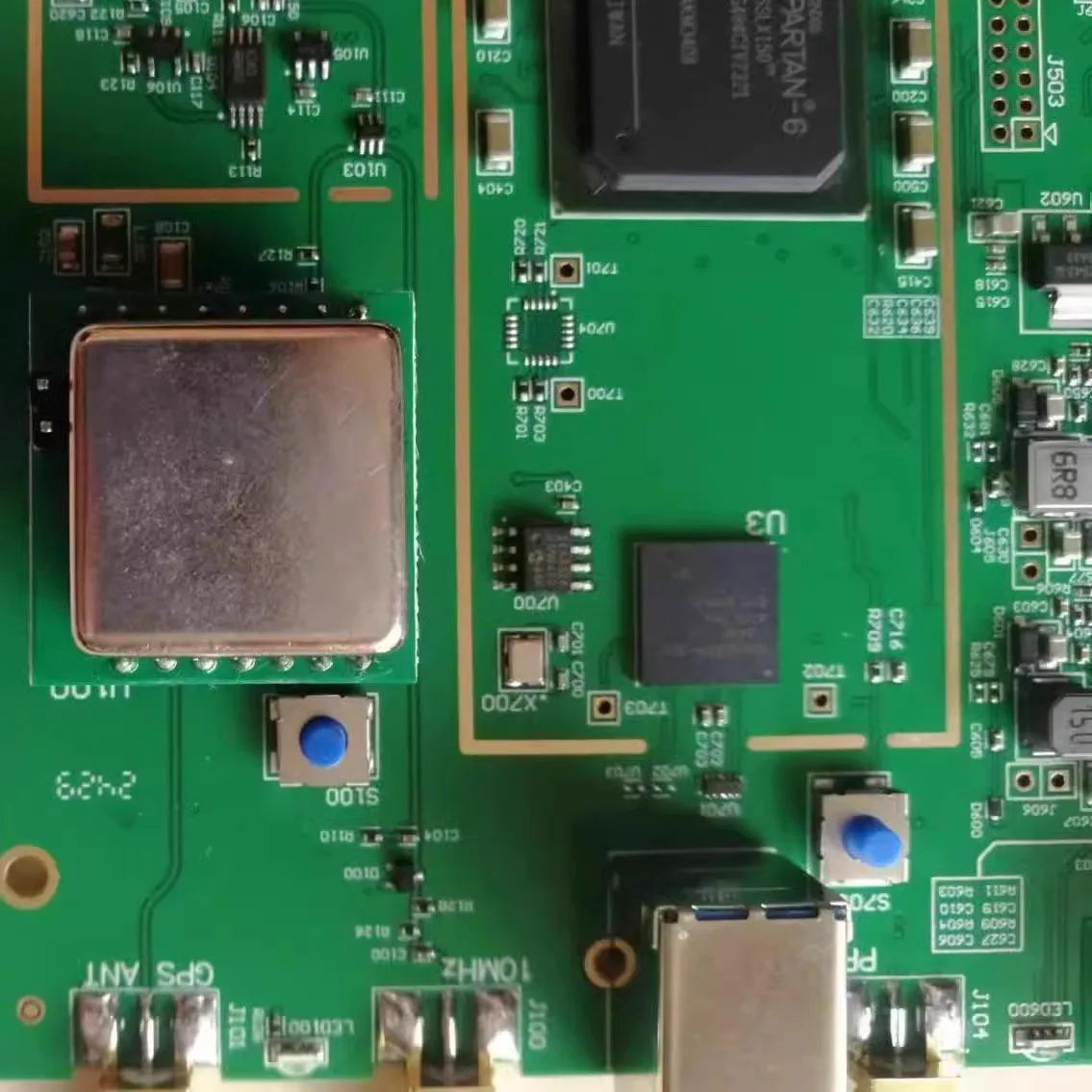

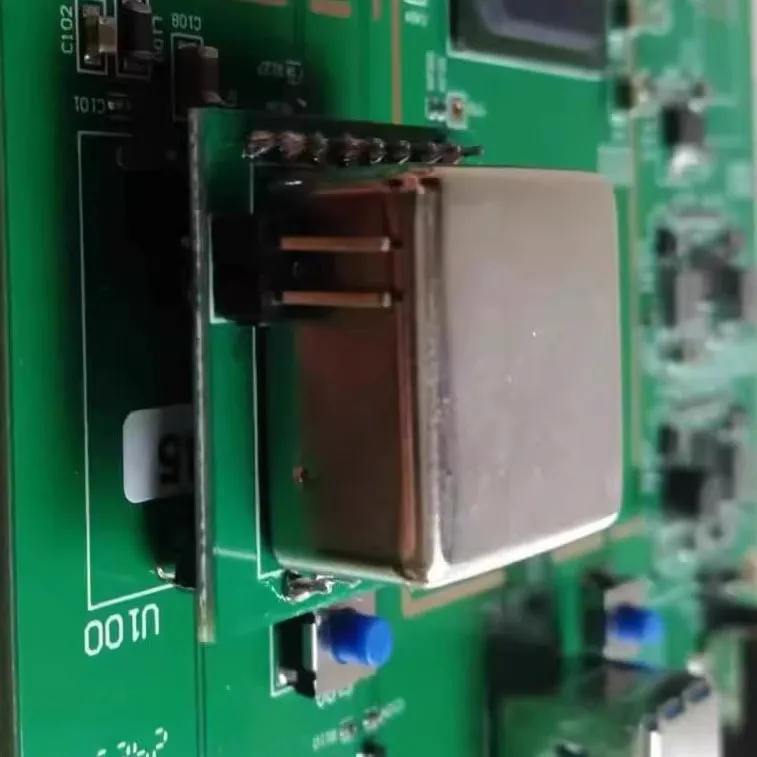

Applicable:for USRP B210 B210 SDR
The product appearance and printed words may vary depending on the batch, but this does not affect use.
Colour:Green
Material:PCB
Package Contents:
1 * GPSDO OCXO Module
Description
Description
This module is composed of a GPS module and an OCXO module. The GPS module is used to provide PPS and GPS messages. The OCXO module is used to provide a 10Mhz high-precision clock of 0.01PPM.
Suitable for the-original B210 and B200, the function is the same as GPSDO, but it is not a real GPSDO.
Compared to GPSDO, the advantage is that it can provide a high-precision 0.01PPM10Mhz reference clock without GPS signal. If there is no GPS signal, the clock accuracy of general GPSDO is generally only 0.5PPM.
This is more suitable for indoor development. If PPS pulses are needed to achieve synchronization, GPS signals are required.
Made of high-quality materials.
Name:GPSDO OCXO Module
Applicable:for USRP B210 B210 SDR
The product appearance and printed words may vary depending on the batch, but this does not affect use.
Colour:Green
Material:PCB
Package Contents:
1 * GPSDO OCXO Module
