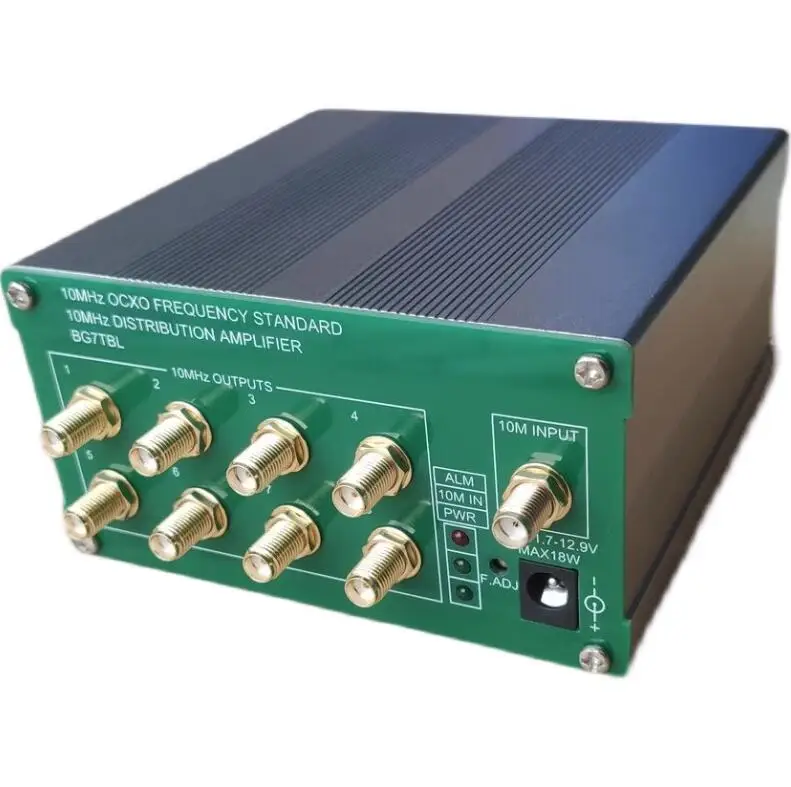

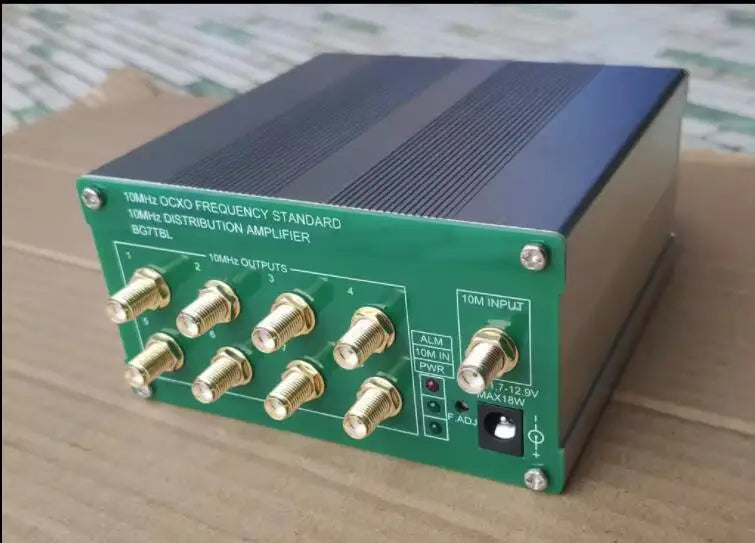

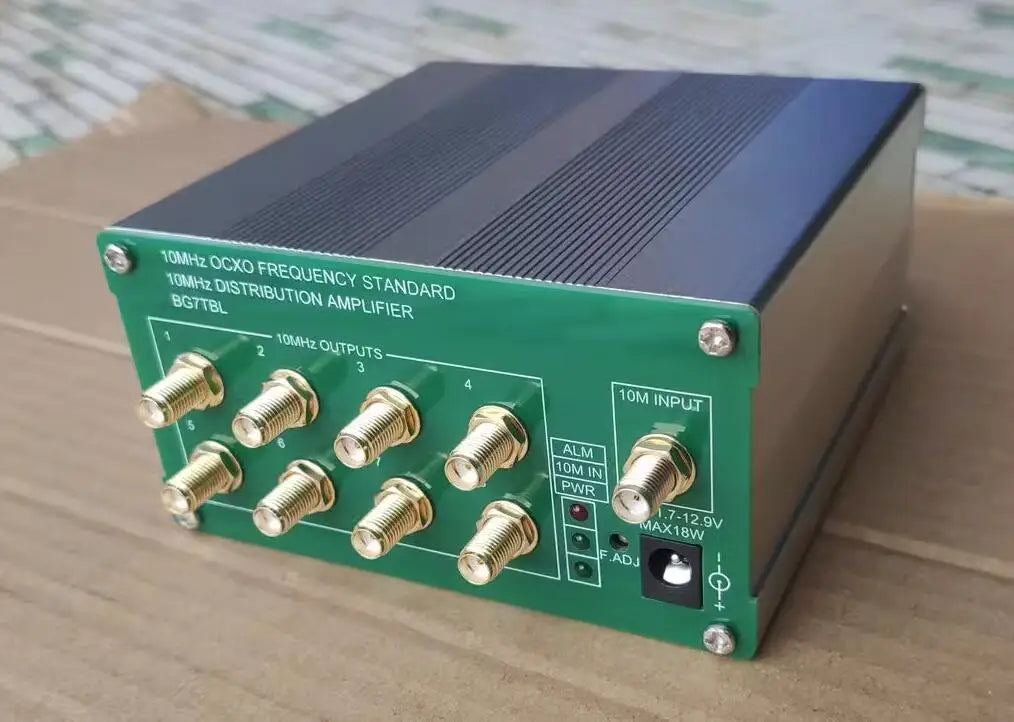

10MHz Distribution amplifier,10MHz OCXO frequency standard,8 port output
10MHz Distribution amplifier,10MHz OCXO frequency standard,8 port output
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
10MHz Distribution amplifier,10MHz OCXO frequency standard,8 port output
TYPE:FDIS-8-SMA-10M
POWER:DC11.7-12.9V,MAX:82W
INPUT:10M,0.1Vpp-5Vpp
OUTPUT:8 PORT 1vrms(13dBm+/-2dB)
interface：SMA，5.5-2.1
LED:PWR:POWER
EXT 10M:extern 10M input
ERROR:not output(inside OCXO error )
accessory:AC110-220V-DC12V /1.0A
SIZE:W*H*L=100*55*120 （include BNC connect）
weight:600g(net weight),800g(include adapter,package)
FAQ.
A:what is this
Q:this is a frequency distribution amplifiler and a OCXO frequency standard.input extern 10M
then output 8 ports 10MHz
A: any application
Q:suc as there is a 10MHz frequency standard 1 port,but there is five equipment,how to do.
used this distribution amplifiler
A:LED inductor
Q:PWR:power on ,
EXT 10M:if input extern 10MHz,this LED on.
ERROR:if not output ,this led on,
A:what is F,ADJ ,any used.
Q:adjust inside OCXO frequency.
Description
Description
10MHz Distribution amplifier,10MHz OCXO frequency standard,8 port output
TYPE:FDIS-8-SMA-10M
POWER:DC11.7-12.9V,MAX:82W
INPUT:10M,0.1Vpp-5Vpp
OUTPUT:8 PORT 1vrms(13dBm+/-2dB)
interface：SMA，5.5-2.1
LED:PWR:POWER
EXT 10M:extern 10M input
ERROR:not output(inside OCXO error )
accessory:AC110-220V-DC12V /1.0A
SIZE:W*H*L=100*55*120 （include BNC connect）
weight:600g(net weight),800g(include adapter,package)
FAQ.
A:what is this
Q:this is a frequency distribution amplifiler and a OCXO frequency standard.input extern 10M
then output 8 ports 10MHz
A: any application
Q:suc as there is a 10MHz frequency standard 1 port,but there is five equipment,how to do.
used this distribution amplifiler
A:LED inductor
Q:PWR:power on ,
EXT 10M:if input extern 10MHz,this LED on.
ERROR:if not output ,this led on,
A:what is F,ADJ ,any used.
Q:adjust inside OCXO frequency.
