10KHz-10MHz Line EMI Meter Mains Noise Tester Broadband With OLED Screen
10KHz-10MHz Line EMI Meter Mains Noise Tester Broadband With OLED Screen
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout

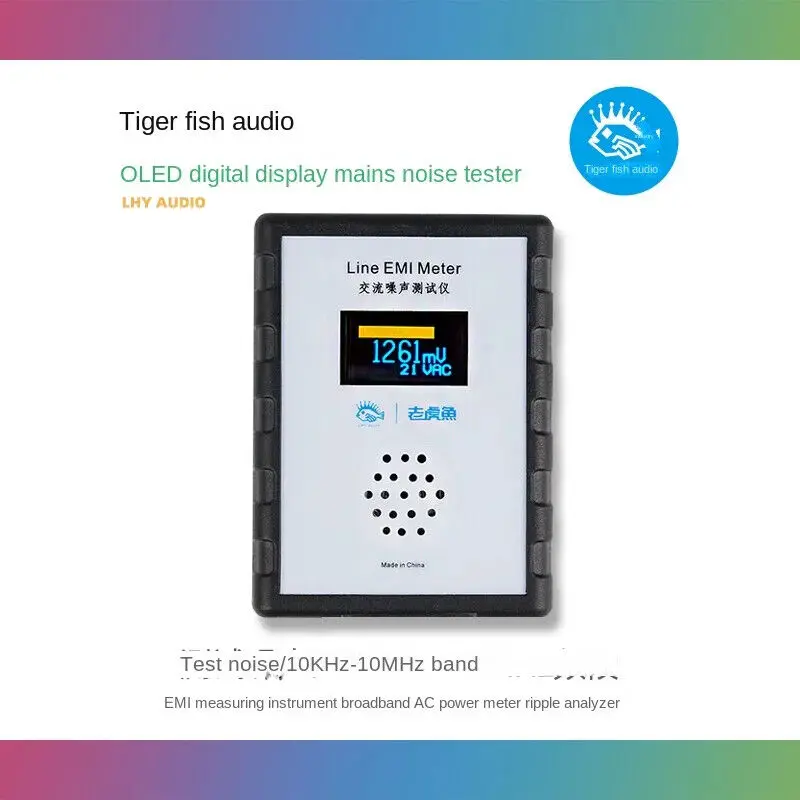

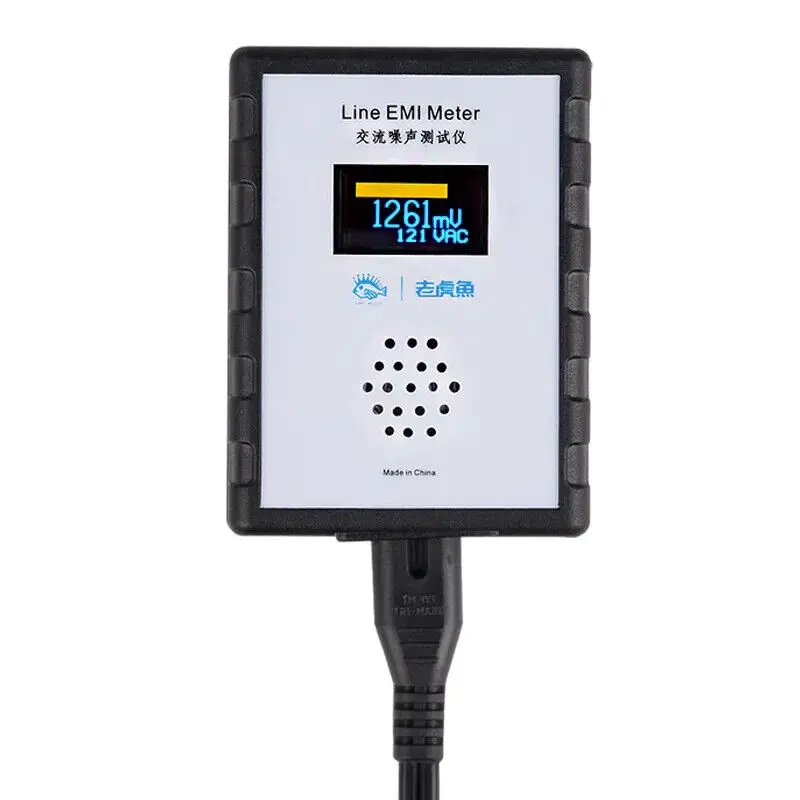

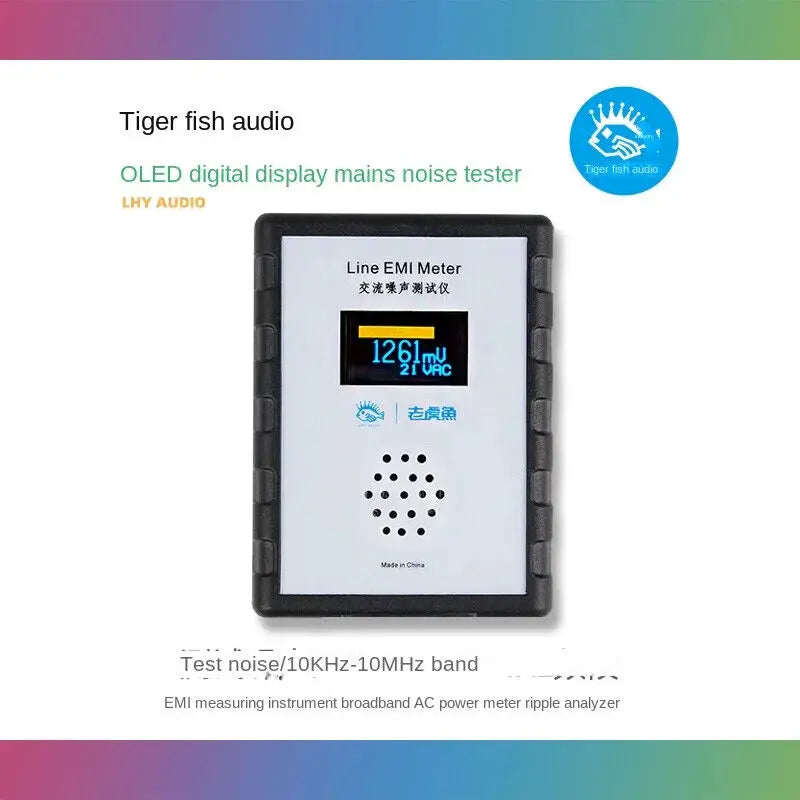

10KHz-10MHz Line EMI Meter Mains Noise Analyzer
Description:
The main function of this AC mains noise tester is to display the current voltage and noise voltage of the mains through the panel's OLED dot matrix screen. In this way, everyone can see the current state of the mains power very intuitively, and have an accurate judgment on the quality of the power supply.
Features:

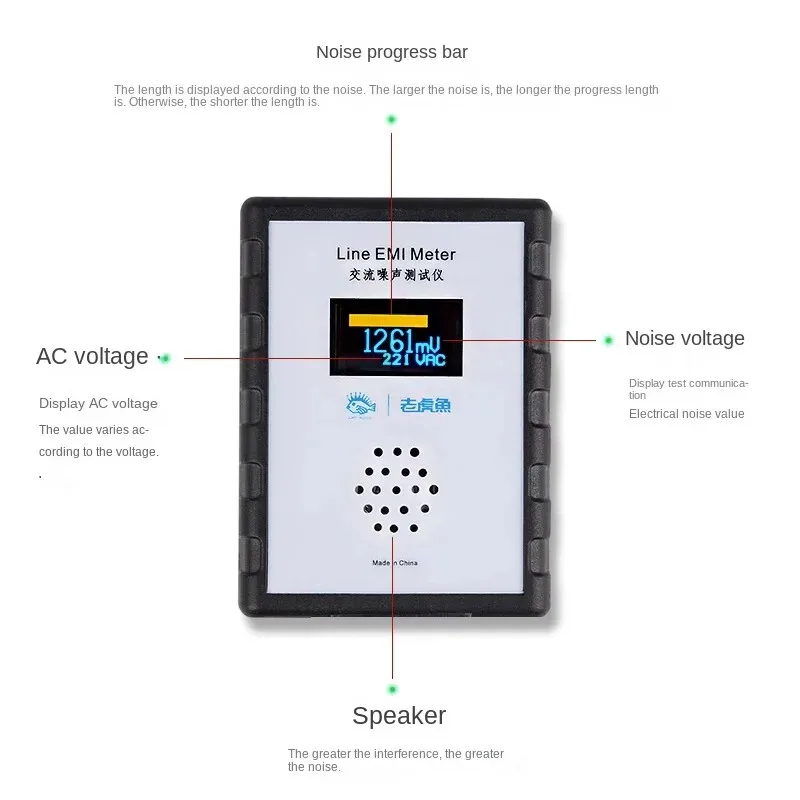

- OLED screen displays noise voltage and AC voltage
- There are small speakers that can directly amplify the noise output, and judge the noise intensity and frequency by sound
- Plug directly into a wall socket (power socket)
- The speaker plays EMI sounds and amplitudes are demodulated to identify EMI sources (such as AM or shortwave radios, motors and arcs)

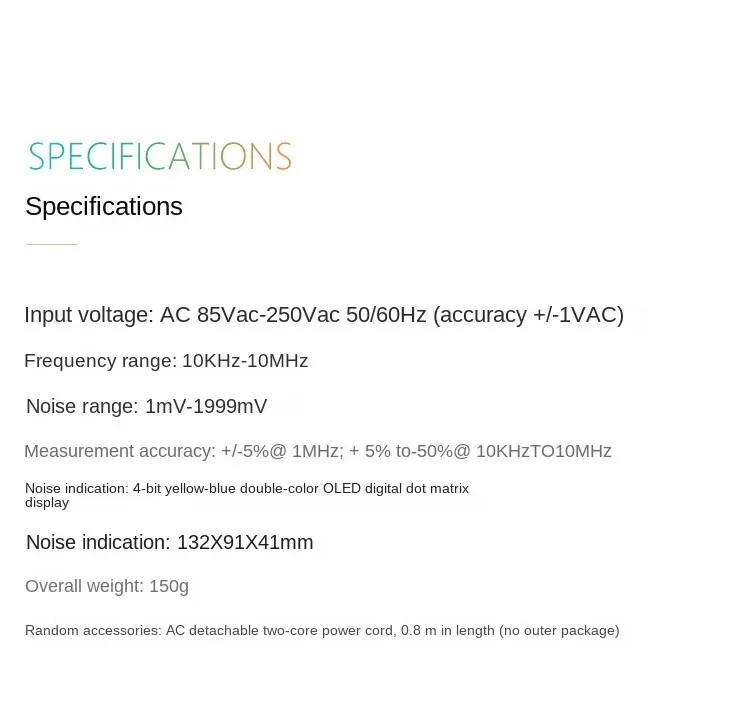

Specifications:
- Input voltage: AC 85Vac - 250Vac 50/60Hz (Accuracy: ±1 VAC)
- Frequency Range: 10KHz - 10MHz
- Noise Range: 1mV - 1999mV
- Measurement Accuracy: ±5% @ 1MHZ; +5% to -50% @ 10 KHz to 10MHz
- Noise Indication: 4 digits yellow and blue two-color OLED digital dot matrix display
- Dimensions: 132 x 91 x 41mm
- Machine weight: 150g
Package Included:

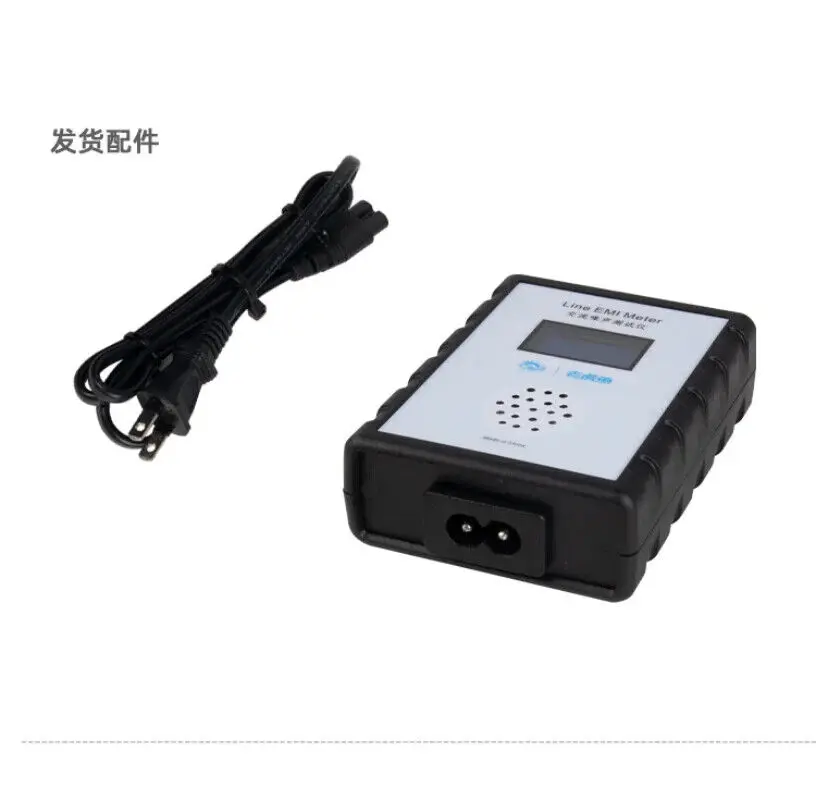

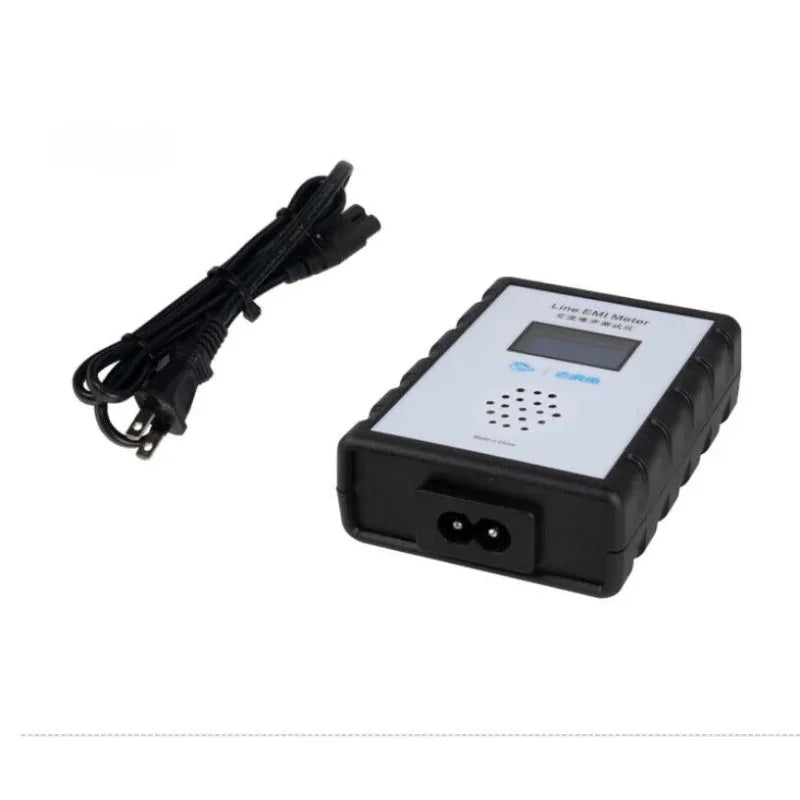

- 1 x Mains Noise Analyzer
- 1 x AC Power Cable(Optional US plug / EU plug )
Description
Description
10KHz-10MHz Line EMI Meter Mains Noise Analyzer
Description:
The main function of this AC mains noise tester is to display the current voltage and noise voltage of the mains through the panel's OLED dot matrix screen. In this way, everyone can see the current state of the mains power very intuitively, and have an accurate judgment on the quality of the power supply.
Features:
- OLED screen displays noise voltage and AC voltage
- There are small speakers that can directly amplify the noise output, and judge the noise intensity and frequency by sound
- Plug directly into a wall socket (power socket)
- The speaker plays EMI sounds and amplitudes are demodulated to identify EMI sources (such as AM or shortwave radios, motors and arcs)
Specifications:
- Input voltage: AC 85Vac - 250Vac 50/60Hz (Accuracy: ±1 VAC)
- Frequency Range: 10KHz - 10MHz
- Noise Range: 1mV - 1999mV
- Measurement Accuracy: ±5% @ 1MHZ; +5% to -50% @ 10 KHz to 10MHz
- Noise Indication: 4 digits yellow and blue two-color OLED digital dot matrix display
- Dimensions: 132 x 91 x 41mm
- Machine weight: 150g
Package Included:
- 1 x Mains Noise Analyzer
- 1 x AC Power Cable(Optional US plug / EU plug )
