10Khz-1.5Ghz NanoVNA NanoVNA-F V3.1 VNA HF VHF UHF Vector Network Antenna Analyzer 4.3 inch IPS LCD Metal Case
10Khz-1.5Ghz NanoVNA NanoVNA-F V3.1 VNA HF VHF UHF Vector Network Antenna Analyzer 4.3 inch IPS LCD Metal Case
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout

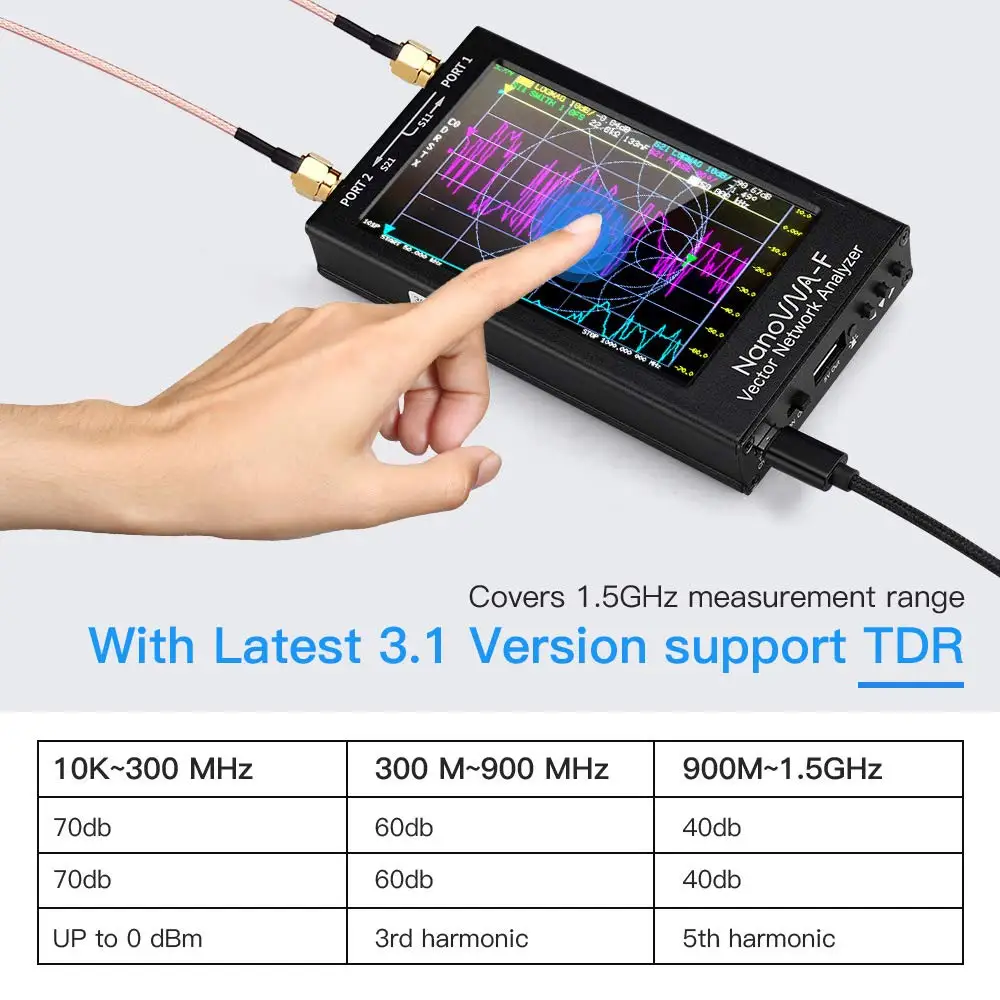

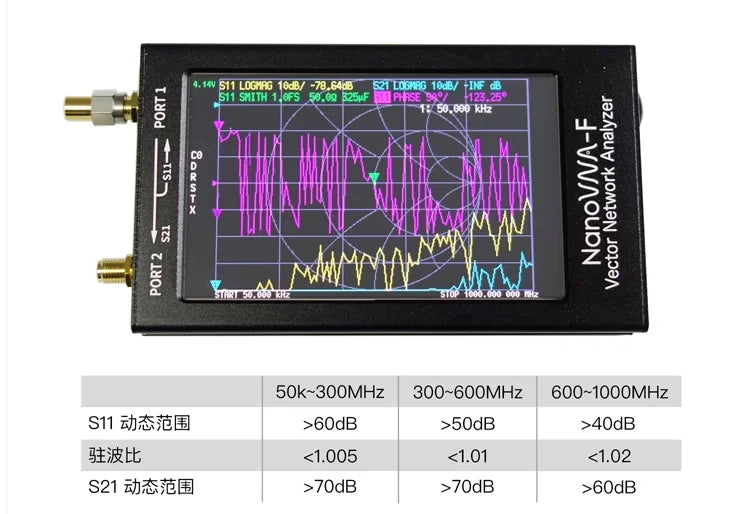

The new hardware increases the measured output power, and there is still a good dynamic when the frequency reaches 1.5GHz. The actual measurement is shown in the figure.

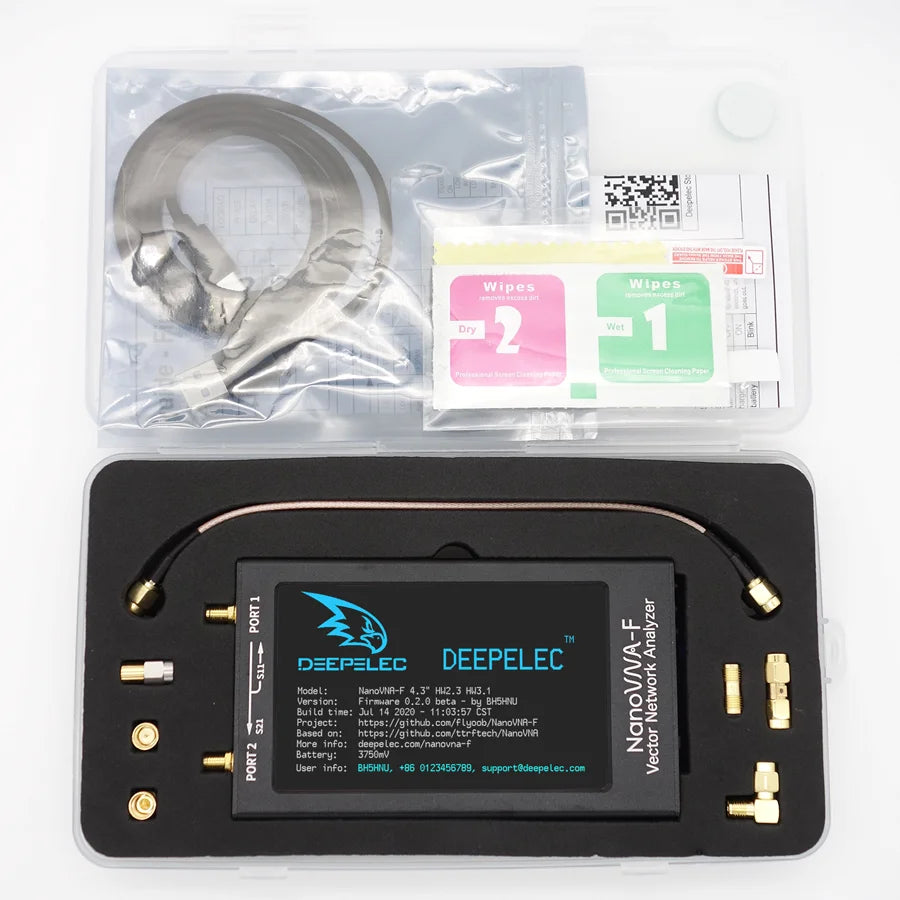

Latest firmware is V0.2.0 beta.
Firmware v0.2.0 beta update instructions:
1. Add data storage function, can save s1p, s2p files to SPI Flash in real time, which is convenient for offline analysis;

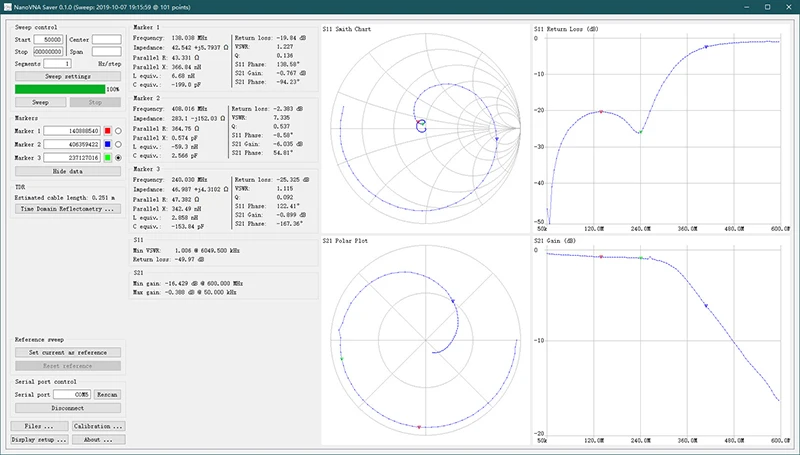

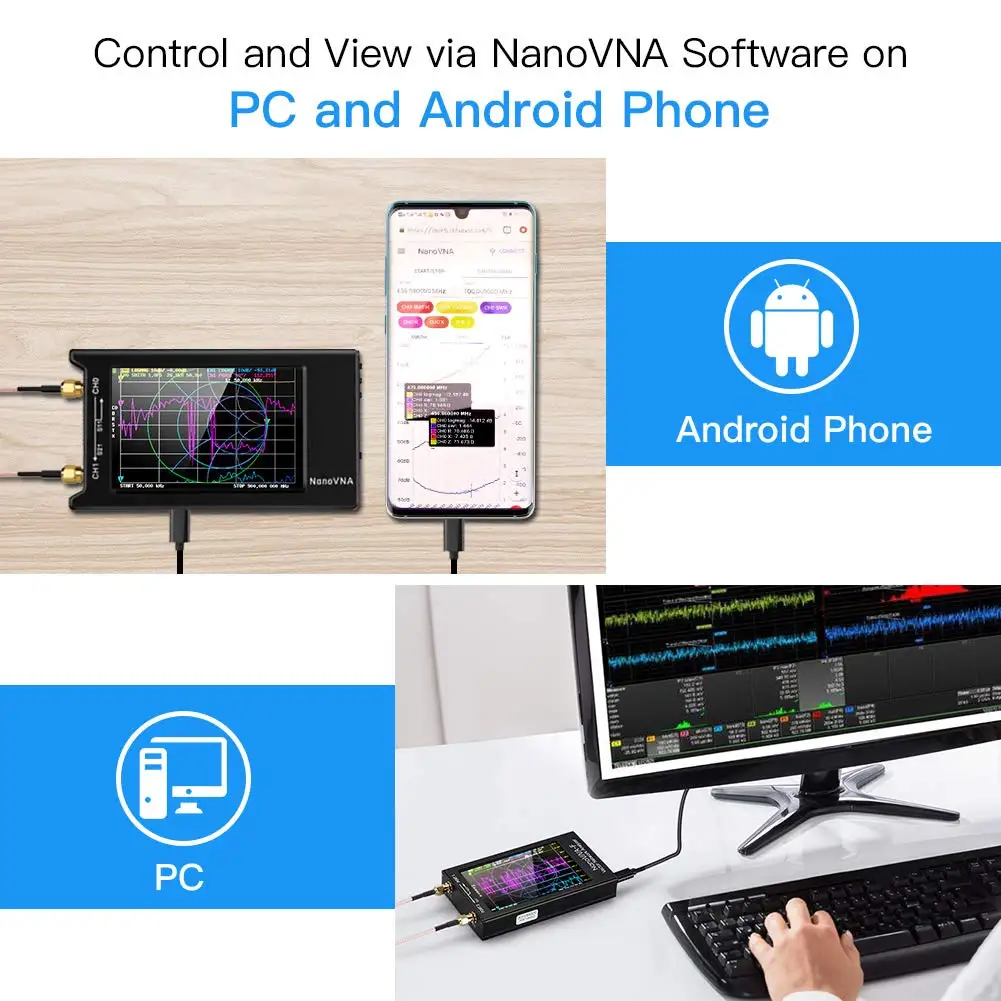

2. Adapt NanoVNA-Saver screenshot function, need to use [nanovna-saver-0.3.4-bh5hnu.exe] compiled by BH5HNU; you can get the new software from groups.io.
3. Support LCD backlight adjustment, adjustment range 1-100, default 75;
4. Revise the voltage display as the power display, support 8-level power display;
5. The calibration data interpolation uses the latest saved data instead of the default position of 0, which is more in line with operating habits;
6. Some UI optimizations such as Marker;
7. The maximum settable frequency can be expanded to 2.7GHz;

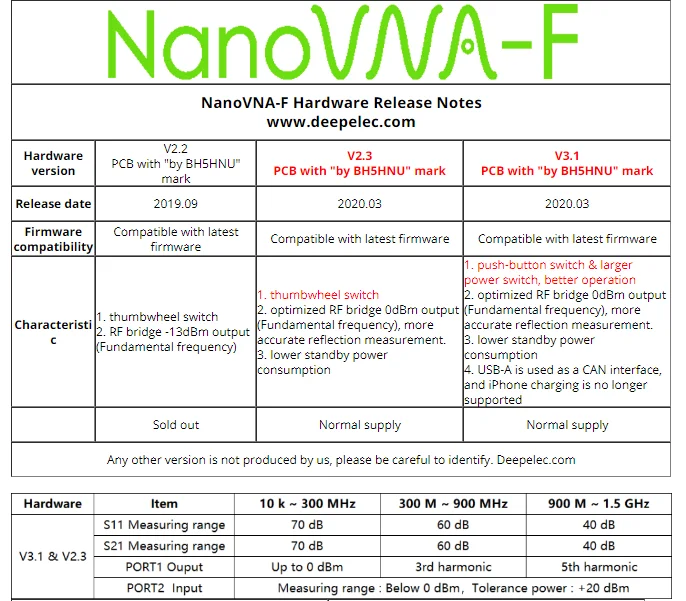

8. Two different sets of gain tables are used for hardware V2.2 and hardware V2.3&V3.1, please be sure to select the corresponding firmware to upgrade, please consult your seller for how to check the hardware version;
Important hint !
This firmware is only applicable to NanoVNA-F machines manufactured by BH5HNU.
Any third-party NanoVNA-F hardware has not been tested, and any problems with third-party hardware using this firmware will not be explained by BH5HNU. Thank you for your cooperation.
support measurable frequency to 1.5 GHz, default setting 1 GHz, accurate measurement up to 1.35GHz.
Product Description:

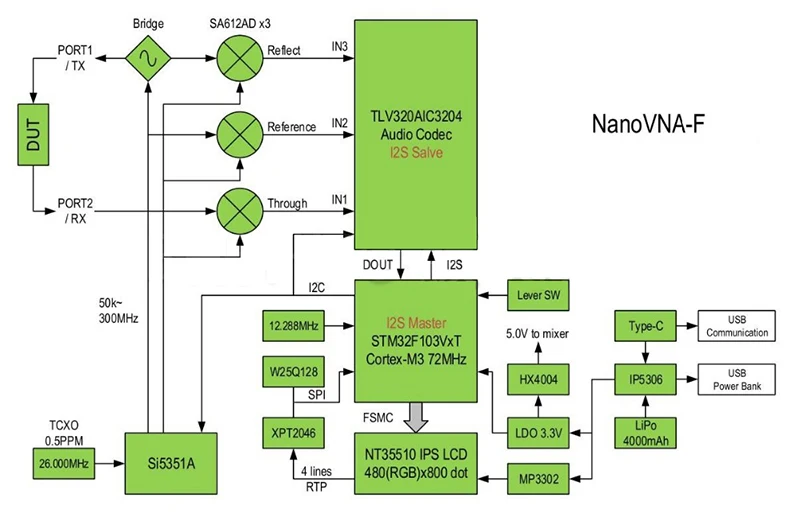

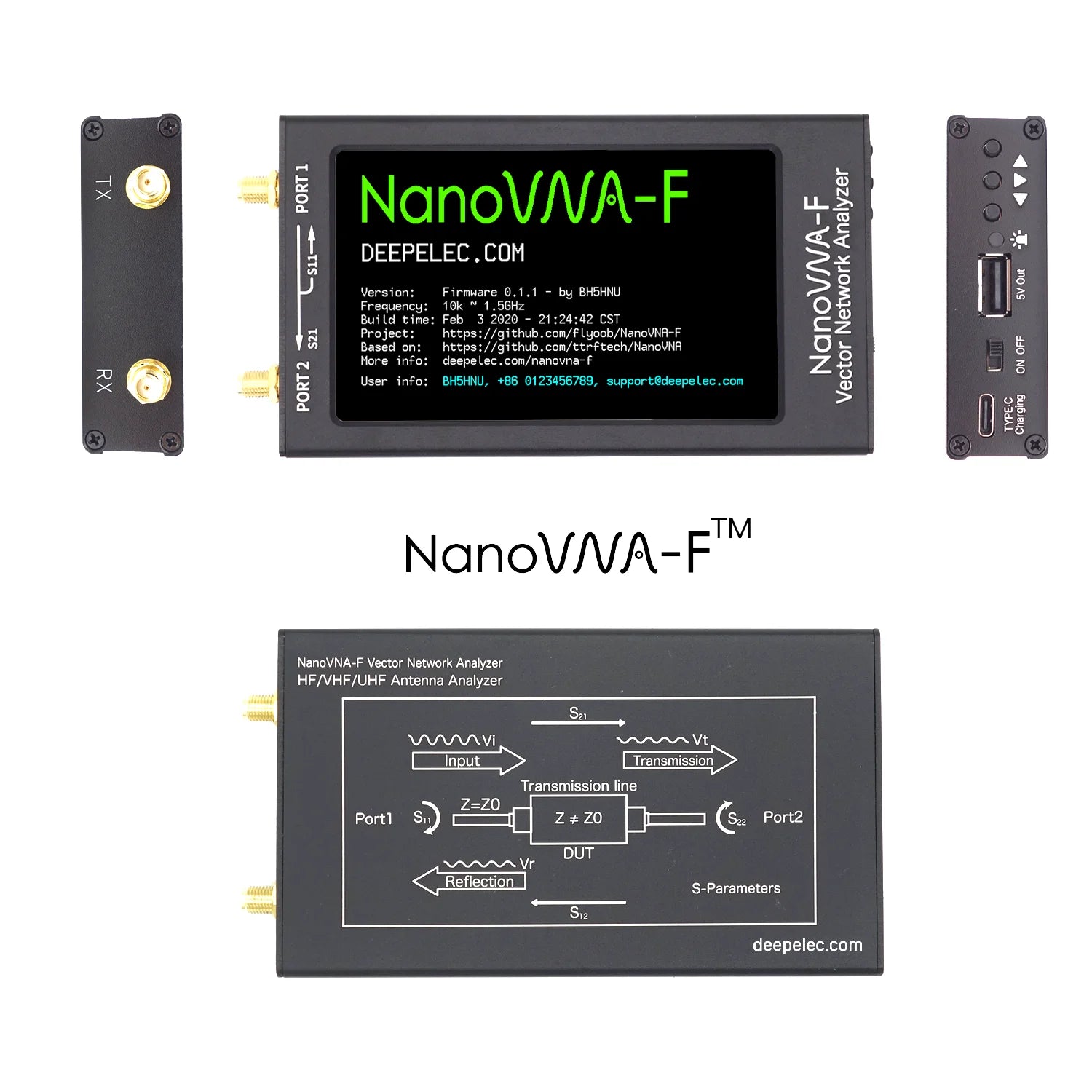

NanoVNA-F Mini Vector Network Analyser is a product based on the Open Source Project of NanoVNA (https://ttrf.tk/kit/nanovna/). The RF part is consistent with the original version (NanoVNA-F uses harmonic spread measurement frequency to 1.5 GHz ).
Features:
Designing a metal shield for the RF front end, allowing the S21 to have a dynamic range better than 60dB over the full frequency range
Open route length test:

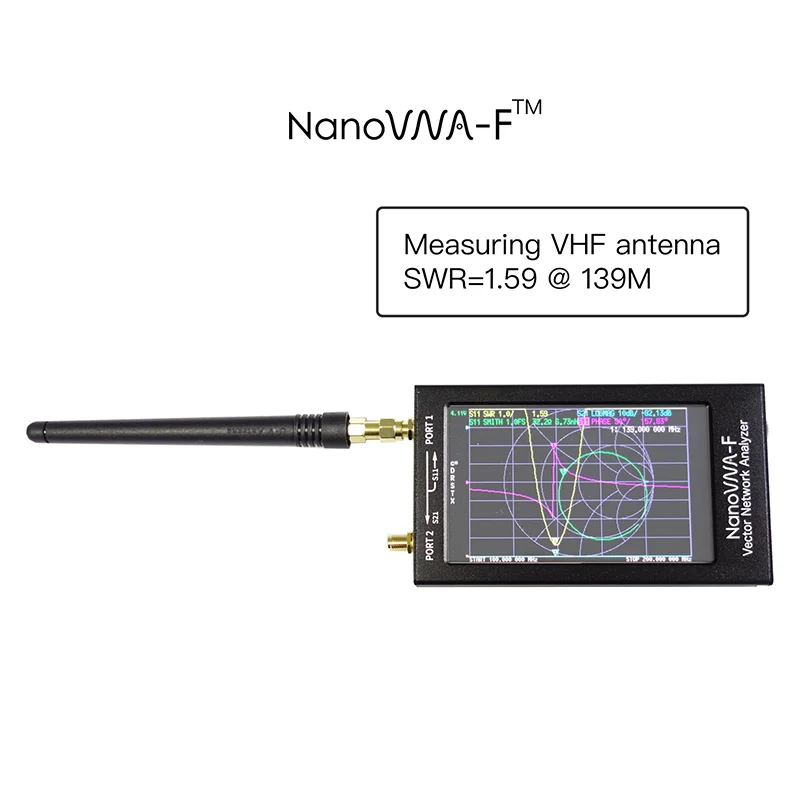

NanoVNA-F S11 parameter, SWR standing wave ratio test
1x Handwriting Pen

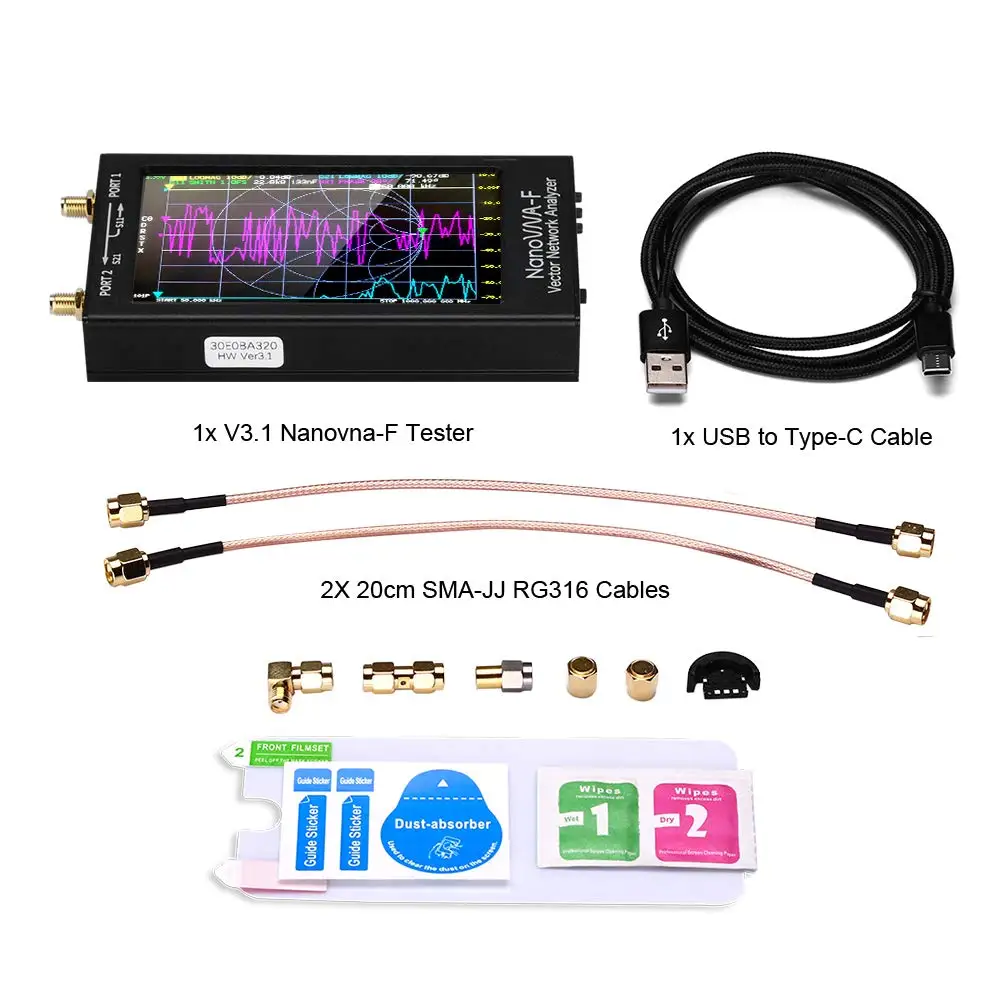

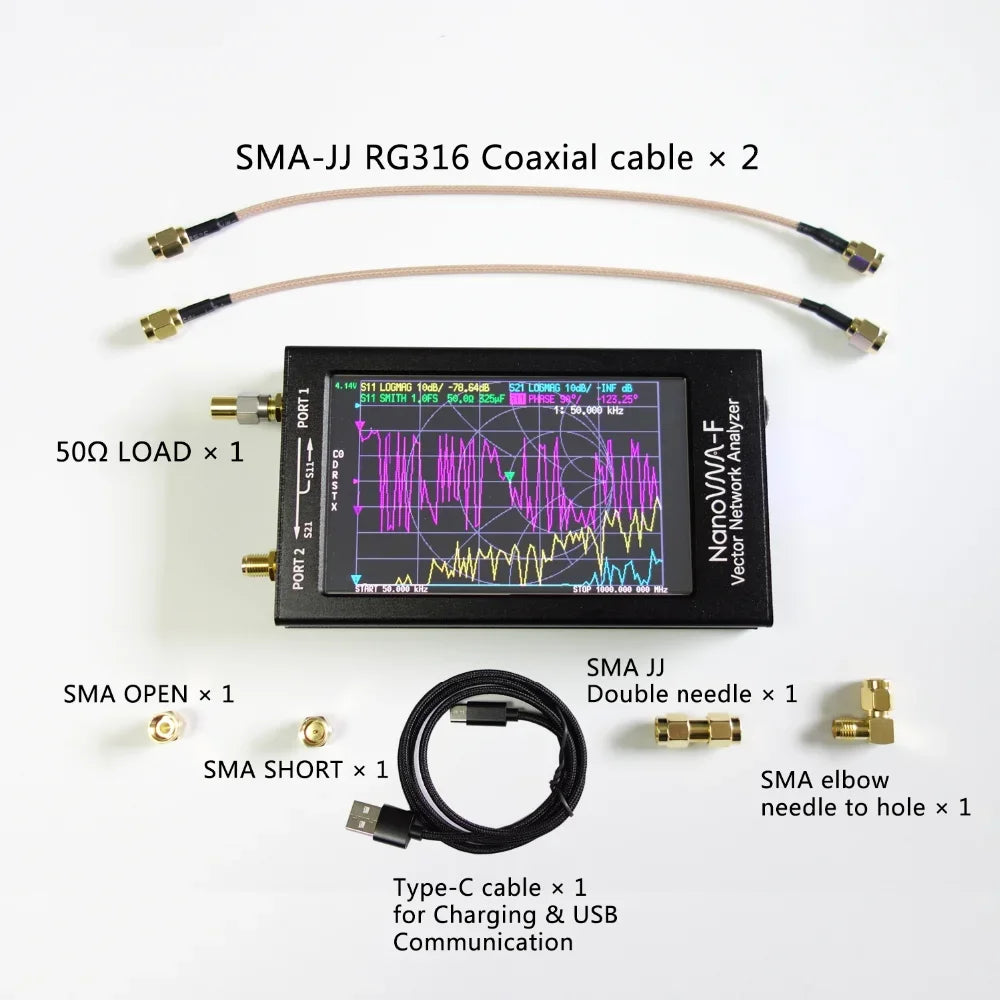

Packing list
Package list;
Nanovna meter x1

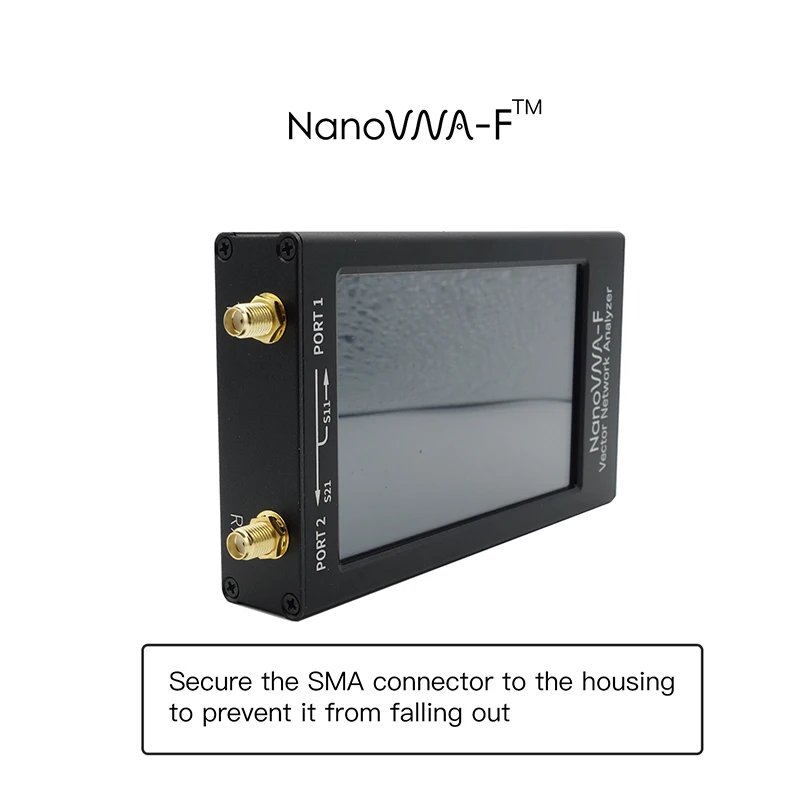

● SMA-JJ RG316 cable 20CM x2 (NanoVNA-F is a standard SMA female connector, which is used to switch to M head and N head to better protect SMA female)
● 1 set of calibration parts (50Ω standard load x1, open circuit calibration piece x1, short circuit calibration piece x1, use the included calibration piece, the instrument can be calibrated to get good measurement result data)
● SMA-JJ double needle x1
● SMA elbow external screw inner hole to inner screw inner needle x1
● Type-C data cable x1
● Stylus x1
