1.8MHz-50MHz 0.5W-120W SWR HF Short Wave Standing Wave Meter SWR and Power Meter + Battery + OLED FM AM CW SSB
1.8MHz-50MHz 0.5W-120W SWR HF Short Wave Standing Wave Meter SWR and Power Meter + Battery + OLED FM AM CW SSB
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout

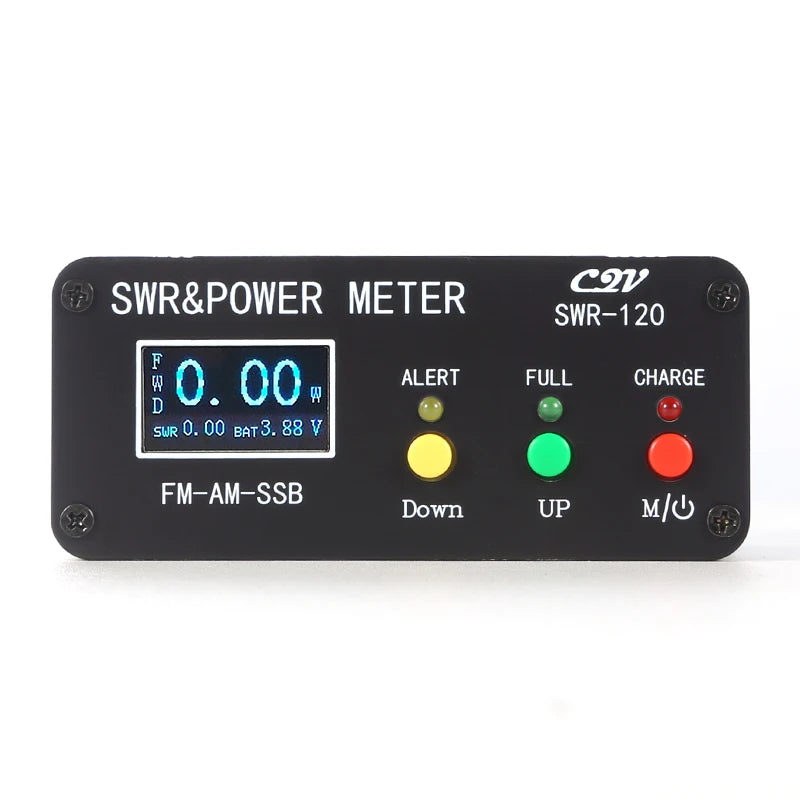

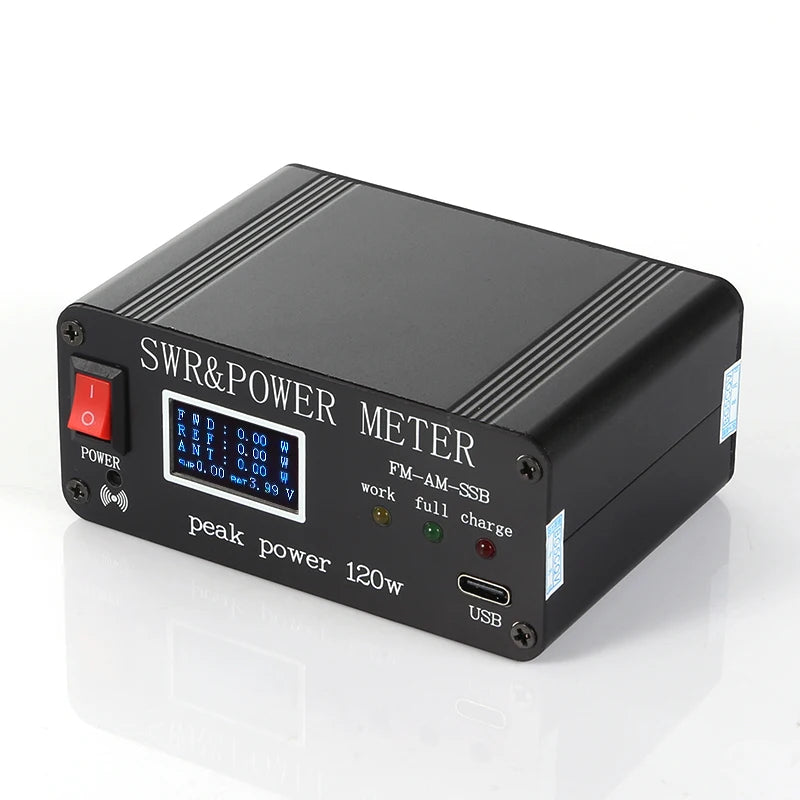

Two versions:

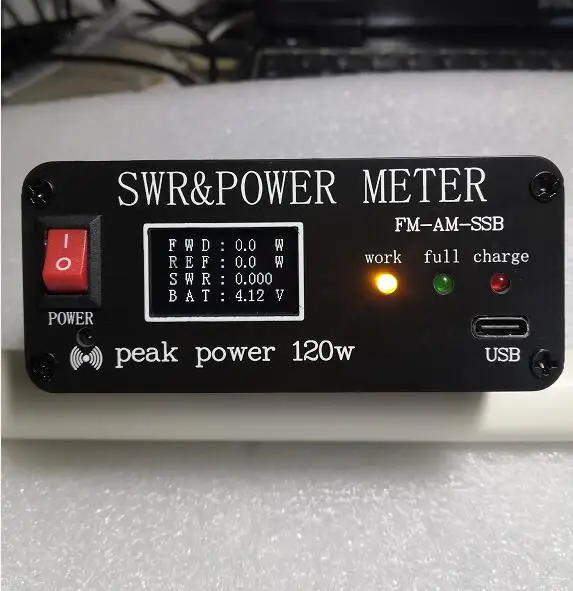

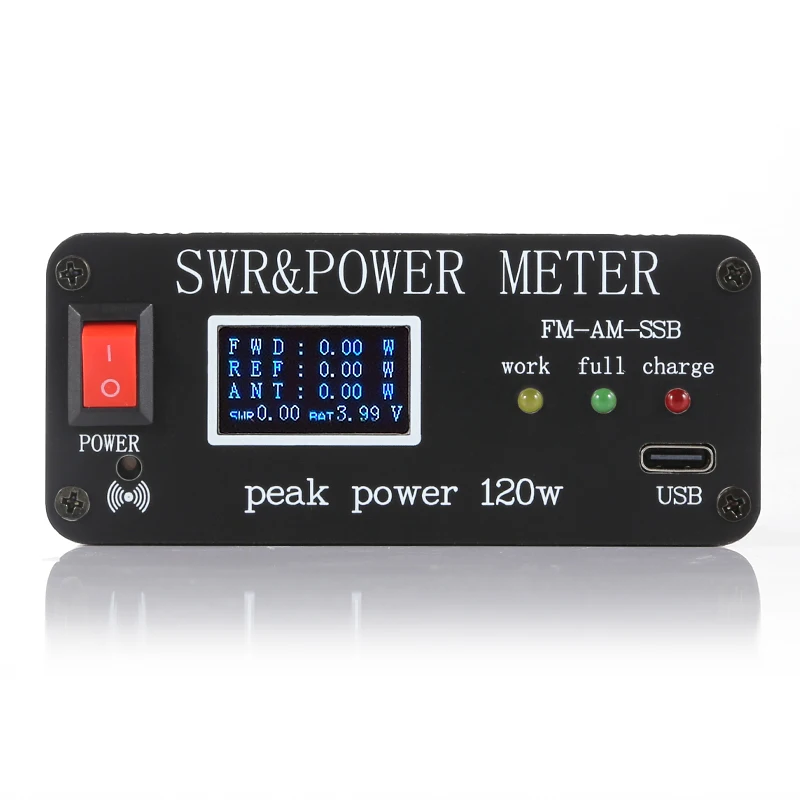

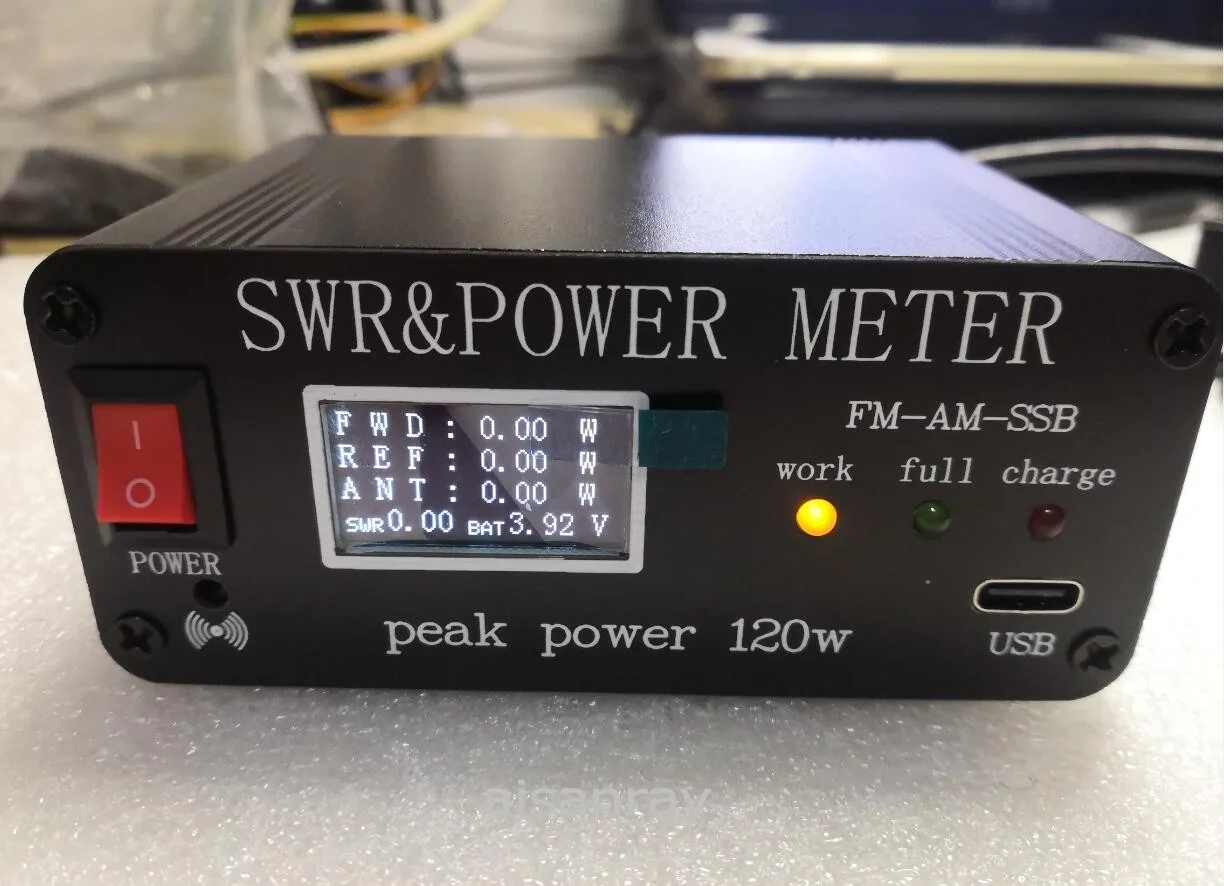

without button ( old version)

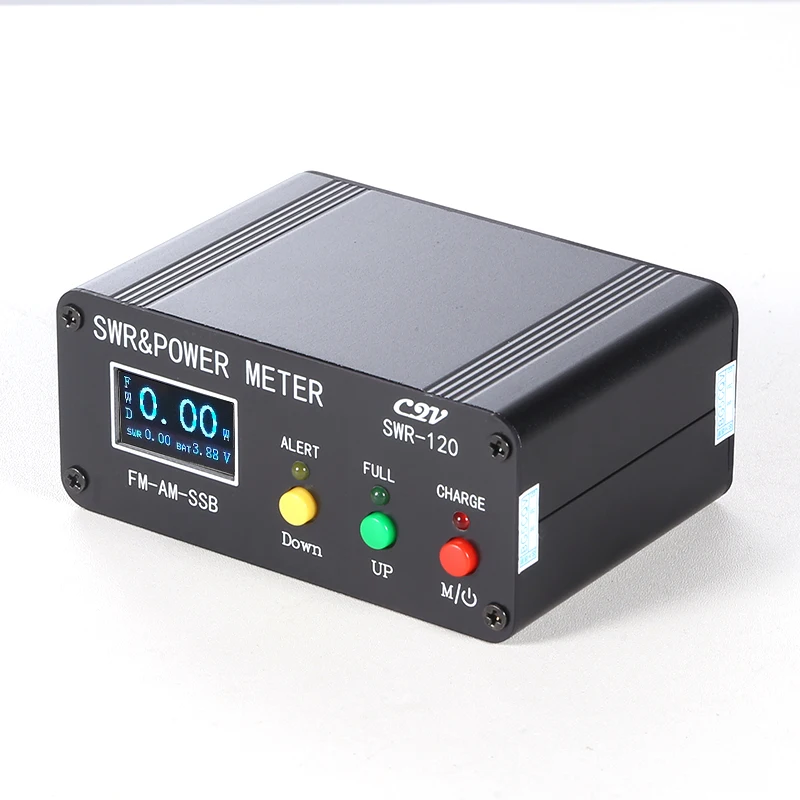

with button ( new upgrade version)
Short wave power standing wave meter digital standing wave meter power meter
The new firmware adds ant antenna power and eff antenna efficiency display
Test video :
https://www.youtube.com/watch?v=GCq2oGIYW-w
https://www.youtube.com/watch?v=DDHUbllD5bw
Frequency range: 1.8mhz-50mhz
Measurement range: 0.5w-120w (up to 210W, long-time FM, am, CW mode is recommended to be less than 120W, SSB mode is optional)
Measurement accuracy: ＜± 5%
Standing wave range: 1.0-99.99
Access interface: sl16 (block m)
Charging interface: type-C
Aluminum alloy shell size: 63mm * 88mm * 38mm (excluding protruding parts)
Battery capacity: 1000mah
Insertion loss: ＜ 0.1dB
Charging shows red light, full green light and working yellow light
When the standing wave is greater than 2.5, the buzzer prompts intermittently
If the standing wave is greater than 3.0, the buzzer will prompt continuously
Battery undervoltage, buzzer continuous prompt
The version information is displayed after power on, and the power standing wave measurement interface and battery power are displayed after 3 seconds. English interface,
Description
Description
Two versions:
without button ( old version)
with button ( new upgrade version)
Short wave power standing wave meter digital standing wave meter power meter

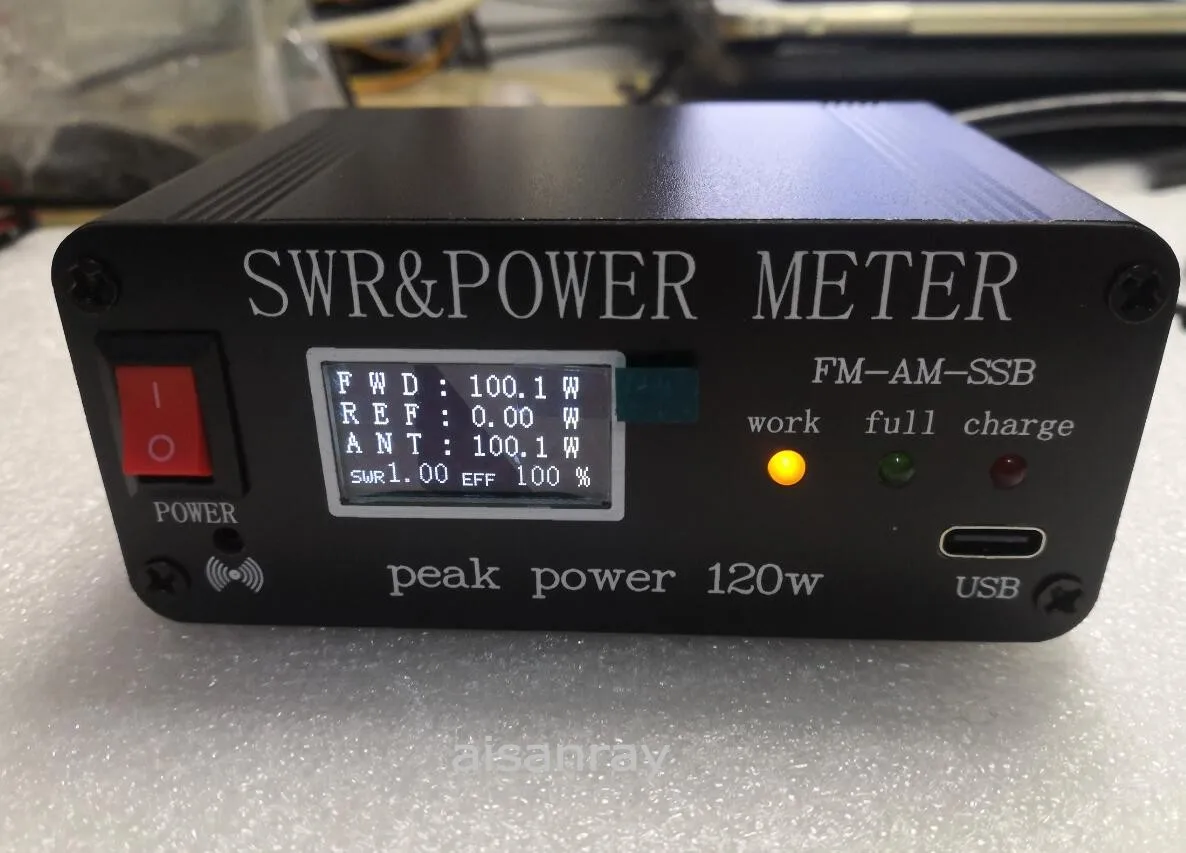

The new firmware adds ant antenna power and eff antenna efficiency display
Test video :
https://www.youtube.com/watch?v=GCq2oGIYW-w
https://www.youtube.com/watch?v=DDHUbllD5bw
Frequency range: 1.8mhz-50mhz
Measurement range: 0.5w-120w (up to 210W, long-time FM, am, CW mode is recommended to be less than 120W, SSB mode is optional)
Measurement accuracy: ＜± 5%
Standing wave range: 1.0-99.99

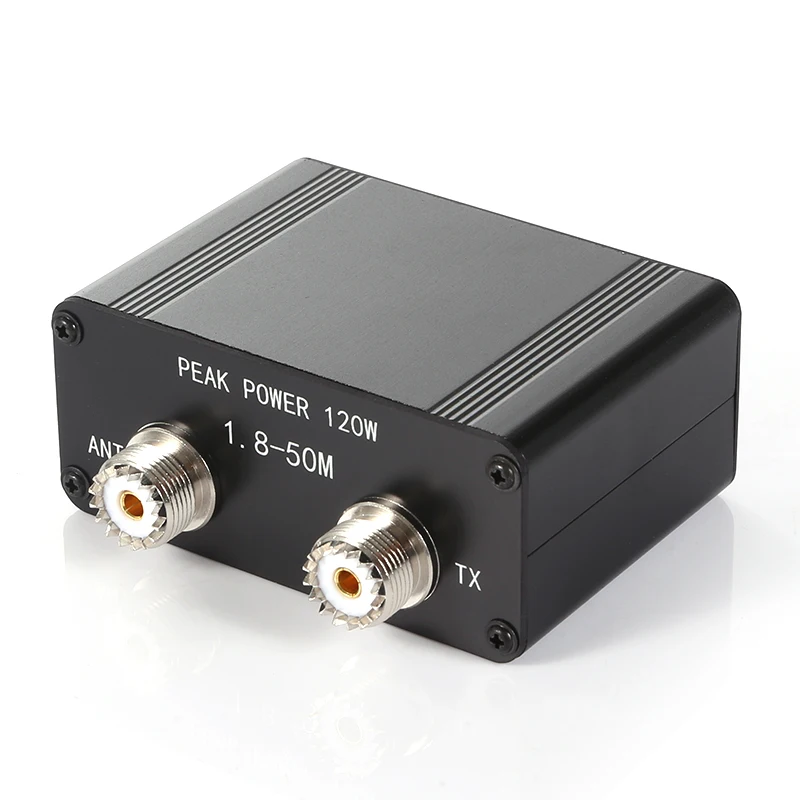

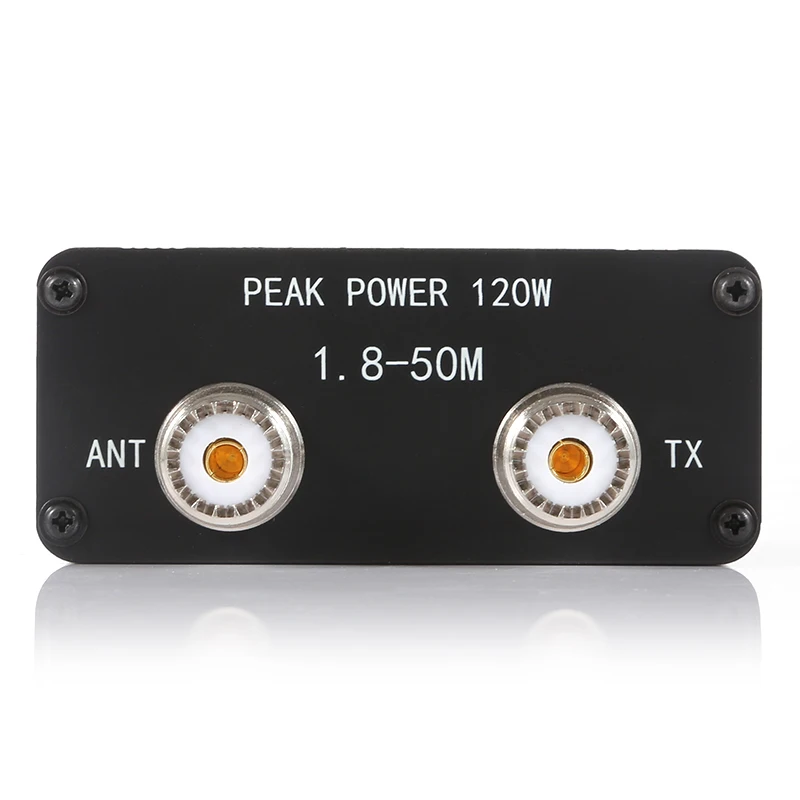

Access interface: sl16 (block m)
Charging interface: type-C
Aluminum alloy shell size: 63mm * 88mm * 38mm (excluding protruding parts)
Battery capacity: 1000mah
Insertion loss: ＜ 0.1dB
Charging shows red light, full green light and working yellow light
When the standing wave is greater than 2.5, the buzzer prompts intermittently
If the standing wave is greater than 3.0, the buzzer will prompt continuously
Battery undervoltage, buzzer continuous prompt
The version information is displayed after power on, and the power standing wave measurement interface and battery power are displayed after 3 seconds. English interface,
